1794-IE12

Flex 12 Point Analog Input Module

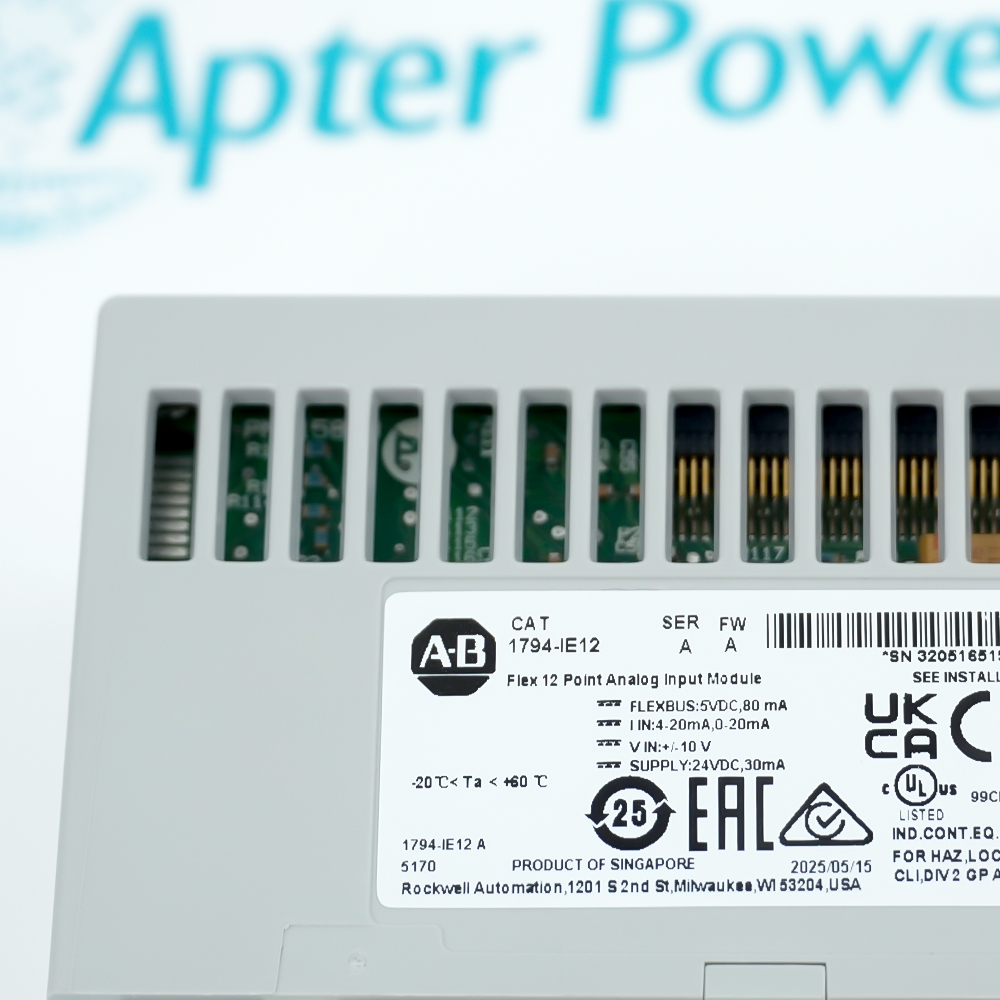

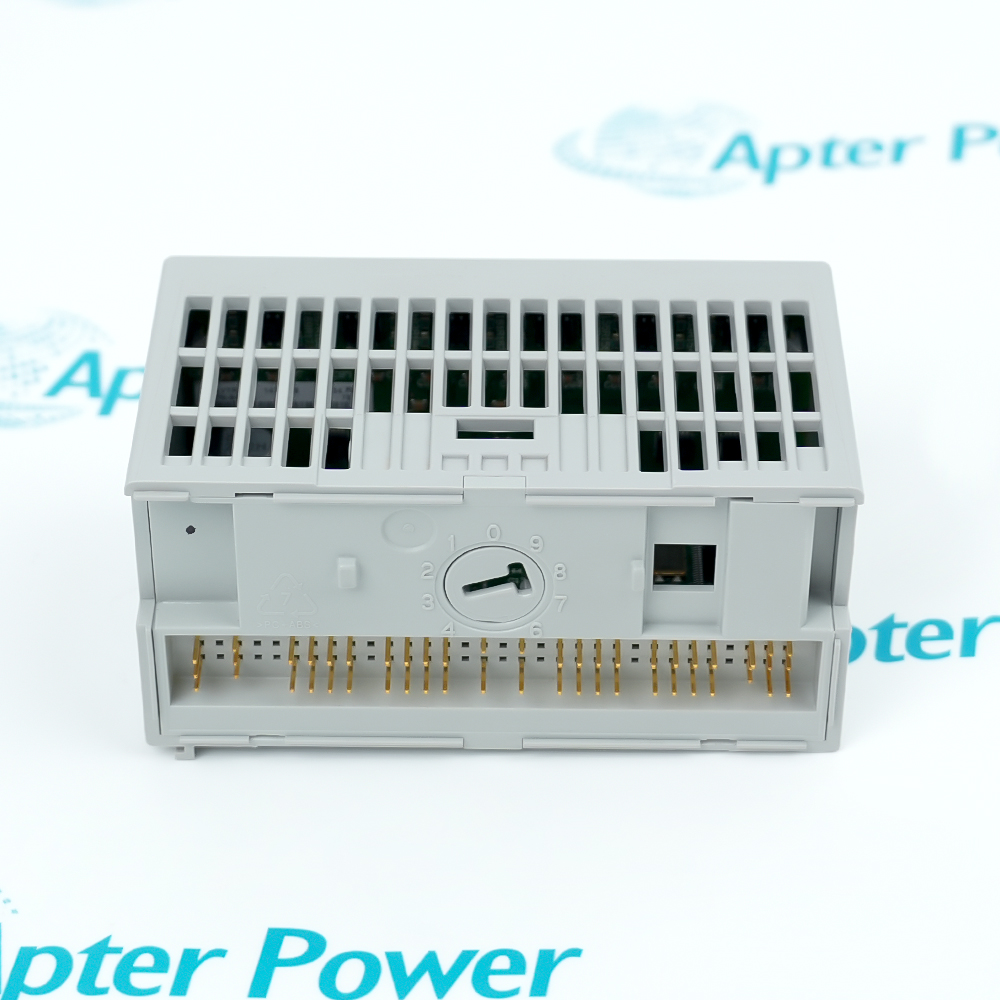

Allen-Bradley 1794-IE12
Allen-Bradley 1794-IE12
Allen-Bradley 1794-IE12
Allen-Bradley 1794-IE12
Allen-Bradley 1794-IE12
Allen-Bradley 1794-IE12
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Flex 12 Point Analog Input Module
Allen-Bradley 1794IE12
Flex I/O Analog Input Module,
12 Single-Ended Inputs, 16-Bit
Get a quick price for 1794-IE12
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1794-IE12

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1794-IE12
  • Estimated shipping dimensions:
    9.2x5.4x4.8cm
  • Weight:
    0.1 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • No. of inputs:
    Twelve (12) Single Ended
  • Input type:
    0 to 20 mA; 4 to 20 mA; +/- 10VDC; 0 to 10 VDC
  • Conversion Type:
    Successive Approximation
  • Absolute Accuracy:
    0.1% full scale @ 25 °C
  • External DC supply, nom:
    24V DC
  • External DC supply range:
    10.0…31.2V DC (includes 5% AC ripple)
  • Mounting:
    DIN Rail

Information

Overview Manuals Common Applications Product Precautions
The 1794-IE12 is a FLEX I/O high-density analog input module manufactured by Rockwell Automation. It features 12 single-ended input channels, enabling it to convert analog current or voltage signals from industrial field sensors into digital data recognizable by the PLC.
    • Provides 12 channels
    • Hot-swap function
    • Flexible configuration
The Allen-Bradley FLEX I/O system offers a flexible, modular, and cost-effective solution for your industrial automation and control. The space saving design offers rack based I/O functionality of up to eight modules and provides digital, analog, HART analog, and specialty I/O with 4...32 points per module with flexible mounting and wiring options.The 1794-IE12 input module from Allen Bradley’s Flex I/O 1794 lineup serves as a vital interface in various automation applications. It ensures efficient functioning at an input power supply voltage typically rated at 24 volts DC but supports a range from 10.5 to 31.2 volts DC. The unit demands a FLEXBus current of 80 mA for operation, which is essential for its performance in distributed I/O setups.With a maximum continuous isolation voltage of 50 volts, this module guarantees protection against electrical faults. This feature enhances safety in installations by mitigating risks of cross-talk and disturbances.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1794-IE12 Flex 12 Point Analog Input Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power & Energy
Monitoring generator operating parameters, transformer oil temperatures, and cooling system pressures.

Oil & Gas
Collecting data from wellhead pressure, tank levels, and oil pipeline temperatures.

Chemical Processing
Real-time acquisition of reactor pressure, temperature, and chemical reagent flow rates.

Pharmaceuticals
Monitoring cleanroom differential pressure, humidity, and various analog metrics of fermentation tanks.

Steel & Metallurgy
Monitoring blast furnace temperatures, cooling water flow, and tension control during metal processing.

Pulp & Paper
Measuring pulp consistency, dryer temperatures, and roller tension on paper machines.

 When using the 1794-IE12, it is essential to ensure a stable external 24V DC power supply and properly configure the terminal base to prevent signal interference. Since this is a non-isolated single-ended module, you must strictly avoid common-mode voltages between channels that exceed specified limits. Additionally, before performing Removal and Insertion Under Power (RIUP), verify that the environment is safe and non-hazardous.

FAQ View All FAQ

  • What is the 1794-IE12?
    The 1794-IE12 is a 12-channel high-density analog input module from the Allen-Bradley FLEX I/O family. It converts analog signals from industrial sensors into digital data for PLC processing.
  • What input signal types does 1794-IE12 support?
    It primarily supports standard current signals (4-20mA and 0-20mA) and voltage signals (+/-10V and 0-10V).
  • How do I physically install the 1794-IE12?
    It must be mounted onto a compatible terminal base, such as the 1794-TB3 or 1794-TB3S, and then secured via a DIN rail.
  • What do the LED indicators on 1794-IE12 mean?
    It typically features a Power LED, where steady green indicates the module is powered and operating correctly.
  • How to configure 1794-IE12 in software?
    It is configured by adding the module to the I/O tree in Studio 5000 or RSLogix 5000 and setting the input ranges and digital filter parameters.
