      Bently Nevada 330180-X1-CN MOD:143416-29
      Bently Nevada 330180-X1-CN MOD:143416-29
      Bently Nevada 330180-X1-CN MOD:143416-29
      Bently Nevada 330180-X1-CN MOD:143416-29
      Bently Nevada 330180-X1-CN MOD:143416-29
      Bently Nevada 330180-X1-CN MOD:143416-29
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330180-X1-CN MOD:143416-29

      Proximitor Sensor
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

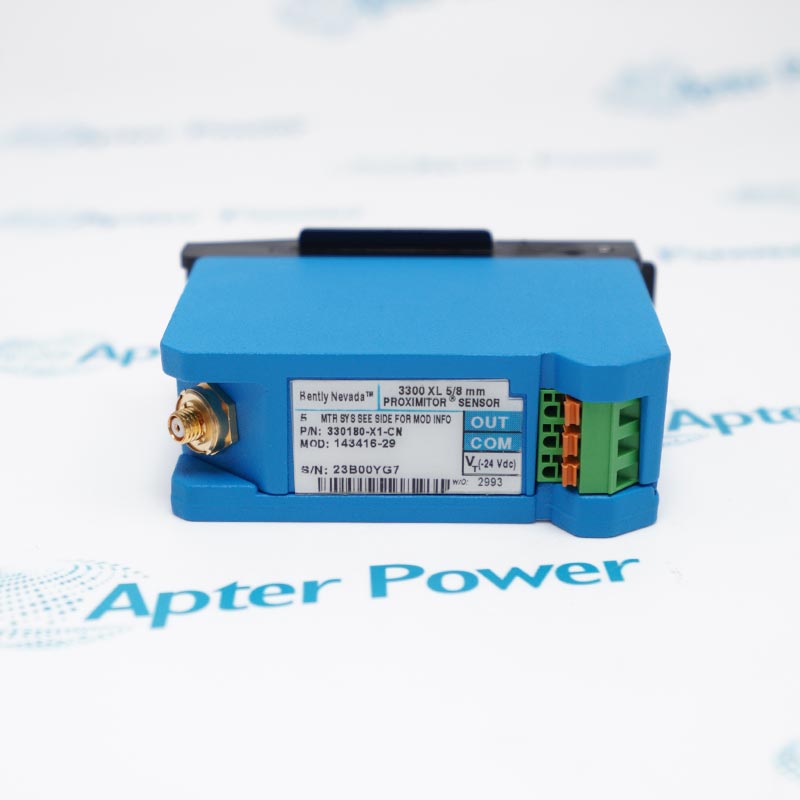

      Bently Nevada 330180-X1-CN MOD:143416-29 is a marked 3300 XL 8 mm Proximitor Sensor configuration. It conditions the matched proximity-probe signal while preserving its X1, CN and MOD identity.

      Ask our team:

      Get a quick price for： 330180-X1-CN MOD:143416-29
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330180-X1-CN MOD:143416-29

      Technical specifications for 330180-X1-CN MOD:143416-29

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330180-X1-CN MOD:143416-29
      • Estimated shipping dimensions:
        ​8.8x3.5x7cm
      • Weight:
        0.2 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Manufacturer series:
        330180 Proximitor Sensor
      • Compatible probe input:
        3300-series 5 mm or 3300 XL 8 mm matched probe chain
      • X1 configuration:
        Resolve from physical nameplate and installed mounting
      • CN control:
        Retain supplied suffix and verify current marking
      • Retain supplied suffix and verify current markingMOD identity:
        143416-29; not decoded in publication 141194
      • Power without barriers:
        -17.5 to -26 Vdc
      • Maximum consumption:
        12 mA
      • Output resistance:
        50 ohm
      • Nominal scale factor:
        7.87 V/mm for the standard matched system
      • Frequency response:
        0 to 10 kHz under published conditions
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330180-X1-CN MOD:143416-29 is a marked 3300 XL 8 mm Proximitor Sensor configuration. It conditions the matched proximity-probe signal while preserving its X1, CN and MOD identity.
      • 3300 XL 8 mm signal conditioning
      • 50 ohm output resistance
      • Negative-DC powered interface
      • Nameplate-controlled X1, CN and MOD identity

      Use 330180-X1-CN MOD:143416-29 only after resolving the physical X1 configuration and matching the complete 3300 XL 8 mm transducer chain.

      Important Notice: Confirm 330180-X1-CN MOD:143416-29, the X1 configuration, CN marking, MOD identity and channel response before release.

      330180-X1-CN MOD:143416-29 Manuals & Downloads
      330180-X1-CN MOD:143416-29 Technical Reference (PDF)330180-X1-CN MOD:143416-29 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Radial vibration conditioning
      Conditions the matched probe signal for a monitor channel.
      Axial position
      Provides conditioned displacement output for a thrust channel.
      Machine centerline
      Supports static shaft-position trending with the matched system.
      Monitor restoration
      Restores a documented conditioning position and bias response.
      Read the applicable Bently Nevada instructions before work. Verify Bently Nevada 330180-X1-CN MOD:143416-29 and the installed system configuration before commissioning.
      1
      Verify the entire 330180-X1-CN MOD:143416-29 marking.
      2
      Resolve X1 from the installed unit and approved record.
      3
      Do not assign a function to MOD 143416-29 without manufacturer confirmation.
      4
      Retain and verify the CN marking.
      5
      Match the probe and extension cable to the actual sensor configuration.
      6
      Provide the documented negative DC supply.
      7
      Preserve shielded field wiring and grounding.
      8
      Verify static position, dynamic response, polarity and alarm action before release.

      Technical notes

      Technical notes

      Publication 141194 defines the 330180 family but does not decode MOD 143416-29 or resolve X1. Record the complete nameplate and installed mounting; do not infer a MOD function or direct replacement without manufacturer confirmation.

      FAQS

      • What is Bently Nevada 330180-X1-CN MOD:143416-29?
        It is a marked 330180 3300 XL 8 mm Proximitor Sensor configuration.
      • Which probe family can Bently Nevada 330180-X1-CN MOD:143416-29 condition?
        The 330180 family conditions a compatible 3300-series 5 mm or 3300 XL 8 mm probe and extension cable.
      • How should X1 be handled for Bently Nevada 330180-X1-CN MOD:143416-29?
        Resolve the X1 configuration from the physical nameplate and installed mounting; do not infer it from another unit.
      • How should the CN suffix be handled for Bently Nevada 330180-X1-CN MOD:143416-29?
        Retain CN exactly and verify the approval marking against the supplied nameplate and current manufacturer documentation.
      • What does the MOD identity mean for Bently Nevada 330180-X1-CN MOD:143416-29?
        MOD 143416-29 is not decoded by publication 141194, so it must remain a controlled nameplate identity.
      • What power applies to Bently Nevada 330180-X1-CN MOD:143416-29?
        The 330180 family uses a negative DC supply within the manufacturer-published limits and consumes 12 mA maximum.
      • What output characteristics apply to Bently Nevada 330180-X1-CN MOD:143416-29?
        The standard matched family publishes 50 ohm output resistance and a nominal 7.87 V/mm scale factor.
      • What confirms commissioning of Bently Nevada 330180-X1-CN MOD:143416-29?
        Resolve X1, retain the MOD and CN markings, then verify the matched chain, supply, gap voltage, polarity and dynamic response.
