      330180-90-00

      3300 XL Proximitor Sensor
      In Stock

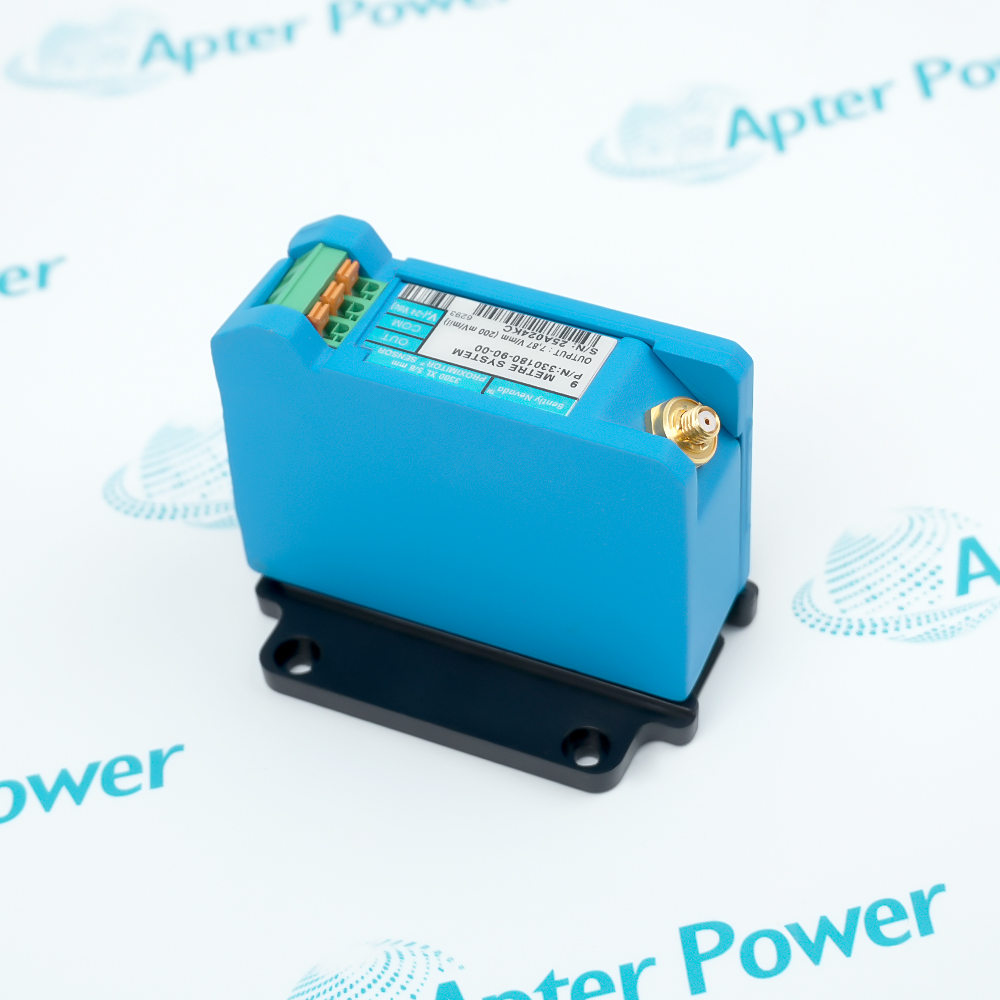

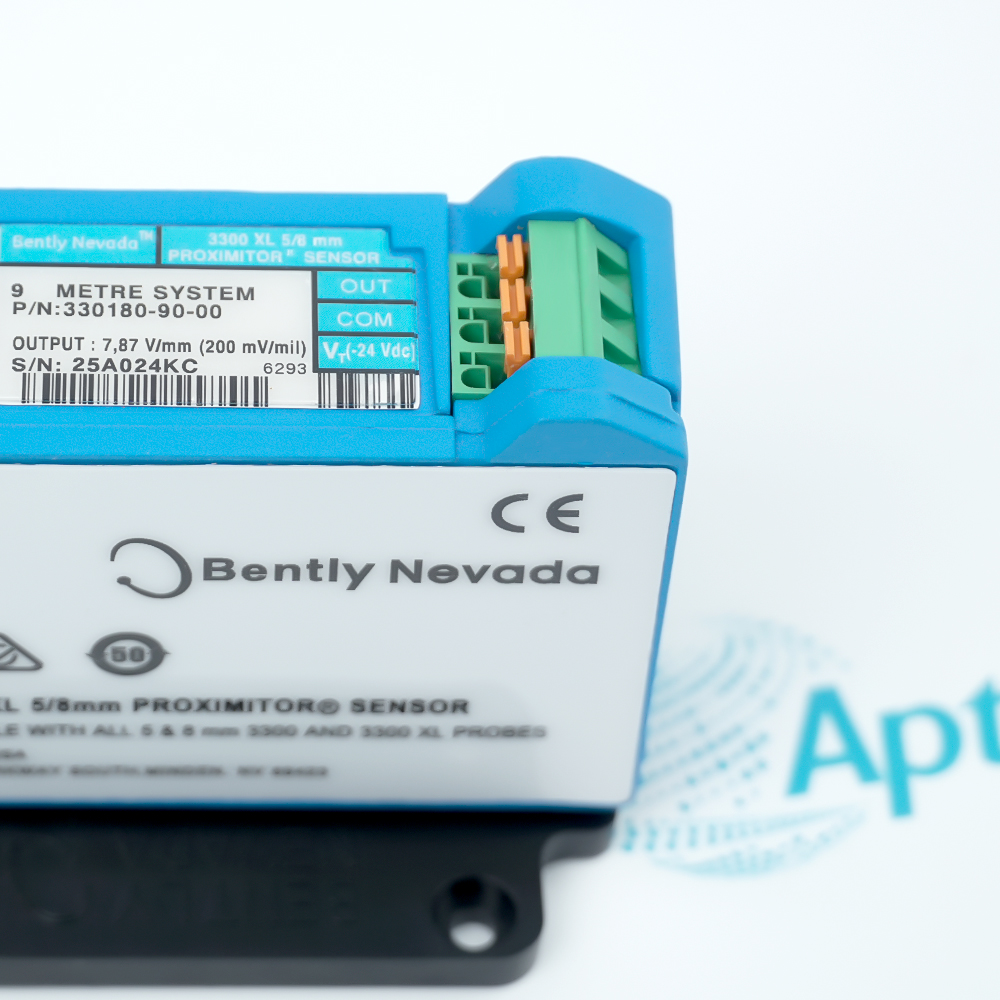

      Bently Nevada 330180-90-00
      Bently Nevada 330180-90-00
      Bently Nevada 330180-90-00
      Bently Nevada 330180-90-00
      Bently Nevada 330180-90-00
      Bently Nevada 330180-90-00
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      3300 XL Proximitor Sensor
      API 670 Compliant Device
      Linear Voltage Output
      Non-contacting Sensor

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for 330180-90-00
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for 330180-90-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring Systems
      • Spare Part Number:
        330180-90-00
      • Estimated shipping dimensions:
        8x6.1x6.3cm
      • Weight:
        0.2 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Power Supply Voltage:
        24V DC
      • Termination Type:
        Gold Connector
      • Proximity Sensing Range:
        Up to 10 mm
      • Operating Temperature:
        -40°C to +85°C
      • Operating Voltage:
        12V DC
      • Current Consumption:
        Max 10 mA
      • Signal Output:
        4-20 mA linear
      • Total Length and Mounting Option:
        9.0 meters (29.5 feet) system length, panel mount
      • Agency Approval Option:
        Not required
      Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      The 330180-90-00 is a high-performance eddy current displacement sensor preamplifier. It belongs to the Bently 3300 XL series and is commonly used in industrial environments for vibration and displacement monitoring of rotating machinery.
        • One 3300 XL 8 mm probe
        • One 3300 XL extension cable
        • One 3300 XL Proximitor Sensor
      The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
       Bently Nevada 330180-90-00 3300 XL Proximitor Sensor Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Steel & Metallurgy
      Monitoring oil film thickness in blast furnace blower bearings to ensure proper lubrication.

      Chemical Industry
      Monitoring shaft eccentricity of high-speed agitators to prevent seal failure.

      Cement Manufacturing
      Monitoring eccentricity of high-temperature exhaust fans to prevent vibration from uneven dust accumulation.

      Thermal Power Generation
      Monitoring axial displacement of steam turbine main shafts to prevent rotor-to-stator contact.

      Petroleum Refining
      Monitoring radial vibration of centrifugal compressors to identify rotor imbalance or bearing wear.

      Semiconductor Fab Utilities
      Monitoring rotor operating status of large centrifugal chillers in facility management.

       When using the 330180-90-00 Proximitor, ensure the total system length strictly matches 9.0 meters, securely mount it on a DIN rail, and ensure the casing is properly grounded to eliminate EMI. Additionally, regularly verify that the supply voltage (typically -24 VDC) and output gap voltage remain within the linear range, and strictly avoid plugging or unplugging coaxial connectors while energized to prevent damage to precision electronic components.

      FAQ View All FAQ

      • What is 330180-90-00?
        It is a 3300 XL series 5/8mm Proximitor Sensor, the core electronic unit of an eddy current transducer system.
      • What is the primary function of 330180-90-00?
        It provides high-frequency excitation to the probe and converts gap changes into a proportional voltage output.
      • How to use 330180-90-00?
        Mount it on a rail or plate, connect it to the extension cable and probe, and provide the signal to a monitor (such as the 3500 system).
      • What is the standard sensitivity of 330180-90-00?
        For an 8mm probe, its standard linear sensitivity is 7.87 mV/μm (200 mV/mil).
      • What supply voltage does 330180-90-00 require?
        It typically requires a negative DC power supply ranging from -17.5 VDC to -26 VDC.
