Get a quick price for 330130-040-00-00
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330130-040-00-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330130-040-00-00
-
Estimated shipping dimensions:20.5x22.4x3.3cm
-
Weight:0.2 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Product family:3300 XL extension cable
-
Cable length code 040:4.0 m (13.1 ft)
-
Cable option code 00:Standard cable
-
Agency approval code 00:Not required
-
Cable construction:FEP-insulated triaxial cable, 75 ohm
-
Maximum outside diameter:3.7 mm (0.15 in)
-
Connector arrangement:Miniature male and miniature female coaxial connectors
Information
Overview
Manuals
Common Applications
Product Precautions

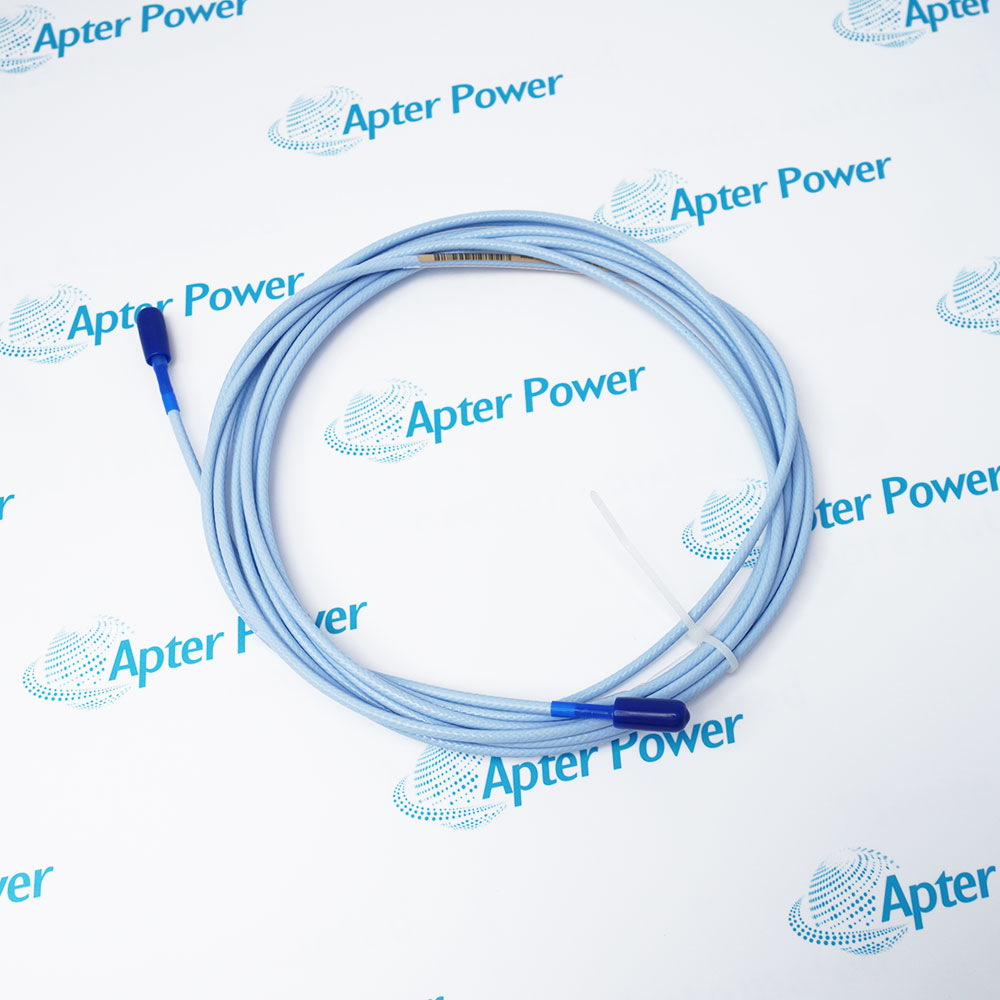

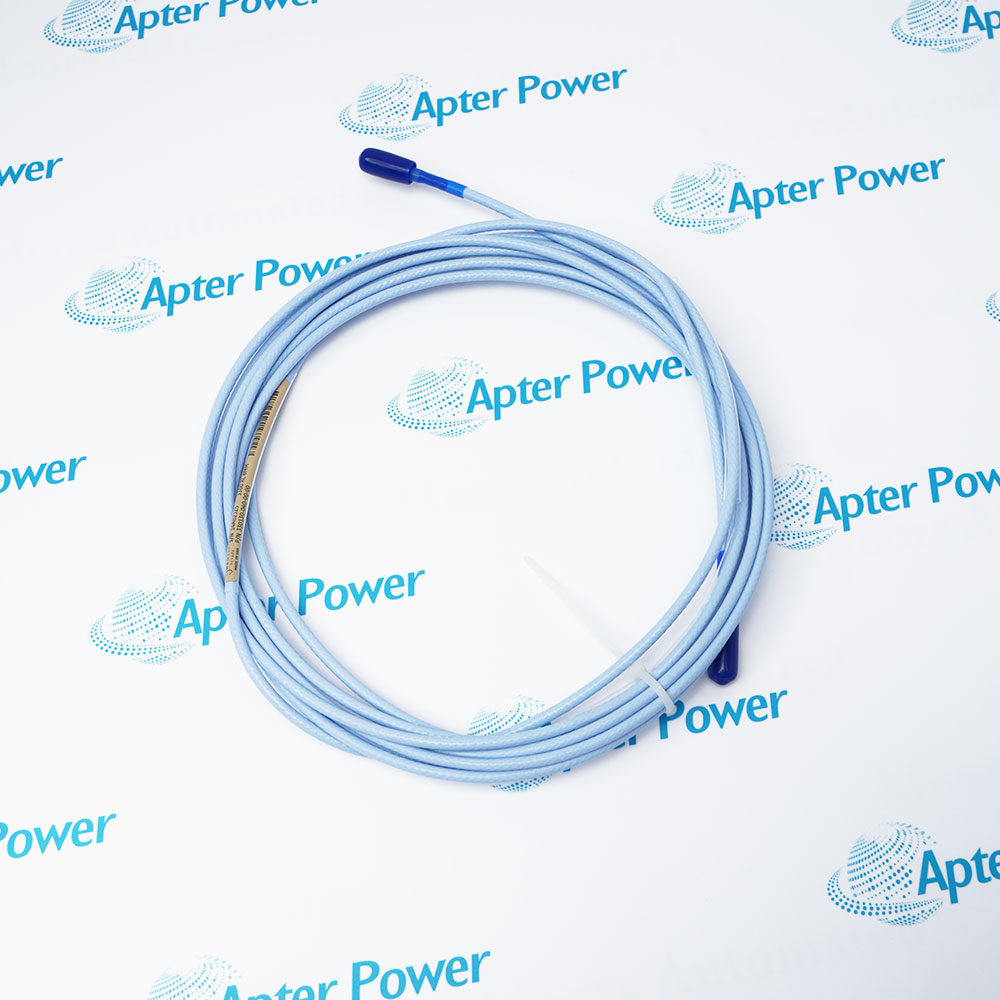

The Bently Nevada 330130-040-00-00 is a 4.0 m standard 3300 XL extension cable for the 3300 XL 8 mm proximity transducer system. It connects a compatible 3300-series probe to a 3300 XL Proximitor sensor and forms part of the calibrated signal path used for non-contact vibration and position measurement on rotating machinery.
- 330130-040-00-00
- 3300 XL extension cable
- 4.0 m (13.1 ft)
- Standard cable
- Not required
The cable carries the probe's high-frequency eddy-current signal to the compatible Proximitor sensor. The Proximitor sensor conditions that signal and provides an output proportional to the gap between the probe tip and a conductive target. The extension cable does not measure vibration or displacement independently; correct probe, cable and sensor matching is required for the published system performance.
Important Notice: Keep the complete 330130-040-00-00 ordering code unchanged. Verify the installed probe, total electrical system length, Proximitor sensor, connector protection and current manufacturer documentation before installation or replacement.
Apter Power 330130-040-00-00 Manuals and Guides
- Apter Power 330130-040-00-00 Product Reference Manual
- Apter Power 330130-040-00-00 Installation and Verification Reference
Important Notice: These are two separate Apter Power documents prepared from the official Bently Nevada publication named in each document. Confirm the physical nameplate, current manufacturer documentation and the applicable machinery-monitoring system drawing before installation or replacement.
Rotating Machinery Monitoring
Matched proximity-transducer loops on turbines, compressors, pumps, motors and generators, including radial vibration and shaft-position measurements where a 4.0 m extension cable produces the required documented total system length.
Radial Vibration
Carries the matched proximity-probe signal used by a compatible monitoring channel for shaft radial-vibration measurement.
Shaft Position
Supports axial or shaft-position measurements when installed with the documented compatible probe, Proximitor sensor and total system length.
System Integration
A compatible 3300 XL 8 mm probe, a compatible 3300 XL Proximitor sensor, approved connector protection, and the applicable machinery-monitoring channel, extension wiring and installation hardware.
Read and follow the official Bently Nevada 3300 XL 8 mm proximity-transducer documentation before use. Verify the exact complete ordering code and the installed system length.
1
Match the probe, extension cable and Proximitor sensor to the required total electrical system length; do not splice, shorten or extend the cable.
2
Keep connectors clean and dry, fully engage the connector locking mechanism and protect the probe-to-extension-cable junction according to the manufacturer instructions.
3
Avoid sharp bends, abrasion, crushing, hot surfaces and electrically noisy routing; verify cable condition and system output after installation.
4
The supplied silicone tape is not recommended where the probe-to-extension-cable connection is exposed to turbine oil; use the applicable manufacturer connector-protection method.
5
Record the complete model, installed system length, connector condition and channel verification results before returning the machine to service.
Technical notes
Only values verified in the official Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM are stated. Values absent from that publication are intentionally not inferred. Confirm the physical nameplate, installed total system length and current manufacturer instructions before use.
FAQ View All FAQ
-
What is Bently Nevada 330130-040-00-00?The Bently Nevada 330130-040-00-00 is a 4.0 m standard 3300 XL extension cable for the 3300 XL 8 mm proximity transducer system. It connects a compatible 3300-series probe to a 3300 XL Proximitor sensor and forms part of the calibrated signal path used for non-contact vibration and position measurement on rotating machinery.
-
What is the function of 330130-040-00-00?The cable carries the probe's high-frequency eddy-current signal to the compatible Proximitor sensor. The Proximitor sensor conditions that signal and provides an output proportional to the gap between the probe tip and a conductive target. The extension cable does not measure vibration or displacement independently; correct probe, cable and sensor matching is required for the published system performance.
-
What does the 040 code in 330130-040-00-00 mean?The official ordering table identifies 040 as a 4.0 m (13.1 ft) extension cable length.
-
What do the two 00 codes in 330130-040-00-00 mean?The cable-option code 00 identifies standard cable, and the agency-approval code 00 identifies approvals not required.
-
What signal does 330130-040-00-00 carry?High-frequency proximity-probe signal within a matched 3300 XL 8 mm transducer system. The installed system can support radial vibration and axial or shaft-position measurements; the monitored variable is determined by the probe location and the connected monitoring channel.
-
Which components are used with 330130-040-00-00?A compatible 3300 XL 8 mm probe, a compatible 3300 XL Proximitor sensor, approved connector protection, and the applicable machinery-monitoring channel, extension wiring and installation hardware.
-
Where is 330130-040-00-00 commonly used?Matched proximity-transducer loops on turbines, compressors, pumps, motors and generators, including radial vibration and shaft-position measurements where a 4.0 m extension cable produces the required documented total system length.
-
Can 330130-040-00-00 be shortened, spliced or extended?No. The extension cable is part of the matched transducer system. Use the documented cable and total electrical system length without shortening, splicing or field extension.
-
What should be checked after installing 330130-040-00-00?Check the complete model and system-length match, cable routing and condition, connector engagement and protection, then verify the Proximitor sensor output and the affected monitoring channel before release.
