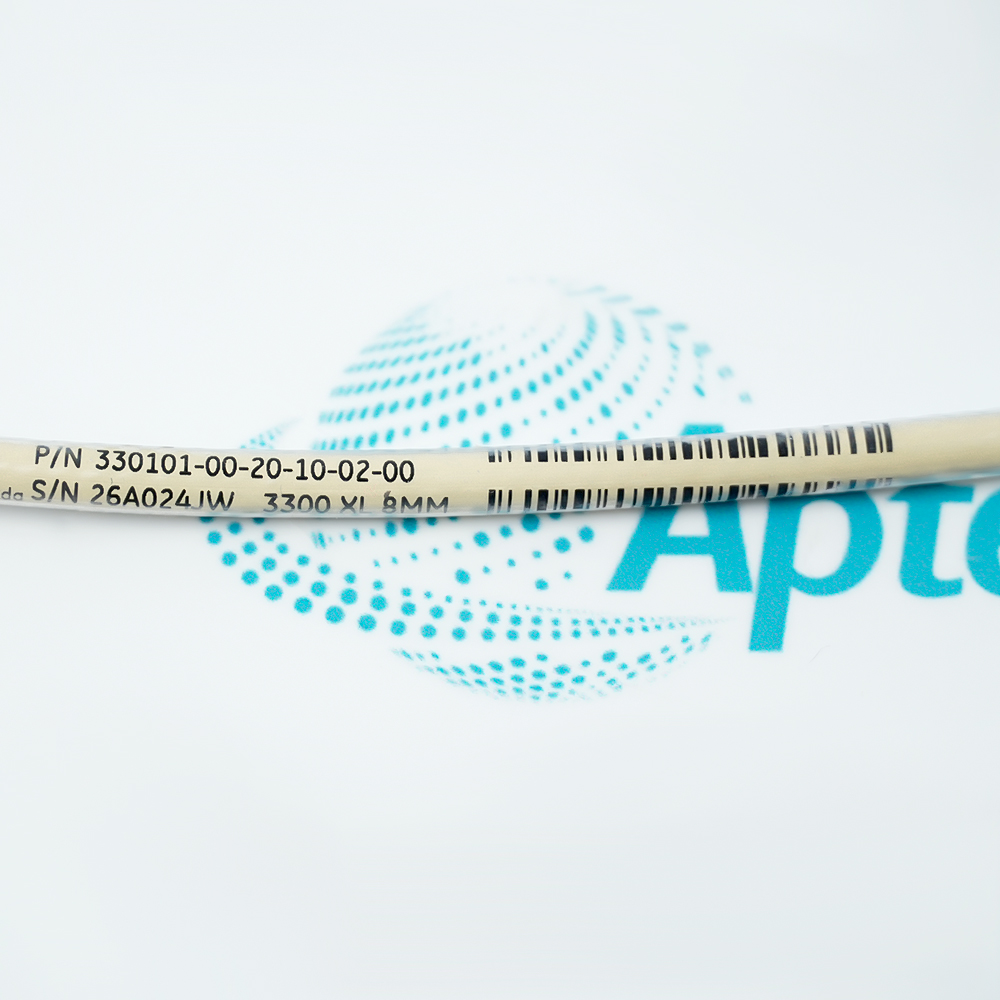

The 330101-00-20-10-02-00 is a 3300 XL 8mm proximity probe serving as a core sensing component within Bently Nevada eddy current transducer systems. This English-threaded model features a 3/8-24 UNF threading configuration with a 0.0-inch unthreaded length, a 2.0-inch overall case length, a 1.0-meter overall unarmored cable length, a miniature coaxial ClickLoc connector with standard cable, and no special agency approval requirement.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The 3300 XL 8 mm transducer system complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. As a component of this series, the 330101-00-20-10-02-00 probe features an integrated 1.0-meter unarmored cable, requiring a matching 4.0-meter 3300 XL extension cable to connect with a 3300 XL Proximitor sensor for a complete 5-meter measurement loop.
In its manufacturing layout, a TipLoc molding method bonds the probe tip to the probe body, while the cable incorporates a CableLoc design providing a 330 N (75 lbf) pull strength to attach the cable to the probe tip. Each 3300 XL series component maintains backward compatibility and electrical interchangeability with matching non-XL 3300 series transducer system components under identical electrical constraints.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330101-00-20-10-02-00 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Tracking high-frequency vibration and position on centrifugal compressors and heavy-duty process pumps.
Oil and Gas
Providing Keyphasor phase reference and rotational speed measurements on natural gas pipeline gas turbines.
Chemical Manufacturing
Continuous condition monitoring of agitator shafts and high-pressure reactor mixing pump bearings.
Steel and Metallurgy
Measuring radial shaft runout on blast furnace air blowers and hot rolling mill main drive motors.
Air Separation Plants
Measuring vibration and speed variables on high-speed cryogenic turboexpanders and oxygen compressors.
Prior to replacing a 330101-00-20-10-02-00 probe, check the five-part ordering code, hazardous-area approval requirements, mounting thread compatibility, and machine-case clearance.
Verify the target material and probe gap settings before adjustment. Install sleeve support for configurations with long unthreaded and case length (B+C) dimensions. Do not use this product as an NSv extension cable.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 330101-00-20-10-02-00 is 3300 XL 8 mm Proximity Probe.
What is the main working principle of 330101-00-20-10-02-00?
Measurement is based on the eddy current principle.
What product series does 330101-00-20-10-02-00 belong to?
It belongs to the 3300 XL 8 mm Proximity Transducer System series.
What is the primary industrial application of 330101-00-20-10-02-00?
It is applied for shaft vibration, axial displacement, and speed condition monitoring on fluid-film bearing machines.
