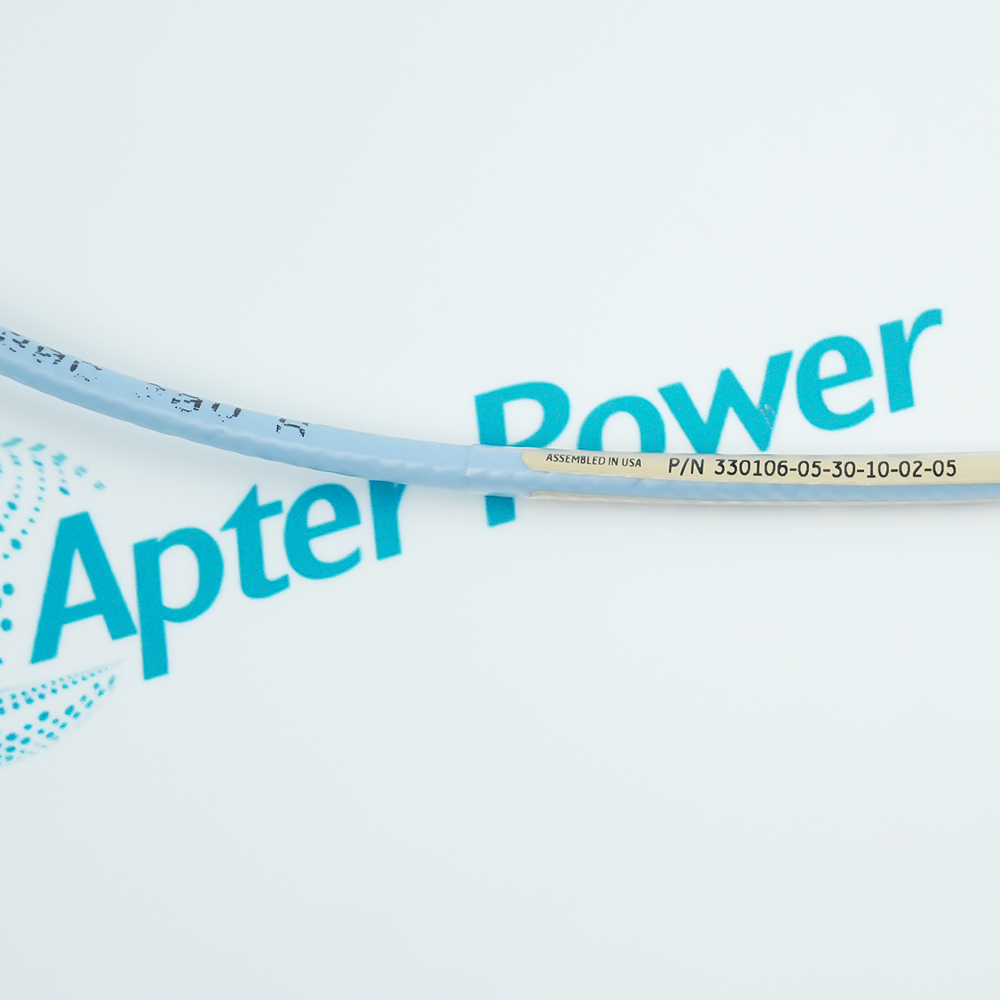

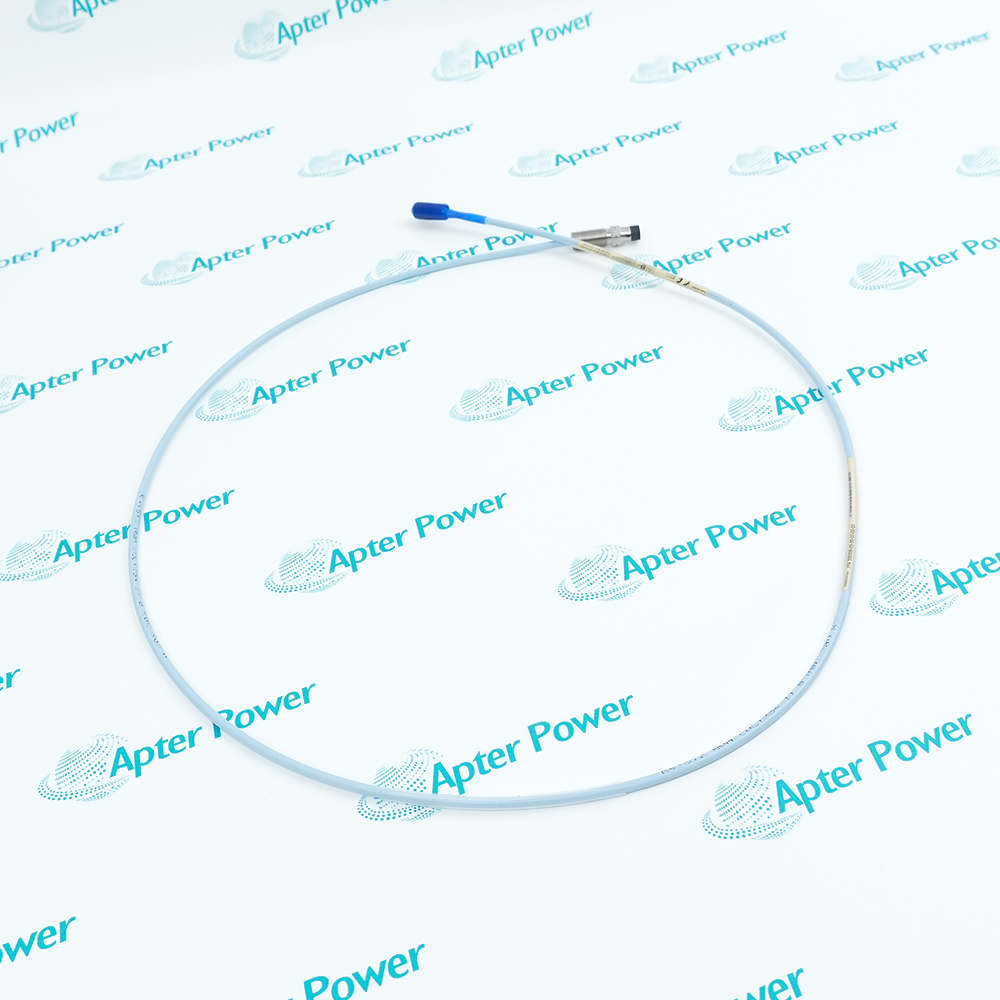

The 330106-05-30-10-02-05 is an eddy current bearing monitoring probe manufactured by Bently Nevada in the United States, and this specific model belongs to the 3300 XL 8mm Reverse Mount Probe series.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330106-05-30-10-02-05 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation
Monitor shaft vibration and axial displacement of steam turbines and generators.
Hydroelectric Power Generation
Monitor radial runout and thrust bearing clearance of hydro-turbine generators.
Nuclear Power Industry
Monitor shafting status of conventional island turbine-generators and main coolant pumps.
Oil & Gas Extraction
Monitor rotor status of large water injection pumps and production compressors on offshore platforms.
Petrochemical & Refining
Monitor bearing clearance and displacement of catalytic cracking units and hydro-feeding pumps.
Iron & Steel Metallurgy Industry
Monitor axial thrust of blast furnace blowers and Top Gas Recovery Turbine (TRT) units.
When using the 330106-05-30-10-02-05 reverse mount probe, ensure sufficient clearance for back-screwing and precise M10 × 1 thread engagement, avoiding overtightening to prevent housing damage. It is critical to strictly control the initial gap between the probe tip and the shaft target (typically verified via Proximitor output voltage), maintain the operating temperature within the rated -31°C to 120°C range, and keep the ClickLoc connector clean, dry, and securely locked.
The system outputs a voltage directly proportional to the distance between the probe tip and the observed conductive surface, measuring both static (position) and dynamic (vibration) values. As a Bently Nevada 3300 XL 8mm proximity sensor, the 330106-05-30-10-02-05 is designed for fluid-film bearing machinery vibration/position monitoring, Keyphasor referencing, and speed measurements.
This Bently Nevada 3300 XL 8mm hardware is a standard front-threaded proximity sensor.
What is the measuring principle of the 330106-05-30-10-02-05?
It generates a high-frequency electromagnetic field via the probe tip coil, inducing eddy currents on the metal surface to measure gap variations.
What are the primary applications of the 330106-05-30-10-02-05?
It is used for shaft vibration and position monitoring on fluid-film bearing machines, as well as speed and Keyphasor reference measurements.
