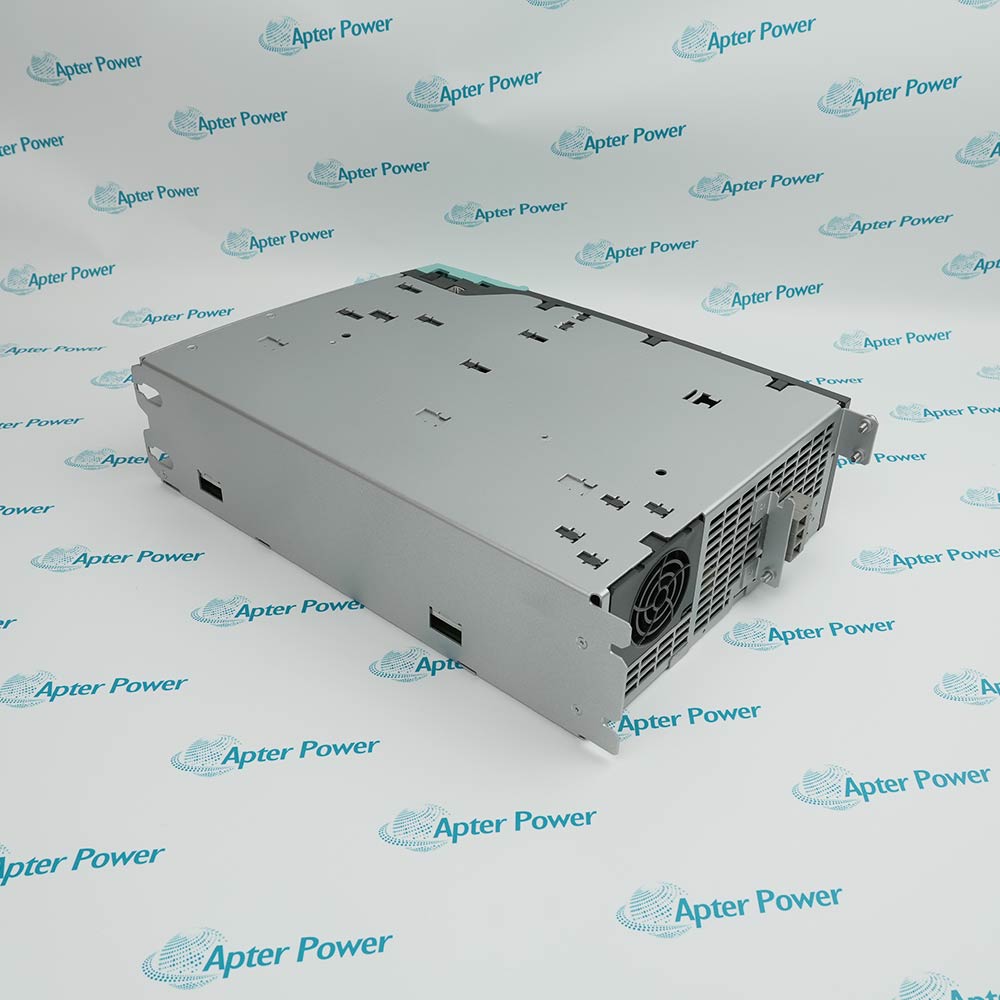

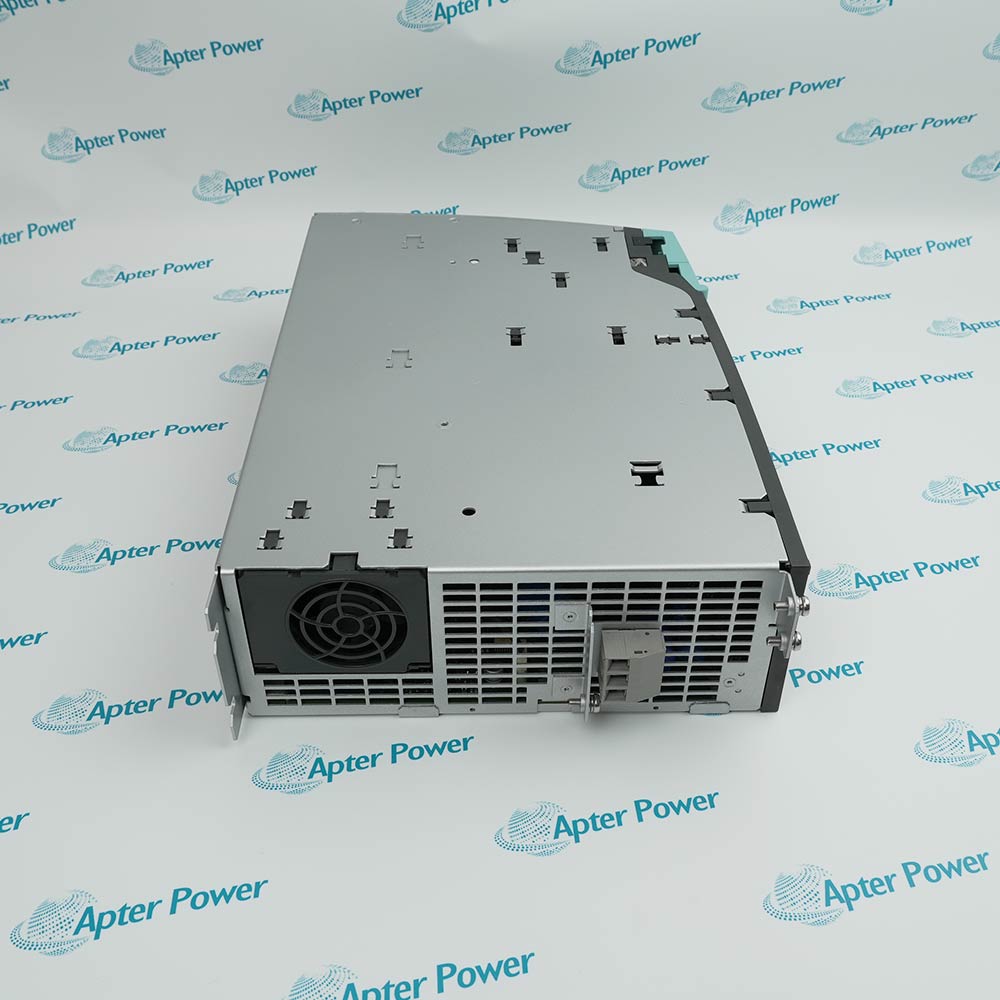

6SL3130-7TE21-6AA4

Technical specifications for 6SL3130-7TE21-6AA4

• Manufacturer:
  Siemens
• Product Category:
  PLC Systems
• Spare Part Number:
  6SL3130 7TE21 6AA4
• Estimated shipping dimensions:
  10x27x41cm
• Weight:
  7.15 kg
• Tariff Code:
  8537101190
• Counliy of origin:
  Germany
• Module type:
  Active Line Module
• Construction:
  Booksize
• Input supply:
  3 AC 380–480 V, 50/60 Hz
• Permitted line voltage:
  342–528 V
• Permitted line frequency:
  47–63 Hz
• Rated infeed power:
  16 kW
• S6 power:
  21 kW
• Maximum power:
  35 kW
• DC-link output:
  600 V DC, 27 A
• S6 DC-link current:
  35 A
• Maximum DC-link current:
  59 A
• Rated input current:
  26 A at 380 V; 25 A at 400 V; 21 A at 480 V
• Short-circuit strength:
  65 kA
• Electronics supply:
  24 V DC, -15% / +20%
• Maximum 24 V current:
  1.1 A
• DC-link capacitance:
  710 µF
• Line connection:
  X1 screw terminals
• Line conductor range:
  2.5–10 mm² / AWG 14–8
• Protective earth:
  M5 connection
• Shield connection:
  Integrated
• Maximum shielded line:
  630 m
• Maximum unshielded line:
  850 m
• Degree of protection:
  IP20 / UL open type
• Cooling:
  Internal air cooling
• Operating temperature:
  0 to 40 °C
• Installation altitude:
  Up to 1000 m without derating
• Conformity:
  CE and cULus
• Included accessory:
  DRIVE-CLiQ cable
