What input bank does the 505-4232 present to a SIMATIC 505 controller?

It is a single-wide, 32-point IEC Type 1 AC input module that maps thirty-two field states into the controller input image.

For 505-4232, which voltage thresholds define an ON or OFF input?

For the documented 100 to 115 VAC service, the guaranteed ON range is 79 to 132 VAC and the guaranteed OFF range is 0 to 20 VAC.

For 505-4232, what line-frequency range must the field supply meet?

The module is specified for 47 to 63 Hz AC input circuits; verify the source frequency before functional testing.

For 505-4232, how quickly can a field change appear at the input module?

The documented input delay is 6 to 30 ms, which must be considered when testing limit switches, interlocks and sequence timing.

For 505-4232, what backplane load does the base supply for this module?

The official module data lists 2 W from the SIMATIC 505 base; confirm the installed base and system power budget.

For 505-4232, why must all thirty-two addresses be recorded before replacement?

The module occupies one SIMATIC 505 position but represents 32 input points. Preserve the slot and complete point-to-terminal map to prevent address shifts.

For 505-4232, how should grouped AC conductors be isolated and identified?

De-energize every input group and common, label each conductor and terminal, and verify field voltage is absent before removing the terminal assembly.

What constitutes a controlled acceptance test for 505-4232?

Apply representative OFF and ON conditions within the published thresholds, confirm all 32 controller indications and verify the connected interlock logic before release.

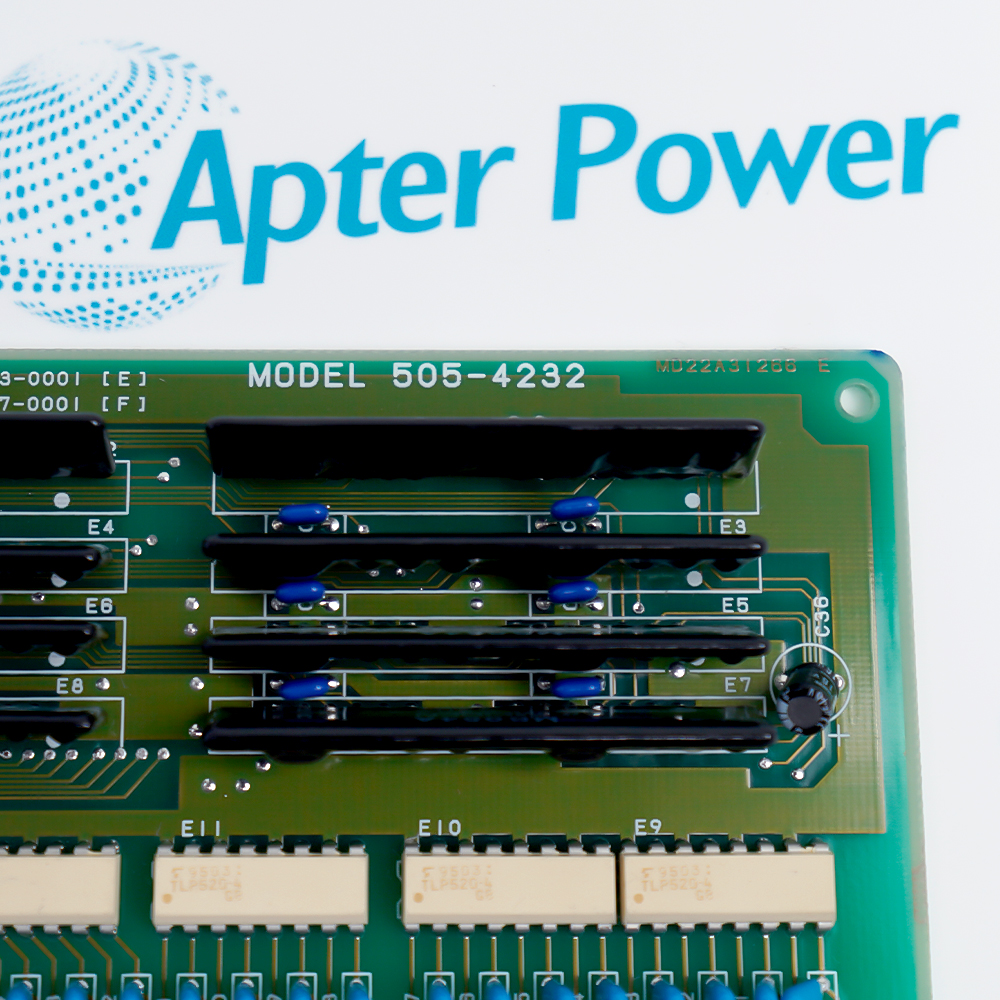

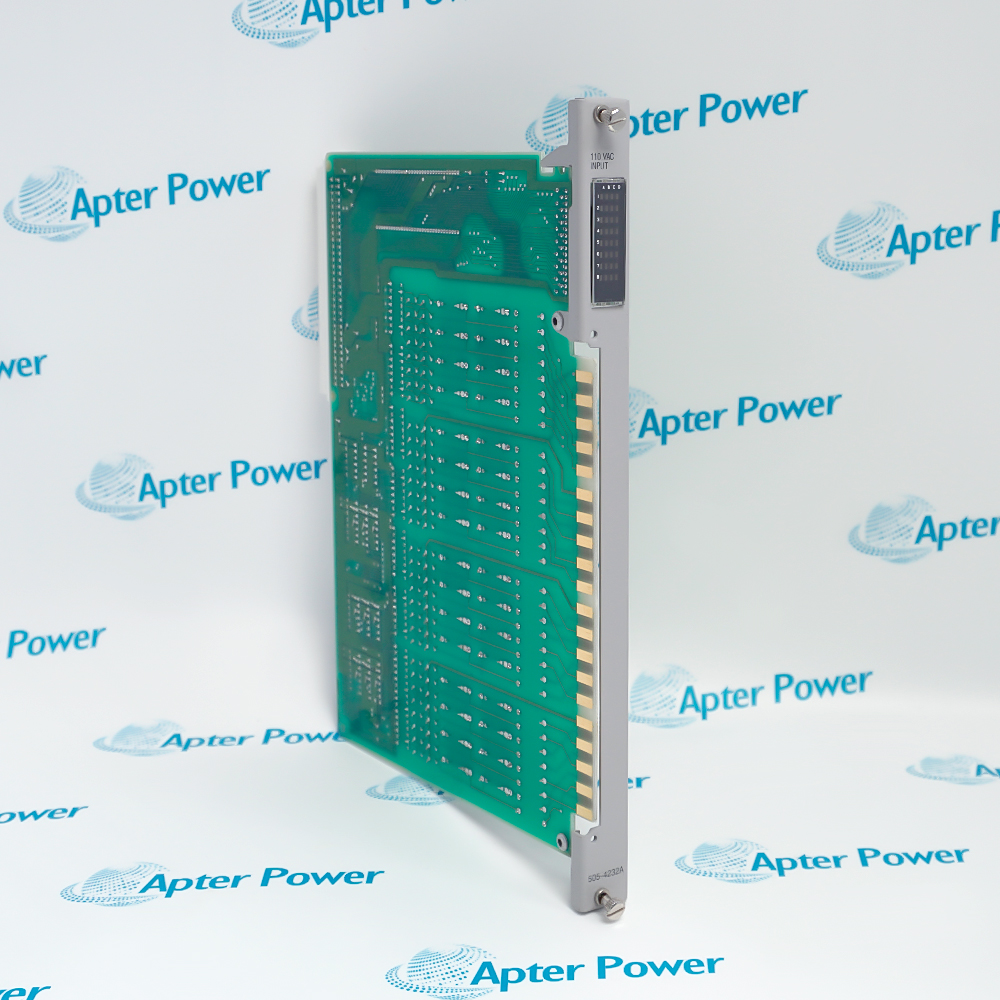

Siemens 505-4232 AC Input Module

Name: 505-4232
Brand: Siemens
SKU: 505-4232

505-4232

AC Input Module

In Stock

Ships by Wednesday, October 14

Fast Shipping Available

Technical specifications for 505-4232

Manufacturer:

Siemens

Product Category:

PLC Systems

Spare Part Number:

505-4232

Estimated shipping dimensions:

2.1x18.6x26.6cm

Weight:

0.34 kg

Tariff Code:

8537101190

Counliy of origin:

Germany

Input points:

Module width:

Single-wide

Input type:

IEC Type 1 AC input

Rated input:

100 to 115 V AC

Guaranteed ON range:

79 to 132 V AC

Guaranteed OFF range:

0 to 20 V AC

Line frequency:

47 to 63 Hz

Input delay:

6 to 30 ms

Module power:

2 W from the base

Platform:

SIMATIC 505 programmable controller I/O

Official manual:

505-8105-2

Information

Overview Manuals Common Applications Product Precautions

Siemens 505-4232 is AC Input Module. It acquires thirty-two 100/115 VAC field states for a SIMATIC 505 controller input image.

Acquires thirty-two AC input points
Meets the documented IEC Type 1 input characteristic
Occupies one SIMATIC 505 module position
Operates on 47 to 63 Hz supplies

505-4232 operates with SIMATIC 505 base and controller, 100/115 VAC field circuits, documented input terminal assembly, approved 505 I/O configuration.

Engineered applications include AC limit-switch acquisition, Contactor auxiliary-status monitoring, Machine interlock input bank, SIMATIC 505 input-module replacement.

Important Notice: Isolate every AC input group, label each conductor and common, verify the exact 505-4232 address assignment, and test ON/OFF thresholds under controlled conditions.

Siemens 505-4232 Manuals & Downloads

Siemens 505-4232 Technical Reference (PDF)Siemens 505-4232 Installation & Commissioning Guide (PDF)

Important Notice: The first document presents exact-model technical and engineering data. The second provides a separate installation, connection, commissioning and acceptance workflow.

AC limit-switch acquisition

Reads discrete AC limit and status contacts.

Contactor auxiliary-status monitoring

Collects contactor feedback for controller logic.

Machine interlock input bank

Presents machine interlocks to the 505 CPU.

SIMATIC 505 input-module replacement

Restores all thirty-two input addresses.

Read the applicable Siemens instructions before work. Verify 505-4232 and the installed Siemens SIMATIC 505 programmable controller I/O configuration.

Verify the complete 505-4232 marking and its assigned Siemens SIMATIC 505 I/O system position before work.

Place the connected AC limit-switch acquisition process in the approved maintenance state.

Isolate applicable power and thirty-two 100/115 VAC discrete input states field energy before disconnection.

Record every connector, conductor, address, firmware and software identity before removal.

Use ESD controls and protect keyed interfaces, exposed contacts and electronic assemblies.

Confirm the installed SIMATIC 505 base and controller and 100/115 VAC field circuits against the approved project.

Restore power in a controlled sequence and review device, network and host diagnostics.

Prove the intended contactor auxiliary-status monitoring function and retain the final test result.

FAQS

What input bank does the 505-4232 present to a SIMATIC 505 controller?

It is a single-wide, 32-point IEC Type 1 AC input module that maps thirty-two field states into the controller input image.
For 505-4232, which voltage thresholds define an ON or OFF input?

For the documented 100 to 115 VAC service, the guaranteed ON range is 79 to 132 VAC and the guaranteed OFF range is 0 to 20 VAC.
For 505-4232, what line-frequency range must the field supply meet?

The module is specified for 47 to 63 Hz AC input circuits; verify the source frequency before functional testing.
For 505-4232, how quickly can a field change appear at the input module?

The documented input delay is 6 to 30 ms, which must be considered when testing limit switches, interlocks and sequence timing.
For 505-4232, what backplane load does the base supply for this module?

The official module data lists 2 W from the SIMATIC 505 base; confirm the installed base and system power budget.
For 505-4232, why must all thirty-two addresses be recorded before replacement?

The module occupies one SIMATIC 505 position but represents 32 input points. Preserve the slot and complete point-to-terminal map to prevent address shifts.
For 505-4232, how should grouped AC conductors be isolated and identified?

De-energize every input group and common, label each conductor and terminal, and verify field voltage is absent before removing the terminal assembly.
What constitutes a controlled acceptance test for 505-4232?

Apply representative OFF and ON conditions within the published thresholds, confirm all 32 controller indications and verify the connected interlock logic before release.
