      6SE7012-0TP50

      Drive Inverter
      In Stock
      Ships by Wednesday, September 30
      Fast Shipping Available

      Product Describe：

      Siemens 6SE7012-0TP50 is a SIMOVERT MASTERDRIVES Motion Control Compact PLUS DC-AC inverter rated 0.75 kW and 2 A. It is designed for the documented 510 to 650 V DC-link range.

      Ask our team:

      Get a quick price for： 6SE7012-0TP50
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 6SE7012-0TP50

      Technical specifications for 6SE7012-0TP50

      • Manufacturer:
        Siemens
      • Product Category:
        General Automation
      • Spare Part Number:
        6SE7012-0TP50
      • Estimated shipping dimensions:
        4.5x24.8x42.6cm
      • Weight:
        2.82 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Drive family:
        SIMOVERT MASTERDRIVES Motion Control Compact PLUS
      • Converter type:
        DC-AC inverter
      • Supply voltage:
        3 AC 380 V -15% to 480 V +10%
      • Nominal power rating:
        0.75 kW
      • Rated output current:
        2.0 A
      • Maximum current:
        3.2 A
      • Rated DC-link current:
        2.4 A
      • DC-link voltage:
        510 to 650 V DC
      • Total power loss at 5 kHz:
        0.066 kW
      • Cooling air requirement:
        0.002 m3/s
      • Sound pressure level:
        18 dB(A) at 50 Hz
      • 5 kHz motor cable limits:
        100 m shielded / 70 m unshielded
      • 10 kHz motor cable limits:
        50 m shielded / 35 m unshielded
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Siemens 6SE7012-0TP50 is a SIMOVERT MASTERDRIVES Motion Control Compact PLUS DC-AC inverter rated 0.75 kW and 2 A. It is designed for the documented 510 to 650 V DC-link range.
      • 0.75 kW motion control
      • 2 A inverter output
      • 510-650 V DC link
      • Compact PLUS construction

      Use only the complete Siemens 6SE7012-0TP50 identity and the current manufacturer documentation. Confirm installed hardware, wiring, firmware or parameter compatibility and the approved maintenance record before replacement or release.

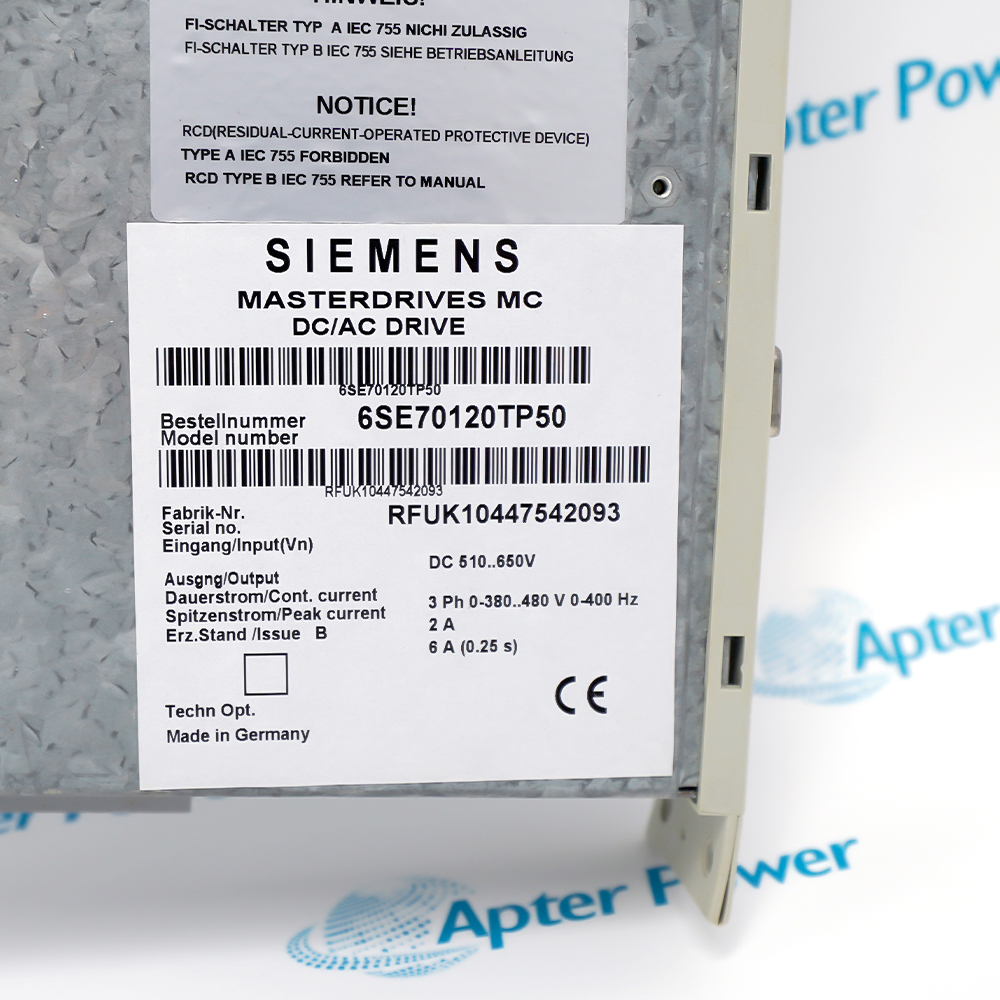

      Important Notice: Verify 6SE7012-0TP50 from the physical marking and current manufacturer documentation before installation or configuration.

      Siemens 6SE7012-0TP50 Manuals & Downloads
      Siemens 6SE7012-0TP50 Technical Reference (PDF)Siemens 6SE7012-0TP50 Installation & Commissioning Guide (PDF)

      The first document is the model-specific technical reference. The second is a distinct installation and commissioning guide with checks and acceptance records.

      Servo motion
      Controls an approved motor axis.
      Machine automation
      Executes configured speed and torque commands.
      Drive retrofit
      Maintains an installed MASTERDRIVES axis.
      Controlled spare replacement
      Preserves the documented inverter and motor configuration.
      Read the applicable Siemens instructions before work. Verify 6SE7012-0TP50 and the installed system configuration.
      1
      Verify the complete Siemens 6SE7012-0TP50 marking before work.
      2
      Review the current Siemens source documentation and the installed-system record.
      3
      Record the slot, connector, terminal and companion-hardware arrangement before removal.
      4
      Place the controller, drive or machine in the approved maintenance state before handling.
      5
      Use ESD controls and protect keyed connectors, terminals and circuit-board components.
      6
      Confirm the documented electrical and interface values for 6SE7012-0TP50 before energization.
      7
      Restore wiring, shielding, grounding and mechanical retention exactly as documented.
      8
      Run model-specific diagnostics and a controlled functional test before production release.

      Technical notes

      Technical notes

      Use only the complete Siemens 6SE7012-0TP50 identity and the current manufacturer documentation. Confirm installed hardware, wiring, firmware or parameter compatibility and the approved maintenance record before replacement or release.

      FAQS

      • What converter type is Siemens 6SE7012-0TP50?
        It is a SIMOVERT MASTERDRIVES Motion Control Compact PLUS DC-AC inverter.
      • What input and DC-link voltage ranges are documented?
        The supply is 3 AC 380 V -15% to 480 V +10%, with a documented DC-link range of 510 to 650 V DC.
      • What are the rated power and output current?
        The inverter is rated 0.75 kW with 2.0 A rated output current and 3.2 A maximum current.
      • What motor-cable limits apply at 5 kHz?
        The documented limits are 100 m for shielded cable and 70 m for unshielded cable at 5 kHz.
      • What motor-cable limits apply at 10 kHz?
        The documented limits are 50 m for shielded cable and 35 m for unshielded cable at 10 kHz.
      • Which cooling and loss values should be considered?
        The record lists 0.066 kW total power loss at 5 kHz and a cooling-air requirement of 0.002 m3/s.
      • What must be preserved before replacing the inverter?
        Back up motor data, control parameters, switching frequency, interfaces, protection settings and the installed DC-link arrangement.
      • What confirms controlled drive commissioning?
        Verify the complete order number, DC-link range, motor and cable data, diagnostics, rotation and the accepted speed or torque response.
