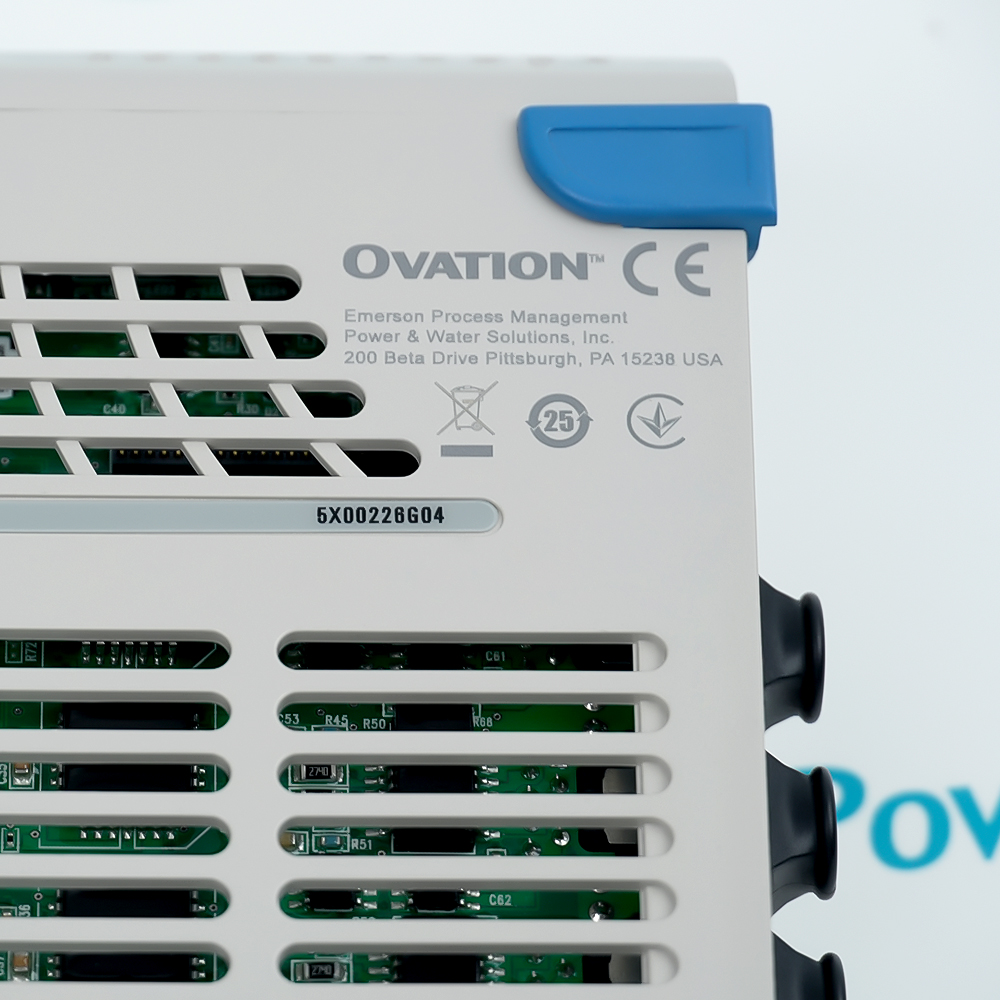

The 5X00226G04 is distributed control system is widely recognized for its precise control and strong performance. This level of precision originates from the Ovation controller, which is designed to support secure, mission-critical operations, including applications in power generation as well as water and wastewater facilities.
Bumpless Automatic Failover
Fanless Operation
Non-volatile Storage
Within the Ovation controller family, the OCR1100 model is capable of executing both simple and complex modulating and sequential control strategies. It also performs data acquisition tasks and provides interfaces to the Ovation network along with various I/O sub-systems, with the capacity to handle up to 32,000 points.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Westinghouse 5X00226G04 OVATION Controller Model Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation
Widely used in process control of various power plants, including boiler control, turbine control, and automated management of auxiliary systems, ensuring the continuity of power production.
Water & Wastewater
Used for monitoring and control of water treatment and wastewater treatment facilities, its reliable redundant architecture ensures the stability of water treatment processes.
Oil & Gas
In the oil and gas industry, it is responsible for critical logic control and data acquisition. Its "disruptive" switching function effectively prevents economic losses caused by production interruptions.
Chemical Processing
Suitable for complex chemical processing, it achieves real-time monitoring and safety interlocking of core equipment such as reactors and pressure vessels through precise management of I/O modules.
Metals & Mining
In the metal smelting and mining fields, its robust industrial-grade design and fanless operation characteristics enable it to handle the control tasks of large machinery in harsh environments.
Smart Grid Systems
As a core component of distributed control systems, it supports integration with third-party OEM systems, playing a crucial role in data exchange and remote monitoring in smart grids.
The Ovation OCR1100 controller, with an Intel® -based processor, is capable of simultaneously executing as many as five process control tasks at loop speeds ranging from 10 milliseconds to 30 seconds. Each control task is comprised of the I/O process point input scan, control scheme execution and an output scan. Two of the control tasks use predefined loops speeds of one-second and 100 milliseconds. The other three control tasks can have user-selectable loop speeds. Individual control sheets assigned to an available task coordinate the control execution loop time with the appropriate control function. Advanced diagnostics visible on Ovation HMI graphics indicate control task loop times for configured, average, worst case and standard deviation.
What is the primary function of the Ovation 5X00226G04 in mission-critical control?
It provides "bumpless" automatic failover between redundant controllers to ensure secure, reliable and continuous system operation.
Does the 5X00226G04 controller support third-party system integration?
Yes, it features integrated virtual I/O capability for third-party OEM systems over Ethernet protocols like Modbus TCP and EtherNet/IP.
How does the 5X00226G04 handle application software and configuration data?
It utilizes non-volatile storage for application software, point database, configuration information, and operating tuning constants.
What environmental and design advantages does the 5X00226G04 offer?
The hardware is designed with a small footprint, low power requirements, and fanless operation for increased reliability in industrial environments.
What is the sequence of events (SOE) resolution for the 5X00226G04?
The controller provides an integrated sequence of events capability with 1 millisecond resolution for precise diagnostic tracking.
