      Bently Nevada 330180-X1-CN MOD:145193-09
      Bently Nevada 330180-X1-CN MOD:145193-09
      Bently Nevada 330180-X1-CN MOD:145193-09
      Bently Nevada 330180-X1-CN MOD:145193-09
      Bently Nevada 330180-X1-CN MOD:145193-09
      Bently Nevada 330180-X1-CN MOD:145193-09
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330180-X1-CN MOD:145193-09

      Proximitor Sensor
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

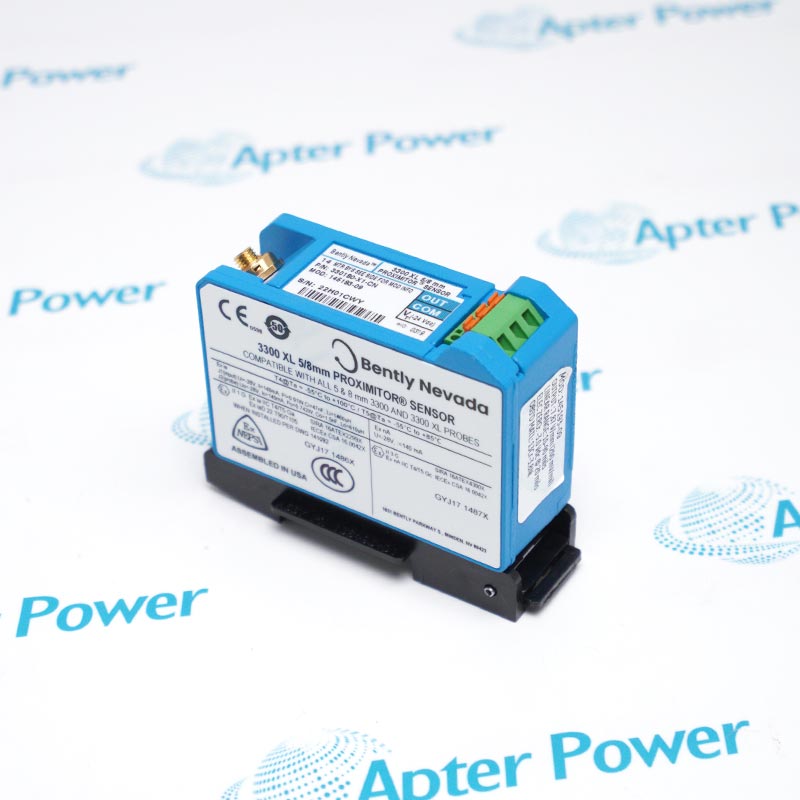

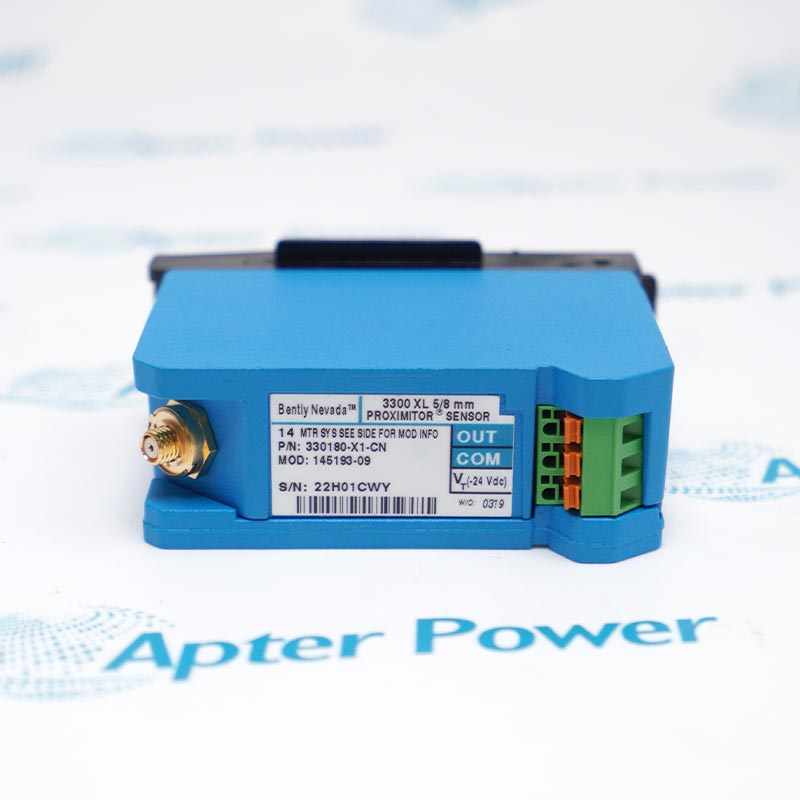

      Bently Nevada 330180-X1-CN MOD:145193-09 is a proximitor sensor for the 3300 XL 8 mm proximity transducer system. It is a modified 330180 Proximitor Sensor carrying the exact MOD:145193-09 service identity.

      Ask our team:

      Get a quick price for： 330180-X1-CN MOD:145193-09
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330180-X1-CN MOD:145193-09

      Technical specifications for 330180-X1-CN MOD:145193-09

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330180-X1-CN MOD:145193-09
      • Estimated shipping dimensions:
        8.8x3.4x7cm
      • Weight:
        0.24 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Manufacturer:
        Bently Nevada
      • Product family:
        3300 XL 8 mm proximity transducer system
      • Base assembly:
        330180 Proximitor Sensor
      • Option identity:
        X1-CN
      • Modification identity:
        145193-09
      • Power without barriers:
        -17.5 to -26 V DC
      • Power with barriers:
        -23 to -26 V DC
      • Maximum current:
        12 mA
      • Output resistance:
        50 ohm
      • Maximum field wire:
        305 m (1,000 ft)
      • Matched system:
        3300 XL 8 mm probe and extension cable
      • System linear range:
        2.0 mm (80 mils)
      • Scale factor:
        7.87 V/mm (200 mV/mil)
      • Frequency response:
        0 to 10 kHz
      • Catalog boundary:
        MOD and nonstandard suffix require exact installed-record confirmation
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330180-X1-CN MOD:145193-09 is a proximitor sensor for the 3300 XL 8 mm proximity transducer system. It is a modified 330180 Proximitor Sensor carrying the exact MOD:145193-09 service identity.
      • Base assembly: 330180 Proximitor Sensor
      • Option identity: X1-CN
      • Modification identity: 145193-09
      • Power without barriers: -17.5 to -26 V DC

      330180-X1-CN MOD:145193-09 is documented as a Proximitor Sensor within the 3300 XL 8 mm proximity transducer system.

      Use the complete model identity and published parameter set for integration, replacement and commissioning.

      Important Notice: Do not decode or substitute the X1-CN / MOD:145193-09 identity from a standard catalog entry. Verify the complete nameplate, matched probe/cable length, power, polarity and monitor configuration.

      Bently Nevada 330180-X1-CN MOD:145193-09 Manuals & Downloads
      Bently Nevada 330180-X1-CN MOD:145193-09 Technical Reference (PDF)Bently Nevada 330180-X1-CN MOD:145193-09 Installation & Commissioning Guide (PDF)

      The first document presents exact-model technical and engineering data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Exact Proximitor Sensor replacement
      Preserves the complete 330180-X1-CN MOD:145193-09 identity and published configuration.
      Documented system integration
      Uses the official product-family and interface values for the installed system.
      Commissioning verification
      Checks the exact electrical, mechanical and signal parameters before release.
      Maintenance diagnostics
      Supports controlled troubleshooting while retaining the as-found installation record.
      Read the applicable Bently Nevada instructions before work. Verify 330180-X1-CN MOD:145193-09 and every installed interface before isolation, wiring or commissioning.
      1
      Confirm the complete 330180-X1-CN MOD:145193-09 marking before work.
      2
      Isolate the installed system and document the maintenance state.
      3
      Verify base assembly: 330180 Proximitor Sensor.
      4
      Verify option identity: X1-CN.
      5
      Verify modification identity: 145193-09.
      6
      Verify power without barriers: -17.5 to -26 V DC.
      7
      Protect connectors, wiring and exposed interfaces from damage or contamination.
      8
      Complete a controlled functional test and retain the final acceptance record.

      Technical notes

      Technical notes

      Do not decode or substitute the X1-CN / MOD:145193-09 identity from a standard catalog entry. Verify the complete nameplate, matched probe/cable length, power, polarity and monitor configuration.

      FAQS

      • What prevents a standard 330180 from replacing Bently Nevada 330180-X1-CN MOD:145193-09 by appearance alone?
        The X1-CN option and MOD:145193-09 form one controlled identity; their function must be confirmed from the installed service record before substitution.
      • How should the matched 8 mm system be documented around the X1-CN sensor?
        Record the probe family, extension-cable length, total system length, target, and monitor assignment as one transducer chain.
      • Which voltage checks apply before energizing Bently Nevada 330180-X1-CN MOD:145193-09?
        Measure -17.5 to -26 Vdc in a non-barrier loop or -23 to -26 Vdc when barriers are used, and confirm current remains within 12 mA.
      • Why is shield routing important on the 305 m field-wire allowance?
        The 305 m (1,000 ft) limit assumes the specified wiring method; poor shielding or routing can add interference long before the length limit is reached.
      • What does a 50 ohm output mean for X1-CN diagnostics?
        Use a suitable high-impedance instrument so the sensor's 50 ohm output is observed without changing the gap or waveform reading.
      • How can technicians identify a pairing error on Bently Nevada 330180-X1-CN MOD:145193-09?
        An unstable gap voltage, incorrect 7.87 V/mm slope, or distorted buffered signal points to wrong component length, wiring, target, or configuration.
      • Which markings belong in the handover record for the X1-CN modification?
        Include the complete 330180-X1-CN string, MOD:145193-09, companion component identities, supply arrangement, and assigned monitor channel.
      • What commissioning result should be retained for Bently Nevada 330180-X1-CN MOD:145193-09?
        Retain measured supply, gap voltage, sensitivity, waveform quality, and alarm response after the modified sensor has reached stable operation.
      Trusted by 5,000+ plants worldwide | Backed by our vast inventory of top-tier control parts, modules and cards, fast shipments are dispatched to cover your urgent needs. ABOUT US >>
