Technical specifications for 330130-080-00-05
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330130-080-00-05
-
Estimated shipping dimensions:20.5x22.5x3.5cm
-
Weight:0.35 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Minimum Bend Radius:25.4 mm (1.0 in)
-
Capacitance:69.9 pF/m (21.3 pF/ft) typical
-
Minimum Bend Radius Approximately:25.4 mm (1.0 in)
-
Temperature Range:-45°C to +177°C (-49°F to +350°F)
-
Operating Temperature:-51°C to +177°C (-60°F to +350°F)
-
Cable Length Option:8.0 meters (26.2 feet)
-
Connector Protector and Cable Option:Standard cable
-
Agency Approval Option:CSA, ATEX, IECEx Approvals
-
System Scale Factor:7.87 V/mm (200 mV/mil)
-
System Frequency Response:0 to 10 kHz
Information
Overview
Manuals
Common Applications
Product Precautions

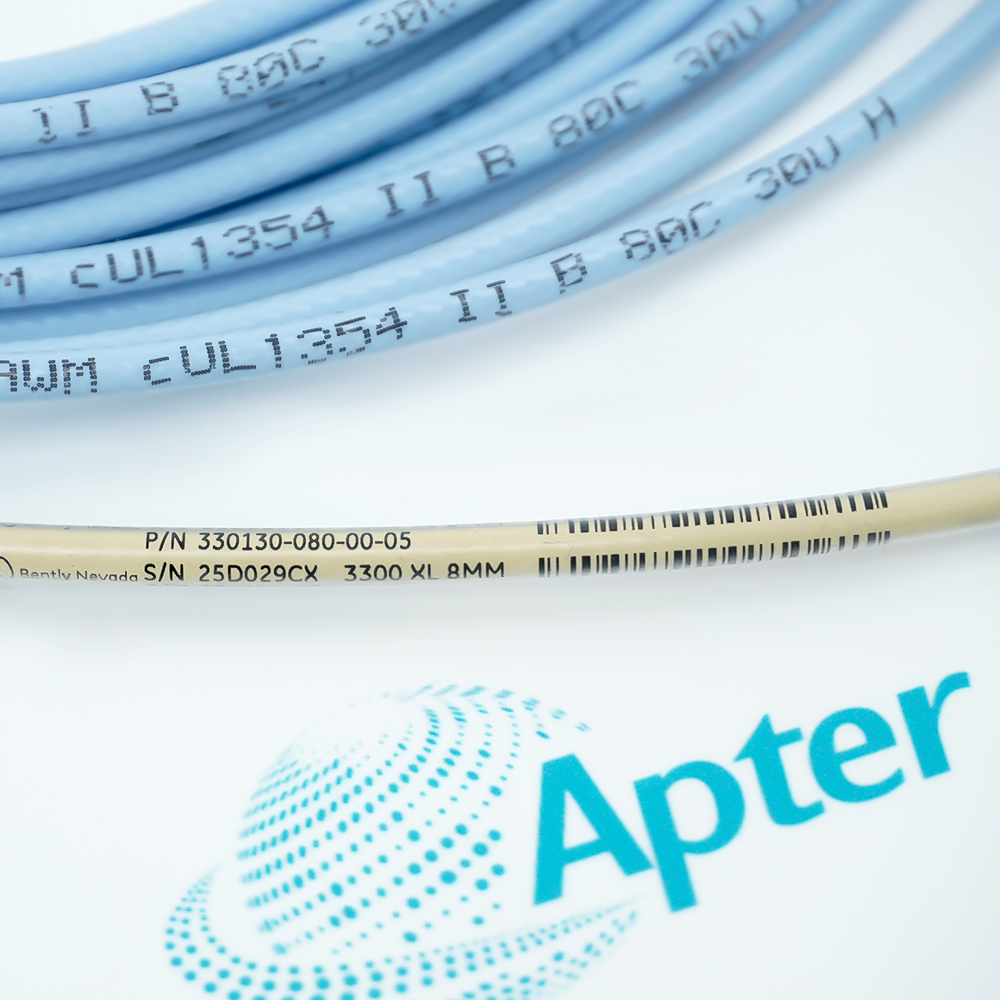

The 330130-080-00-05 is an 8.0-meter standard unarmored extension cable designed for the Bently Nevada 3300 XL 8mm proximity transducer system, utilized for high-precision, non-contact monitoring of rotating machinery. When integrated into a 9-meter system, it provides reliable measurements of shaft vibration, thrust position, and speed.
- 0–10 kHz response for precise, real-time vibration, speed, and Keyphasor data
- Gold-plated ClickLoc connectors for excellent oxidation and corrosion resistance
- Multiple Agency Approvals (-05) for certified safety in hazardous area deployments
All 3300 XL 8 mm proximity transducer systems support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm system components, including the 3300 5 mm probe for applications where mounting space is restricted.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330130-080-00-05 Standard Extension Cable , Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation Industry
Monitors axial displacement and radial vibration of gas, steam, and hydro turbine shafts to prevent mechanical catastrophic impact between impellers and casings.
Oil & Gas Exploration & Production
Used for machinery health and speed monitoring of large water injection pumps and electric submersible pumps on offshore drilling platforms and onshore oil wells.
Petrochemical Industry
Monitors bearing conditions of ethylene cracking units and high-pressure centrifugal compressors to ensure long-term safe operation in hazardous explosive gas environments.
Regining & Coal Chemical Industry
Monitors high-pressure feed pumps and reciprocating compressor shaft displacement in hydrocracking units to prevent medium leakage caused by bearing wear.
Iron, Steel & Metallurgy
Used for machinery condition monitoring of blast furnace blowers, large exhaust fans, and hot rolling mill main drive shafts to prevent sudden production shutdowns.
Marine & Naval Engineering
Used for bearing displacement measurement of main propulsion shafting and marine turbo-generator sets on large ocean-going cargo ships to ensure maritime safety.
This 8.0m probe must be used with a 9.0m system Proximitor and a 1.0m extension cable. Mixing it with a 5.0m system or incorrect cable lengths will cause severe calibration errors.Given the 8.0m length, excess cable should be neatly coiled (minimum 15cm diameter). Avoid sharp bends or messy stacking, as long cables are more susceptible to capacitive interference and signal drift.Ensure a side clearance of at least 15mm from surrounding metal. If mounting multiple probes, maintain at least 40mm between centers to prevent cross-talk (magnetic interference).
Alternative Names
330130 080 00 05
330I30-080-00-05
33O13O-O8O-OO-O5
33OI3O-O8O-OO-O5
330130-080-00-00
330130-080-00-BR
330130-080-00-CN
330130-035-00-05
Technical notes
330130-080-00-05 is an 8.0-meter standard unarmored extension cable with multiple agency approvals (-05) for the 3300 XL 8mm proximity transducer system. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
FAQ View All FAQ
-
What is the 330130-080-00-05?It is an 8.0-meter standard unarmored extension cable within the Bently Nevada 3300 XL 8mm proximity transducer system, used as a signal bridge for high-precision condition monitoring of rotating machinery.
-
How should the 330130-080-00-05 be installed and used?Connect the ClickLoc connector on one end of the cable to the proximity probe and the other end to the Proximitor sensor. During routing, it should be installed inside a galvanized conduit or metal cable tray to prevent mechanical damage and electromagnetic interference.
-
What is the primary use of the 330130-080-00-05?It connects the probe to the Proximitor sensor within a 9-meter system, enabling the system to measure radial vibration, axial position (thrust), and shaft speed/Keyphasor of rotating equipment.
-
What is the linear range supported by this cable?When integrated into a complete 3300 XL 8mm system, it supports a standard system linear range of 2.0 mm (80 mils) with a scale factor of 7.87 V/mm (200 mV/mil).
-
How is the system involving the 330130-080-00-05 installed and calibrated?The connected probe is threaded into a bearing housing facing the shaft. The 330130 cable transmits the signal to the Proximitor, and the installation gap is adjusted using a voltmeter until the output is typically set to approximately -10V DC (mid-range).
