      Bently Nevada 330103-00-04-10-02-00
      Bently Nevada 330103-00-04-10-02-00
      Bently Nevada 330103-00-04-10-02-00
      Bently Nevada 330103-00-04-10-02-00
      Bently Nevada 330103-00-04-10-02-00
      Bently Nevada 330103-00-04-10-02-00
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330103-00-04-10-02-00

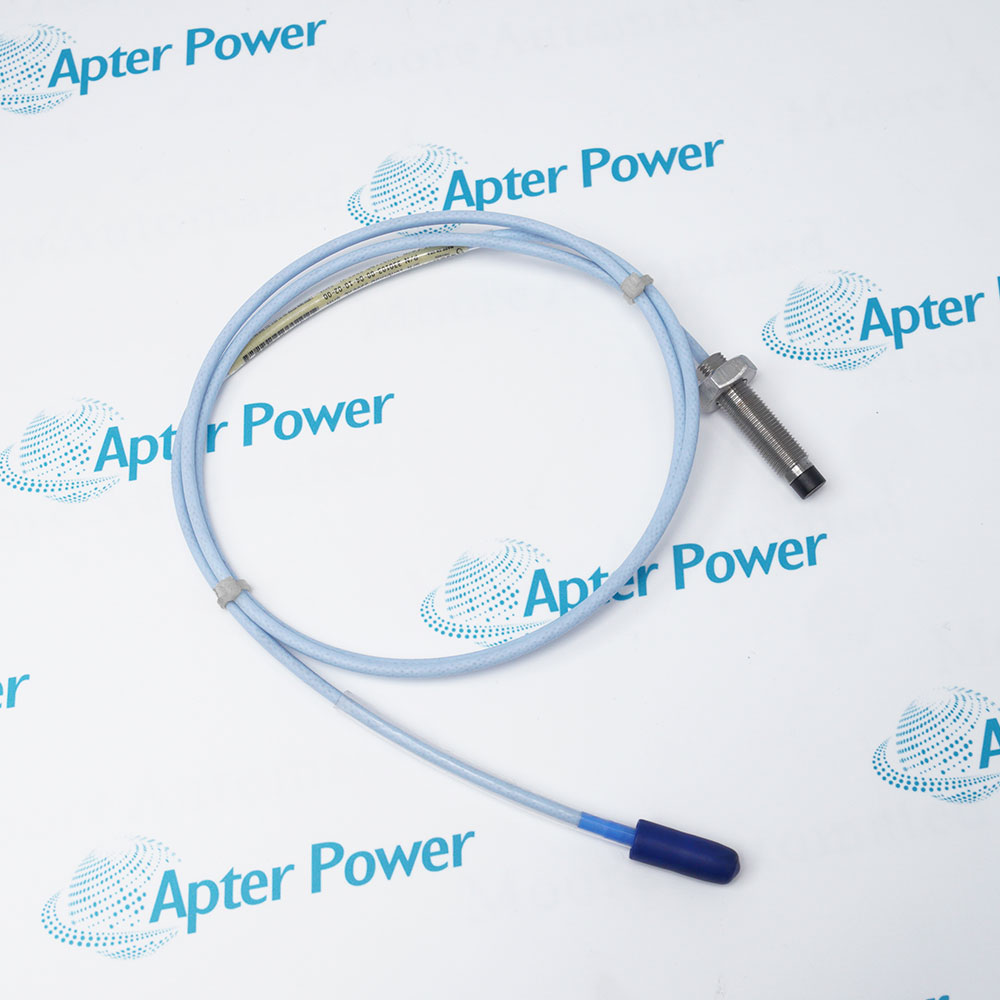

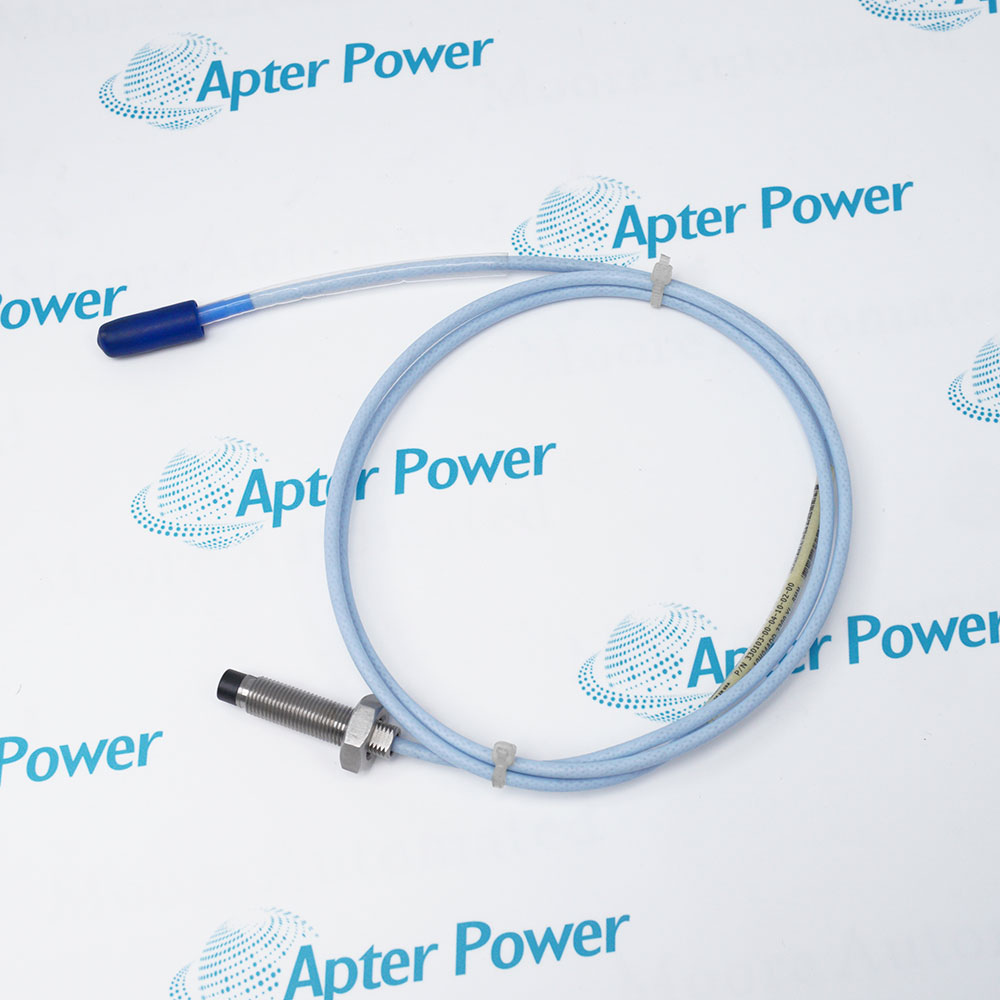

      3300 XL 8 mm Metric Proximity Probe
      In Stock

      Product Describe：

      Bently Nevada 330103-00-04-10-02-00 is a metric 3300 XL 8 mm eddy-current proximity probe with an M10 x 1 case. It senses shaft displacement for a matched Proximitor Sensor and machinery-monitoring channel.

      Ask our team:

      Get a quick price for： 330103-00-04-10-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330103-00-04-10-02-00

      Technical specifications for 330103-00-04-10-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330103-00-04-10-02-00
      • Estimated shipping dimensions:
        20.5x22.4x3.3cm
      • Weight:
        0.1 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe series:
        3300 XL 8 mm
      • Probe body thread:
        M10 x 1
      • Probe armor:
        Without armor
      • Unthreaded length:
        0 mm
      • Overall case length:
        40 mm
      • Total probe length:
        1.0 m
      • Connector:
        Miniature coaxial ClickLoc
      • Connector protector:
        Not included
      • Cable type:
        Standard 75 Ohm triaxial
      • Cable insulation:
        FEP
      • Agency approval option:
        Not required
      • Probe tip material:
        Polyphenylene sulfide (PPS)
      • Probe case material:
        AISI 303 or 304 stainless steel
      • Nominal probe DC resistance:
        7.59 +/- 0.50 Ohm
      • Probe case-to-lead tensile rating:
        330 N maximum
      • Lead-to-extension connector tensile rating:
        270 N maximum
      • Minimum cable bend radius:
        25.4 mm
      • Maximum forward-mount torque:
        33.9 N m
      • Recommended forward-mount torque:
        11.2 N m
      • Standard probe temperature:
        -52 to +177 degC
      • Matched-system linear range:
        2 mm
      • Matched-system incremental scale factor:
        7.87 V/mm nominal
      • Matched-system frequency response:
        0 to 10 kHz, +0/-3 dB
      • Minimum flat target diameter:
        15.2 mm
      • Minimum shaft diameter:
        50.8 mm
      • Recommended shaft diameter:
        76.2 mm
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330103-00-04-10-02-00 is a metric 3300 XL 8 mm eddy-current proximity probe with an M10 x 1 case. It senses shaft displacement for a matched Proximitor Sensor and machinery-monitoring channel.
      • Detects shaft-to-bearing relative position without mechanical contact
      • Forms the sensing element of a matched 3300 XL 8 mm transducer system
      • Carries the eddy-current probe signal through a standard FEP-insulated triaxial lead
      • Short-case installations with a 40 mm overall probe body

      330103-00-04-10-02-00 installs with 3300 XL 8 mm Proximitor Sensor, matched 3300 XL extension cable when required, AISI 4140 steel target, compatible Bently Nevada monitor channel in an engineered 3300 XL 8 mm Proximity Transducer System configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this 3300 xl 8 mm metric proximity probe.

      Important Notice: Confirm the complete 330103-00-04-10-02-00 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 330103-00-04-10-02-00 Manuals and Guides
      Apter Power 330103-00-04-10-02-00 Product Technical Reference PDFBently Nevada 330103-00-04-10-02-00 Official Manual PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Radial shaft-vibration measurementDetects shaft-to-bearing relative position without mechanical contact
      Axial position and thrust monitoringForms the sensing element of a matched 3300 XL 8 mm transducer system
      Machine shaft centerline observationCarries the eddy-current probe signal through a standard FEP-insulated triaxial lead
      Short-case installations with a 40 mm overall probe bodyShort-case installations with a 40 mm overall probe body
      Read the applicable Bently Nevada installation instructions before work. Verify 330103-00-04-10-02-00 and the installed 3300 XL 8 mm Proximity Transducer System configuration.
      1Verify the full 330103-00-04-10-02-00 marking and the 40 mm case before disturbing the bracket.
      2Place the monitored machine and protection channel in the approved maintenance state.
      3Protect the PPS tip and keep the M10 x 1 thread free from burrs and contamination.
      4Route the 1.0 m standard lead without sharp bends, crushing or tensile loading.
      5Finger-tighten the ClickLoc connection and keep the exposed connector clean and dry.
      6Confirm the installed Proximitor Sensor is calibrated for the target material and system length.
      7Set static gap within the approved linear region before enabling dynamic measurements.
      8Prove polarity, vibration response and alarm action before returning protection service.

      Technical notes

      Technical notes

      Set the 40 mm M10 x 1 case at the documented mechanical position and route the integral 1.0 m lead without violating the 25.4 mm bend radius. Gap the matched 3300 XL system against the machine target before validating monitor scaling.

      FAQS

      • What mounting thread does 330103-00-04-10-02-00 use?
        It uses an M10 x 1 metric probe body and is supplied without armor.
      • What mechanical lengths identify 330103-00-04-10-02-00?
        The ordering code specifies 0 mm unthreaded length, a 40 mm overall case and a 1.0 m total probe length.
      • Does 330103-00-04-10-02-00 include a connector protector?
        No. Connector option 02 is a miniature coaxial ClickLoc connector with standard cable and no protector.
      • Does a 330103-00-04-10-02-00 one-meter system need an extension cable?
        The manufacturer states that one-meter 3300 XL systems do not use an extension cable; verify the installed Proximitor execution.
      • What static gap should be checked for 330103-00-04-10-02-00?
        Gap the matched system inside its 0.25 to 2.3 mm linear region; the published radial-vibration reference is approximately 1.27 mm or -9 Vdc.
      • What cable routing limit applies to 330103-00-04-10-02-00?
        Maintain at least the published 25.4 mm cable bend radius and avoid tensile loading at the probe lead and ClickLoc termination.
      • How should 330103-00-04-10-02-00 be commissioned after replacement?
        Verify target clearance, bias voltage, polarity, dynamic response and the connected monitor's alarm action under controlled conditions.
      • Can 330103-00-04-10-02-00 be mixed with non-XL components?
        XL and non-XL 5 mm or 8 mm components can be physically and electrically interchangeable, but mixed systems are limited to non-XL performance specifications.
