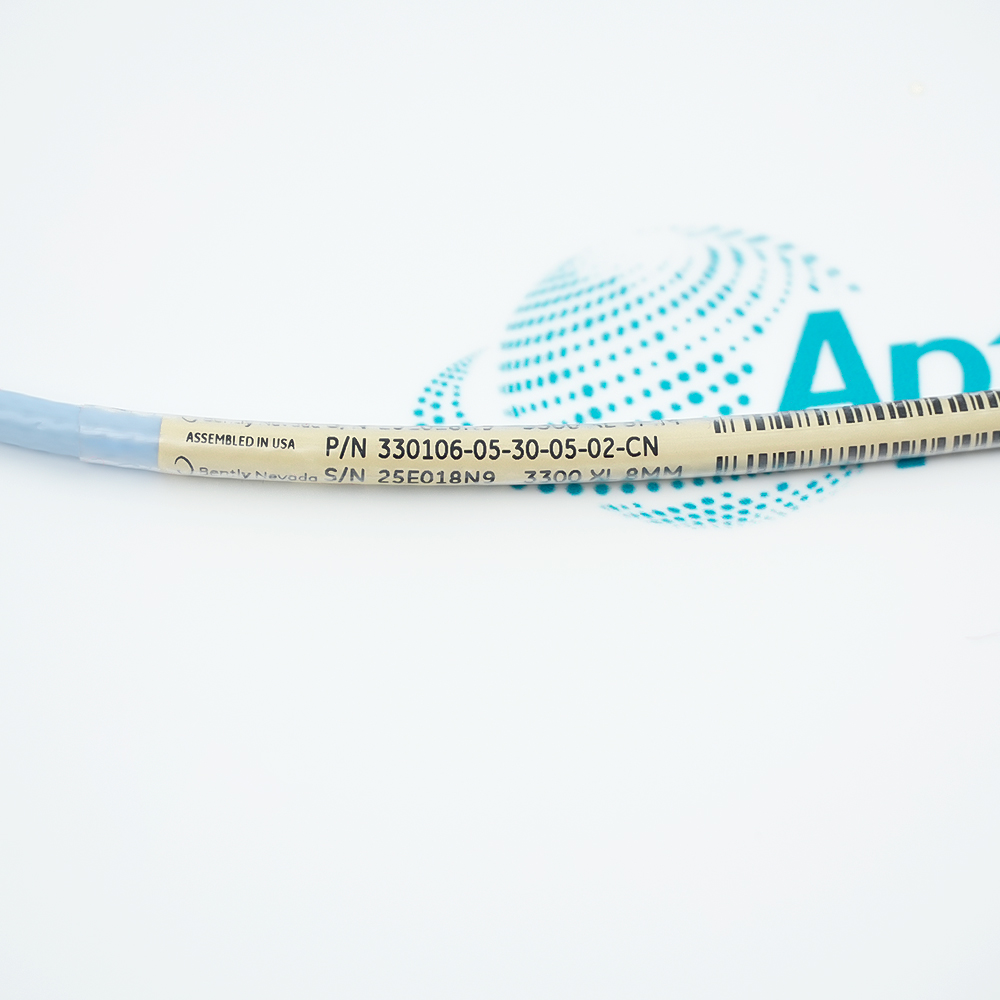

The 330106-05-30-05-02-CN is a Bently Nevada 3300 XL 8 mm reverse mount proximity probe featuring a 3/8-24 UNF English thread, 50 mm (2.0 in) unthreaded length, 30 mm (1.2 in) overall case length, and a 0.5-meter (20 in) total cable length. This specific reverse mount configuration is equipped with a miniature coaxial ClickLoc connector and carries specific CN agency approvals for hazardous areas.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330106-05-30-05-02-CN Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation
Monitoring radial vibration and shaft displacement of high, medium, and low-pressure rotors in high-power steam turbine-generator units.
Petroleum Refining
Monitoring thrust clearance and dynamic runout of rotors in main air blowers and rich gas compressor trains within heavy oil catalytic cracking units.
Petrochemical
Monitoring high-speed rotating shaft vibration of core cracked gas compressors in million-ton ethylene plants to prevent rotor failures.
Coal Chemical Industry
Monitoring oil film vibration status of bearings in main centrifugal air compressors and boosters within large air separation units (ASUs).
Nuclear Power Generation
Used for monitoring the eccentricity and runout of large main feedwater pumps, condensate pumps, and steam turbine shafts in the conventional island.
Hydropower Generation
Monitoring main shaft runout of thrust bearings and radial dynamic displacement of upper/lower guide bearings in large vertical hydro-turbine generators.
When using 330106-05-30-05-02-CN, note its unique reverse lock structure and avoid over-torquing inside the housing. Use a multimeter to precisely set the 2.0 mm initial gap (around -10V gap voltage) to prevent shaft collisions, and ensure adequate side clearance to avoid metal interference. Its 0.5-meter cable requires an extension cable to reach the Proximitor, always protect connectors from pulling or contamination.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
It is a 3300 XL 8mm reverse mount proximity probe manufactured by Bently Nevada.
What is the main function of 330106-05-30-05-02-CN?
For non-contact shaft vibration, displacement, and speed measurements on rotating machinery.
How to use products like 330106-05-30-05-02-CN?
Thread it backward into a mounting sleeve on the bearing housing, connect the cable and sensor to the rack.
