      Bently Nevada 330104-15-23-50-02-00
      Bently Nevada 330104-15-23-50-02-00
      Bently Nevada 330104-15-23-50-02-00
      Bently Nevada 330104-15-23-50-02-00
      Bently Nevada 330104-15-23-50-02-00
      Bently Nevada 330104-15-23-50-02-00

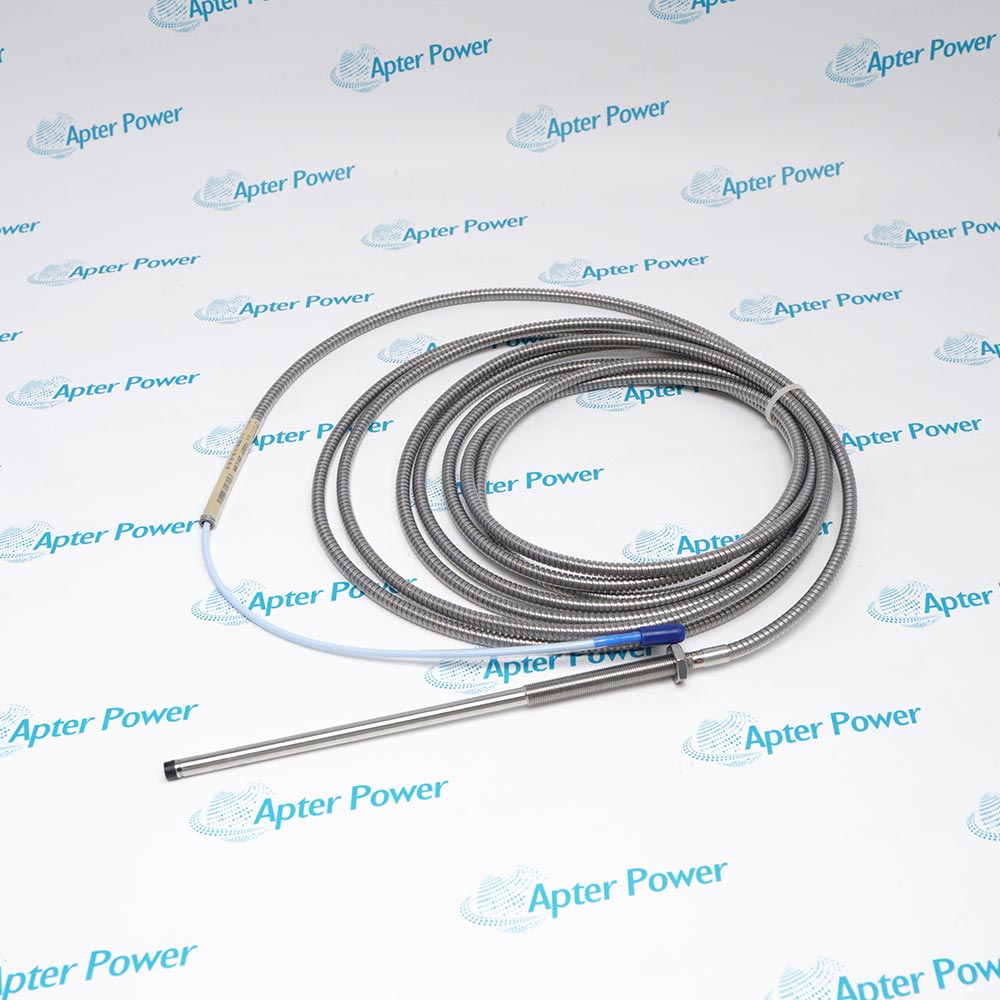

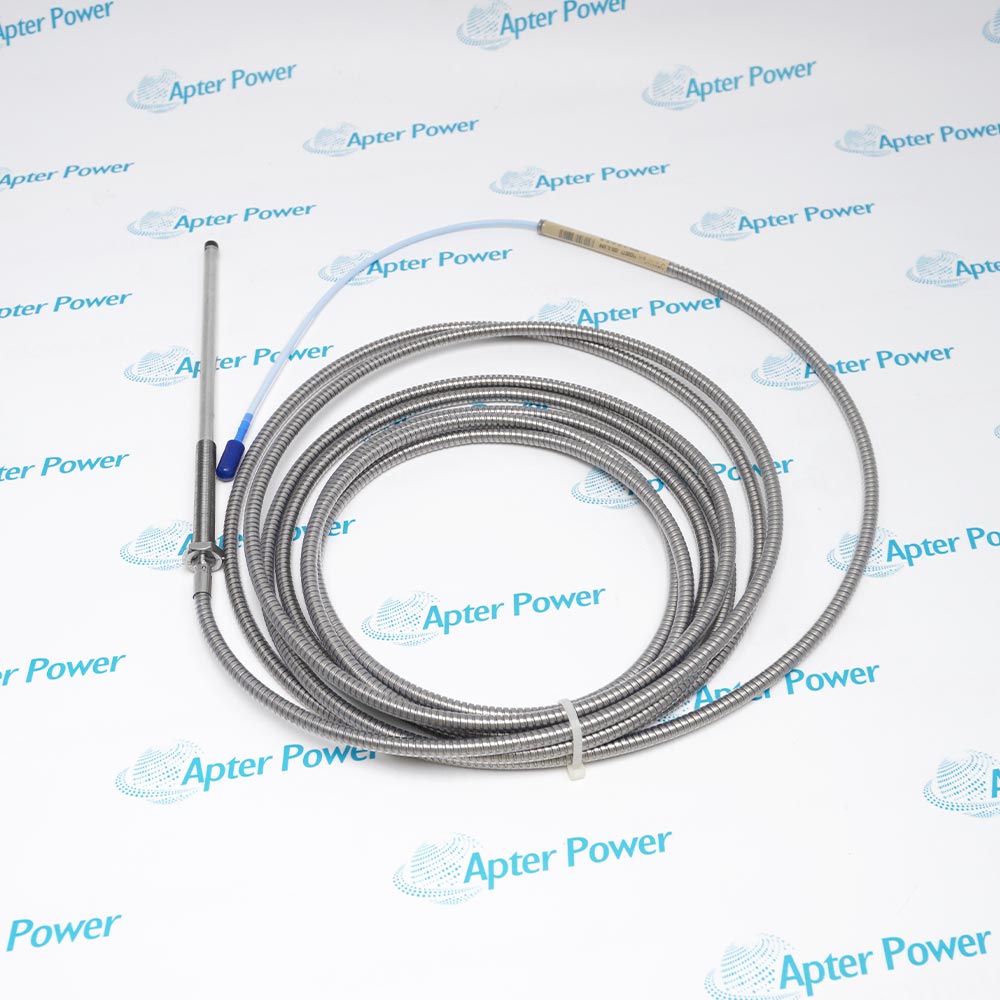

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330104-15-23-50-02-00

      Armored Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330104-15-23-50-02-00 is an armored M10 x 1 3300 XL 8 mm proximity probe with a 5.0 m standard lead and miniature ClickLoc connector. The 150 mm unthreaded section and 230 mm case distinguish this metric execution from adjacent 330104 variants.

      Ask our team:

      Get a quick price for： 330104-15-23-50-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330104-15-23-50-02-00

      Technical specifications for 330104-15-23-50-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330104-15-23-50-02-00
      • Estimated shipping dimensions:
        26.5x28x2cm
      • Weight:
        0.62 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe family:
        3300 XL 8 mm
      • Base order code:
        330104
      • Mounting thread:
        M10 x 1
      • Lead armor:
        Stainless steel
      • Unthreaded section:
        150 mm
      • Overall case length option:
        230 mm
      • Total probe length:
        5.0 m
      • Matched Proximitor system length:
        5 m
      • Cable type:
        75 ohm triaxial, FEP insulated
      • Connector:
        Miniature coaxial ClickLoc
      • Connector protector:
        Not included
      • Agency approval option:
        00 - not required
      • Probe tip material:
        Polyphenylene sulfide (PPS)
      • Case material:
        AISI 303 or 304 stainless steel
      • Minimum cable bend radius:
        25.4 mm
      • Maximum connector torque:
        0.565 N m
      • Recommended probe case torque:
        11.2 N m
      • Probe operating and storage range:
        -52 to +177 C
      • System linear range:
        2.0 mm
      • Recommended radial-vibration gap:
        1.27 mm, approximately -9 Vdc
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330104-15-23-50-02-00 is an armored M10 x 1 3300 XL 8 mm proximity probe with a 5.0 m standard lead and miniature ClickLoc connector. The 150 mm unthreaded section and 230 mm case distinguish this metric execution from adjacent 330104 variants.
      • 3300 XL 8 mm non-contacting eddy-current probe
      • M10 x 1 stainless-steel armored case
      • 150 mm unthreaded / 230 mm case
      • 5.0 m standard lead for a 5 m Proximitor

      Use 330104-15-23-50-02-00 only in the matched 3300 XL 8 mm probe, cable and Proximitor arrangement. Confirm the monitor channel and controlled response before release.

      Important Notice: The complete order code controls case geometry, lead length, connector and approval option. Keep the probe matched to the documented 3300 XL 8 mm Proximitor system and verify gap and monitor response after installation.

      330104-15-23-50-02-00 Manuals & Downloads
      330104-15-23-50-02-00 Technical Reference (PDF)330104-15-23-50-02-00 Installation & Commissioning Guide (PDF)

      These documents serve different purposes: the first records the verified product and matched-system data; the second covers installation checks, commissioning and acceptance.

      Deep M10 probe position
      Retain the 150 mm unthreaded section and 230 mm case where that geometry is specified.
      Long-lead radial sensing
      Pair the 5.0 m armored lead with a matched 5 m 3300 XL 8 mm Proximitor system.
      Metric case replacement
      Check the M10 x 1 mounting interface before replacing a nearby 13-20 execution.
      Controlled gap acceptance
      Set the documented radial gap and prove voltage and channel response after installation.
      Read the applicable Bently Nevada 3300 XL 8 mm instructions, datasheet 141194 Rev. AN before work. Verify 330104-15-23-50-02-00, the installed machine and the matched transducer chain before isolation or commissioning.
      1
      Confirm the 330104-15-23-50-02-00 marking and the 150 mm unthreaded / 230 mm case geometry.
      2
      Put the machine and affected monitor channel in the approved maintenance state.
      3
      Record the original M10 x 1 mounting depth and 5.0 m lead route.
      4
      Inspect the stainless-steel armor, tip and miniature ClickLoc connector.
      5
      Keep M10 x 1 engagement within the documented limit and observe case torque.
      6
      Route the 5.0 m cable without reducing its 25.4 mm minimum bend radius.
      7
      Reconnect the matched 5 m Proximitor system and check the option-02 joint.
      8
      Set the documented gap and prove the affected monitor response under control.

      Technical notes

      Technical notes

      Confirm the 150 mm/230 mm mechanical execution before replacement; the 13-20 sibling is not the same case geometry. Keep the 5 m probe on a matched 5 m transducer system and check gap and response after a controlled restart.

      FAQS

      • Can 330104-15-23-50-02-00 replace a 13-20 case without a fit check?
        No. This code selects a 150 mm unthreaded section and 230 mm case, rather than the sibling's 130 mm and 200 mm.
      • Which cable construction comes with 330104-15-23-50-02-00?
        Option 02 provides standard 75 ohm triaxial, FEP-insulated cable with a miniature ClickLoc connector.
      • What does the 50 option in 330104-15-23-50-02-00 require?
        It is a 5.0 m probe intended for a 5 m 3300 XL 8 mm Proximitor system.
      • How should the 330104-15-23-50-02-00 armored lead be routed?
        The armor is flexible stainless steel with an FEP outer jacket, and the cable bend radius must stay at or above 25.4 mm.
      • Is the 05 approval package present on 330104-15-23-50-02-00?
        No. This part ends in 00, the option without added agency approvals.
      • What temperature range applies to 330104-15-23-50-02-00?
        The standard 3300 XL 8 mm probe operating and storage range is -52 to +177 C.
      • Where should radial-vibration gapping for 330104-15-23-50-02-00 begin?
        The recommended matched-system gap is about 1.27 mm, producing approximately -9 Vdc under the stated conditions.
      • What torque is recommended for the 330104-15-23-50-02-00 case?
        The listed recommended case torque is 11.2 N m for a standard forward-mounted probe, subject to the documented thread engagement limit.
