      Bently Nevada 330104-08-14-10-02-05
      Bently Nevada 330104-08-14-10-02-05
      Bently Nevada 330104-08-14-10-02-05
      Bently Nevada 330104-08-14-10-02-05
      Bently Nevada 330104-08-14-10-02-05
      Bently Nevada 330104-08-14-10-02-05
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330104-08-14-10-02-05

      Armored Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

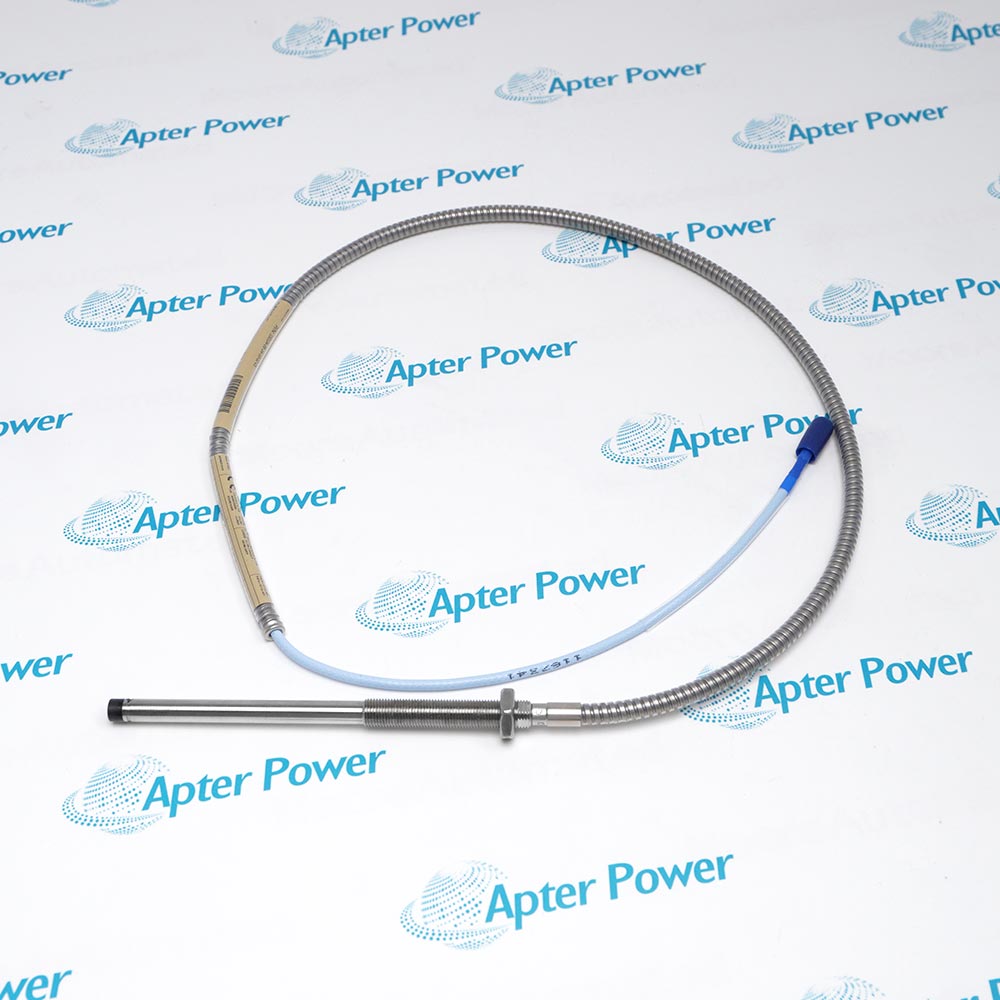

      Bently Nevada 330104-08-14-10-02-05 is an armored metric 3300 XL 8 mm proximity probe with an M10 x 1 thread and a miniature coaxial ClickLoc connector. In a matched 3300 XL transducer system, it supports non-contact shaft position and vibration measurement.

      Ask our team:

      Get a quick price for： 330104-08-14-10-02-05
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330104-08-14-10-02-05

      Technical specifications for 330104-08-14-10-02-05

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330104-08-14-10-02-05
      • Estimated shipping dimensions:
        111.5x2x2cm
      • Weight:
        0.14 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe Family:
        3300 XL 8 mm
      • Probe Configuration:
        Armored metric probe
      • Mounting Thread:
        M10 x 1
      • Connector Type:
        Miniature coaxial ClickLoc
      • Cable Type:
        75 ohm triaxial FEP
      • Standard Probe Temperature:
        -52 to +177 deg C
      • Probe Tip Material:
        Polyphenylene sulfide (PPS)
      • Probe Case Material:
        AISI 303 or 304 stainless steel
      • Approval Option:
        CSA, ATEX, IECEx
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330104-08-14-10-02-05 is the armored metric probe in a 3300 XL 8 mm proximity transducer chain. With the matched extension cable and Proximitor sensor, it supports non-contact monitoring of shaft position and vibration.
      • Forms the sensing end of the three-component 3300 XL transducer chain
      • Supports static shaft-position and dynamic vibration measurements
      • Uses a positive-locking ClickLoc mating connection
      • XL and selected non-XL 3300 components can be interchanged under documented limits

      The complete system is used for vibration and position monitoring on fluid-film bearing machines and may provide Keyphasor reference or speed measurements when the application is engineered accordingly.

      Important Notice: Match the probe, extension cable and Proximitor sensor to the intended system configuration; check the target material, probe gap and connector condition before commissioning.

      330104-08-14-10-02-05 Manuals & Downloads
      330104-08-14-10-02-05 Technical Reference (PDF)330104-08-14-10-02-05 Installation & Commissioning Guide (PDF)

      The first document contains model-specific technical and system data. The second provides installation, connection, commissioning and acceptance checks.

      Fluid-Film Bearing VibrationUse the completed 3300 XL 8 mm transducer chain to monitor dynamic shaft motion at fluid-film bearings.
      Axial Shaft PositionUse the non-contact probe system to observe static axial position relative to the documented target.
      Keyphasor ReferenceApply the probe chain as a phase-reference input where the machine-monitoring design calls for a Keyphasor signal.
      Shaft Speed MeasurementUse the system for speed measurement in an engineered installation; review the manufacturer application note before any overspeed-protection use.
      For Bently Nevada 330104-08-14-10-02-05, confirm the armored metric probe identity, mating transducer components and installed channel settings before returning the machine-monitoring point to service.
      1
      Match the complete 330104-08-14-10-02-05 order code and M10 x 1 armored probe construction to the installed record.
      2
      Check that the selected extension cable and Proximitor sensor form the documented 3300 XL system configuration.
      3
      Confirm the target material used for calibration; the standard system specifications are based on AISI 4140 steel.
      4
      Mate the miniature coaxial ClickLoc connection by hand until the locking click is felt; do not substitute a BNC connection.
      5
      Use the specified connector protection where exposure is possible; the manufacturer does not recommend silicone tape for turbine-oil exposure.
      6
      Keep this standard probe within its documented operating temperature rating and select an approved extended-temperature variant if the application exceeds it.
      7
      When mixing XL and non-XL 3300 components, evaluate the complete channel against the non-XL performance limits.
      8
      After assembly, check probe gap and channel response against the approved system procedure before releasing the measurement point.

      Technical notes

      Technical notes

      Use this armored metric probe with the documented 3300 XL extension cable and Proximitor sensor. Before commissioning, verify the ClickLoc connection, target material, system configuration and probe gap against Bently Nevada datasheet 141194 Rev. AN.

      FAQS

      • What does 330104-08-14-10-02-05 measure in a complete 3300 XL system?
        With the matched extension cable and Proximitor sensor, the probe supports non-contact static position and dynamic vibration measurement of a conductive target.
      • Which connector is specified by option 02 on 330104-08-14-10-02-05?
        Option 02 is the miniature coaxial ClickLoc connector with standard cable, not a BNC connector.
      • How should the ClickLoc connection of 330104-08-14-10-02-05 be secured?
        The gold-plated ClickLoc mating connectors are tightened by hand until they click; Bently Nevada recommends connector protectors for environmental protection.
      • What mounting configuration does 330104-08-14-10-02-05 provide?
        The 330104 is the metric M10 x 1 version of the 3300 XL 8 mm probe with cable armor.
      • What does the final 05 approval option of 330104-08-14-10-02-05 designate?
        The 05 order-code option designates CSA, ATEX and IECEx approvals; installation must follow the applicable approved drawings.
      • What standard probe temperature range applies to 330104-08-14-10-02-05?
        The datasheet specifies -52 to +177 deg C for operating and storage temperature of the standard probe.
      • Can 330104-08-14-10-02-05 be combined with non-XL 3300 components?
        The datasheet permits electrical and physical interchange with non-XL 3300 5 mm and 8 mm components, but a mixed system is limited to the non-XL system performance specifications.
