      Bently Nevada 330103-10-20-10-02-00
      Bently Nevada 330103-10-20-10-02-00
      Bently Nevada 330103-10-20-10-02-00
      Bently Nevada 330103-10-20-10-02-00
      Bently Nevada 330103-10-20-10-02-00
      Bently Nevada 330103-10-20-10-02-00
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330103-10-20-10-02-00

      Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

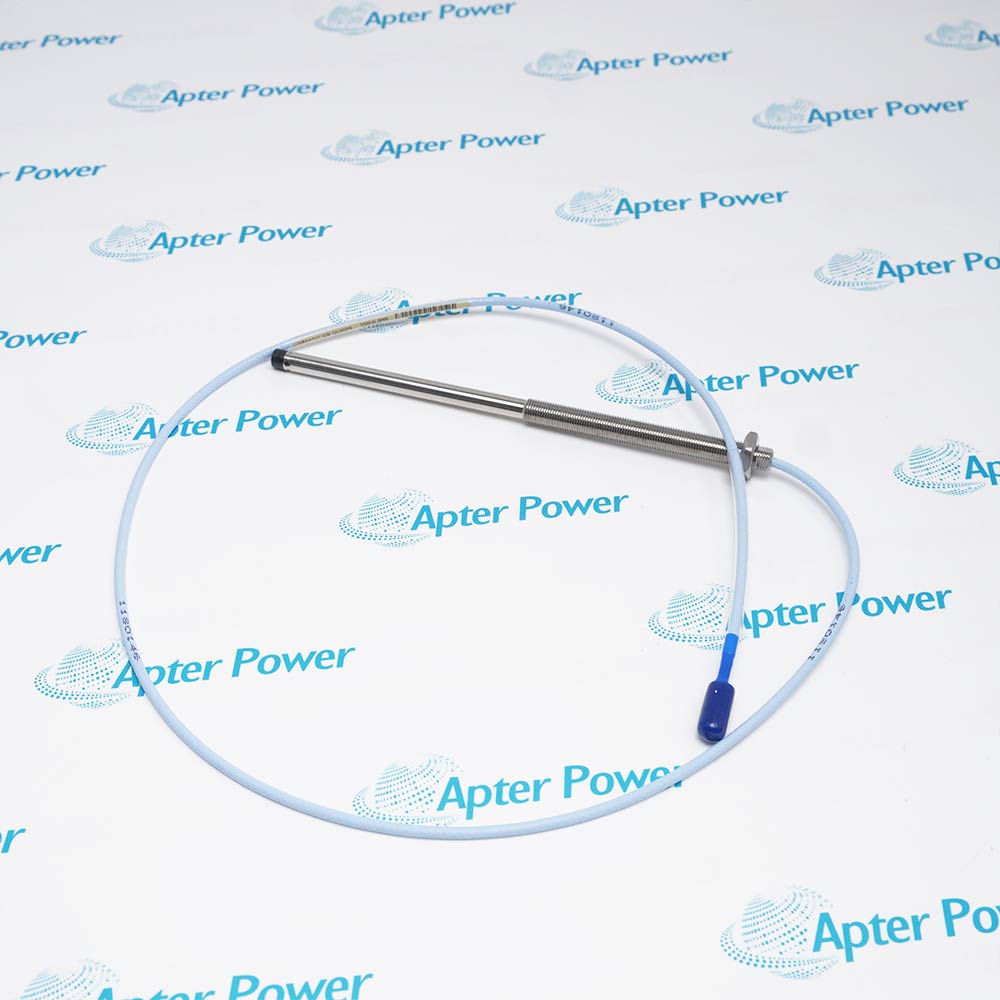

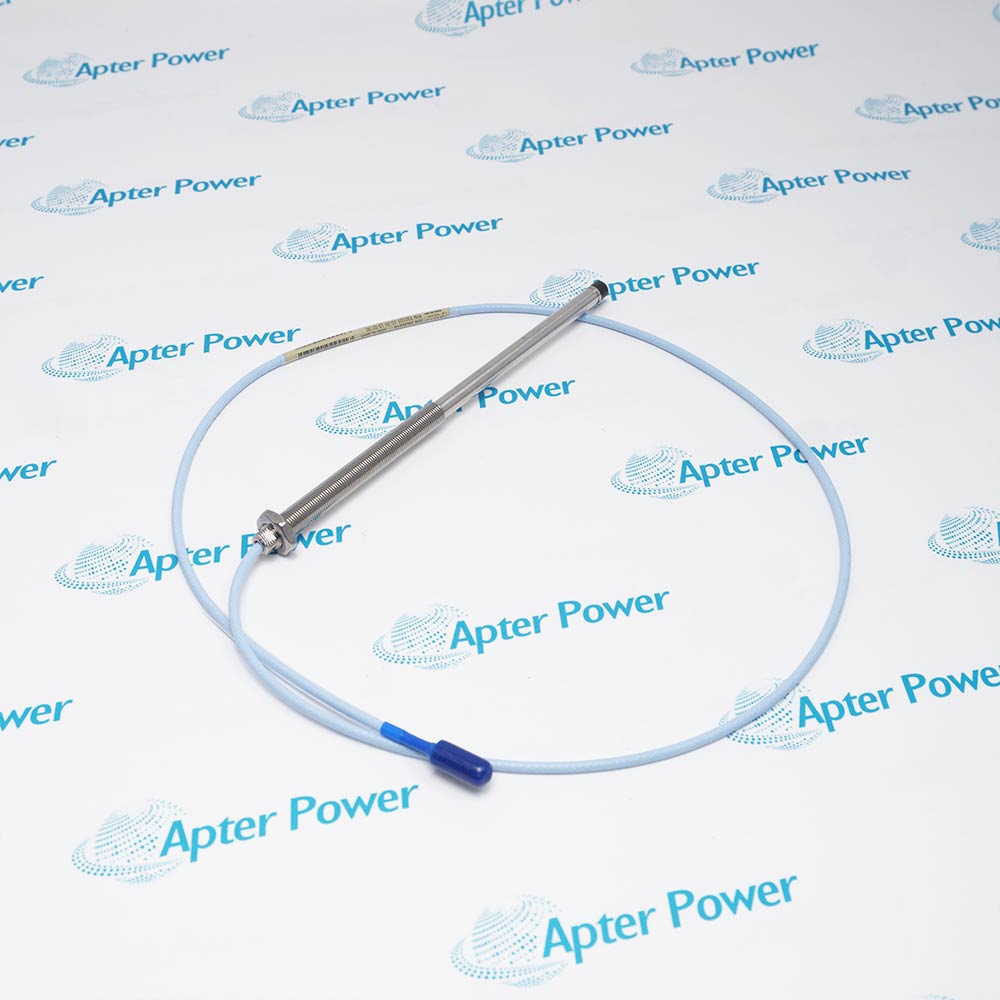

      Bently Nevada 330103-10-20-10-02-00 is a proximity probe for the 3300 XL 8 mm proximity transducer system. It is a unarmored M10 x 1 3300 XL 8 mm probe with a 200 mm case and 1.0 m integral lead.

      Ask our team:

      Get a quick price for： 330103-10-20-10-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330103-10-20-10-02-00

      Technical specifications for 330103-10-20-10-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330103-10-20-10-02-00
      • Estimated shipping dimensions:
        1.8x1.6x112cm
      • Weight:
        0.1 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Product family:
        3300 XL 8 mm proximity transducer system
      • Probe part family:
        330103
      • Mounting thread:
        M10 x 1
      • Cable armor:
        Unarmored
      • Unthreaded length:
        100 mm
      • Overall case length:
        200 mm
      • Probe lead length:
        1.0 m
      • Connector and cable option:
        ClickLoc standard cable
      • Approval option:
        No approvals
      • System linear range:
        2.0 mm (80 mils)
      • Scale factor:
        7.87 V/mm (200 mV/mil)
      • Frequency response:
        0 to 10 kHz
      • Nominal gap:
        1.27 mm (50 mils)
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330103-10-20-10-02-00 is a proximity probe for the 3300 XL 8 mm proximity transducer system. It is a unarmored M10 x 1 3300 XL 8 mm probe with a 200 mm case and 1.0 m integral lead.
      • Probe part family: 330103
      • Mounting thread: M10 x 1
      • Cable armor: Unarmored
      • Unthreaded length: 100 mm

      330103-10-20-10-02-00 is documented as a Proximity Probe within the 3300 XL 8 mm proximity transducer system.

      Use the complete model identity and published parameter set for integration, replacement and commissioning.

      Important Notice: Verify 330103-10-20-10-02-00, the installed extension cable and Proximitor Sensor, target material, system length and gap before replacement.

      Bently Nevada 330103-10-20-10-02-00 Manuals & Downloads
      Bently Nevada 330103-10-20-10-02-00 Technical Reference (PDF)Bently Nevada 330103-10-20-10-02-00 Installation & Commissioning Guide (PDF)

      The first document presents exact-model technical and engineering data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Exact Proximity Probe replacement
      Preserves the complete 330103-10-20-10-02-00 identity and published configuration.
      Documented system integration
      Uses the official product-family and interface values for the installed system.
      Commissioning verification
      Checks the exact electrical, mechanical and signal parameters before release.
      Maintenance diagnostics
      Supports controlled troubleshooting while retaining the as-found installation record.
      Read the applicable Bently Nevada instructions before work. Verify 330103-10-20-10-02-00 and every installed interface before isolation, wiring or commissioning.
      1
      Confirm the complete 330103-10-20-10-02-00 marking before work.
      2
      Isolate the installed system and document the maintenance state.
      3
      Verify probe part family: 330103.
      4
      Verify mounting thread: M10 x 1.
      5
      Verify cable armor: Unarmored.
      6
      Verify unthreaded length: 100 mm.
      7
      Protect connectors, wiring and exposed interfaces from damage or contamination.
      8
      Complete a controlled functional test and retain the final acceptance record.

      Technical notes

      Technical notes

      Verify 330103-10-20-10-02-00, the installed extension cable and Proximitor Sensor, target material, system length and gap before replacement.

      FAQS

      • Why does Bently Nevada 330103-10-20-10-02-00 need extra insertion clearance?
        Its M10 x 1 body includes a 100 mm unthreaded section and 200 mm overall case, so the bracket and withdrawal path must accommodate the long probe.
      • Which mechanical reference must be preserved for Bently Nevada 330103-10-20-10-02-00?
        Record the installed insertion depth before loosening the locknuts; the long smooth section makes that reference critical to restoring probe position.
      • What lead arrangement accompanies Bently Nevada 330103-10-20-10-02-00?
        It uses a 1.0 m unarmored integral lead with a ClickLoc standard-cable connection, routed without loading the long probe body.
      • Can Bently Nevada 330103-10-20-10-02-00 be used where an approval option is mandatory?
        Not on the basis of this order code: the final 00 position denotes no approval selection.
      • How should the long probe be paired electrically?
        Match it with the extension cable and 3300 XL 8 mm Proximitor Sensor that produce the documented total system length.
      • Which response value should be recovered after reinstalling Bently Nevada 330103-10-20-10-02-00?
        The displacement slope should return to 7.87 V/mm (200 mV/mil) within the 2.0 mm linear range.
      • What mechanical fault can disturb the 330103-10-20-10-02-00 reading?
        Movement of the long case, insufficient locknut support, or lead strain can shift the gap even when the electronics remain healthy.
      • What completes commissioning of Bently Nevada 330103-10-20-10-02-00?
        Confirm restored insertion depth, secure mounting, stable nominal gap, clean waveform, correct scale, and the intended channel trip behavior.
