21504-12-28-10-02

Probe Proximity
In Stock
Fast Shipping Available

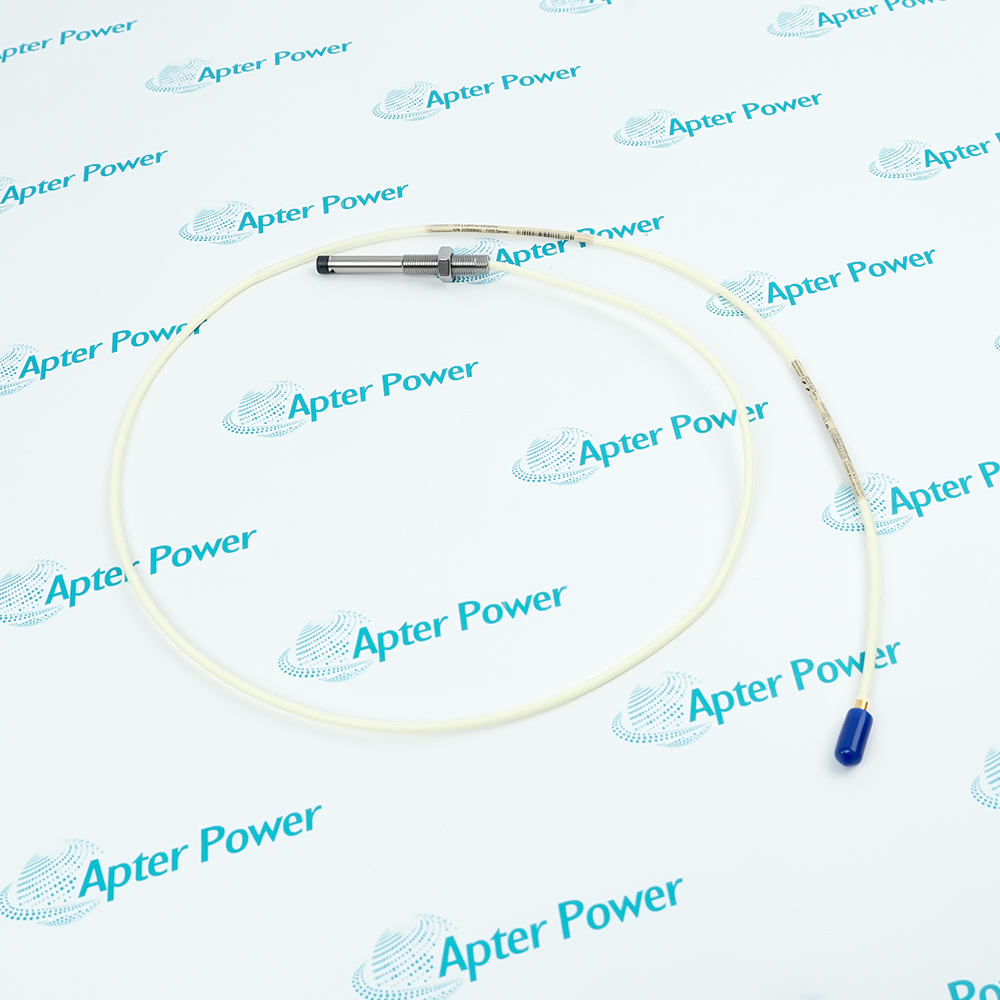

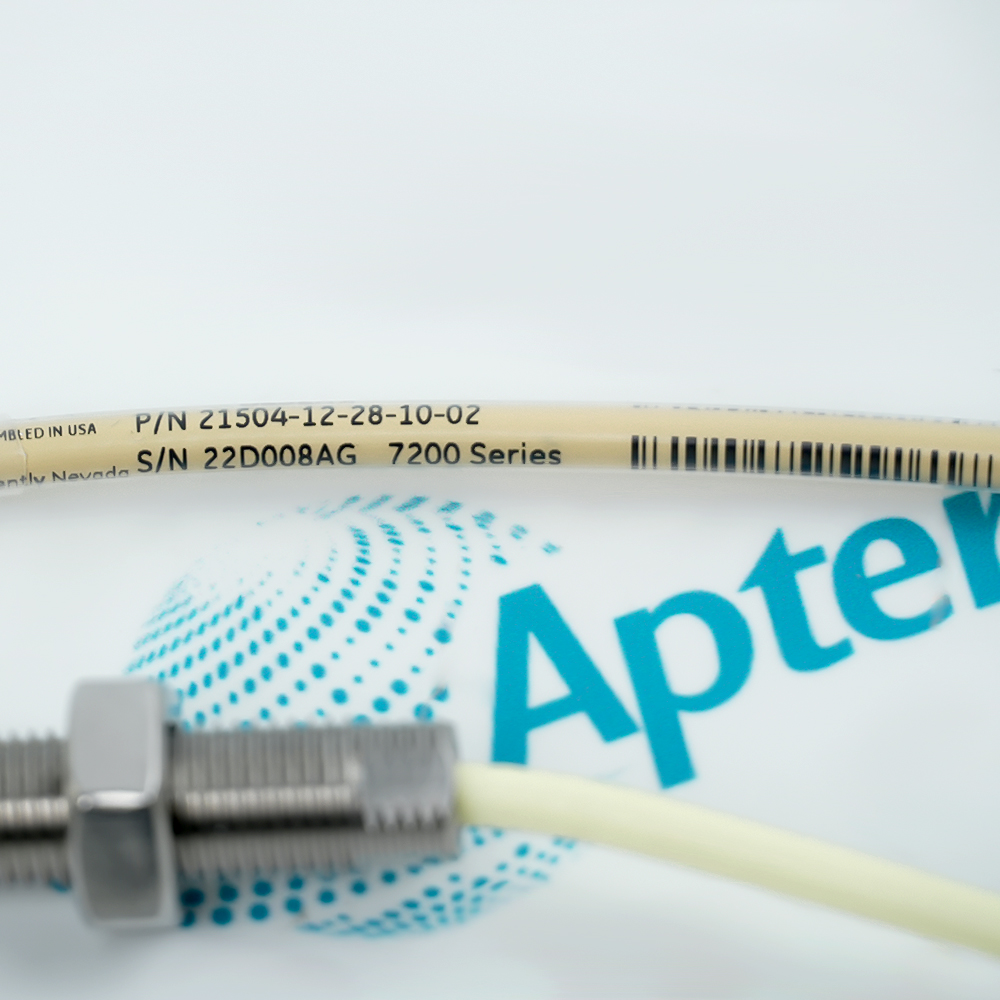

Bently Nevada 21504-12-28-10-02
Bently Nevada 21504-12-28-10-02
Bently Nevada 21504-12-28-10-02
Bently Nevada 21504-12-28-10-02
Bently Nevada 21504-12-28-10-02
Bently Nevada 21504-12-28-10-02
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

7200 Series 8 mm Probe
3/8-24 UNF thread
with stainless steel armor
Miniature coaxial ClickLoc connector
Get a quick price for 21504-12-28-10-02
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 21504-12-28-10-02

  • Manufacturer:
    Bently Nevada
  • Product Category:
    Machinery Monitoring Systems
  • Spare Part Number:
    21504-12-28-10-02
  • Estimated shipping dimensions:
    1.6x1.3x69cm
  • Weight:
    0.05 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Probe Diameter:
    8 mm
  • Linear Range:
    2.0 mm (80 mils)
  • Scale Factor:
    8.0 V/mm (200 mV/mil)
  • Probe Tip Material:
    Polyphenylene Sulfide
  • Max Cable Distance:
    1,000 feet (305 m) without signal degradation
  • System Length:
    Form either 5 or 9 meters system length
  • Safety Certifications:
    CSA, BASEEFA, and FM certified for hazardous locations
  • Unthreaded Length Option:
    1.2 in
  • Overall Case Length Option:
    2.8 in
  • Total Length Option:
    1.0 meter (Approx. 3.3 feet)

Information

Overview Manuals Common Applications Product Precautions
The 21504-12-28-10-02 belongs to the 7200 series 8 mm non-contacting, gap-to-voltage proximity transducer probes, which measure static as well as dynamic distances between the probe tip and the observed target. This component is primarily utilized for shaft position and vibration measurements on rotating and reciprocating machinery.
    • Miniature ClickLoc connector, ensures secure cable connection without specialized tooling
    • Patented CableLoc junction, secures cable to tip, significantly increasing pull-strength durability
    • Within the linear measurement range, the system can simultaneously capture both static and dynamic values
It is built for deployment across virtually any industrial machine type, including gas and steam turbines, compressors, pumps, centrifuges, electric motors, and generators, while remaining fully compatible with API 670 requirements. In terms of construction, the 8 mm probe tip is manufactured from polyphenylene sulfide (PPS), a specialized plastic capable of withstanding unusually harsh, wet, and/or chemical environments.

A complete 7200 monitoring loop consists of this probe, an extension cable, and a Proximitor sensor, sharing full compatibility with the 3300 and 9000 Monitoring Systems.For enhanced resistance to physical abuse, the probe comes with a 1.0-meter (approx. 3.3 feet) integral lead cable protected by stainless steel armor and terminated with a standard miniature coaxial connector. The combination of this probe lead and an extension cable is engineered to achieve a total system length of either 5 or 9 meters from probe tip to the Proximitor. Probes and cables of the same system length are completely interchangeable.

Furthermore, a three-conductor, shielded cable carries the voltage signal and power input between the 7200 Proximitor and Bently Nevada monitors, allowing the Proximitor to be located up to 1,000 feet from standard monitors without signal degradation. The transducer system also holds hazardous area safety certifications from CSA, BASEEFA, and FM for compliant installation in classified operational environments.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 ently Nevada 21504-12-28-10-02 Probe Proximity Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power
Long-term monitors the shaft conditions of turbine generator sets to prevent total machine destruction caused by excessive relative shaft vibration or axial thrust movement.

Petrochemical & Refining Industry
Continuously measures the dynamic clearances of critical gas compressor shafts within hazardous locations to avoid bearing burnout and unplanned shutdowns.

Natural Gas Pipeline Transmission
Ensures steady operation of multi-bearing setups for remote pipeline booster units under severe ambient environments, eliminating mechanical misalignment faults.

Air Separation Industry
Supervises ultra-high-speed core compressor shafts within air separation units (ASUs), delivering mechanical safety protection via micron-level resolution.

Hydroelectric Power Industry
Measures massive main shaft runout and heavy thrust values of large hydro-generator sets under intense water impacts or overload conditions.

Nuclear Power
Tracks large-capacity conventional island rotating equipment shaft vibration amplitudes under rigorous safety operational protocols.
 Given that this model features a longer 1.2-inch unthreaded portion, precise calibration of the initial gap voltage (typically -9 Vdc) relative to the metal target surface is mandatory during installation to ensure its 2 mm linear range is not exceeded. During routing and handling, utilize its CableLoc™ reinforced feature to prevent pulling damage, and ensure the miniature coaxial ClickLoc connector remains absolutely clean, dry, and free of oil contamination. Furthermore, strict electrical length matching of the combined probe and extension cable must be maintained (either a 5-meter or 9-meter system), and cutting or splicing the 1.0-meter integral armored cable is strictly prohibited.

Alternative Names

21504 12 28 10 02 215O4-12-28-1O-O2 2I504-I2-28-I0-02 2I5O4-I2-28-IO-O2 21504-12-28-10-00 21504-12-28-10-CN 21504-12-28-10-BR 21504-12-28-1O-02

Technical notes

This 7200 series 8 mm probe system is highly suitable for use in confined spaces, delivering 80 mils (2 mm) of linear range with a standard scale factor of 200 mV/mil (8 V/mm). Regarding its exact physical configuration, the 21504-12-28-10-02 features a 3/8-24 UNF threaded body that includes a 1.2-inch unthreaded length and a 2.8-inch overall case length. This model incorporates the CableLoc™ feature, an advanced technique for securing the coaxial cable to the probe tip to provide an extremely strong junction, thereby increasing the durability of the probe during installation and usage.

FAQ View All FAQ

  • What are the body structure features of 21504-12-28-10-02?
    It features a 3/8-24 UNF body with a 12.0-inch unthreaded length and a 2.8-inch overall case length.
  • What are the cable and connector features of 21504-12-28-10-02?
    It comes with a 1.0-meter standard unarmored cable terminated with a miniature coaxial plug.
  • How do you properly install products like 21504-12-28-10-02?
    Screw it into a bracket, adjust the insertion depth to set the initial gap, and secure it with a locknut.
  • How do you routinely use products like 21504-12-28-10-02?
    Fix it on the bearing housing, connect it to a Proximitor via cable, and monitor shaft vibration or displacement in real time.
  • Can 21504-12-28-10-02 output signals independently for use?
    No, it must be paired with the same series extension cable and a Proximitor (sensor) to form a working loop.
