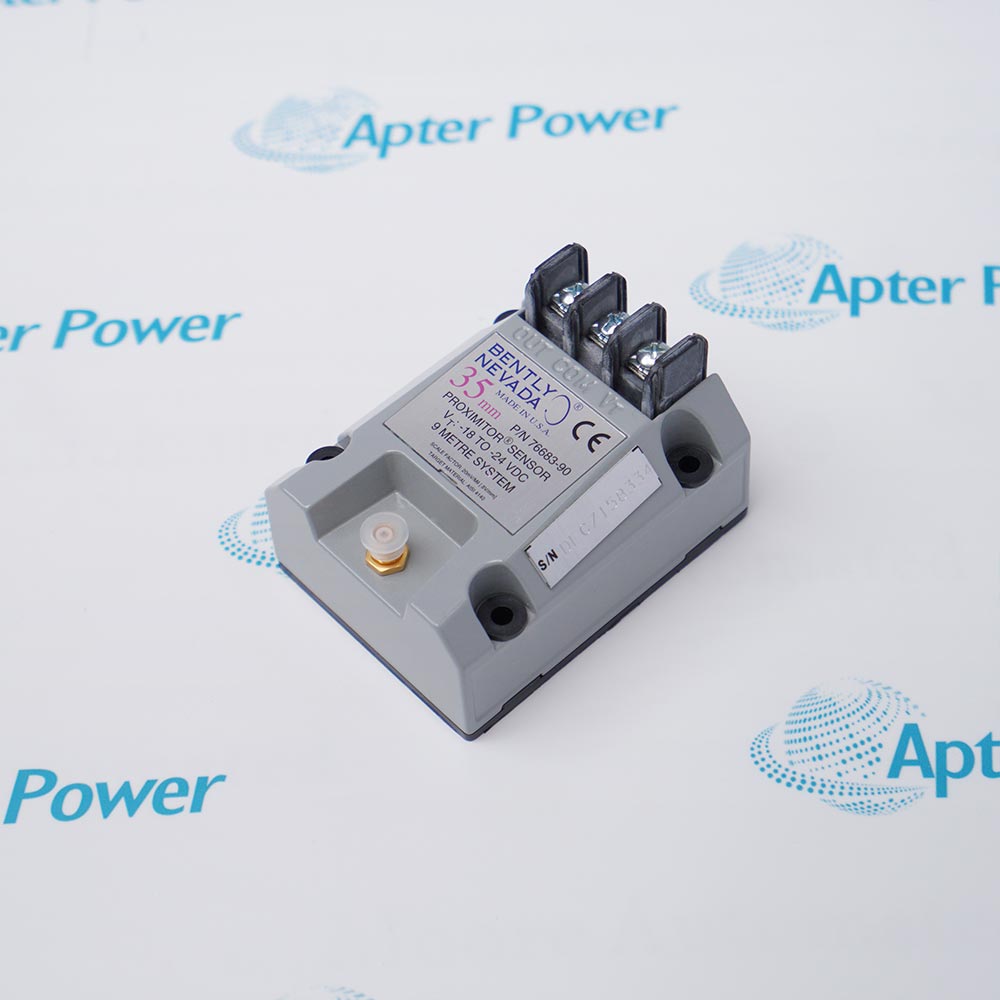

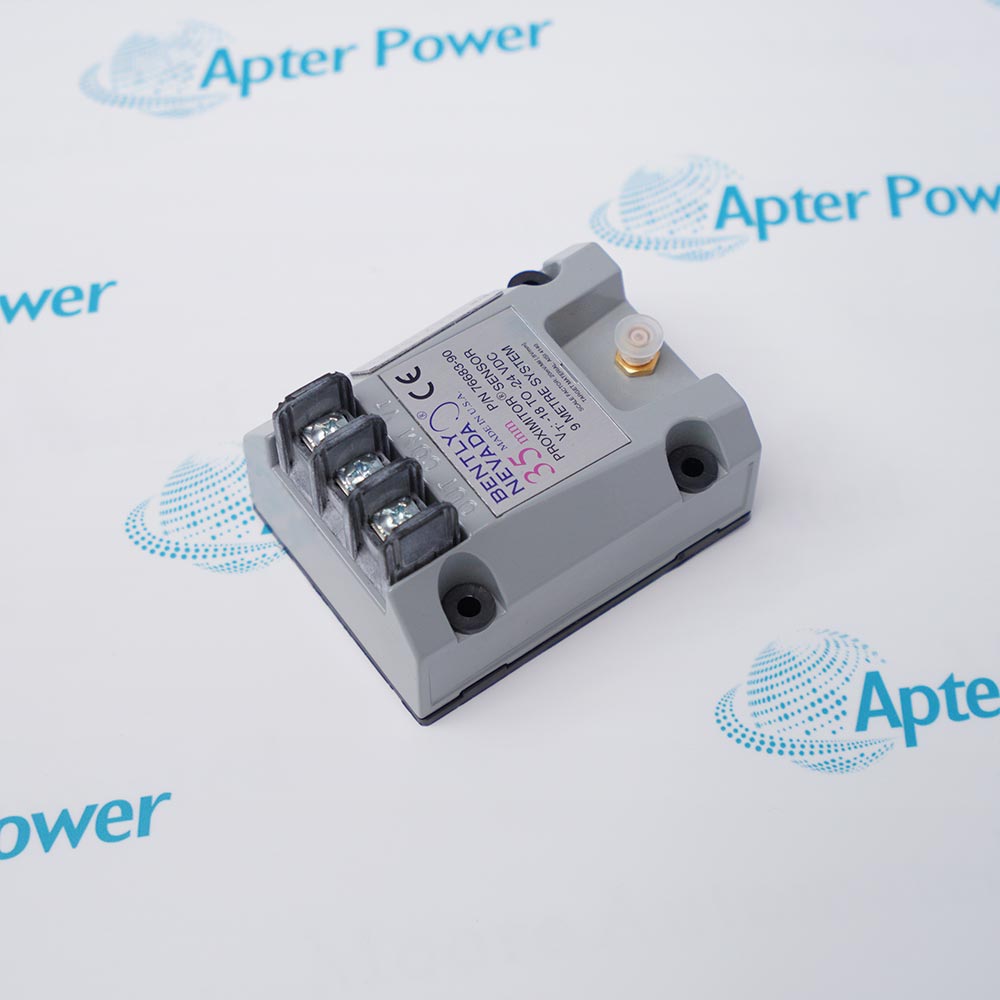

      Bently Nevada 76683-90
      Bently Nevada 76683-90
      Bently Nevada 76683-90
      Bently Nevada 76683-90
      Bently Nevada 76683-90
      Bently Nevada 76683-90
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      76683-90

      Proximitor Sensor
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

      Bently Nevada 76683-90 is a 35 mm Proximitor Sensor in the 7200 Series proximity transducer system. The -90 option requires a 9 m total probe-lead-plus-extension-cable electrical length and supplies proportional dc output for position measurement.

      Ask our team:

      Get a quick price for： 76683-90
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 76683-90

      Technical specifications for 76683-90

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        76683-90
      • Estimated shipping dimensions:
        7.8x6x4.8cm
      • Weight:
        0.28 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Product family:
        7200 Series 35 mm Proximity Transducer System
      • Required electrical length:
        9 m total probe lead plus extension cable
      • Calibration range:
        500 mils (12.7 mm), approximately 50 to 550 mils
      • Average scale factor:
        20.00 mV/mil (0.787 V/mm) nominal system value
      • Supply voltage:
        -18 Vdc to -24 Vdc
      • Current draw:
        24 mA maximum with 10 kohm load
      • Output resistance:
        50 ohms
      • Output load:
        Calibrated into a 10 kohm resistive load
      • Frequency response:
        0 to 600,000 rpm, +0/-5%
      • Target calibration:
        AISI E4140 steel
      • System use:
        Shaft alignment, thrust position and differential expansion
      • Proximitor housing:
        A380 aluminum; encapsulated printed-circuit assembly
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 76683-90 is a 35 mm Proximitor Sensor in the 7200 Series proximity transducer system. The -90 option requires a 9 m total probe-lead-plus-extension-cable electrical length.
      • Conditions the 35 mm eddy-current probe signal
      • Provides proportional dc output for position measurement
      • Uses a documented 9 m electrical cable length
      • Supports controlled calibration and fault isolation

      Use 76683-90 only with the documented 35 mm probe arrangement and preserve the approved cable length, target material and shielding method.

      Important Notice: Verify the exact catalog number, 9 m system arrangement, polarity, target and final response before service release.

      Bently Nevada 76683-90 Manuals & Downloads
      Bently Nevada 76683-90 Technical Reference (PDF)Bently Nevada 76683-90 Installation & Commissioning Guide (PDF)

      These documents are different: the first presents exact-model technical and engineering data; the second provides installation, commissioning and acceptance checks.

      Thrust position
      Tracks axial shaft position using the documented 35 mm transducer system.
      Differential expansion
      Measures relative rotor-to-casing growth on large rotating machinery.
      Shaft alignment
      Provides a proportional dc position signal for alignment observation.
      Controlled replacement
      Restores the exact 76683-90 signal-conditioning position without changing the approved cable length.
      Read the applicable 7200 Series instructions before work. Verify Bently Nevada 76683-90, the 35 mm probe arrangement and the 9 m total electrical cable length.
      1
      Verify the complete 76683-90 nameplate and installed system position before work.
      2
      Place the connected machine and monitoring channel in the approved maintenance state.
      3
      Isolate the documented supply and field wiring before disconnection.
      4
      Record every terminal, cable, shield and companion component.
      5
      Protect the coaxial connection from contamination and mechanical damage.
      6
      Match the documented 9 m system length and AISI E4140 target before energizing.
      7
      Restore power with correct polarity and review the output for open- or short-circuit indications.
      8
      Complete a controlled gap-response test and retain the final acceptance record.

      Technical notes

      Technical notes

      Use only with the documented 35 mm probe arrangement and a 9 m total electrical cable length. Preserve single-point shield grounding and verify calibration against the installed AISI E4140 target.

      FAQS

      • What total cable length is required for Bently Nevada 76683-90?
        Bently Nevada 76683-90 requires 9 m total probe-lead-plus-extension-cable electrical length.
      • What supply is specified for Bently Nevada 76683-90?
        The specified supply range is -18 Vdc to -24 Vdc; polarity must be verified before connection.
      • What measurement range is documented for Bently Nevada 76683-90?
        The documented calibration range is 500 mils (12.7 mm), approximately 50 to 550 mils.
      • What target material is used to calibrate Bently Nevada 76683-90?
        The system data are specified with an AISI E4140 steel target.
      • What output resistance is specified for Bently Nevada 76683-90?
        The documented output resistance is 50 ohms.
      • How should Bently Nevada 76683-90 shielding be grounded?
        Use single-point grounding and ground only one end of each field-wiring shield.
      • What fault output behavior should be checked on Bently Nevada 76683-90?
        An open probe or extension cable drives the output more negative than -16 V; a short drives it near zero.
      • What final acceptance check is required for Bently Nevada 76683-90?
        Verify the exact 9 m system arrangement, polarity, stable gap output and controlled response before service release.
