9200-02-01-10-00

Two-wire Transducer
In Stock
Ships by Saturday, November 21
Fast Shipping Available
Bently Nevada 9200-02-01-10-00
Bently Nevada 9200-02-01-10-00
Bently Nevada 9200-02-01-10-00
Bently Nevada 9200-02-01-10-00
Bently Nevada 9200-02-01-10-00
Bently Nevada 9200-02-01-10-00
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Two-wire Transducer
Two-wire moving-coil configuration
M10 x 1 circular base stud
Standard non-hazardous area version
Get a quick price for 9200-02-01-10-00
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 9200-02-01-10-00

  • Manufacturer:
    Bently Nevada
  • Product Category:
    Machinery Monitoring Systems
  • Spare Part Number:
    9200-02-01-10-00
  • Estimated shipping dimensions:
    11.5x4x4cm
  • Weight:
    0.46 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Connector/Cable Option:
    Top Mount (no cable)
  • Mounting Base Option:
    Circular; M10X1 stud
  • Agency Approval Option:
    No Approvals
  • Maximum Range:
    2.54 mm (0.1 in)
  • Frequency Response:
    15 Hz to 1000 Hz
  • Sensitivity:
    20 mV/mm/s (500 mV/in/s) ±5%

Information

Overview Manuals Common Applications Product Precautions

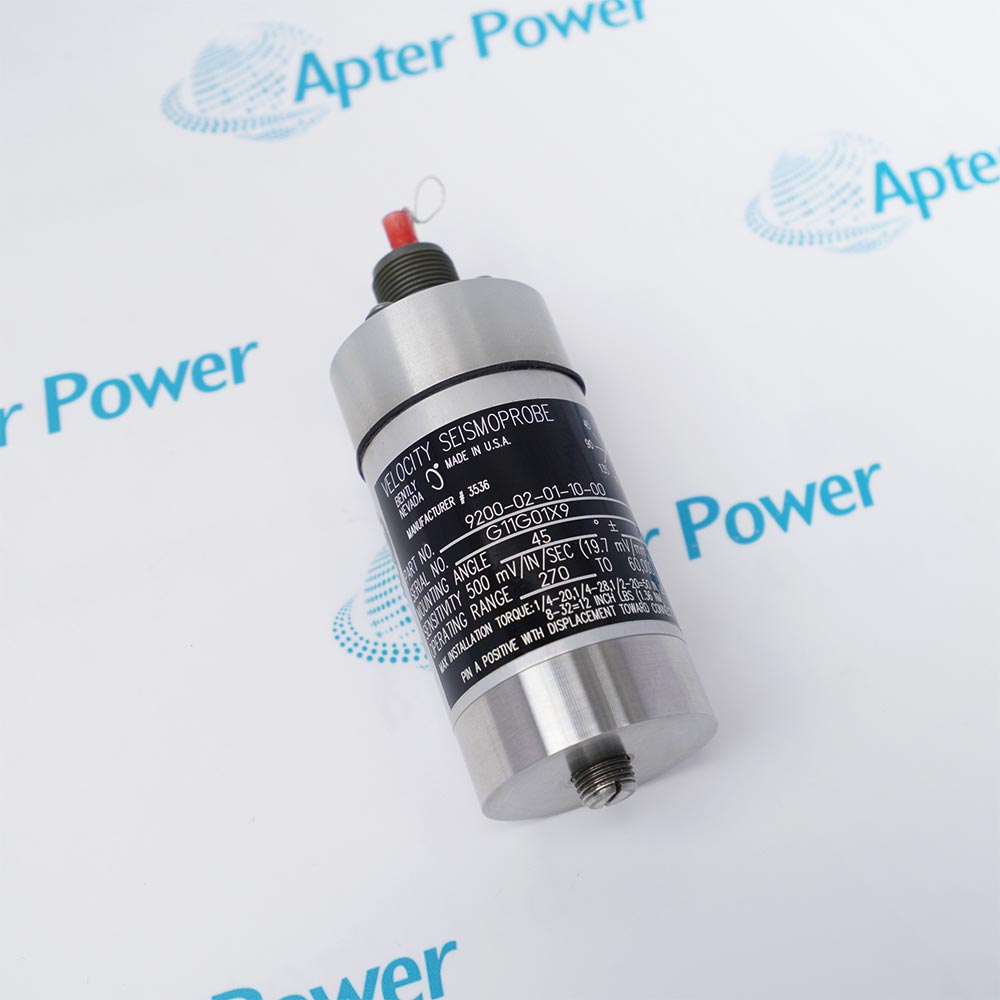

The 9200-02-01-10-00 is a two-wire moving-coil velocity seismoprobe transducer for rotating machinery vibration monitoring. It features a 4.5 to 1000 Hz frequency response and generates an analog voltage output directly proportional to vibration velocity without requiring external power.
    • Two-wire direct-connect measurement system
    • Utilizes self-generating moving-coil technology
    • Features 0°±180° omnidirectional mounting capability
Bently Nevada™ Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable.

The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. It provides a voltage output directly proportional to the transducer's vibration velocity.

Moving-coil transducers are less sensitive to impact or impulsive excitation than solid-state velocity transducers, which are inherently accelerometers with embedded integration electronics.

Moving-coil transducers are less sensitive to impact or impulsive excitation and can represent a good choice for certain applications. Because they don’t require external power, they are convenient for portable measurement applications.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Bently Nevada 9200-02-01-10-00 Two-wire Transducer Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Exploration
Monitoring the absolute casing vibration of crude oil transfer pumps on offshore drilling platforms.

Petrochemical Refining
Monitoring the bearing vibration of hydrocracking compressor bearing housings in refineries.

Thermal Power Generation
Monitoring the low-frequency casing vibration of low-pressure cylinders in steam turbine generator units.

Nuclear Power Generation
Monitoring the absolute vibration velocity of bearing housings for conventional island steam turbines.

Hydroelectric Power Generation
Monitoring the structural vibration of thrust bearing casings in horizontal hydro-generator units.

Iron & Steel Metallurgy
Monitoring the bearing pedestal vibration of large synchronous motors driving blast furnace blowers.
 During operation, strictly align with the vertical or horizontal axis to ensure omnidirectional measurement accuracy, and never expose the sensor to temperatures outside the rated range of -29°C to +121°C.

Apply the specified mounting torque during installation to prevent loose-fitting signal distortion, avoid pulling the top lead wires aggressively or exceeding the minimum bend radius, and protect the casing from high-intensity mechanical impacts.

Alternative Names

9200 02 01 10 00 9200-02-01-10-01 9200-02-01-10-04 9200-02-01-10-0O 9200-02-01-10-O0 9200-02-01-1O-00 9200-02-01-I0-00 9200-02-0I-10-00 9200-02-O1-10-00 9200-O2-01-10-00 920O-02-01-10-00 92O0-02-01-10-00

Technical notes

The 9200-02-01-10-00 velocity transducer features a moving-coil configuration that provides natural physical damping against high-frequency shocks and spike excitations, which effectively filters out high-frequency noise and is ideal for low-to-mid frequency casing vibration monitoring.

FAQ View All FAQ

  • What is 9200-02-01-10-00?
    It is a two-wire moving-coil velocity transducer that measures absolute vibration of bearing housings or machine casings.
  • How to use 9200-02-01-10-00?
    Mount it via screw on the machine bearing housing and connect a 2-conductor cable to the monitor system.
  • How does 9200-02-01-10-00 handle impact?
    Moving-coil dampens impacts, reducing false alarms.
  • Which machinery uses 9200-02-01-10-00?
    Widely used for monitoring steam turbines, compressors, heavy pumps, fans, and motors.
