1794-IE4XOE2

FAQS

• How should the complete 1794-IE4XOE2 identity be verified before replacement?
  Confirm 1794-IE4XOE2, Series B, FLEX I/O adapter and terminal base, 24 V DC supply, four input and two single-ended output assignments, signal ranges, scaling, commons, shielding, grounding, controller project and controlled loop-test results before commissioning.
• What system role does 1794-IE4XOE2 perform in the documented installation?

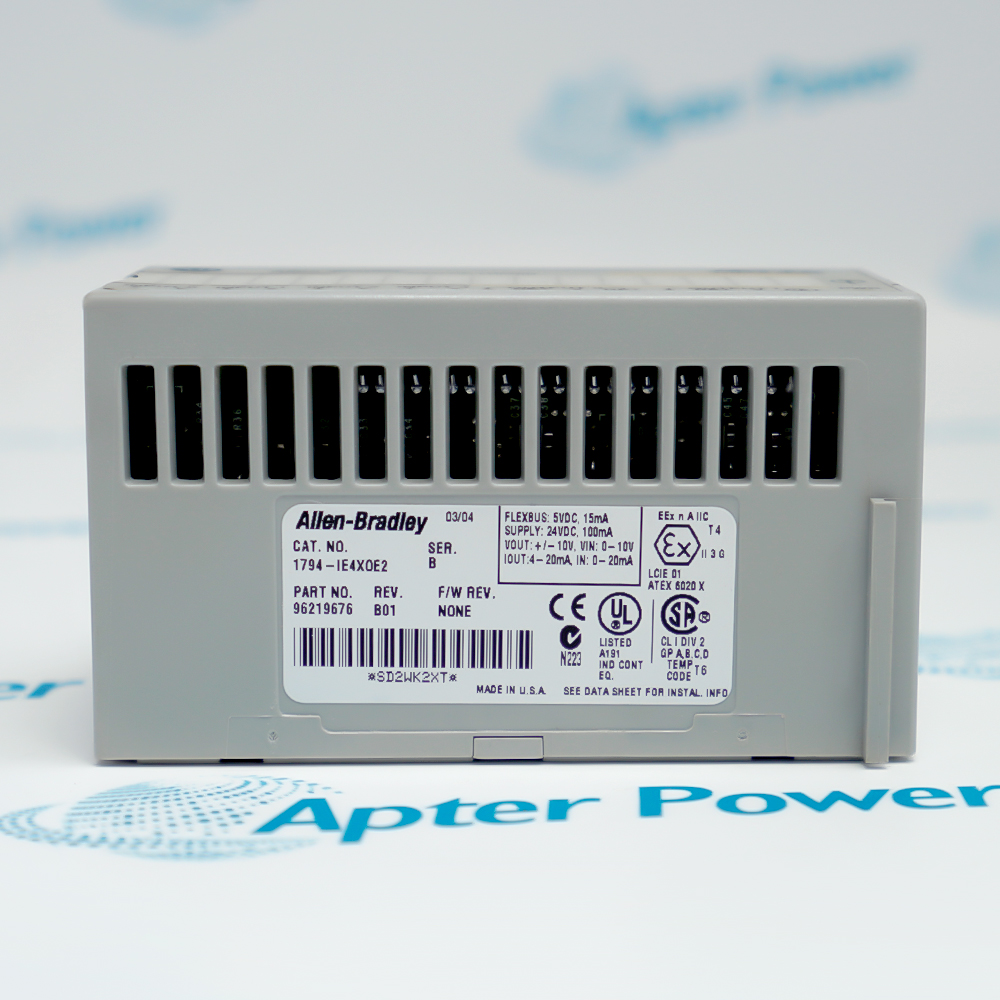

  Allen-Bradley 1794-IE4XOE2 is a FLEX I/O analogue combination module with four inputs and two single-ended outputs. It exchanges configured analogue process signals through the installed FLEX I/O terminal base and adapter.
• Which host or carrier must be checked before installing 1794-IE4XOE2?

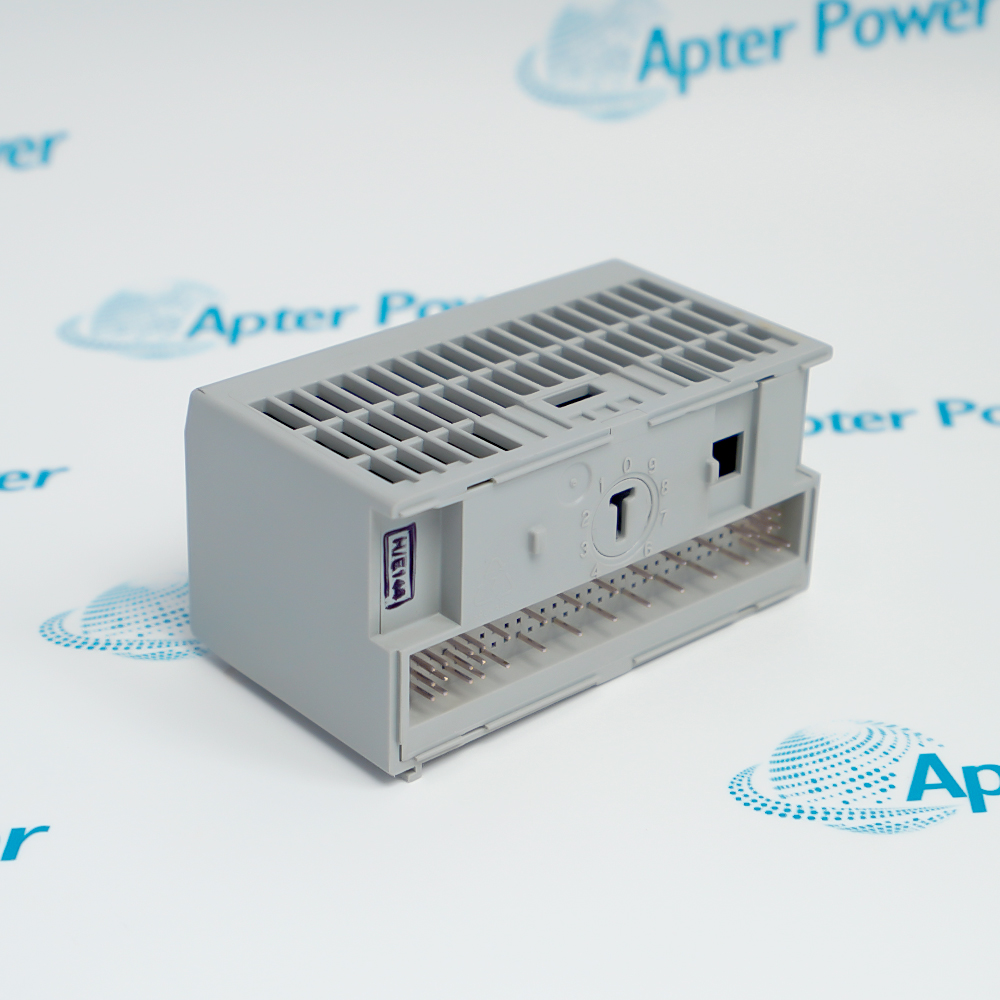

  The module plugs into the documented FLEX I/O terminal base and communicates through the installed adapter. Commissioning preserves terminal assignments, field supplies, channel ranges, scaling and controller configuration.
• What isolation and ESD controls apply when handling 1794-IE4XOE2?
  Place affected process loops and final elements in the approved maintenance state. Isolate field and module power and use ESD controls during handling.
• Which wiring or connector records should be retained for 1794-IE4XOE2?
  Record all four input and two output terminals, commons, shields and field supplies. Verify the terminal-base catalogue and adapter arrangement against the official manual.
• How should the approved configuration for 1794-IE4XOE2 be restored?
  Restore channel type, range, scaling and controller I/O configuration.
• Which diagnostics must be reviewed after fitting 1794-IE4XOE2?
  Review module, adapter and controller diagnostics after controlled power-up.
• What controlled acceptance test completes work on 1794-IE4XOE2?
  Prove every input and output loop before automatic operation.
