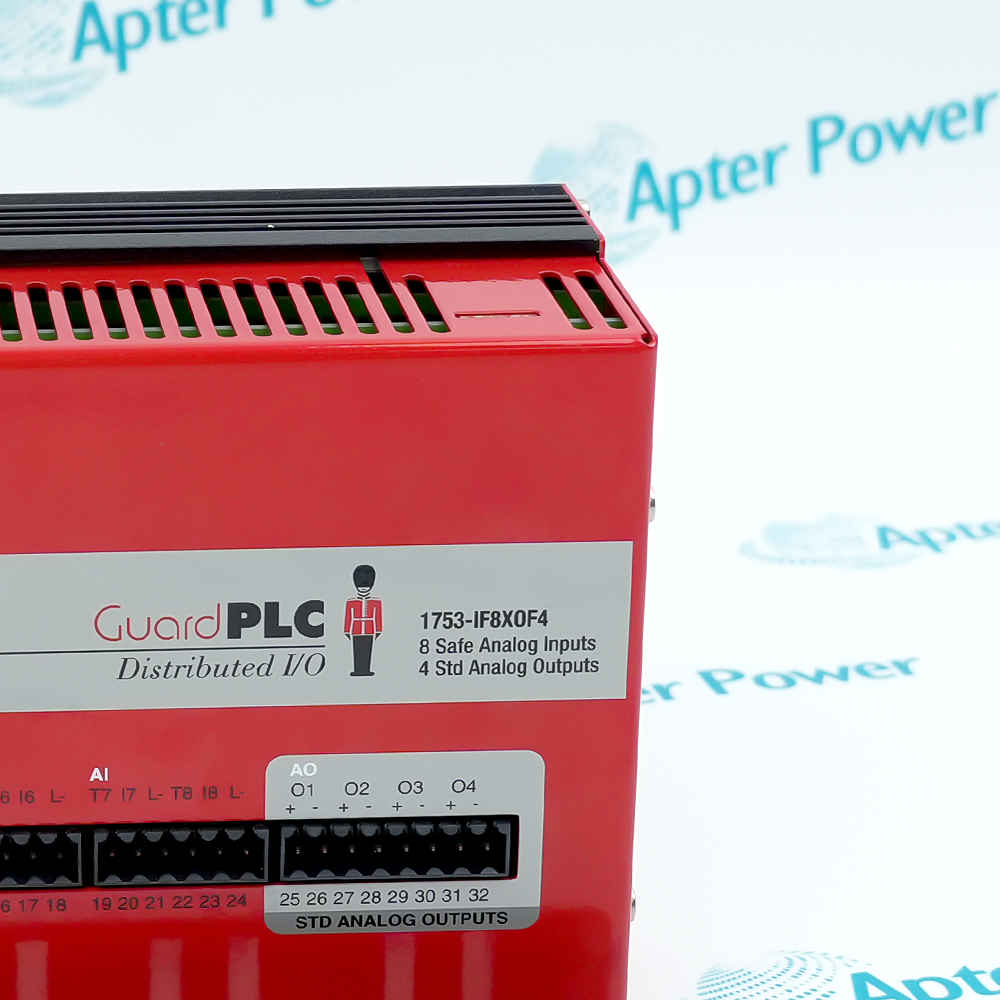

The Allen-Bradley 1753-IF8XOF4 Analog Combination Module in the Distributed I/O series has 8 Analog Inputs and 2 x RJ-45, 10/100BaseT (with 100 Mbps) with integrated switch Guard PLC Ethernet Interfaces. The 1753-IF8XOF4 operates with a 24V DC Operating Voltage and a 20 ms Response Time.
8 analog inputs, 4 outputs
Dual RJ45 Ethernet switch
20ms response time
According to safety requirements, the 1753-IF8XOF4 GuardPLC systems can have product-independent and product-dependent hardware configurations. As far as the product-dependent configurations, it is mandatory to connect only safely-isolated equipment featuring 24 Volts DC power supply.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
AB 1753-IF8XOF4 Analog I/O Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
1. High security level I/O configuration
This module has passed SIL 3 (IEC 61508) and Category 4 certification and is capable of handling critical safety signals:
8-way safety analog input: supports 0... 10V DC voltage signals. If combined with an external 500
Diverting resistor, capable of converting and measuring 0... 20 mA current signals.
4-channel safety analog output: provides 4-20 mA current signal. These outputs have a safety shutdown function and will automatically switch to the power-off (0mA) state when a system fault is detected.
2. Integrated secure Ethernet communication
Dual port switch: equipped with 2 RJ-45 10/100BaseT Ethernet interfaces, supporting linear or star topology structures.
Distributed control: allows analog data to be transmitted to GuardPLC controller via Ethernet for remote safety monitoring.
3. Intelligent fault monitoring and safety protection
Transmitter Voltage Monitoring: It can provide 8.2V or 26V power to external sensors and monitor in real-time whether the configuration is correct.
Fail Safe response:
Once a wiring error, short circuit, or internal hardware failure is detected, all I/O channels will immediately enter a safe trip state (i.e. output a 0 signal).
The FAULT LED on the panel will provide real-time feedback on the operating status of each channel.
Its internal circuit has short-circuit protection function to prevent module burnout caused by external wiring errors, and it is equipped with transmitter voltage monitoring, which ensures the validity of input signals by real-time monitoring of the power supply (optional 8.2V or 26V) output to the sensor; At the same time, the module adopts a fail safe design.
Once internal component failure, overheating, or communication interruption is detected, all analog input and output channels will immediately be forced back to zero signal/off state (0V or 0mA), and intuitive hardware status feedback will be provided through the panel FAULT indicator light to prevent safety accidents caused by incorrect control instructions.

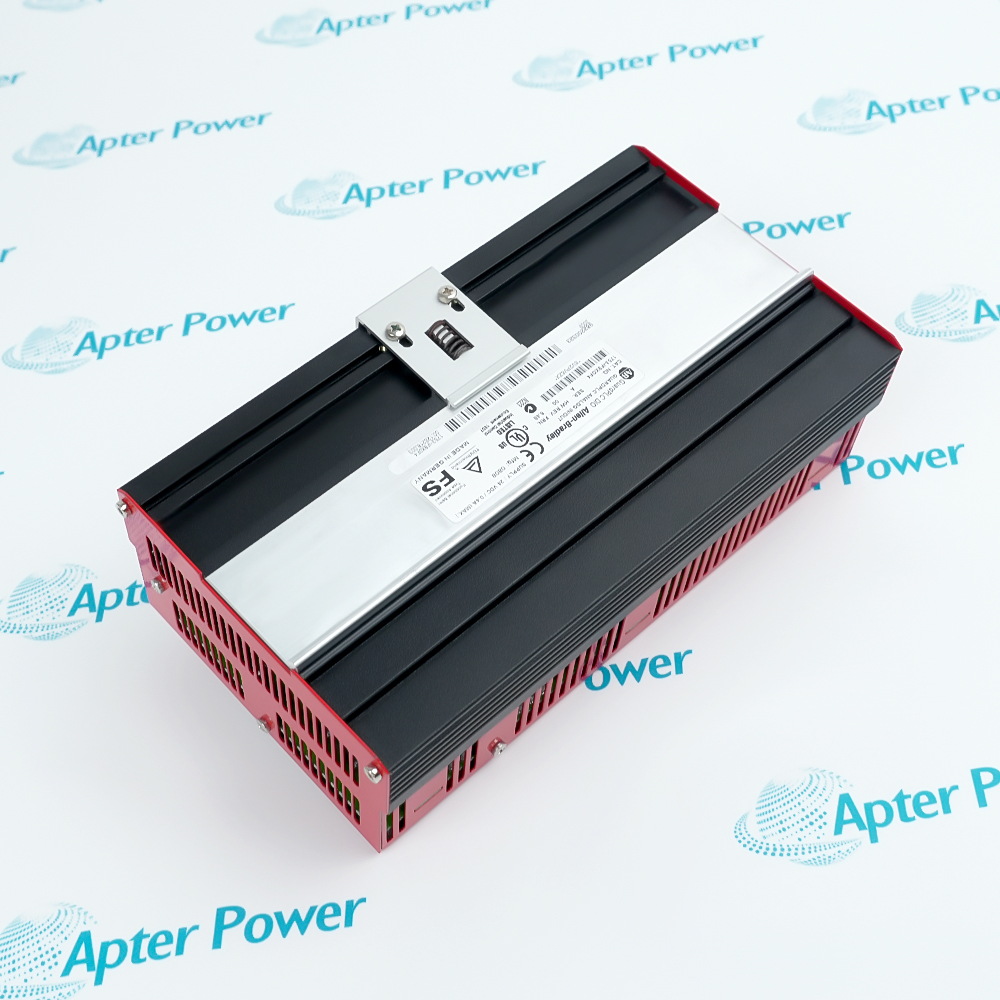

This module does not support panel installation. It must be installed horizontally on a DIN rail, and at least 100 mm (3.94 in.) of space must be reserved above and below the module to ensure heat dissipation.
What are the 1753-IF8XOF4 power requirements?
An isolated SELV (Safety Extra Low Voltage) or PELV (Protection Extra Low Voltage) 24V DC power supply must be used, with an allowable voltage fluctuation range of -15% ...+20%.
How to handle unused input channels?
To prevent interference, unused analog input channels must be short circuited to the reference electrode through wire jumpers.
How is the 1753-IF8XOF4 module grounded?
The module is functionally grounded through a DIN rail, but must be connected to the protective earth (PE) through a screw marked with a grounding symbol on the top left of the housing
How to solve the 'Invalid Configuration' error?
This error is usually caused by improper parameter settings (such as transmitter voltage set to 0). It must be configured as a valid value in the hardware management window: 1 (8.2V) or 2 (26V).
How does I/O respond when a fault occurs?
When an internal error or safety trigger is detected, all inputs and outputs will automatically fall back to the zero signal/off state (0V or 0mA), and the corresponding FAULT indicator light will light up.
What is the function of the reset button?
Long pressing the reset button will restore the IP address and system ID (SRS) to their default settings, and delete all account information except for the default account.
