Technical specifications for 6DS1411-8RR
-
Manufacturer:Siemens
-
Product Category:DCS Systems
-
Spare Part Number:6DS1411-8RR
-
Estimated shipping dimensions:24.3x18.2x3cm
-
Weight:0.36 kg
-
Tariff Code:8537101190
-
Counliy of origin:Germany
-
Product family:TELEPERM ME
-
Module type:S closed-loop controller module
-
Controller channels:2
-
Replacement contexts:6DS1411-8AA, -8CC, -8DD or -8DE as documented
-
Redundant operation:Identical module variants only
-
Redundant software rule:Both modules require matching software versions
-
Online upgrade:Supported from -8DD/-8DE; not supported from -8CC
-
Configuration control:Preserve user-specific jumper settings and structure
Information
Overview
Manuals
Common Applications
Product Precautions

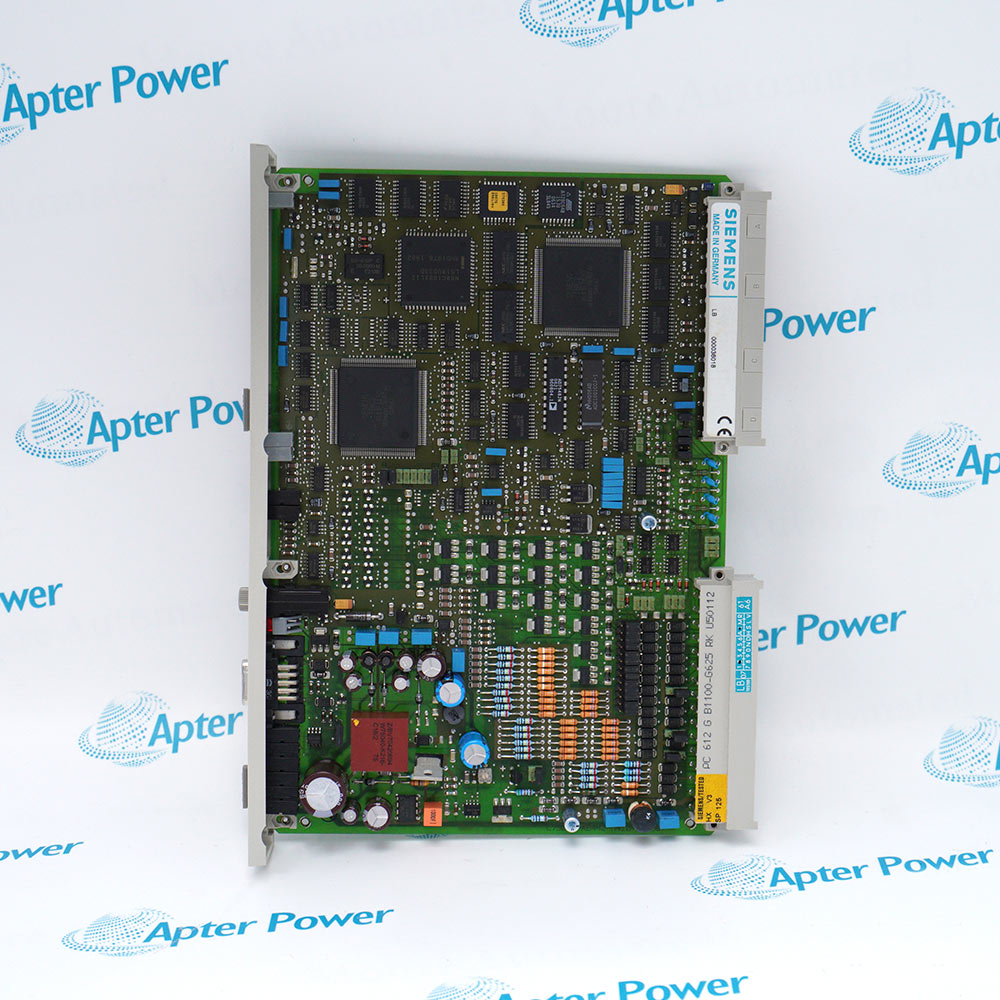

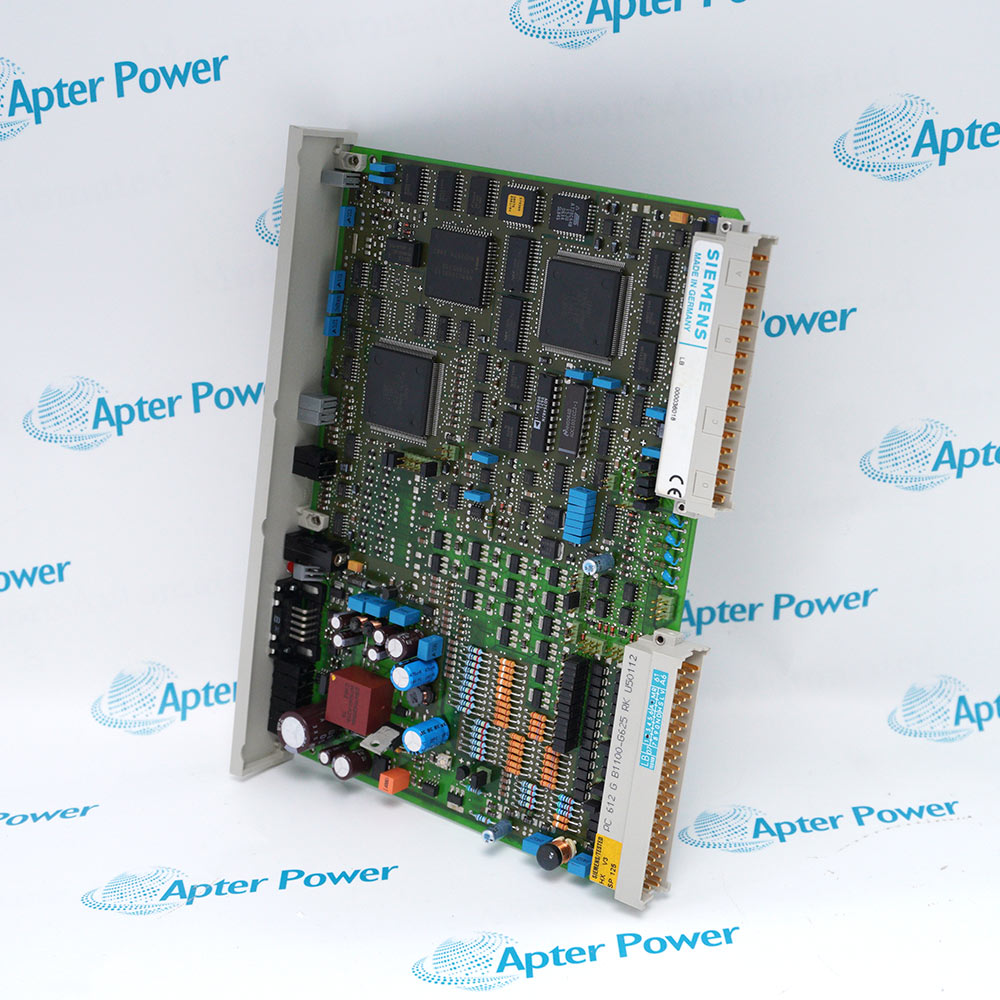

Siemens 6DS1411-8RR provides two closed-loop controller channels in the TELEPERM ME architecture while retaining variant-specific jumper, structure and redundancy requirements.
- Provides two S closed-loop controller channels in TELEPERM ME.
- Uses variant-specific jumper settings when replacing earlier 6DS1411 executions.
- Requires identical module variants and matching software versions for redundant operation.
- Supports the documented online-upgrade path from 8DD or 8DE, but not from 8CC.
The official six-page product information distinguishes replacement settings for 8AA, 8CC, 8DD and 8DE executions. Redundant operation requires two identical modules with matching software versions, so the installed variant context must be captured before exchange.
Important Notice: record the replaced 6DS1411 execution, user-specific jumper settings, software version and redundant-pair identity before removal.
Siemens 6DS1411-8RR Manuals & Downloads
Siemens 6DS1411-8RR Official Product Information (PDF)Siemens 6DS1411-8RR Installation & Commissioning Guide (PDF)
The documents separate exact product evidence from the field sequence for identity, isolation, installation, verification and controlled handover.
Dual closed-loop control
Runs two documented S-controller channels in a TELEPERM ME station.
Variant-controlled replacement
Replaces an approved 6DS1411 execution after jumper and structure comparison.
Redundant controller pairing
Operates only with the documented identical variant and matching software version.
Legacy system maintenance
Retains field structure and process behavior during exact-module exchange.
Apply these checks to the exact Siemens 6DS1411-8RR position before isolation, replacement or release.
1
Confirm the complete Siemens 6DS1411-8RR marking before work.
2
Record the installed 6DS1411 variant, software version and controller-channel assignments.
3
Place both process loops and any redundant partner in the approved maintenance state.
4
Photograph every user-specific jumper and preserve the existing structure record.
5
Apply only the official replacement setting for the identified prior execution.
6
For redundancy, verify identical module variants and matching software versions.
7
Review controller, driver and process diagnostics after controlled energization.
8
Functionally verify both closed-loop channels before service release.
Technical notes
Preserve the complete Siemens 6DS1411-8RR identity, the installed position, wiring and configuration record. After controlled energization, review diagnostics and functionally verify every affected channel or process path before release.
FAQ View All FAQ
-
What function does Siemens 6DS1411-8RR provide?It is a two-channel TELEPERM ME S closed-loop controller module.
-
Which earlier variants can Siemens 6DS1411-8RR replace?The official product information documents settings for 8AA, 8CC, 8DD and 8DE replacement contexts.
-
Can different 6DS1411 variants be paired redundantly with Siemens 6DS1411-8RR?No. Redundant operation requires two identical module variants.
-
Must software versions match in a redundant Siemens 6DS1411-8RR pair?Yes. Both modules in the redundant pair require matching software versions.
-
Is online upgrading to Siemens 6DS1411-8RR supported from the 8DD or 8DE variant?Yes, subject to the official replacement instructions.
-
Is online upgrading to Siemens 6DS1411-8RR supported from the 8CC variant?No. The official product information excludes online upgrading from 8CC.
-
What configuration evidence should be retained for Siemens 6DS1411-8RR?Retain jumper settings, prior variant, structure, software version and both channel assignments.
-
What verifies Siemens 6DS1411-8RR after installation?Review diagnostics and functionally test both closed-loop channels and any redundant partner.
