6DS1220-8AB

N8-H Local Bus Interface

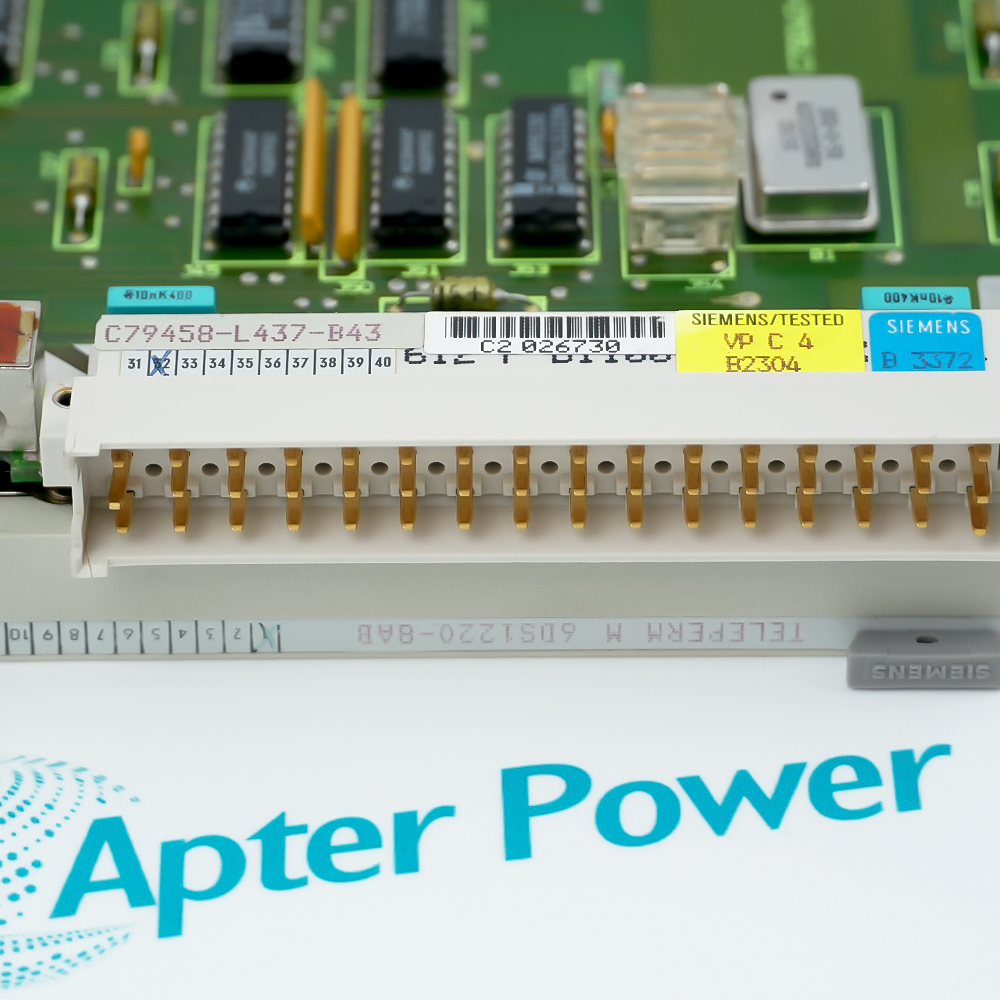

Siemens 6DS1220-8AB
Siemens 6DS1220-8AB
Siemens 6DS1220-8AB
Siemens 6DS1220-8AB
Siemens 6DS1220-8AB
Siemens 6DS1220-8AB
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:


TELEPERM M / TELEPERM ME

Bus Interface / Communication Card



Get a quick price for 6DS1220-8AB
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 6DS1220-8AB

  • Manufacturer:
    Siemens
  • Product Category:
    PLC Systems
  • Spare Part Number:
    6DS1220-8AB
  • Estimated shipping dimensions:
    24.3x18.2x3cm
  • Weight:
    0.74 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    Germany
  • Communication Protocol:
    Local 20-M Bus Protocol
  • Operating Voltage:
    DC power supplied via backplane
  • Data Width:
    8-Bit Interface
  • Operating Temperature:
    32°F to 131°F
  • Storage Temperature:
    -40°F to 158°F
  • Ingress Protection:
    Must be installed in a protective cabinet
  • ESD Protection:
    Highly sensitive; must strictly follow ESD protection guidelines

Information

Overview Manuals Common Applications Product Precautions

The 6DS1220-8AB is an N8-H Local Bus Interface module specifically designed for the Siemens TELEPERM M Distributed Control System (DCS). As a core communication component of the system, it primarily serves as a bridge between the Central Processing Units (such as AS 230/235 or AS 388) and the local peripheral buses.
    • High-Reliability Real-Time Communication
    • Superior System Integration & Backward Compatibility
    • Industrial Durability & Long Life Cycle
AS 230/235/388 functions as the central processing unit (the brain) of the TELEPERM M system, executing complex control logic. The 6DS1220-8AB (N8-H) is a Local Bus Interface card that acts as a neural hub, distributing commands from the controller to local I/O modules. The controller (e.g., AS 388) uses a high-speed internal system bus, which cannot directly communicate with 8-bit peripheral cards. The 6DS1220-8AB translates the internal protocol into the Local 20-M Bus protocol, ensuring data is accurately "translated" and transmitted.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Siemens 6DS1220-8AB N8-H Local Bus Interface , Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Thermal Power Plants
Used for local bus communication in boiler control and steam turbine monitoring systems, ensuring real-time data synchronization of generator units.

Nuclear Power Generation
Acts as a high-reliability communication interface in the conventional island control systems of nuclear power plants for auxiliary system logic control.

Petroleum Refining
Monitoring I/O data transmission in atmospheric and vacuum distillation and catalytic cracking processes to maintain refinery process continuity.

Steel & Metallurgy
Used in blast furnace automation systems to ensure EMI resistance for bus communication in extreme electromagnetic environments.

Pulp & Paper
Responsible for data coordination of multi-axis interlocking control systems in the drying and pressing sections of large paper machines.

Rubber & Tire Manufacturing
Monitoring internal mixers and curing units. This industry features harsh environments and high EMI; the industrial-grade design of the 6DS1220-8AB ensures stable transmission of critical pressure signals.

 The core of using the 6DS1220-8AB (N8-H) module lies in electrical protection and system compatibility maintenance. Since this legacy module lacks hot-swap capability, it is imperative to completely power off the rack before replacement to prevent inrush currents from damaging backplane communication chips or the controller. During operation, ESD protection protocols must be strictly followed; always discharge yourself and wear a grounding wrist strap before handling the card to avoid electrostatic damage. Furthermore, given the long service life of TELEPERM M systems, always verify the hardware revision (E-Stand) during installation and regularly clean rack filters to prevent heat buildup. During migration to modern architectures like PCS 7, maintaining a spare parts inventory and performing periodic redundancy switchover tests are essential to ensure the continuity of critical production data.

FAQ View All FAQ

  • What is 6DS1220-8AB?
    The 6DS1220-8AB is a specialized hardware module within the Siemens TELEPERM M Distributed Control System (DCS), typically functioning as a bus interface or signal conversion module for high-speed internal data communication.
  • How to install 6DS1220-8AB?
    The module is typically installed in a standard TELEPERM M card rack. Power off the rack first, slide the module along the guides, and ensure the backplane connectors are perfectly aligned and locked.
  • What is the primary function of 6DS1220-8AB?
    Its primary function is bus connectivity and communication coordination. It handles protocol conversion between different control network levels, ensuring reliable real-time data transmission between the controller and I/O.
  • Does 6DS1220-8AB support hot-swapping?
    No. The TELEPERM M system is an older design; it is recommended to replace the module while powered off to prevent damage to the backplane or other electronic components from inrush current.
  • What maintenance is required for 6DS1220-8AB?
    Maintenance includes regularly checking rack ventilation filters to prevent heat buildup, inspecting backplane pins for oxidation, and periodically verifying if redundant communication links switch correctly.
