Technical specifications for 6DS1412-8RR
-
Manufacturer:Siemens
-
Product Category:DCS Systems
-
Spare Part Number:6DS1412-8RR
-
Estimated shipping dimensions:24.3x18x3cm
-
Weight:0.34 kg
-
Tariff Code:8537101190
-
Counliy of origin:Germany
-
Product family:TELEPERM ME
-
Module type:Continuous controller module
-
Controller channels:2
-
Documented systems:AS 220 E and AS 220 EHF
-
Legacy online acceptance:FR,0 followed by FR,1 for listed B.0x/C.0x cases
-
Analog-output behavior during FR,0:Values held/frozen
-
Binary-input behavior during FR,0:Set to zero except documented control-board outputs
-
Direct configuration alternative:PC or programming device with STRUK AS 220 EA
Information
Overview
Manuals
Common Applications
Product Precautions

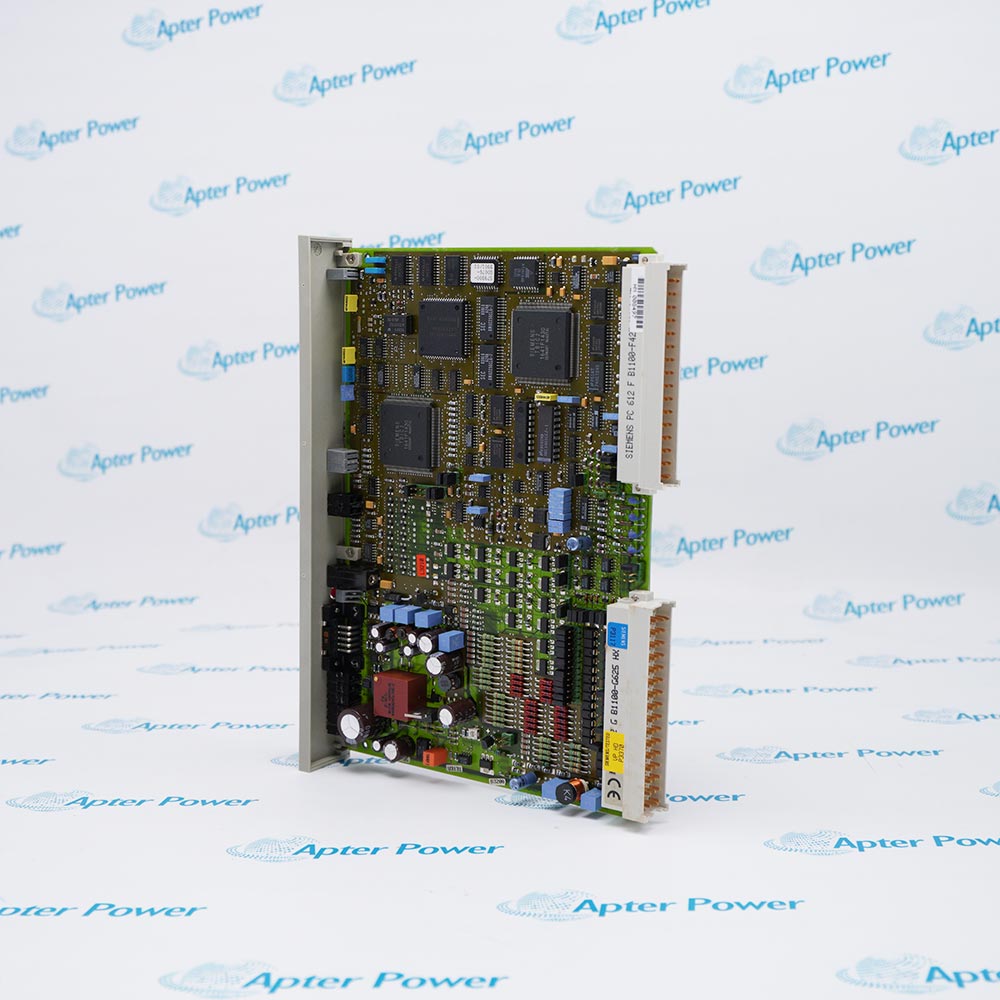

Siemens 6DS1412-8RR provides two continuous-control channels in TELEPERM ME and carries explicit software-dependent rules for accepting online structure changes from the central unit.
- Provides two continuous-controller channels in the TELEPERM ME architecture.
- Is documented for AS 220 E and AS 220 EHF system contexts.
- Uses a software-dependent FR,0/FR,1 sequence for specified online structure changes.
- Requires explicit planning for frozen analog outputs and reinitialized internal values.
For AS 220 E software B.0x/C.0x and AS 220 EHF software B.0x, the official product information requires the FR,0 followed by FR,1 operating sequence. The operation can zero binary inputs, freeze analog outputs and reinitialize internal values, so process effects must be planned before any structure change.
Important Notice: identify the AS 220 system and software variant, preserve the user structure and evaluate FR,0/FR,1 process effects before enabling a modified configuration.
Siemens 6DS1412-8RR Manuals & Downloads
Siemens 6DS1412-8RR Official Product Information (PDF)Siemens 6DS1412-8RR Installation & Commissioning Guide (PDF)
The documents separate exact product evidence from the field sequence for identity, isolation, installation, verification and controlled handover.
Dual continuous control
Executes two documented continuous-control channels in TELEPERM ME.
AS 220 E maintenance
Restores the module and user structure under the applicable software procedure.
AS 220 EHF service
Supports the documented continuous-control position and approved acceptance sequence.
Controlled structure update
Applies the official central-unit or engineering-device procedure with process safeguards.
Apply these checks to the exact Siemens 6DS1412-8RR position before isolation, replacement or release.
1
Confirm the complete Siemens 6DS1412-8RR marking before work.
2
Record the AS 220 system type, software variant and both controller-channel assignments.
3
Back up the user structure and place affected loops in the approved maintenance state.
4
Determine whether the software requires the FR,0 followed by FR,1 sequence.
5
Account for zeroed binary inputs, frozen analog outputs and reinitialized internal values.
6
Use the documented engineering-device method when the central-unit sequence is unsuitable.
7
Review controller and process diagnostics after controlled acceptance of the structure.
8
Functionally verify both continuous-control channels before service release.
Technical notes
Preserve the complete Siemens 6DS1412-8RR identity, the installed position, wiring and configuration record. After controlled energization, review diagnostics and functionally verify every affected channel or process path before release.
FAQ View All FAQ
-
What function does Siemens 6DS1412-8RR provide?It is a two-channel TELEPERM ME continuous controller module.
-
Which systems document Siemens 6DS1412-8RR?The official product information covers use in AS 220 E and AS 220 EHF.
-
Which online structure-change sequence can apply to Siemens 6DS1412-8RR?For the listed software variants, use FR,0 followed by FR,1 from the central unit.
-
What happens to analog outputs during the documented FR,0 operation for Siemens 6DS1412-8RR?The analog output values are held or frozen.
-
What happens to binary inputs during the documented FR,0 operation for Siemens 6DS1412-8RR?They are set to zero, except for the documented control-board outputs.
-
Why must Siemens 6DS1412-8RR structure changes be planned around the process?FR,0/FR,1 can reinitialize internal values and cause frozen analog values to change during restart.
-
Which alternative method can configure Siemens 6DS1412-8RR?Use a PC or programming device with STRUK AS 220 EA through the module front connector when required.
-
What verifies Siemens 6DS1412-8RR after installation?Review accepted structure and diagnostics, then functionally test both continuous-control channels.
