KFD2-SOT3-EX1.LB

Switch Amplifier

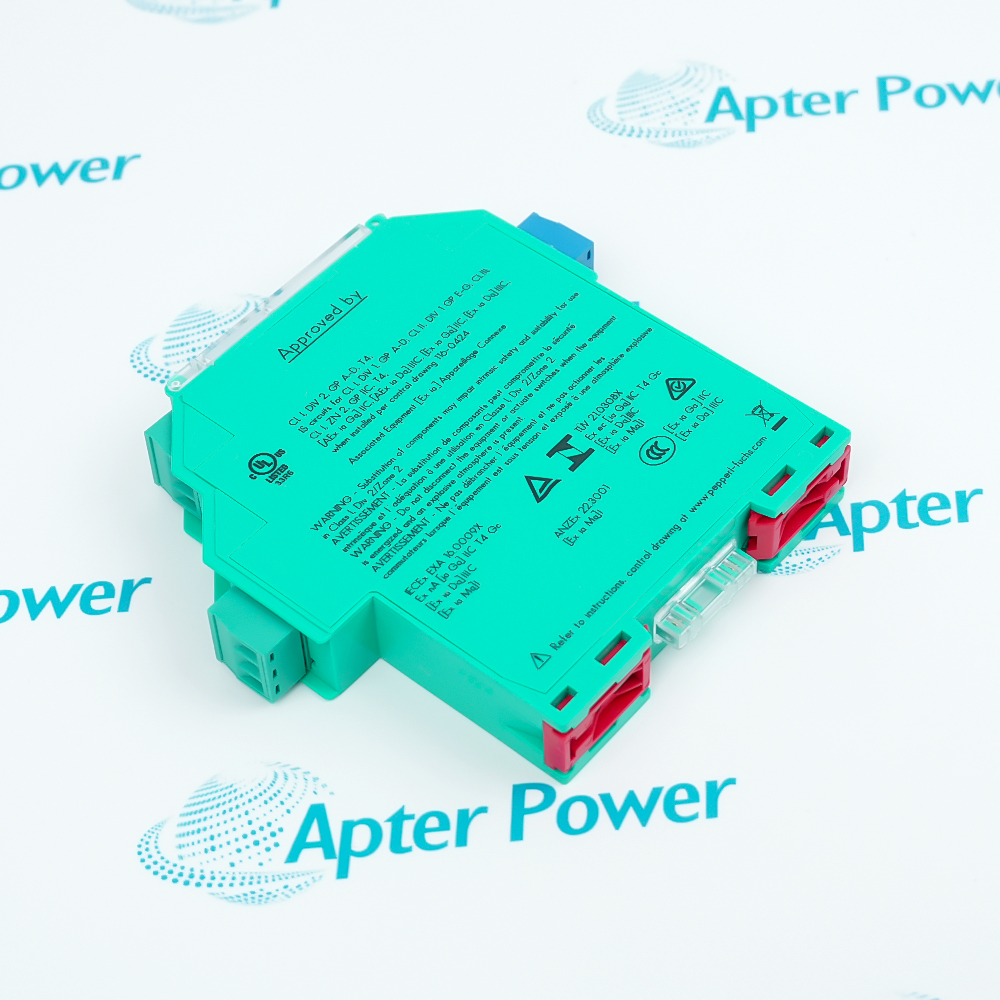

Pepperl+Fuchs KFD2-SOT3-EX1.LB

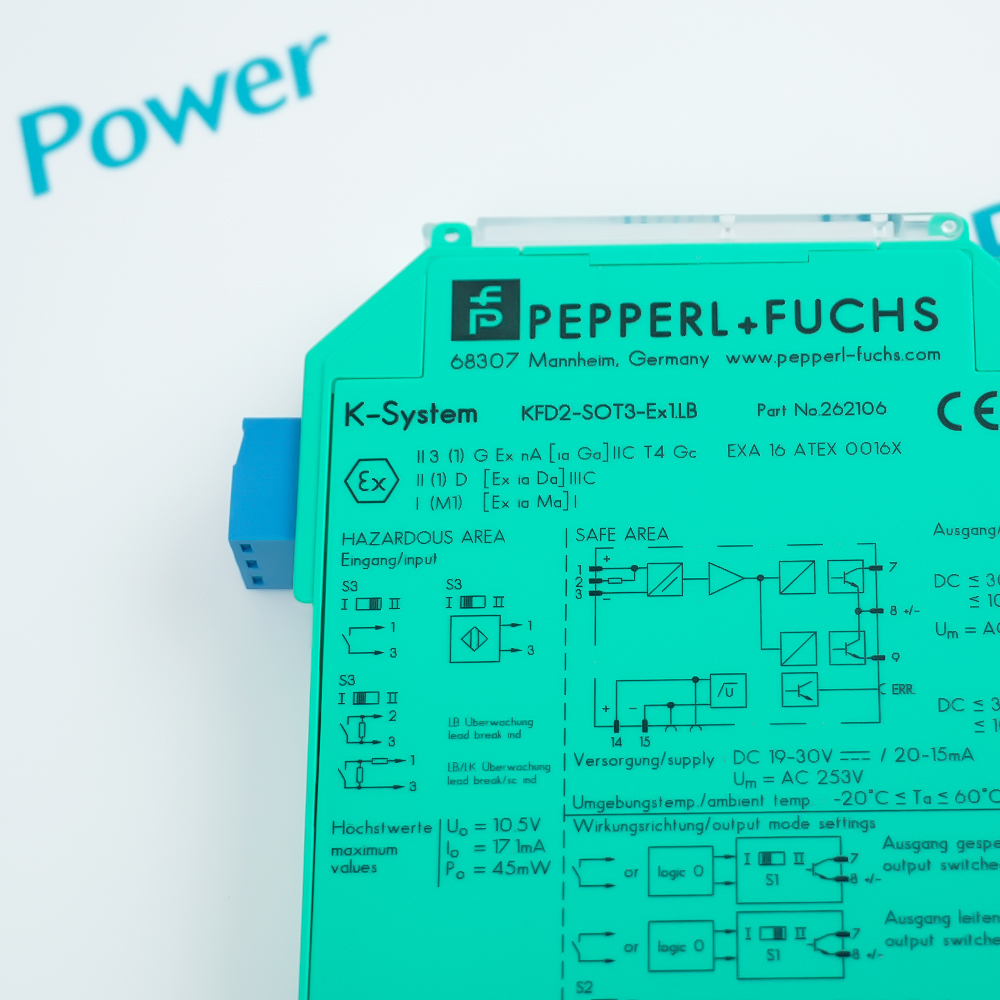

Pepperl+Fuchs KFD2-SOT3-EX1.LB
Pepperl+Fuchs KFD2-SOT3-EX1.LB
Pepperl+Fuchs KFD2-SOT3-EX1.LB
Pepperl+Fuchs KFD2-SOT3-EX1.LB
Pepperl+Fuchs KFD2-SOT3-EX1.LB
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Switch Amplifier

1-channel isolated barrier

24 V DC supply (Power Rail)

Dry contact or NAMUR inputs

Passive transistor output, non-polarized

Passive fault output, non-polarized

Get a quick price for KFD2-SOT3-EX1.LB
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for KFD2-SOT3-EX1.LB

  • Manufacturer:
    Pepperl+Fuchs
  • Product Category:
    PLC Systems
  • Spare Part Number:
    KFD2-SOT3-EX1.LB
  • Estimated shipping dimensions:
    1,2x11.5x12.3cm
  • Weight:
    0.1 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    Germany
  • Signal type:
    Digital Input
  • Safety Integrity Level (SIL):
    SIL 2
  • Systematic capability (SC):
    SC 3
  • Power dissipation:
    ≤ 1 W including maximum power dissipation in the output
  • Connection side:
    field side
  • Rated values:
    acc. to EN 60947-5-6 (NAMUR), see manual for electrical data
  • Open circuit voltage/short-circuit current:
    approx. 10 V DC / approx. 8 mA
  • Switching point/switching hysteresis:
    1.2 ... 2.1 mA / approx. 0.2 mA
  • Signal level:
    1-signal: (external voltage) - 3 V max. for 100 mA 0-signal: blocked output (off-state current ≤ 10 µA)
  • Collective error message:
    Power Rail
  • Control elements:
    DIP switch
  • Labeling:
    space for labeling at the front
  • Input/Output:
    safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
  • Input/power supply:
    safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
  • Ambient temperature:
    -20 ... 60 °C (-4 ... 140 °F)
  • Mass:
    approx. 150 g

Information

Overview Manuals Common Applications Product Precautions

The KFD2-SOT3-Ex1.LB is a 24V DC powered, single-channel isolated switch amplifier by Pepperl+Fuchs. It is designed to transfer NAMUR sensor signals from hazardous areas (intrinsically safe) to safe areas via high-speed transistor outputs with galvanic isolation. Featuring Line Fault Transparency (LB), this model can automatically detect lead breakages or short circuits in the input loop, making it a critical control component that combines rapid response with intrinsic safety protection.
    • High-Speed Switching Performance
    • Advanced Line Fault Transparency - LB
    • Intrinsic Safety & High Reliability
This isolated barrier is used for intrinsic safety applications. The device transfers digital signals (NAMUR sensors or dry contacts) from a hazardous area to a safe area. The input controls two passive transistor outputs. Via switches the mode of operation can be reversed and the line fault detection can be switched off. Via switch the function of the second output can be defined as a signal output or a fault indication output. A fault is signalized by LEDs acc. to NAMUR NE44 and a separate collective error message output.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Pepperl+Fuchs KFD2-SOT3-Ex1.LB Proximity Probe Housing Assemblies Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Oil & Gas
Used for level limit switch signal transmission in oil tank farms to prevent electrical sparks from triggering explosions in hazardous areas.

Chemical Industry
Monitoring mechanical pressure switches on chemical reactors, safely relaying switch statuses from hazardous zones to DCS control systems.

Wastewater Treatment
Monitoring float switch statuses in sedimentation tanks, providing explosion protection particularly in anaerobic environments where methane (biogas) is generated.

Power & Energy
Monitoring emergency shut-off valves on gas turbine fuel supply lines, utilizing the LB function to detect lead breakages.

Coatings & Paint Manufacturingl
Connecting NAMUR proximity sensors in mixing equipment, acting as a safety barrier in blending areas filled with Volatile Organic Compounds (VOCs).
 Blue terminals (1, 2, 3) are Intrinsically Safe (IS) and must connect to devices in hazardous areas. Green terminals are Non-IS. IS and Non-IS wiring must be routed separately (usually with a 50mm clearance) to prevent energy cross-over. There are 4 DIP switches on the side. S1 controls the output logic (Normal/Inverted), and S2 enables/disables Line Fault Transparency (LB). Ensure these match your application requirements before startup.The module is rated IP20 and must be installed in an appropriate enclosure. Keep the environment dry to prevent condensation, which can cause short circuits.

FAQ View All FAQ

  • What is the primary function of the KFD2-SOT3-Ex1.LB?
    It is an isolated switch amplifier used to safely transfer signals from NAMUR sensors or dry contacts in hazardous areas to PLC/DCS systems in safe areas.
  • What type of output does the KFD2-SOT3-Ex1.LB use?
    It uses passive transistor outputs, characterized by fast response times and no mechanical wear.
  • What does
    LB stands for
  • How many channels does the KFD2-SOT3-Ex1.LB support?
    This is a single-channel module, but it provides three transistor outputs.
  • What is the response time of the KFD2-SOT3-Ex1.LB?
    Its response time is very fast, typically less than or equal to 200 microseconds (µs).
