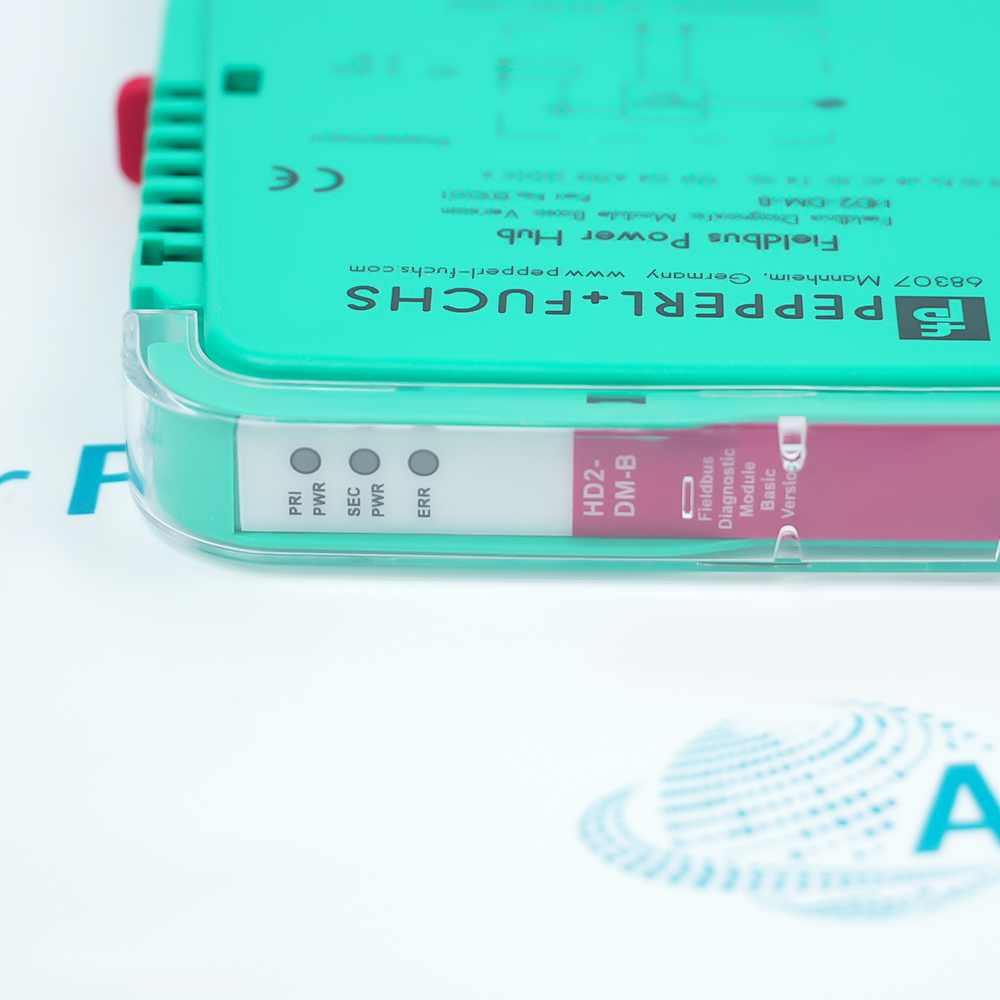

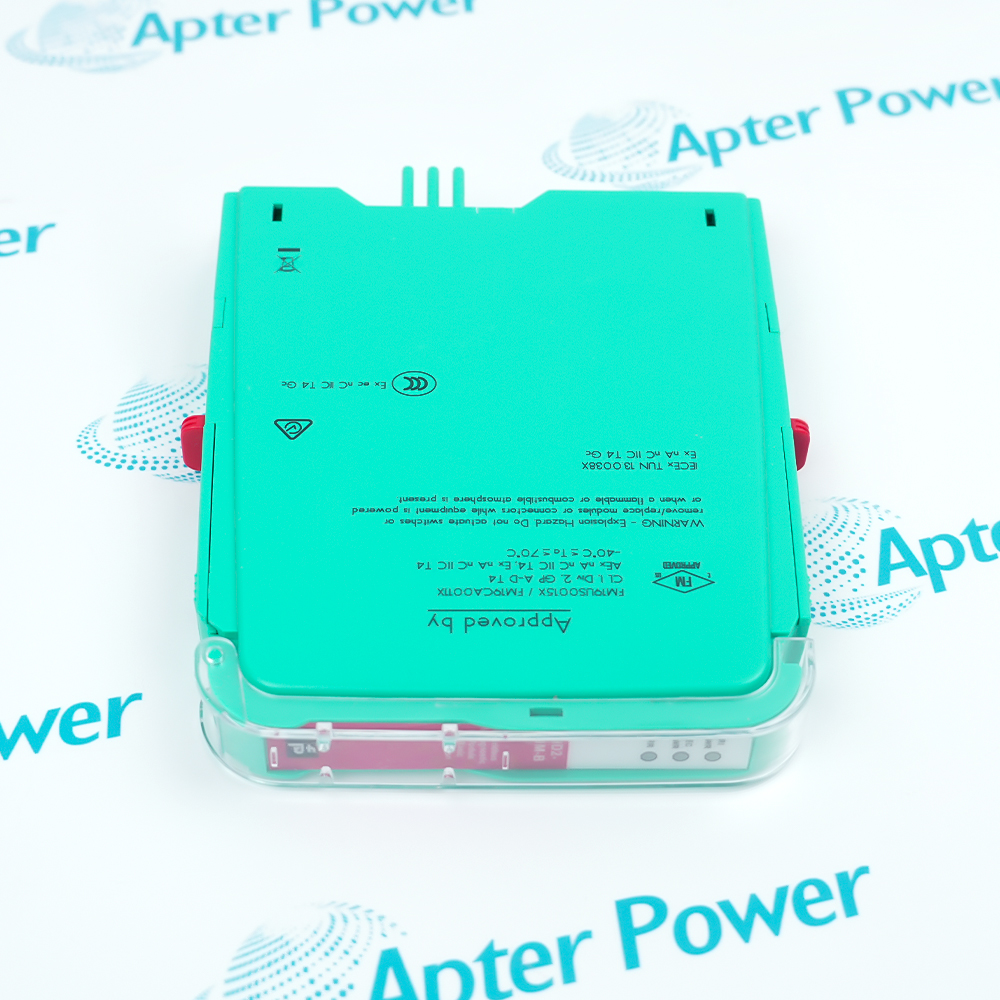

Pepperl+Fuchs HD2-DM-B is an evidence-bounded FieldConnex basic diagnostic module. Exact model identity is documented by the cited manufacturer source.
- Exact requested identity: HD2-DM-B
- Product class: FieldConnex basic diagnostic module
- Diagnostic class: Basic
- Monitored conditions: Bulk input, segment overload/short circuit, power modules
System role: It monitors bulk input voltage, segment overload or short circuit, installed power modules and redundant-module compatibility. Only facts stated by the cited Pepperl+Fuchs material are published; sibling, successor and third-party data are not transferred. Architecture boundary: Install only in a supported FieldConnex motherboard and use the documented LEDs and volt-free contact for basic status reporting. HD2-DM-B is the basic diagnostic module; do not transfer the advanced physical-layer diagnostics of HD2-DM-A or HD2-DM-A.RO. Before installation or replacement, verify the complete physical label, host equipment, companion hardware, wiring and approved commissioning procedure. Origin and HS code remain unpublished unless an exact manufacturer record or the physical package label establishes them.
Important Notice: Verify the complete Pepperl+Fuchs HD2-DM-B physical label and installed-system documentation before use.
Apter Power HD2-DM-B Manuals and Guides
Important Notice: The first link is the model-specific product-parameters PDF prepared only from the cited manufacturer official evidence; the second link is the Apter Power product information manual. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.
Installed-base maintenanceSupports evidence-led identification and replacement planning for Pepperl+Fuchs HD2-DM-B.
System documentationProvides a source-traceable boundary for the documented FieldConnex fieldbus power hub configuration.
Commissioning reviewGuides identity, companion-hardware, wiring and controlled functional checks before return to service.
Migration assessmentSeparates exact-model facts from successor, sibling and family-level information.
Read and follow the exact Pepperl+Fuchs documentation and host-equipment instructions before work. Verify the complete physical nameplate and system configuration.
1Verify the complete Pepperl+Fuchs HD2-DM-B label, revision and installed-system documentation before use.
2HD2-DM-B is the basic diagnostic module; do not transfer the advanced physical-layer diagnostics of HD2-DM-A or HD2-DM-A.RO.
3De-energize the equipment and follow the site's approved electrical and process-safety procedure before disturbing hardware or wiring.
4Back up controller, drive, network and configuration data before replacement, migration or firmware work.
5Verify every companion module, cable, connector, termination and power source from approved drawings.
6Do not copy electrical, communication, mechanical or lifecycle values from a related model or successor.
7Perform a documented functional test and confirm diagnostics, alarms and fail-state behavior after work.
8Origin and HS code remain unpublished unless an exact manufacturer record or the physical package label establishes them.
