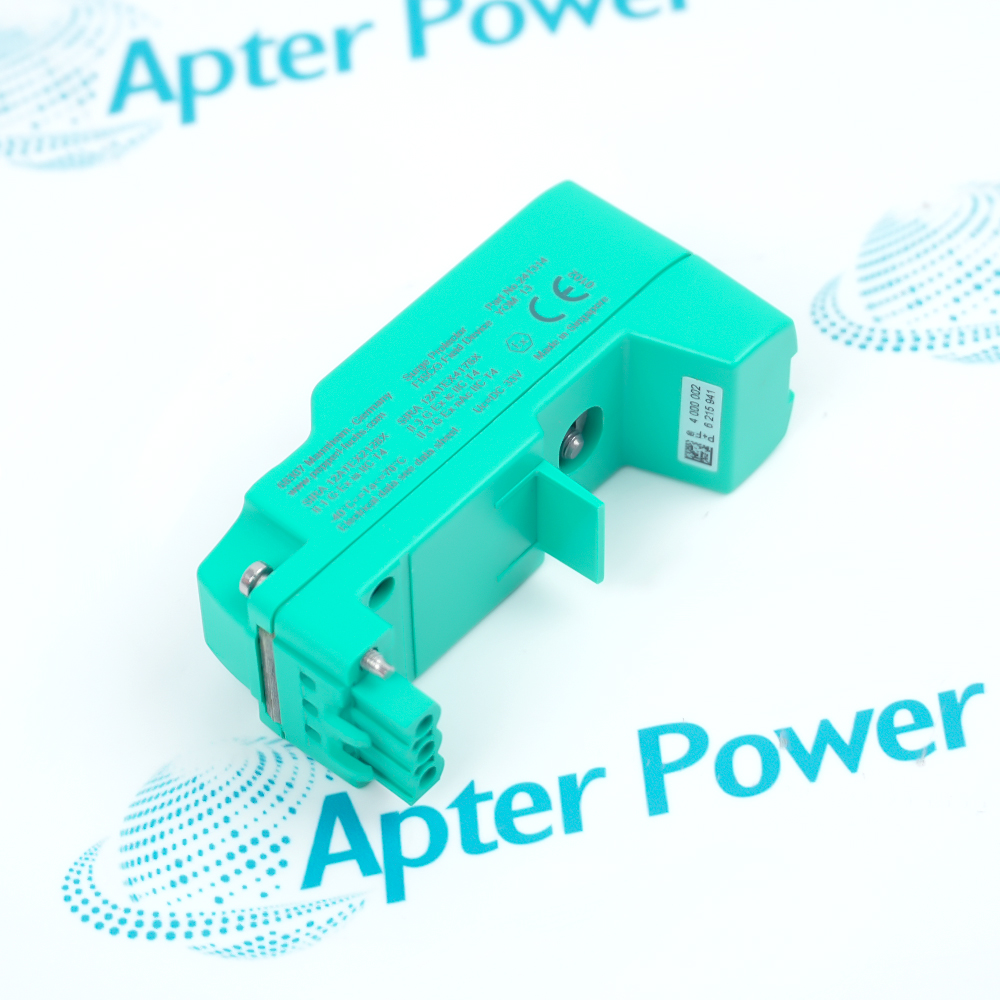

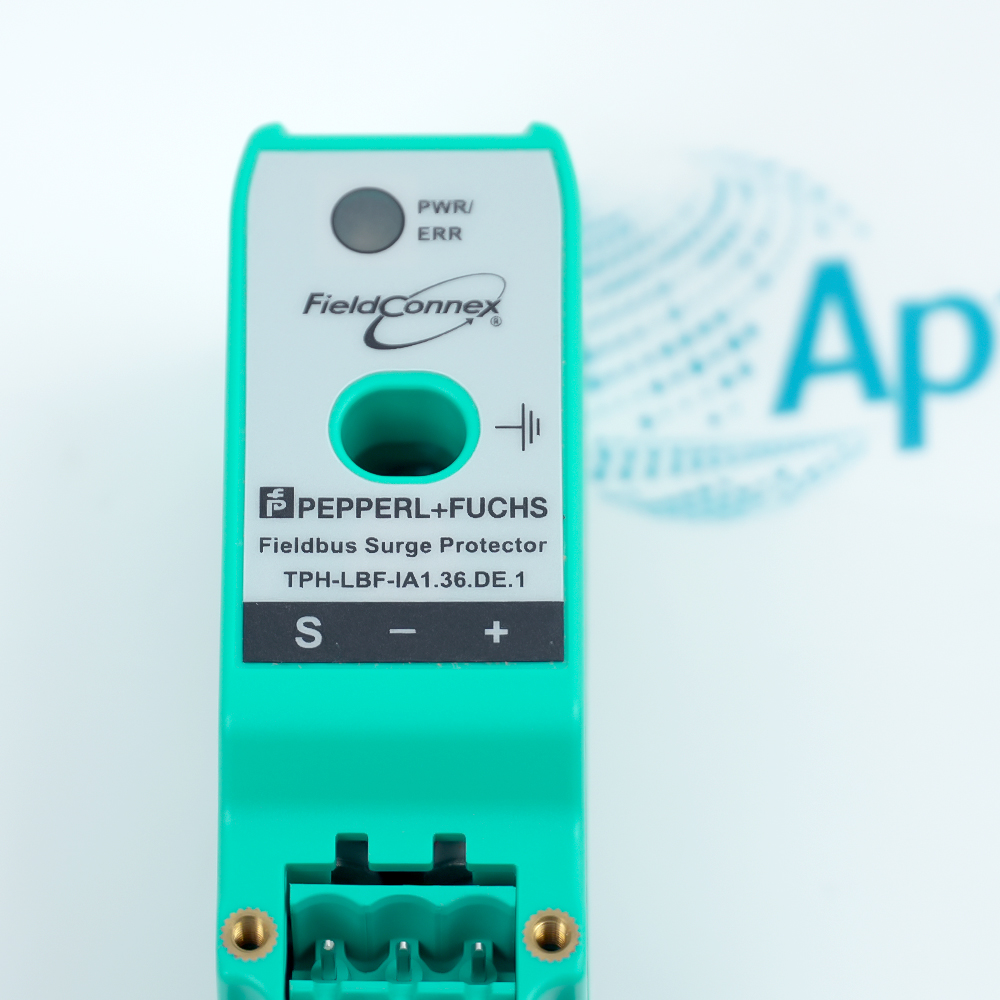

Pepperl+Fuchs TPH-LBF-IA1.36.DE.1 is an evidence-bounded diagnostic FieldConnex fieldbus surge protector. Pepperl+Fuchs identifies TPH-LBF-IA1.36.DE.1 exactly as the version with wear diagnostics.
- Exact variant: TPH-LBF-IA1.36.DE.1
- Diagnostics: Wear monitoring via LED and Advanced Diagnostics
- Rated voltage: 36 V
- Rated current: 600 mA
System role: It mounts between a FieldConnex power hub and trunk cable for FOUNDATION Fieldbus H1 or PROFIBUS PA surge protection and reports wear through LED and Advanced Diagnostics. Only facts stated by the cited Pepperl+Fuchs material are published; sibling, successor and third-party data are not transferred. Architecture boundary: Use only on the documented power-hub trunk connector with the required grounding rail and hazardous-area conditions. DE.0 is the no-diagnostics variant; do not combine its 0 mA self-consumption with DE.1. Before installation or replacement, verify the complete physical label, host equipment, companion hardware, wiring and approved commissioning procedure. Origin and HS code remain unpublished unless an exact manufacturer record or the physical package label establishes them.
Important Notice: Verify the complete Pepperl+Fuchs TPH-LBF-IA1.36.DE.1 physical label and installed-system documentation before use.
Apter Power TPH-LBF-IA1.36.DE.1 Manuals and Guides
Important Notice: The first link is the model-specific product-parameters PDF prepared only from the cited Pepperl+Fuchs official evidence; the second link is the Apter Power product information manual. Confirm the physical nameplate, current Pepperl+Fuchs documents, and host-system requirements before installation or replacement.
Installed-base maintenanceSupports evidence-led identification and replacement planning for Pepperl+Fuchs TPH-LBF-IA1.36.DE.1.
System documentationProvides a source-traceable boundary for the documented FieldConnex fieldbus power-hub trunk protection configuration.
Commissioning reviewGuides identity, companion-hardware, wiring and controlled functional checks before return to service.
Migration assessmentSeparates exact-model facts from successor, sibling and family-level information.
Read and follow the exact Pepperl+Fuchs documentation and host-equipment instructions before work. Verify the complete physical nameplate and system configuration.
1Verify the complete Pepperl+Fuchs TPH-LBF-IA1.36.DE.1 label, revision and installed-system documentation before use.
2DE.0 is the no-diagnostics variant; do not combine its 0 mA self-consumption with DE.1.
3De-energize the equipment and follow the site's approved electrical and process-safety procedure before disturbing hardware or wiring.
4Back up controller, drive, network and configuration data before replacement, migration or firmware work.
5Verify every companion module, cable, connector, termination and power source from approved drawings.
6Do not copy electrical, communication, mechanical or lifecycle values from a related model or successor.
7Perform a documented functional test and confirm diagnostics, alarms and fail-state behavior after work.
8Origin and HS code remain unpublished unless an exact manufacturer record or the physical package label establishes them.
