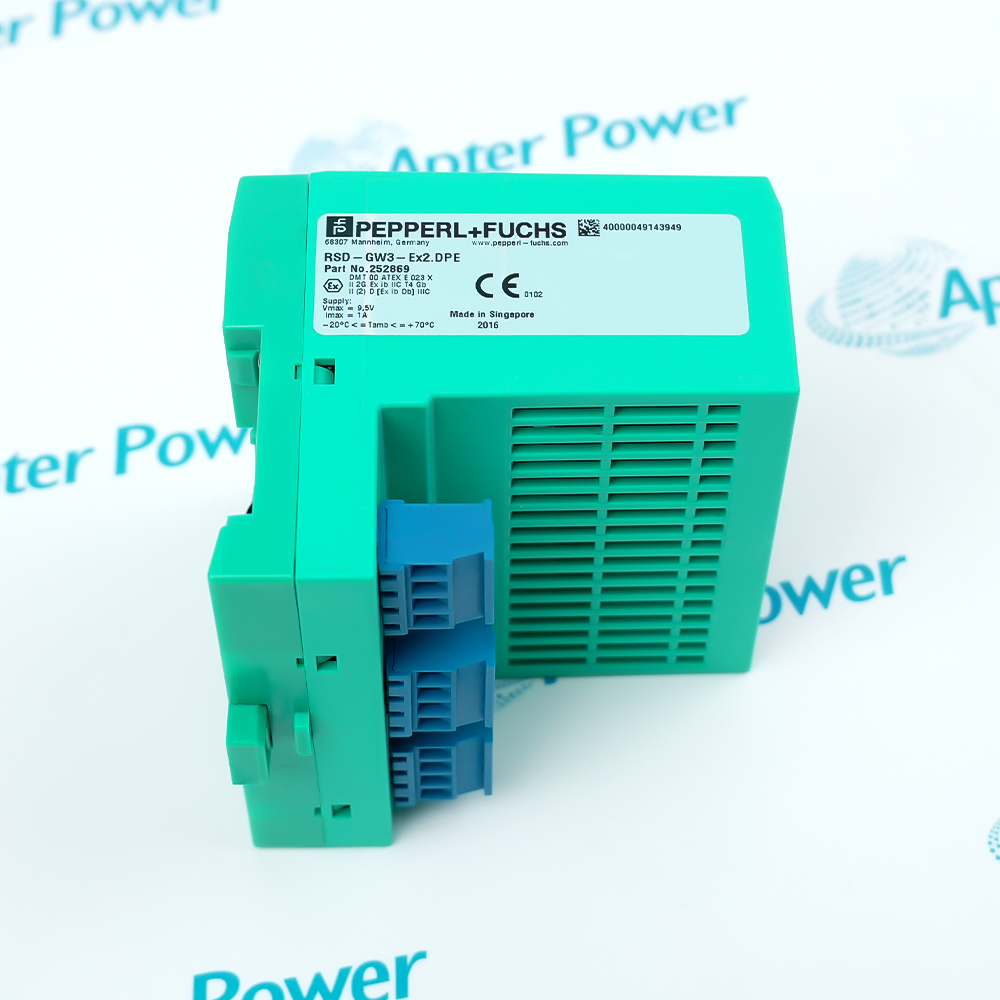

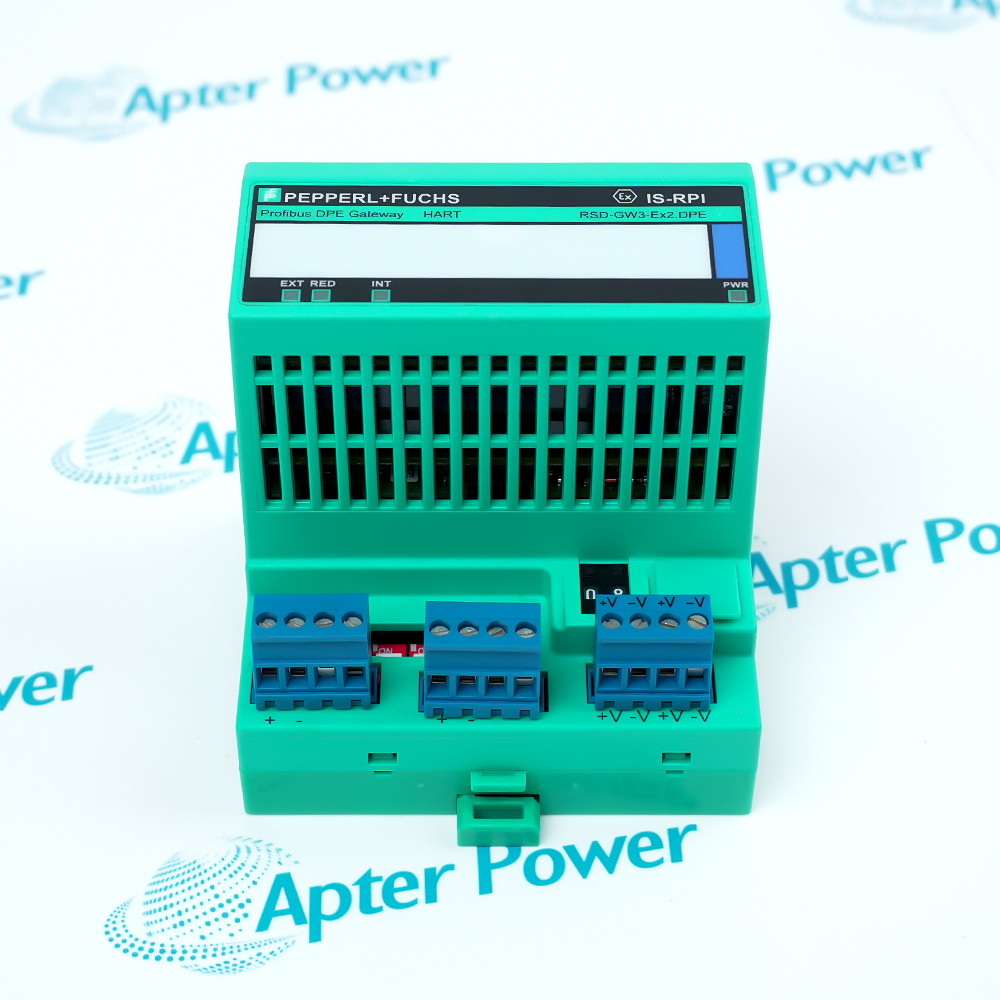

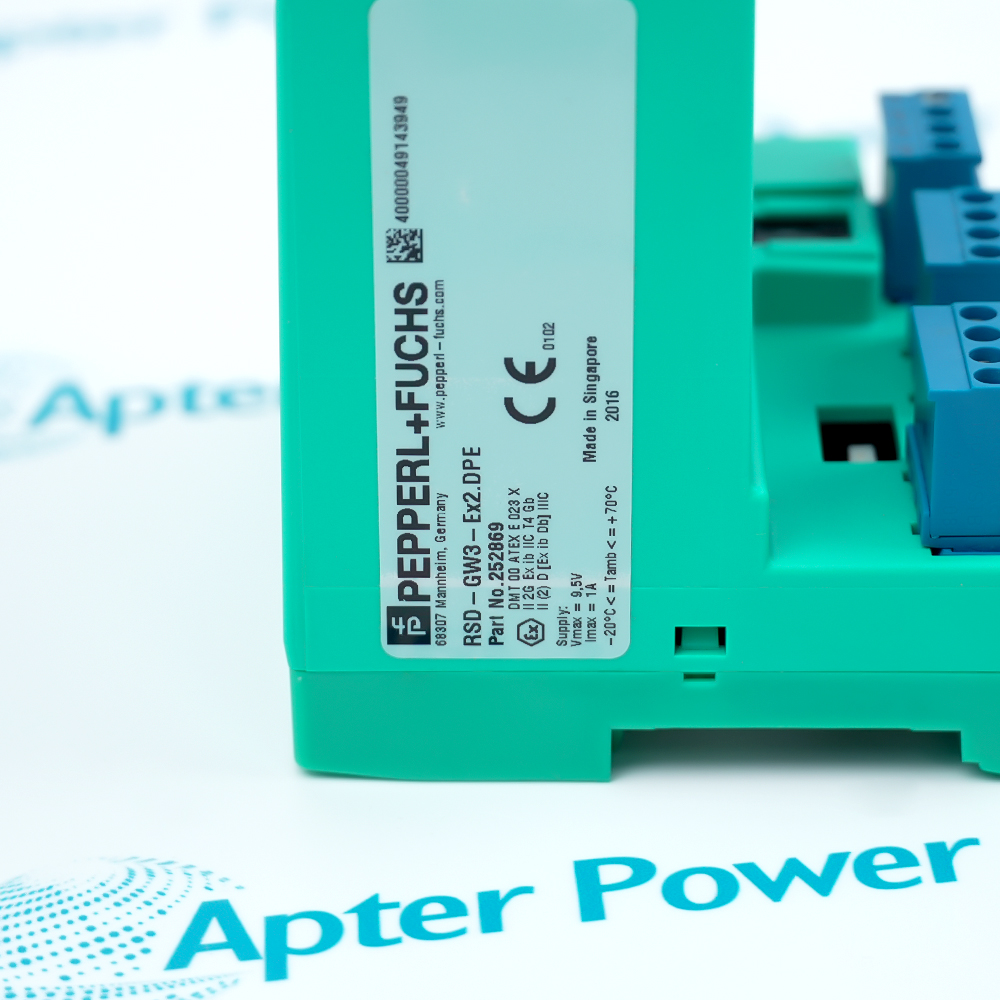

      Pepperl+Fuchs RSD-GW3-Ex2.DPE
      Pepperl+Fuchs RSD-GW3-Ex2.DPE
      Pepperl+Fuchs RSD-GW3-Ex2.DPE
      Pepperl+Fuchs RSD-GW3-Ex2.DPE
      Pepperl+Fuchs RSD-GW3-Ex2.DPE
      Pepperl+Fuchs RSD-GW3-Ex2.DPE
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      RSD-GW3-Ex2.DPE

      PROFIBUS Gateway
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Pepperl+Fuchs RSD-GW3-Ex2.DPE is a PROFIBUS DP V1 gateway for the intrinsically safe Remote I/O system. It links the internal backplane and field modules to a PROFIBUS host while supporting HART communication and documented media redundancy.

      Ask our team:

      Get a quick price for： RSD-GW3-Ex2.DPE
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for RSD-GW3-Ex2.DPE

      Technical specifications for RSD-GW3-Ex2.DPE

      • Manufacturer:
        Pepperl+Fuchs
      • Product Category:
        General Automation
      • Spare Part Number:
        RSD-GW3-Ex2.DPE
      • Estimated shipping dimensions:
        12.5×11.0×4.0 cm
      • Weight:
        0.35 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Function:
        PROFIBUS DP V1 gateway with HART support
      • System:
        Intrinsically safe Remote I/O
      • Installation areas:
        Zones 1, 2 and 22
      • Fieldbus protection:
        EEx ib IIC
      • PROFIBUS rate:
        9.6 to 1500 kbit/s
      • Address range:
        1 to 99 by switch
      • Gateways on IS bus:
        Up to 10
      • I/O modules per gateway:
        Up to 8
      • Internal cycle time:
        1.6 ms
      • Rated supply:
        8.88 to 9.5 V
      • Power consumption:
        8.5 W
      • Status indication:
        PWR, INT, EXT and RED LEDs
      • Media redundancy:
        PROFIBUS supported
      • Configuration:
        PACTware
      • Hot swap:
        Permitted in Zone 1 under documented conditions
      • Degree of protection:
        IP20; separate enclosure required
      • Operating temperature:
        -20 to 70 degrees C
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Pepperl+Fuchs RSD-GW3-Ex2.DPE is a PROFIBUS DP V1 gateway for the intrinsically safe Remote I/O system. It links the internal backplane and field modules to a PROFIBUS host while supporting HART communication and documented media redundancy.
      • PROFIBUS DP V1 link: Connects the intrinsically safe remote I/O station to the configured PROFIBUS host.
      • HART signal handling: Transfers documented HART information through the gateway architecture.
      • Media redundancy: Supports the documented redundant PROFIBUS connection arrangement.
      • Zone 1 hot swap: Allows controlled module exchange under the manufacturer conditions for Zone 1.

      Confirm the exact RSD-GW3-Ex2.DPE marking, approved Ex power supply, backplane modules, PROFIBUS address, line termination, grounding and enclosure protection before commissioning.

      Important Notice: Confirm the complete Pepperl+Fuchs RSD-GW3-Ex2.DPE identity and controlled configuration before commissioning.

      Pepperl+Fuchs RSD-GW3-Ex2.DPE Manuals & Downloads
      Pepperl+Fuchs RSD-GW3-Ex2.DPE Technical Reference (PDF)Pepperl+Fuchs RSD-GW3-Ex2.DPE Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Hazardous-area remote I/O
      Links approved remote I/O modules from Zones 1, 2 or 22 to the host.
      PROFIBUS process integration
      Exchanges cyclic data, configuration and diagnostics with a DP V1 master.
      HART asset access
      Carries supported HART information for connected field instruments.
      Redundant fieldbus station
      Uses the documented media-redundant PROFIBUS arrangement for installed process systems.
      Read the applicable Pepperl+Fuchs instructions before work. Verify Pepperl+Fuchs RSD-GW3-Ex2.DPE and the installed system configuration before commissioning.
      1
      Verify the complete RSD-GW3-Ex2.DPE marking and Ex approval.
      2
      Use only the documented RSD2-PSD2-Ex4.34 or RSA6-PSD-Ex4.34 supply arrangement.
      3
      Confirm the hazardous-area classification and enclosure protection.
      4
      Record the PROFIBUS address and termination-switch positions.
      5
      Verify every installed backplane and I/O module against the approved design.
      6
      Preserve fieldbus shielding, grounding and intrinsically safe separation.
      7
      Follow the manufacturer hot-swap conditions for Zone 1.
      8
      Complete host communication, diagnostics, redundancy and I/O tests before release.

      Technical notes

      Technical notes

      Confirm the exact RSD-GW3-Ex2.DPE marking, approved Ex power supply, backplane modules, PROFIBUS address, line termination, grounding and enclosure protection before commissioning.

      FAQS

      • What is Pepperl+Fuchs RSD-GW3-Ex2.DPE?
        RSD-GW3-Ex2.DPE is a PROFIBUS DP V1 gateway for the intrinsically safe Remote I/O system.
      • Which zones support Pepperl+Fuchs RSD-GW3-Ex2.DPE?
        The official data sheet lists Zones 1, 2 and 22.
      • How many I/O modules can Pepperl+Fuchs RSD-GW3-Ex2.DPE manage?
        It supports up to eight I/O modules through the backplane.
      • Which PROFIBUS rates support Pepperl+Fuchs RSD-GW3-Ex2.DPE?
        The documented range is 9.6 to 1500 kbit/s.
      • How is the Pepperl+Fuchs RSD-GW3-Ex2.DPE address set?
        The address is set from 1 to 99 using the gateway switches.
      • Does Pepperl+Fuchs RSD-GW3-Ex2.DPE support HART?
        Yes. The manufacturer data sheet lists HART signal support.
      • Does Pepperl+Fuchs RSD-GW3-Ex2.DPE support PROFIBUS media redundancy?
        Yes. Media redundancy is a documented gateway feature.
      • What confirms Pepperl+Fuchs RSD-GW3-Ex2.DPE commissioning?
        Verify power, address, termination, host communication, redundancy, diagnostics and every configured I/O channel.
