      CC-PPIX01 51410089-175

      Pulse Input Module

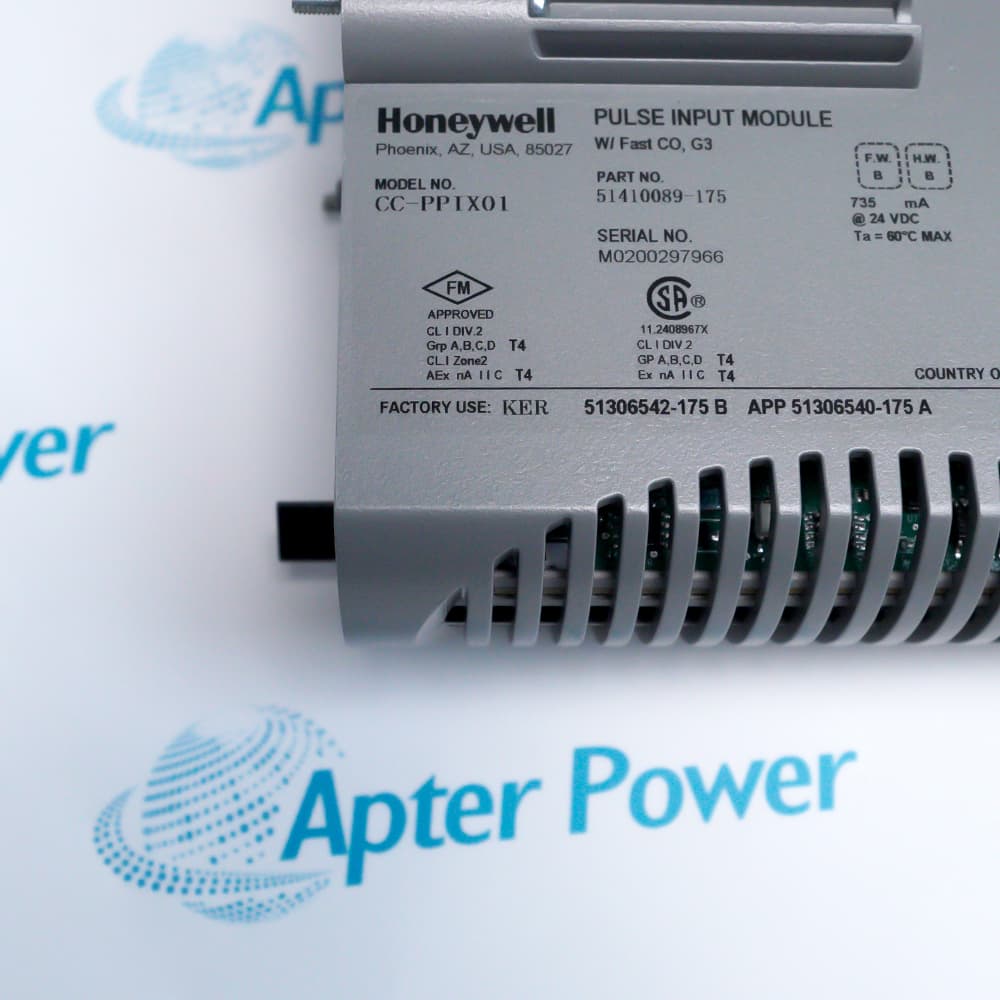

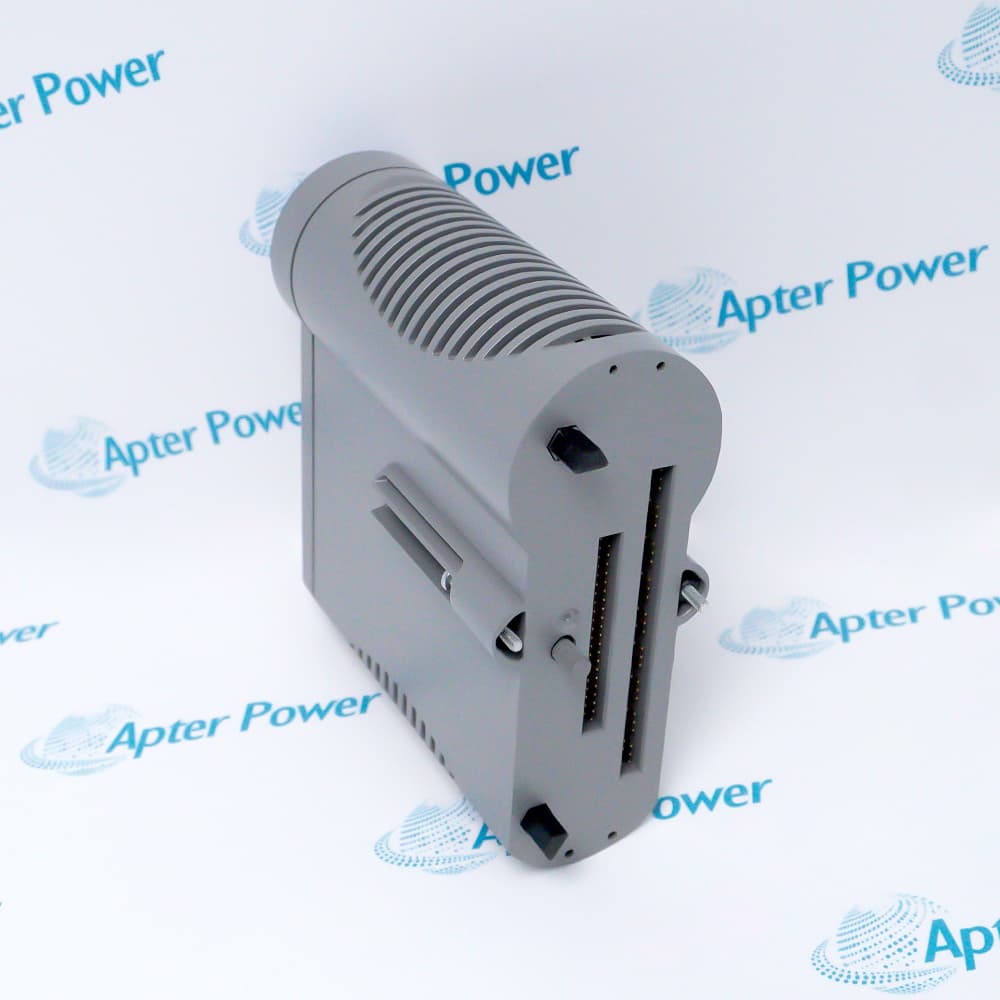

      Honeywell CC-PPIX01 51410089-175
      Honeywell CC-PPIX01 51410089-175
      Honeywell CC-PPIX01 51410089-175
      Honeywell CC-PPIX01 51410089-175
      Honeywell CC-PPIX01 51410089-175
      Honeywell CC-PPIX01 51410089-175
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      Pulse Input Module

      Open Emitter source driver

      Referenced to System Ground

      Open Circuit Voltage: 22V

      Short Circuit Current Limit : 35mA

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for CC-PPIX01 51410089-175
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for CC-PPIX01 51410089-175

      • Manufacturer:
        Honeywell
      • Product Category:
        DCS Systems
      • Spare Part Number:
        CC-PPIX01 51410089-175
      • Estimated shipping dimensions:
        5.5x15.6x14.5cm
      • Weight:
        0.35 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Input / Output Model:
        CC-PPIX01 - Pulse Input
      • IOTA Model:
        CC-TPIX11 Redundant 12”
      • Number of Inputs:
        8 (Single) or 4 (Dual) Supports Mixed Combination of Single/Dual Input Channels
      • Number of Outputs:
        2
      • Input type:
        High-impedance, differential voltage , optically isolated (1000 VDC)
      • Frequency Range:
        0 - 100 KHz Single Channel 0 – 10 KHz Dual Pulse Channel
      • Frequency Accuracy ( 0.5 Hz – 100 KHz):
        +/- 0.001% of Reading
      • Input Voltage:
        0 to 35 VDC
      • Input Voltage Trip Points:
        High Setting: Low to High: 8.4V ; High to Low: 7.7V Low Setting: Low to High: 2.8V ; High to Low: 2.0V
      • Input Edge Selection:
        Configurable: Rising Edge (Default) or Falling Edge
      • Off State Leakage Current:
        100uA max at 60Vdc
      • Fast Cutoff Relay Output Characteristics:
        Voltage: 5V to 60VDC Current: 0.001A to 2A
      Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions

      The CC-PPIX01 51410089-175 is a Pulse Input Module (PIM) designed specifically for the Experion PKS C300 control system. It is primarily used to receive and process pulse signals from field devices, converting them into flow rate, speed, or cumulative value data that the controller can recognize.
        • Extensive self-diagnostics
        • Supports the MeterSuite Application
        • Optional redundancy
      The Pulse Input Module (PIM) provides the Experion C300 controller with the ability to monitor various pulse input field values. The PI module processes signals from pulse-generating devices and provides a calculated rate and an accumulated total. The PI supports a “fast cutoff” capability to stop dosing operations when the threshold has been met. High-accuracy and repeatable measurement capability make the PIM well suited for metering and custody transfer applications. This module is specifically engineered to support the MeterSuite Custody Transfer Application including support for dual pulse per ISO6551. Implementation of ISO-6551/API 5.5 for dual pulse inputs, including Level A, pulse integrity.

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
       Honeywell CC-PPIX01 51410089-175 Pulse Input Moduler, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

      Oil & Gas
      Used to connect to turbine flow meters to accurately calculate the total amount of fuel oil and natural gas entering or leaving oil depots or pipelines, ensuring the accuracy of transaction amounts.

      Chemical Industry
      By receiving pulse signals from each raw material pump, the mixing ratio of chemicals is adjusted in real time to ensure the stability of the reaction process.

      Pharmaceutical Production
      It provides microsecond-level signal feedback on the drug filling line to ensure that the volume deviation of each bottle of medicine is kept within an extremely low range.

      Power & Energy
      It processes frequency signals from sensors on the turbine shaft in real time for speed monitoring and overspeed protection interlocking.

      Mining & Ore Processing
      By monitoring the belt pulley pulses and combining them with the weighing signal, the processing tonnage and material flow rate of the ore are calculated.

       During installation and maintenance of the CC-PPIX01 51410089-175, it is essential to ensure the module is securely seated on its IOTA (Input Output Termination Assembly) and to rigorously verify the shielded grounding of field pulse sensors to prevent counting errors or signal loss caused by electromagnetic interference. Since this module is frequently used for high-precision "fast cut-off" applications, operators should periodically verify the integrity of the internal fuses (2.5A) and ensure that the K-factor configuration in the software strictly matches the field flowmeter's nameplate parameters. Furthermore, hot-swapping a non-redundant module while the system is energized is strictly prohibited to avoid control loop interruptions or the loss of critical custody transfer data.

      FAQ View All FAQ

      • What is CC-PPIX01 51410089-175?
        It is primarily used to receive rapid pulse signals from flow meters or rotating devices and convert them into engineering units (such as cumulative flow or flow rate) that the controller can understand.
      • What input signals does CC-PPIX01 51410089-175 support?
        It supports a variety of pulse signals, including magnetic pickup, open collector, dry contact, and various active or passive voltage pulses.
      • How many channels does CC-PPIX01 51410089-175 support?
        This module typically provides 8 single-channel pulse inputs, or can be configured with 4 dual-pulse channels.
      • How is the CC-PPIX01 51410089-175 installed?
        This module features a pluggable design and is installed on a compatible I/O wiring assembly (IOTA) (e.g., CC-TPIX11). The IOTA handles field wiring, while the module communicates with the C300 controller via a slot.
      • What is the main function of CC-PPIX01 51410089-175?
        Its core functions are high-precision frequency measurement and pulse accumulation.
