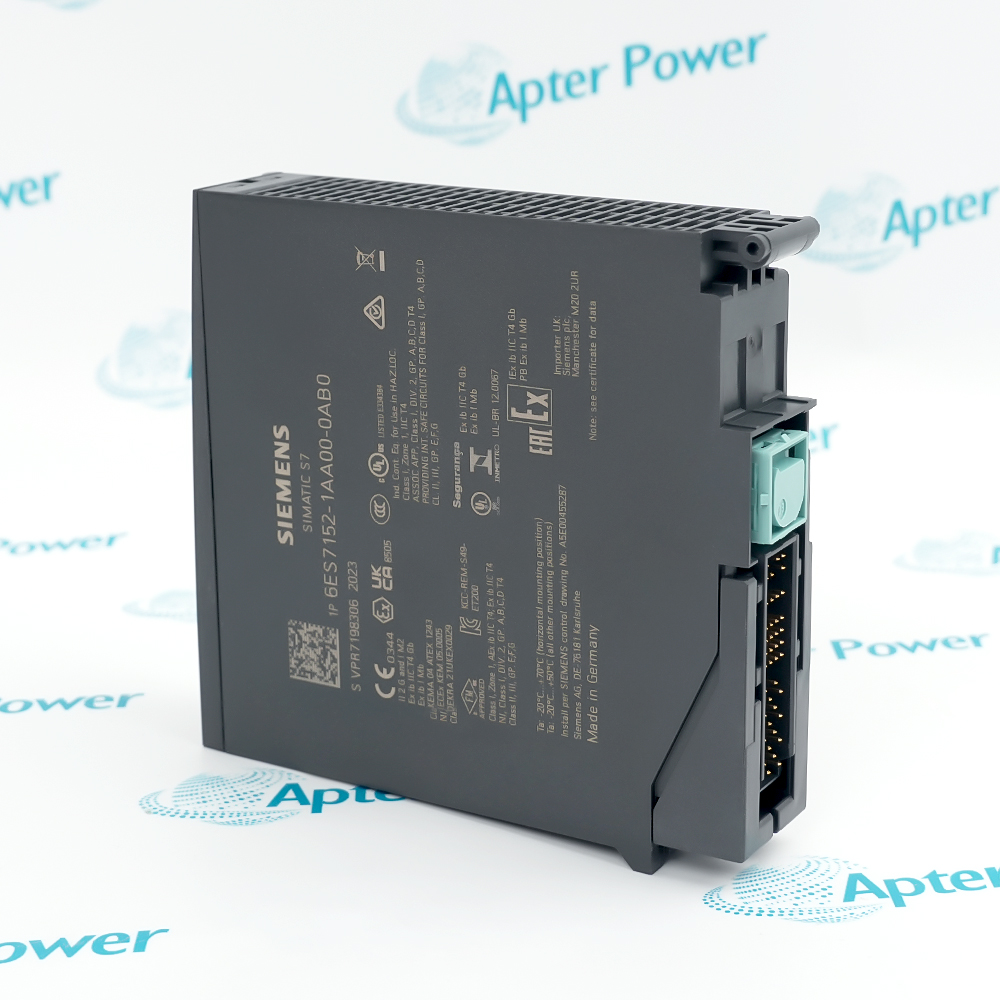

The 6ES7152-1AA00-0AB0 belongs to the Siemens distributed I/O system family and is the SIMATIC ET 200iSP IM 152-1 interface module. Serving as the primary communication head for the entire distributed architecture, this hardware integrates a standard PROFIBUS industrial bus interface and is responsible for establishing a bidirectional data bridge between the upper-level central control system and the underlying on-site distributed electronic modules.
Directly drives up to 32 expansion I/O cards via the backplane bus
Integrates binary hardware DIP switches to lock network station address
Ex i intrinsically safe, allowing powered installation inside Zone 1
This module fully supports both standard single-channel operation mode and dual hardware redundancy operation mode. In a redundant configuration, two interface modules are installed side-by-side on a dedicated terminal module. When a hardware fault occurs in the primary communication link or the board itself, the system executes a bumpless switchover to the backup interface, ensuring the continuity and integrity of the PROFIBUS serial data bus chain.

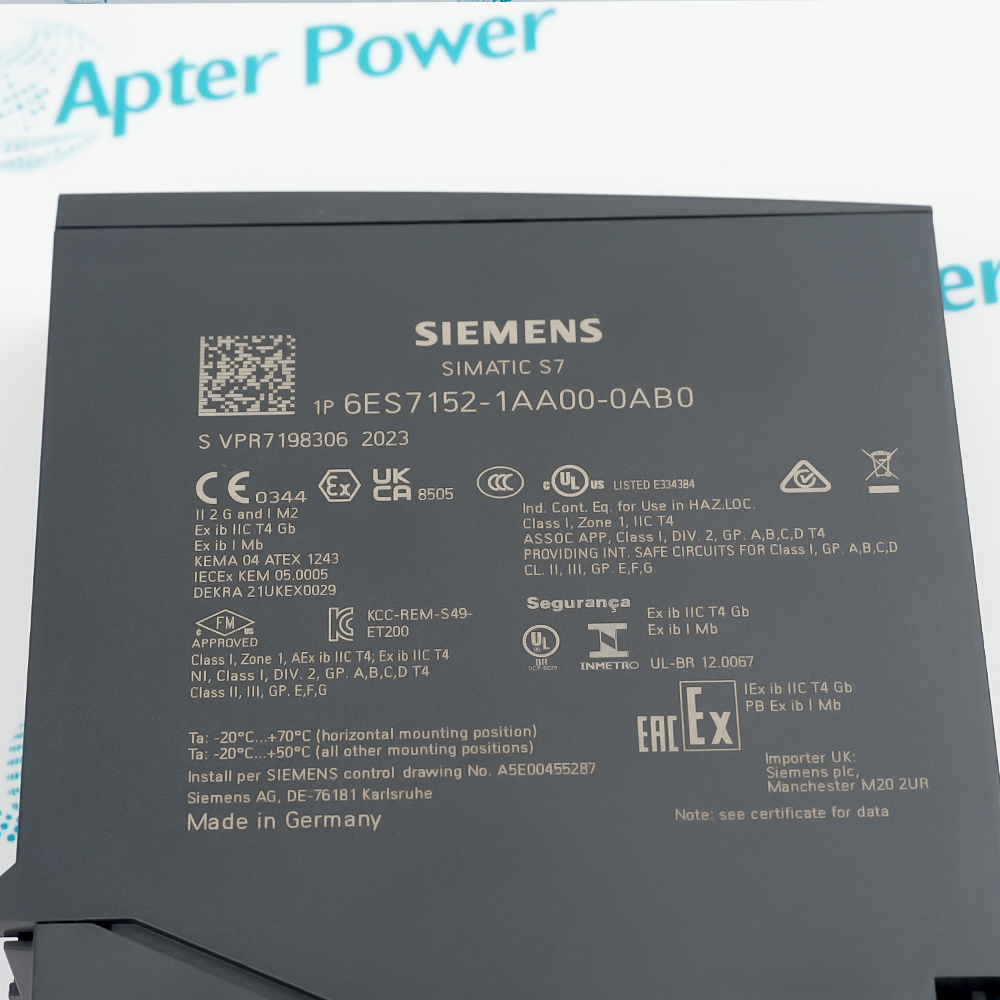

6ES7152-1AA00-0AB0 utilizes an intrinsically safe hardware construction tailored for high-risk environments. The module has passed stringent international industrial explosion-proof certifications, with its official explosion protection ratings designated as Ex ib IIC T4 Gb and Ex ib I Mb.
This implies that the internal circuitry of the hardware is protected by intrinsic safety, allowing it to be directly slotted into and operated within Zone 1 and Zone 2 hazardous industrial locations where flammable and explosive gases, vapors, or mists exist under the Gb safety level, while simultaneously satisfying the strict hardware safety regulations of underground mining environments like coal mine methane under the Mb safety level.
Its modular physical encapsulation supports live hot-swapping within hazardous zones, optimizing the convenience of on-site replacement and maintenance while ensuring compliance of the underlying signal chain.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ES7152-1AA00-0AB0 SIMATIC Interface Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Petroleum Refining & Fine Chemicals
Applied in remote data acquisition cabinets for atmospheric and vacuum distillation units or hydrocracking reactors.
Coal Mining & Underground Automation
Used in underground pump stations and ventilation monitoring systems within coal mines. Its Ex ib I Mb approval satisfies underground safety standards, routing gas concentrations and pump status data up to surface PLC systems.
Coal Chemical & Gasification Plants
Deployed in instrument junction boxes alongside coal gasifiers and ammonia synthesis towers. Its 1:1 redundant configuration prevents accidental shutdowns caused by bus hardware faults, ensuring the continuity of critical process loops.
LNG Processing & Gas Transmission
Utilized in valve control boxes for LNG terminals, compressor stations, and tank farms. Operating within Zone 1 hazardous areas, the module receives PROFIBUS DP commands to drive on-site intrinsically safe pneumatic shut-off valves.
Offshore & Onshore Drilling Rigs
Applied in mud circulation systems and Wellhead Control Panels (WHCP) where flammable oil and gas vapors concentrate. Its physical design allows live hot-swapping in hazardous zones, significantly reducing cabinet maintenance time during offshore inspections.
When installing and maintaining the 6ES7152-1AA00-0AB0, although the hardware supports online hot-swapping in Zone 1, it must be housed within an enclosure that complies with explosion-proof standards (such as a minimum IP54 rating). Setting the PROFIBUS station address via the hardware DIP switches must be executed while the module is powered off or reset. Otherwise, the new address will not take effect at the hardware layer.
External intrinsically safe (Ex i) bus cables must be dedicated blue explosion-proof cables, must maintain a physical clearance of at least 50mm from non-intrinsically safe cables, and require strict adherence to explosion-proof grounding regulations to prevent high-frequency cross-interference.
6ES7152-1AA00-0AB0 supports 1:1 dual hardware redundancy (Redundant Operation). In chemical plants or hazardous industrial sites requiring high operational continuity, two IM 152-1 modules can be installed side-by-side on a dedicated redundant terminal module (TM-IM/IM). When a hardware fault occurs in the primary communication link or the module itself, the system automatically executes a bumpless switchover to the backup interface module within microseconds, ensuring that the PROFIBUS DP bus data chain remains uninterrupted.
It is the IM 152-1 PROFIBUS intrinsically safe interface module for the Siemens SIMATIC ET 200iSP distributed I/O system.
What is the primary function of the 6ES7152-1AA00-0AB0?
It functions as a communication gateway between field I/O modules and the upper-level control system (such as a PLC or DCS), managing data exchange over the PROFIBUS DP bus.
How to physically install and connect the 6ES7152-1AA00-0AB0?
The module must be slotted directly onto a dedicated ET 200iSP Terminal Module base, and the PROFIBUS cable is connected through the terminals on that base.
Does the 6ES7152-1AA00-0AB0 support a dual-redundant hardware configuration?
Yes, by installing two modules on a dedicated redundant terminal module (TM-IM/IM), it can be configured for PROFIBUS redundant operation mode.
What type of physical communication interface does the 6ES7152-1AA00-0AB0 feature?
It features a built-in standard RS 485 physical layer interface and executes digital data transmission via the intrinsically safe PROFIBUS DP protocol.
