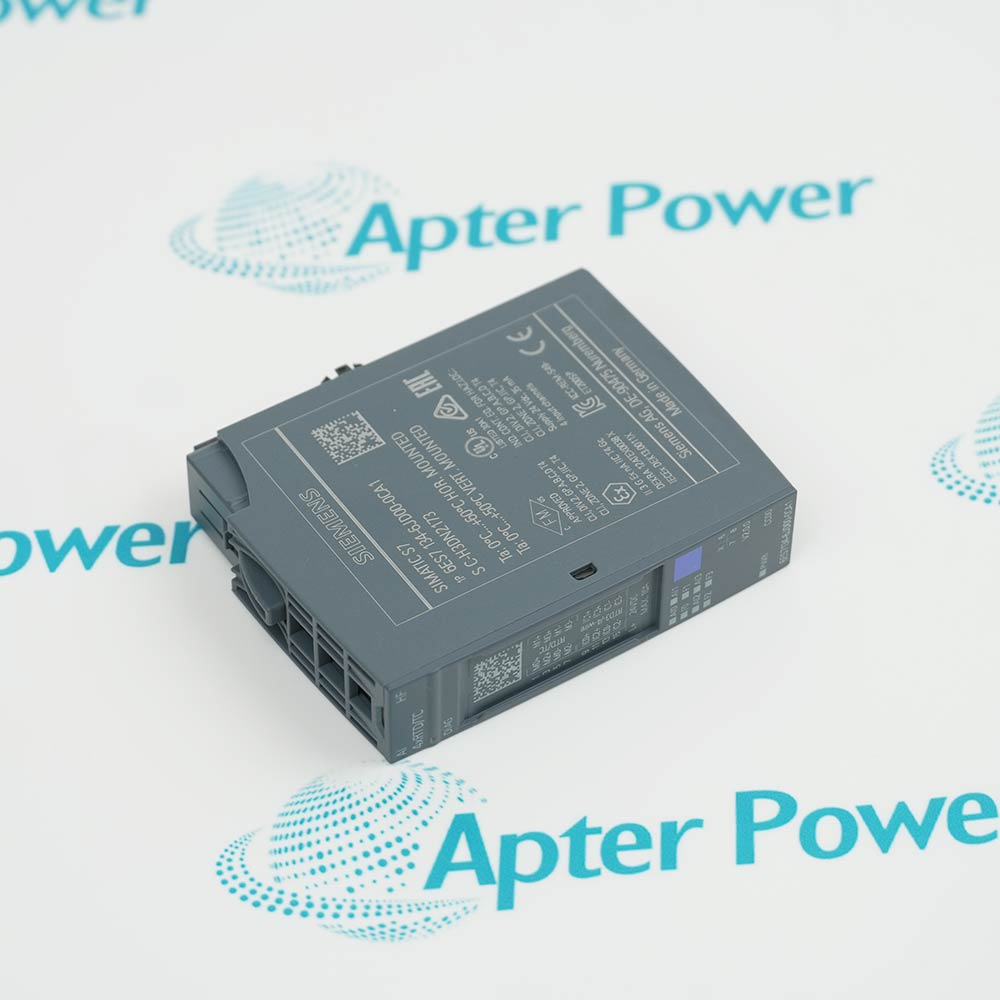

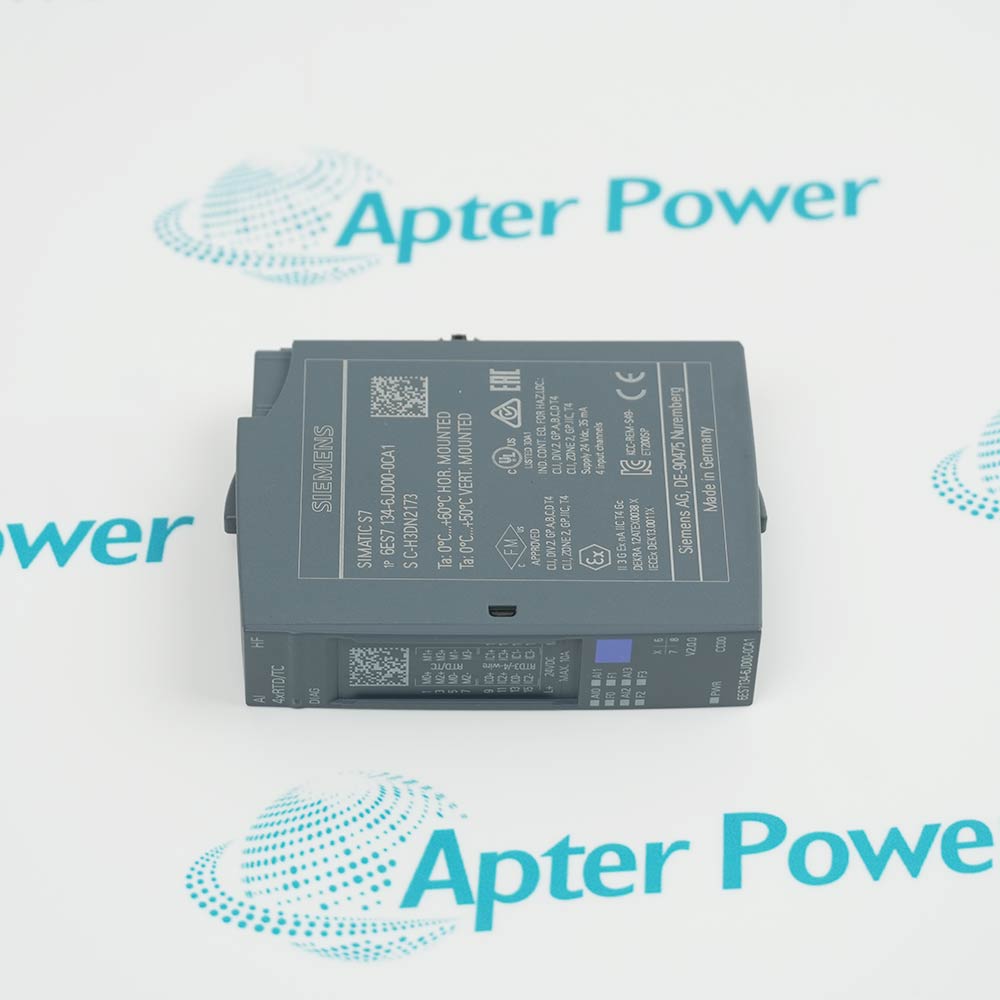

The 6ES7134-6JD00-0CA1 is a High Feature analog input module designed for the SIMATIC ET 200SP distributed I/O system. Featuring 4 high-precision input channels, this module is specifically engineered to process signals from various temperature sensors, including Resistance Temperature Detectors (RTDs) and Thermocouples (TC). With an impressive 16-bit resolution and a high accuracy of +/-0.1%, it ensures precise data acquisition in demanding industrial environments.
Delivers 16-bit resolution and an outstanding measurement accuracy of +/-0.1%
Supports multi-wire connections (2-/3-/4-wire) for both RTD and TC sensors
Perfectly matched with BU type A0 and A1, utilizing CC00 color-coding and automatic coding to eliminate installation errors and streamline commissioning
The module supports highly flexible 2-wire, 3-wire, and 4-wire connection types, accommodating various sensor configurations without external wiring modifications. Designed for maximum usability, it seamlessly integrates with BaseUnits (BU) of type A0 and A1, and features a CC00 color code for error-free wiring. Additionally, its built-in channel diagnostics significantly reduce troubleshooting time and system downtime.
The Siemens 6ES7134-6JD00-0CA1 features advanced noise suppression and galvanic isolation per channel, preventing ground loops and maintaining signal integrity in high-interference environments. Designed for the compact ET 200SP backplane, the module transmits digitized temperature data via PROFINET with minimal latency. Its rugged hardware design supports hot-swapping (running installation), allowing modules to be replaced under voltage without stopping the entire station. This hardware standard reduces total cost of ownership by eliminating maintenance-induced downtime in continuous process plants.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ES7134-6JD00-0CA1 Analog input module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Petroleum and Gas Refining
Monitors temperatures inside crude oil distillation columns and reactors to prevent catalyst overheating and maintain cracking processes within safe operational thermal limits.
Biopharmaceutical Manufacturing
Performs high-precision temperature data acquisition in bioreactors and autoclaves to fulfill strict temperature validation requirements for GMP compliance.
Thermal and Nuclear Power Generation
Monitors temperatures of steam turbine bearings and boiler pipelines to prevent component fatigue damage or tube bursts caused by thermal stress.
Food and Beverage Processing
Used for continuous temperature monitoring and logging during Ultra-High Temperature (UHT) pasteurization of dairy products and canning sterilization processes.
Lithium-ion Battery Manufacturing
Monitors multi-point temperatures in battery coater drying sections and vacuum ovens to ensure the drying consistency of electrode sheets.
Iron and Steel Smelting and Rolling
Collects temperature signals from blast furnace walls and during cooling on hot rolling lines to prevent wall burn-through and optimize steel quenching structures.
Ensure the module is paired with a Type A0/A1 BaseUnit matching the CC00 code. Channel parameters in TIA Portal must exactly match the physical thermocouple cold-junction settings or 2-/3-/4-wire RTD wiring mode. Use shielded twisted-pair cables for all inputs, ground the shields reliably, and avoid routing alongside power cables. Hot-swapping is permitted under voltage, but strictly prohibited in hazardous explosive (Ex) environments.
The module specializes in resistance-based and voltage-based temperature measurement, supporting 2-wire, 3-wire, and 4-wire connections for resistance thermometers alongside direct thermocouple interfacing. Internal circuitry provides a 16-bit analog-to-digital conversion resolution, translating low-voltage signals from sensors like Pt100, Pt1000, and Type K thermocouples into precise digital engineering units. Linearization curves for standard industrial temperature sensors are embedded within the module firmware, ensuring accurate variable tracking without placing additional processing loads on the central processing unit.
What kind of device is the Siemens 6ES7134-6JD00-0CA1?
It is a 4-channel resistance thermometer and thermocouple analog input module for the Siemens SIMATIC ET 200SP distributed I/O system.
What is the primary purpose of the 6ES7134-6JD00-0CA1 module in automation systems?
It collects temperature signals from industrial field sensors and converts this physical data into digital values for transmission to the central controller.
How to properly install and use the 6ES7134-6JD00-0CA1 in an industrial field?
Snap it into a compatible ET 200SP BaseUnit, connect temperature sensors via the BaseUnit terminals, and mount the entire structure onto a DIN rail.
How many signal input channels does the 6ES7134-6JD00-0CA1 support?
This module provides a total of 4 independent analog input channels.
What specific types of temperature sensors does the 6ES7134-6JD00-0CA1 support?
It supports various types of thermocouples and resistance thermometers, such as common Pt100, Pt1000, and Type K, Type J thermocouples.
