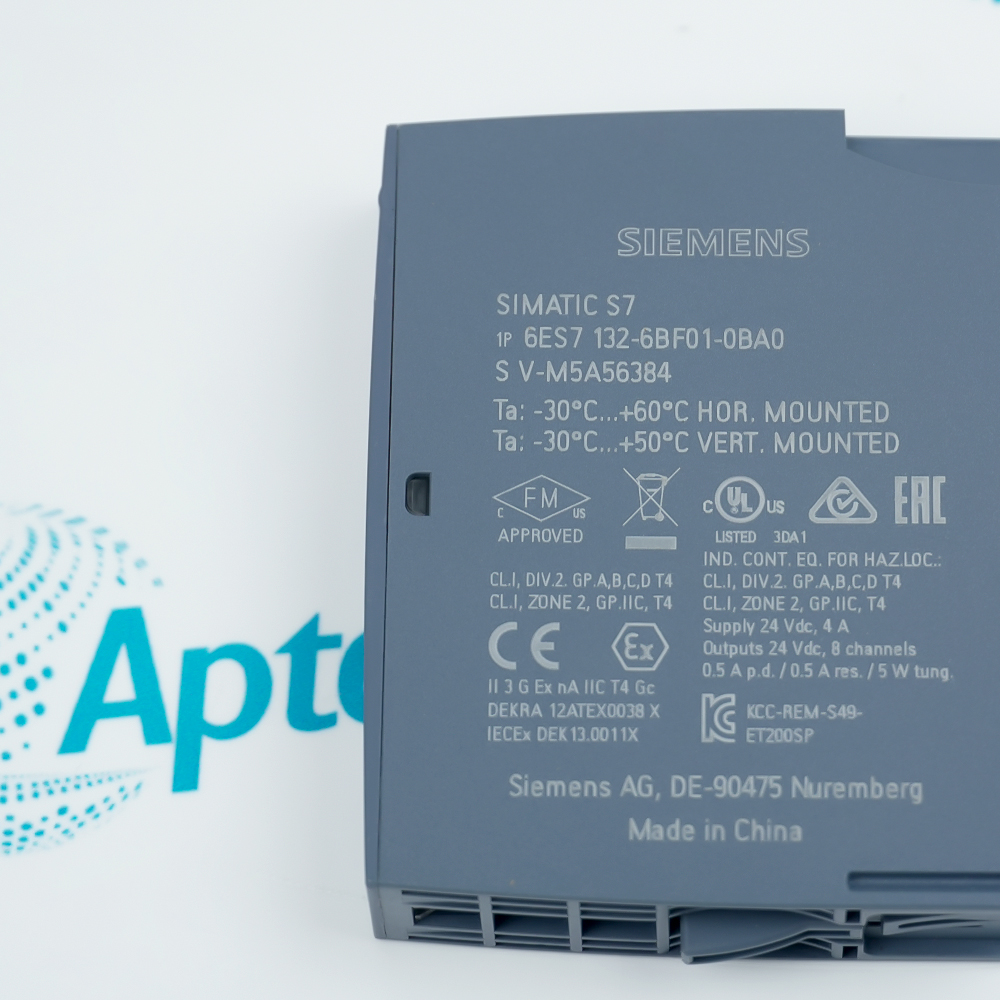

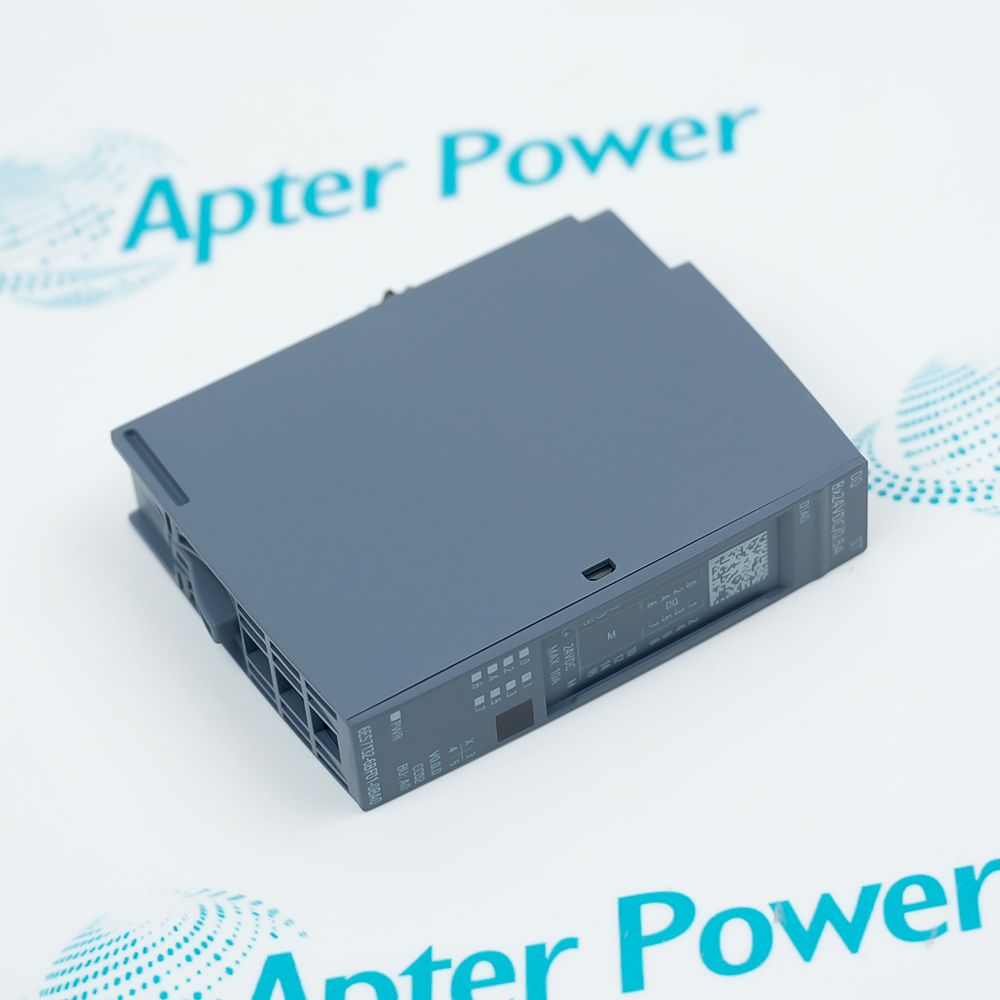

The 6ES7132-6BF01-0BA0 is a standard-range digital output module for the SIMATIC ET 200SP distributed remote I/O platform. It features 8 output channels operating at 24 VDC with a driving current capability of 0.5 A per channel. Utilizing source output logic (PNP / P-switching), the module delivers a positive potential to external field actuators upon activation.
Monitors short-circuits, wire breaks, and voltage anomalies in real time to locate field electrical faults precisely
Automatically executes predefined substitute value states upon network interruption to prevent erratic actuator behavior
Utilizes unique color coding to prevent incorrect insertion, supporting powered runtime replacement and backward compatibility
It comes in a standard packing unit of 1 piece and is mechanically configured to fit a Type A0 BaseUnit (BU-type A0). The module exhibits a dedicated Colour Code CC02, which aligns with its corresponding BaseUnit terminals to distinguish hardware specifications and wiring definitions during installation. The module interfaces with PROFINET or PROFIBUS industrial networks via an ET 200SP interface module, blending into the factory control network environment. It is equipped with a substitute value output function. In the event of a communication breakdown between the central PLC and the remote I/O station, this feature allows each channel to adopt a predefined state—whether freezing the last valid value, turning off, or turning on. This response maintains downstream equipment like solenoid valves and contactors in a specific status during signal loss.
This digital output module offers hardware monitoring through embedded diagnostic capabilities. Its localized processing logic provides module and channel-level diagnostics, monitoring for specific electrical conditions. It detects short-circuits to L+ (positive rail), short-circuits to ground, field wiring interruptions (wire breaks), and supply voltage anomalies or dropouts. Once an issue occurs, diagnostic data is transmitted across the backplane bus to the central workstation while simultaneously flashing the DIAG LED on the front panel, allowing maintenance personnel to verify fault locations across general automation production lines.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ES7132-6BF01-0BA0 Digital output module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing & Assembly
Controls the opening/closing of pneumatic solenoid valves, gripper operations, and field indicator light statuses on body-in-white welding and final assembly lines.
Food & Beverage Packaging
Delivers high-speed 24V output signals to drive cutter cylinders, inkjet triggers, and rejection devices within sterile filling and labeling machine control cabinets.
Pharmaceuticals & Bioengineering
Controls miniature pilot solenoid valves for purified water lines and fermenter feeding valves inside GMP-compliant distributed control boxes.
Electronics & Semiconductor Manufacturing
Operates vacuum suction cup solenoid valves and workpiece-in-position buzzers within cleanroom wafer handling or robotic peripheral controls.
Cement & Ore Conveying
Drives discharge plows, vibratory feeder contactors, and dust suppression spray valves under the harsh environments of belt conveyor corridors and batching stations.
Glass & Ceramics Manufacturing
Operates multiple gas shut-off valves, cooling fan start relays, and temperature alarm lights within distributed control networks of annealing lehrs and kilns.
It must be plugged vertically into a Type A0 BaseUnit (BU-type A0) while ensuring the Colour Code CC02 labels match. Never exceed the maximum current load limit of 0.5 A per channel. Before conducting a runtime hot-swap replacement, check the actual wiring condition of the faulted field channel to prevent the immediate burnout of the new module due to an unresolved short circuit.
The Siemens 6ES7132-6BF01-0BA0 is an 8-channel digital output module (PNP/0.5A) for the ET 200SP distributed I/O system. Compatible with Type A0 BaseUnits, it features channel-level diagnostics for short-circuits, wire breaks, and voltage anomalies, and supports substitute value safe output during communication failures, serving as a core remote expansion hardware for PLC systems.
What kind of device is Siemens 6ES7132-6BF01-0BA0?
It is an 8-channel digital output module for the Siemens SIMATIC ET 200SP distributed I/O system.
What are the core electrical specifications of 6ES7132-6BF01-0BA0?
It supports a 24V DC power supply and features 8 output channels, with a maximum output current of 0.5A per channel.
What kind of output logic does 6ES7132-6BF01-0BA0 use?
It uses source output logic (PNP / P-switching), which means it provides a positive voltage potential to the field devices when activated.
How to install and use 6ES7132-6BF01-0BA0?
Plug it vertically into a compatible Type A0 BaseUnit until the latch locks, and then configure its hardware in the TIA Portal software.
Which type of BaseUnit is compatible with 6ES7132-6BF01-0BA0?
It fits onto a Type A0 BaseUnit (BU-type A0), which corresponds to the Colour Code CC02 label.
