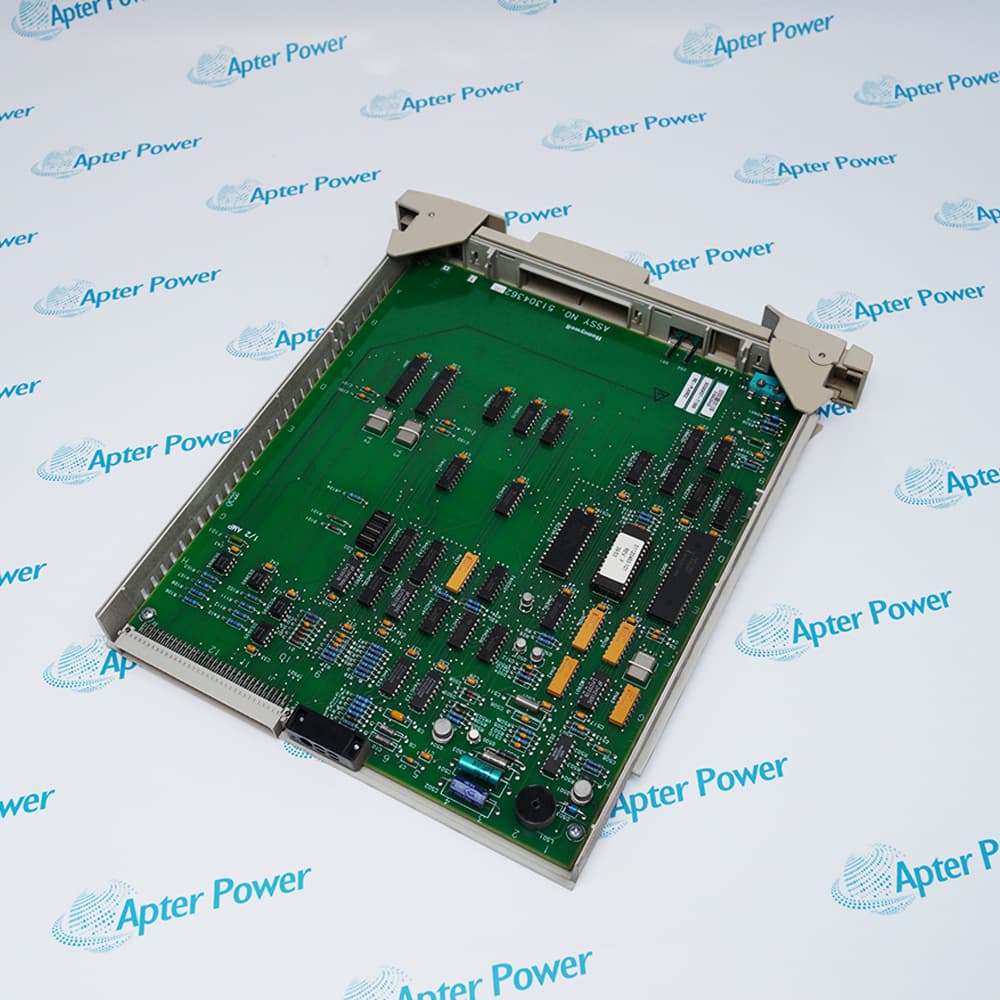

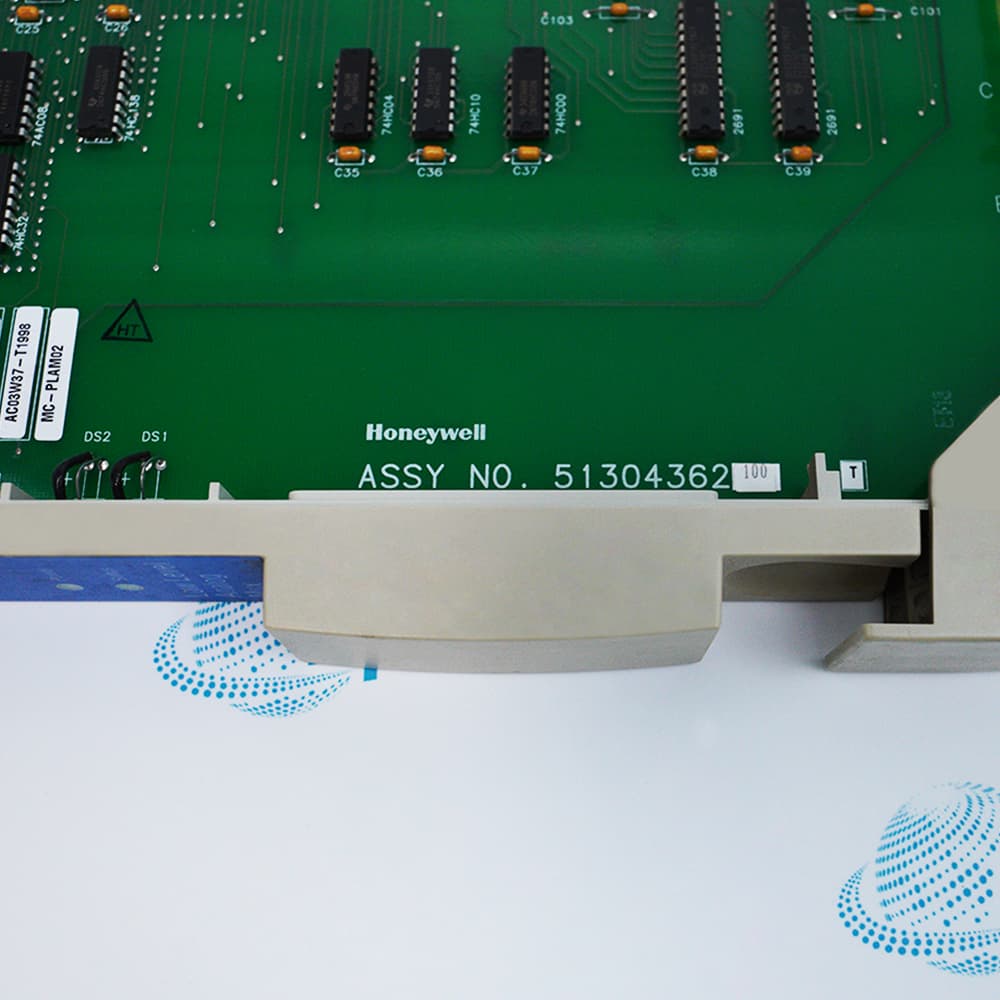

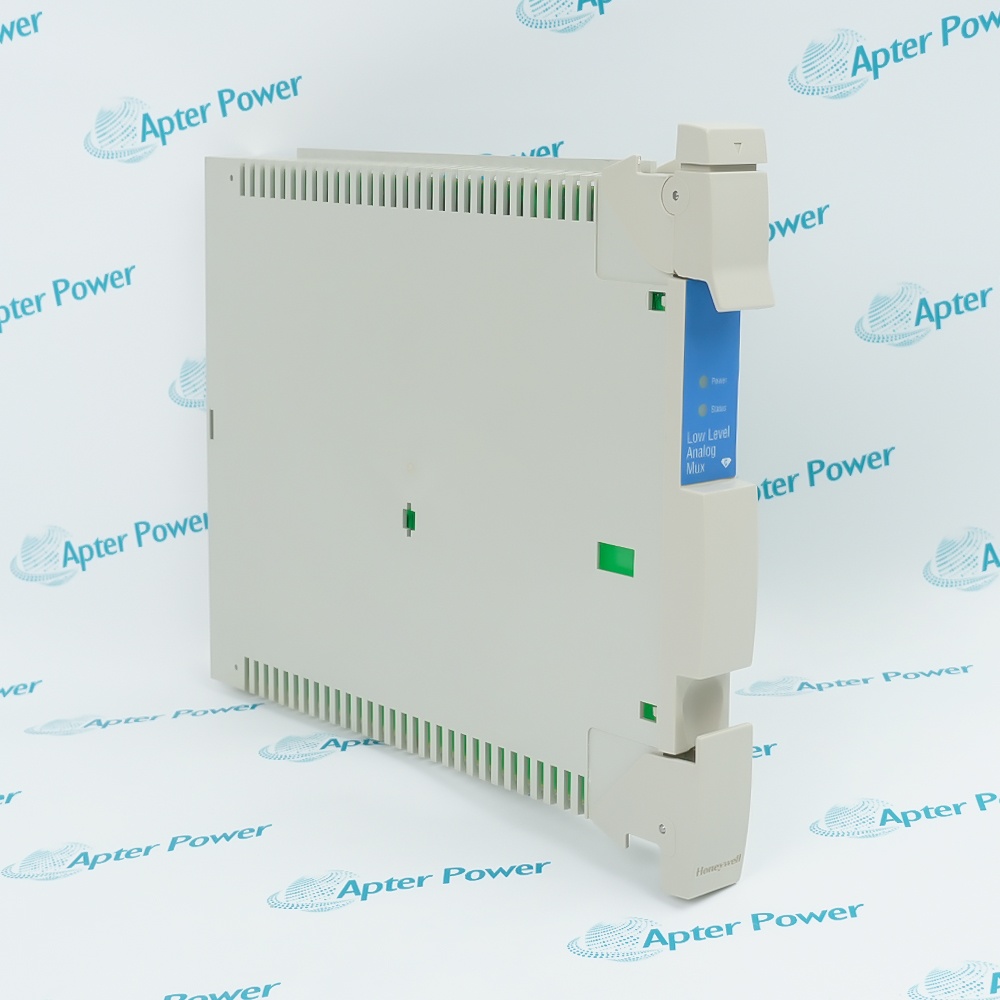

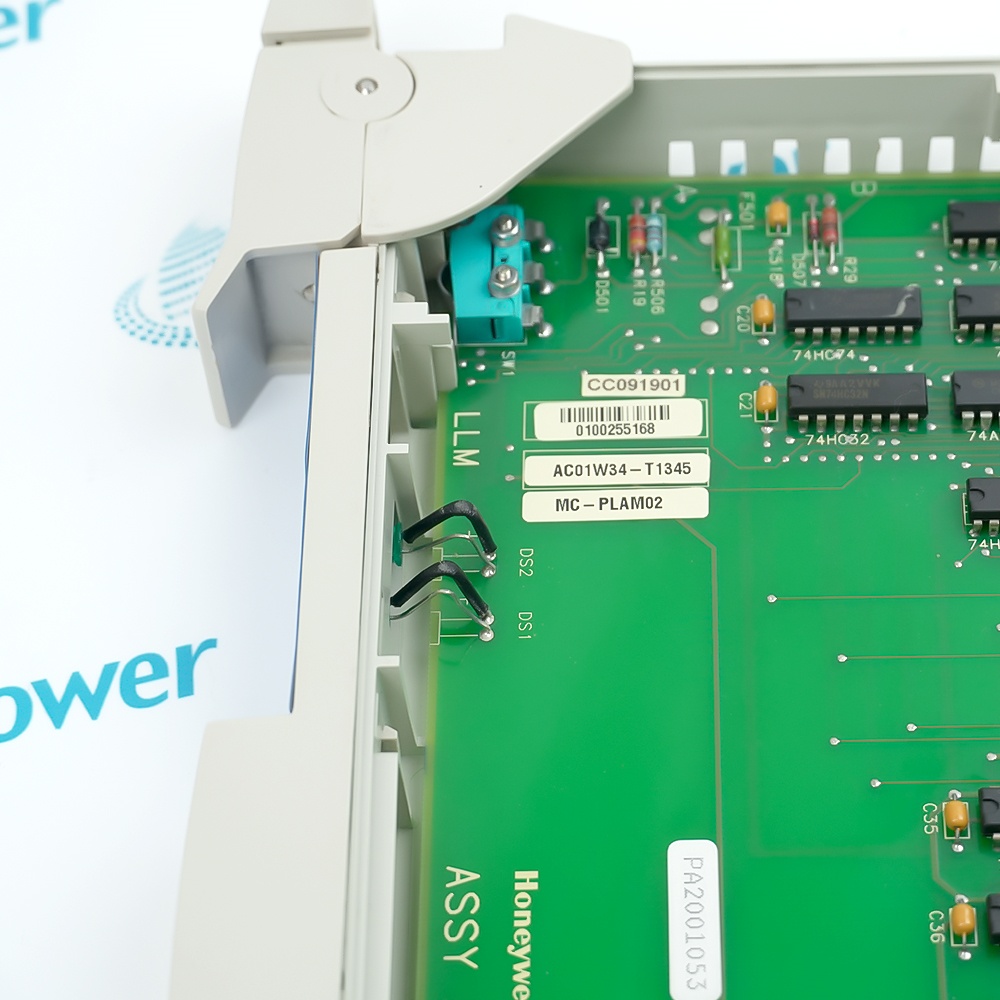

Technical specifications for MC-PLAM02 51304362-150
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:51304362-150
-
Estimated shipping dimensions:3.1x31.8x28cm
-
Weight:0.6 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Category:PLCs/Machine Control
-
Subcategory:PC Board PLC/Add-On Board
-
Maximum Normal Mode Continuous Input (No damage):-1 V to 10 V
-
IOP Type:Low-Level Multiplexer (LLMux)
-
LLMux Assemblies:LLMux IOP Conformally Coated
-
Input Type:Thermocouple, RTD, and linear millivolts
-
Input Channels:32 galvanically isolated
-
A/D Resolution:14 bits
-
CMV, dc to 60 Hz:250 Vac Peak or ±250 Vdc
-
Dielectric Strength:1500 Vac rms or ±1500 Vdc channel-to-channel (operating), and channel-to-PM/APM/HPM/EHPM common (not operating)
-
Input Scan Rate:32 samples per second (each channel once per second)
-
Hardware (only) Accuracy:±40 µV, or ±160 mΩ 23.5°C ±2°C
-
Software (only) Accuracy:±0.1°C typical, ±0.5°C maximum at 23.5°C ±2°C
Information
Overview
Manuals
Common Applications
Product Precautions
The MC-PLAM02 51304362-150 is a core component of the Process Manager (PM) family within the TPS system. As one of the Input/Output Processors (IOPs) common to this controller line, it embodies the high flexibility of the PM, APM, and HPM architectures. Specifically designed for low-level analog input multiplexing, the MC-PLAM02 utilizes the family's common Field Termination Assemblies (FTAs) to provide high-precision signal conversion and data acquisition for complex industrial tasks, such as temperature monitoring.
- Superior Multiplexing and High-Density Acquisition
- Powerful System Versatility and Integration Flexibility
- High-Precision Low-Level Signal Processing
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Honeywell MC-PLAM02 51304362-150 ANALOG INPUT MULTIPLEXER PROCESSOR, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Plants
Precision monitoring of boiler tube temperatures, bearing temperatures, and steam pipelines to prevent equipment damage from overheating.
Steel & Metallurgy
Monitoring extreme high-temperature environments in blast furnaces, converters, and hot rolling lines to ensure the stability of the metal smelting process.
Glass & Ceramics Industry
Monitoring continuous temperature profiles within melting furnaces, which is critical for glass quality and preventing furnace lining failure.
Food & Beverage Processing
Monitoring temperatures in large industrial ovens and pasteurization lines to ensure product food safety.
Pulp & Paper
Monitoring temperatures in digesters and dryer section rollers to prevent paper charring or damage due to uneven heating during drying.
Oil Refining & Petrochemicals
Monitoring multi-point temperature signals in fractionation towers, reactors, and hydrocracking units to ensure chemical reactions stay within safety windows.
The core of using the MC-PLAM02 lies in protecting weak signal integrity and ensuring accurate Cold Junction Compensation (CJC). Since the module processes microvolt-level signals, it is essential to use compensation wires strictly matching the thermocouple type and employ shielded twisted-pair cables with single-point grounding at the FTA end to eliminate EMI and ground loop noise. During installation, the associated FTA must be placed in a thermally stable environment to ensure the CJC sensor functions correctly, preventing temperature measurement errors.
FAQ View All FAQ
-
What is MC-PLAM02 51304362-150 ANALOG?MC-PLAM02 51304362-150 ANALOG is INPUT MULTIPLEXER PROCESS
-
What is the core function of MC-PLAM02 51304362-150?Its core function is multiplexed signal processing.
-
How to use MC-PLAM02 51304362-150 for temperature measurement?Connect field thermocouple or RTD sensors to the matching Field Termination Assembly (FTA), then interface them with this module via cables. It converts the detected voltage changes into digital temperature readings.
-
What are the physical requirements for installing MC-PLAM02 51304362-150?It must be installed in a standard I/O Card File slot. During installation, align the backplane pins and ensure the module is fully inserted and locked.
-
What is the most important maintenance task for MC-PLAM02 51304362-150?The most critical tasks are periodic calibration and checking the shield grounding. Since it handles weak signals, any shield failure will cause significant deviations due to EMI.
