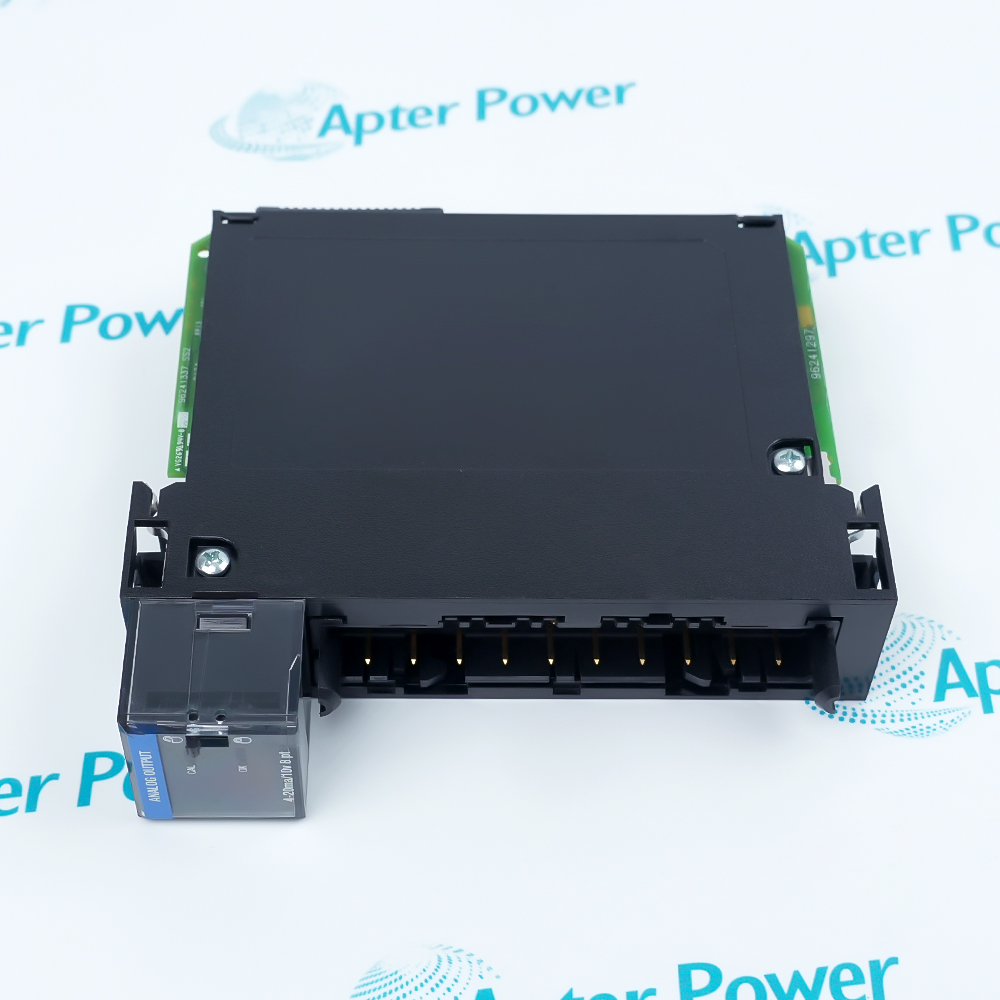

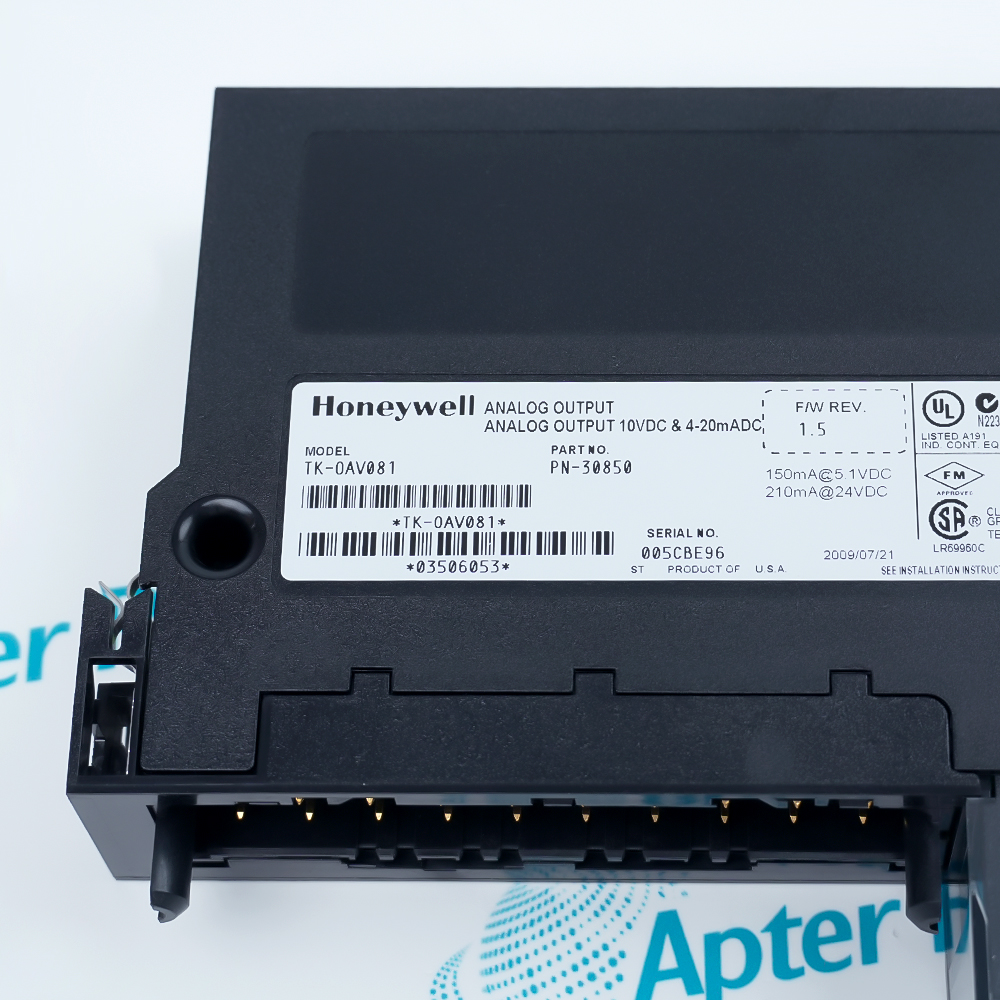

      Honeywell TK-OAV081
      Honeywell TK-OAV081
      Honeywell TK-OAV081
      Honeywell TK-OAV081
      Honeywell TK-OAV081
      Honeywell TK-OAV081
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      TK-OAV081

      Analog Output Module
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

      Honeywell TK-OAV081 is a coated eight-point non-isolated analog output module for Series A I/O used with C200 and C200E control hardware. It drives configured analog field outputs from the Experion control strategy through the approved chassis and wiring arrangement.

      Ask our team:

      Get a quick price for： TK-OAV081
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for TK-OAV081

      Technical specifications for TK-OAV081

      • Manufacturer:
        Honeywell
      • Product Category:
        DCS System
      • Spare Part Number:
        Analog Output Module
      • Estimated shipping dimensions:
        39.7x14.5x17.2cm
      • Weight:
        1.4 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Module type:
        Analog output module
      • Output points:
        8
      • Channel isolation:
        Non-isolated
      • Environmental version:
        Coated
      • I/O family:
        Series A I/O
      • Controller platform:
        C200 / C200E
      • Control environment:
        Experion PKS
      • Lifecycle context:
        C200/C200E platform phased out; C300 or UOC migration path
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Honeywell TK-OAV081 is a coated eight-point non-isolated analog output module for Series A I/O used with C200 and C200E control hardware. It drives configured analog field outputs from the Experion control strategy through the approved chassis and wiring arrangement.
      • Eight configured analog output points
      • Non-isolated channel architecture
      • Coated Series A module construction
      • C200 and C200E control integration

      Use TK-OAV081 in the documented Series A chassis position and retain the approved common-reference, grounding, channel scaling and final-element wiring.

      Important Notice: Confirm the exact TK-OAV081 coating, non-isolated output arrangement, slot and eight final-element assignments before work.

      Honeywell TK-OAV081 Manuals & Downloads
      Honeywell TK-OAV081 Technical Reference (PDF)Honeywell TK-OAV081 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Analog final-element command
      Provides eight configured output points for approved valves, positioners or other analog final elements.
      Series A chassis maintenance
      Maintains the documented coated analog-output position in a C200 or C200E installation.
      Coordinated control output
      Applies Experion control-strategy commands through the verified channel scaling and common-reference arrangement.
      Migration baseline capture
      Preserves output assignments, safe states and command scaling for a controlled C200-to-C300 or UOC migration.
      Read the applicable Honeywell instructions before work. Verify Honeywell TK-OAV081 and the installed system configuration before commissioning.
      1
      Verify the exact TK-OAV081 marking and coated-module identity.
      2
      Place the associated controller, process and final elements in approved safe states.
      3
      Record the Series A chassis slot and all eight output assignments before removal.
      4
      Label output, common, shield and grounding conductors before disturbing the wiring.
      5
      Preserve the documented common-reference arrangement because the channels are non-isolated.
      6
      Use ESD controls and inspect the backplane and keyed module interfaces.
      7
      Restore channel scaling and final-element direction before enabling closed-loop control.
      8
      Stroke or simulate each enabled output and verify commanded value, feedback and safe response.

      Technical notes

      Technical notes

      Because the eight output points are non-isolated, preserve the documented common-reference and grounding arrangement. Record slot, channel assignments and final-element safe states, then verify each commanded output and process response under controlled conditions.

      FAQS

      • How many analog outputs does TK-OAV081 provide?
        TK-OAV081 is identified by Honeywell as an eight-point analog output module.
      • Are the TK-OAV081 output points isolated from one another?
        No. The official model description identifies TK-OAV081 as a non-isolated analog output module.
      • What distinguishes the coated TK-OAV081 version?
        The TK-OAV081 entry is the coated version intended for the documented Series A I/O hardware arrangement.
      • Which control platform is associated with TK-OAV081?
        It belongs to the Series A I/O family used with C200 and C200E control hardware in Experion PKS.
      • Why must TK-OAV081 common and grounding conductors be recorded?
        The channels are non-isolated, so the approved common-reference, shield and grounding topology must be preserved during replacement.
      • What should be secured before removing TK-OAV081?
        Record the slot, eight output assignments, channel scaling, safe states and every final-element conductor before placing the process in maintenance.
      • What migration path applies to the TK-OAV081 host system?
        Honeywell lists C300 or UOC as the technology-upgrade path for the phased-out C200/C200E platform.
      • How should TK-OAV081 return to service be accepted?
        Module status must be healthy and each enabled channel must reproduce its approved commanded output and final-element response under controlled testing.
