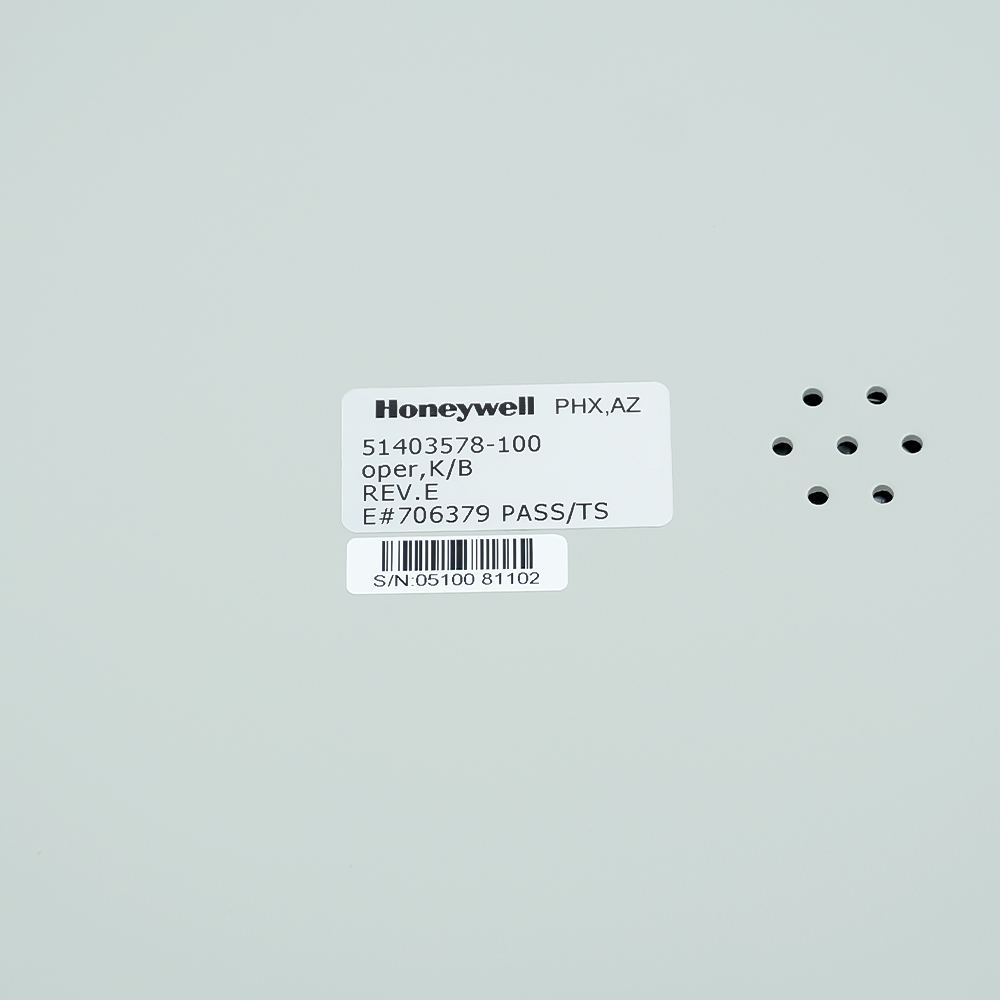

The Honeywell 51403578-100 is an Operator Keyboard/Interface Panel used with the TDC 3000 and Experion DCS systems. It is designed for industrial control rooms to interface with distributed control systems.
- Full Backlit Keys
- Tactile Feedback
- EMC Shielding
This model plays a stabilizing role in Honeywell's fully integrated control network (UCN) and data highway, providing standard interfaces (such as USB or PS/2 protocol conversion) to adapt to different operating station workstations.
Important Notice:
Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
HONEYWELL 51403578-100 Operator Keyboard Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
1. Specialized control integration
This is the core that distinguishes this keyboard from regular keyboards. It has a large number of pre-defined dedicated function keys, allowing operators to execute key commands with just one click without the need for multi-level mouse clicks
Alarm management: Quickly acknowledge, mute, or view alarm summaries.
Display switching: Instantly switch between different process control screens, trend charts, and detail displays.
Loop operation: directly switch between manual/automatic mode, adjust the given value (SP) or output value (OP).
2. High reliability in extreme environments
Specially designed for a control room that operates 24/7:
Sealed structure: The key panel usually adopts a sealed design, effectively blocking dust, oil stains, or accidentally splashed liquids from entering the internal circuit in industrial environments.
Long life button: using high durability micro motion or thin film technology to ensure the accuracy of physical feedback even after millions of clicks.
3. 24/7 operational convenience
Backlight design: All buttons have high contrast backlighting. This is crucial in DCS control rooms where lights are usually dimmed to reduce reflection, ensuring that operators do not press the wrong keys in emergency situations.
Partition layout: The QWERTY standard keyboard and dedicated function key area are used for logical partitioning, which conforms to the operator's muscle memory and reduces the error rate.
Adopting a fully sealed membrane structure and reinforced circuit packaging design, it has excellent dust, moisture, and chemical corrosion resistance, and can effectively shield the erosion of internal precision components by fine particles and liquid sputtering in the control room environment;
At the same time, the device integrates advanced electromagnetic compatibility (EMC) shielding layers and overload protection circuits, which can resist industrial power grid fluctuations and electrostatic interference (ESD), ensuring high stability and hardware longevity of the internal logic control unit with zero misoperation under 24/7 high-intensity operation of the TDC 3000 system.
