3500/40M 140734-01

3500/40M Four-Channel Proximitor Monitor Module
In Stock

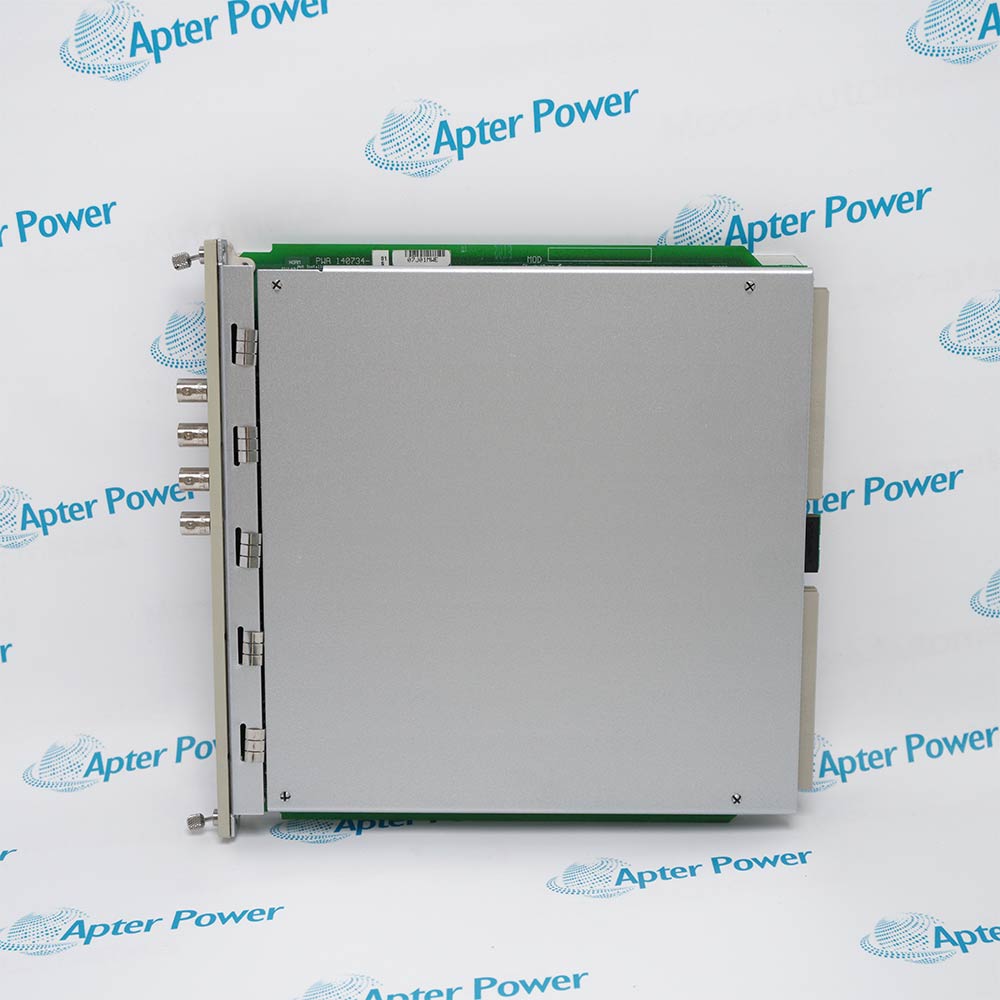

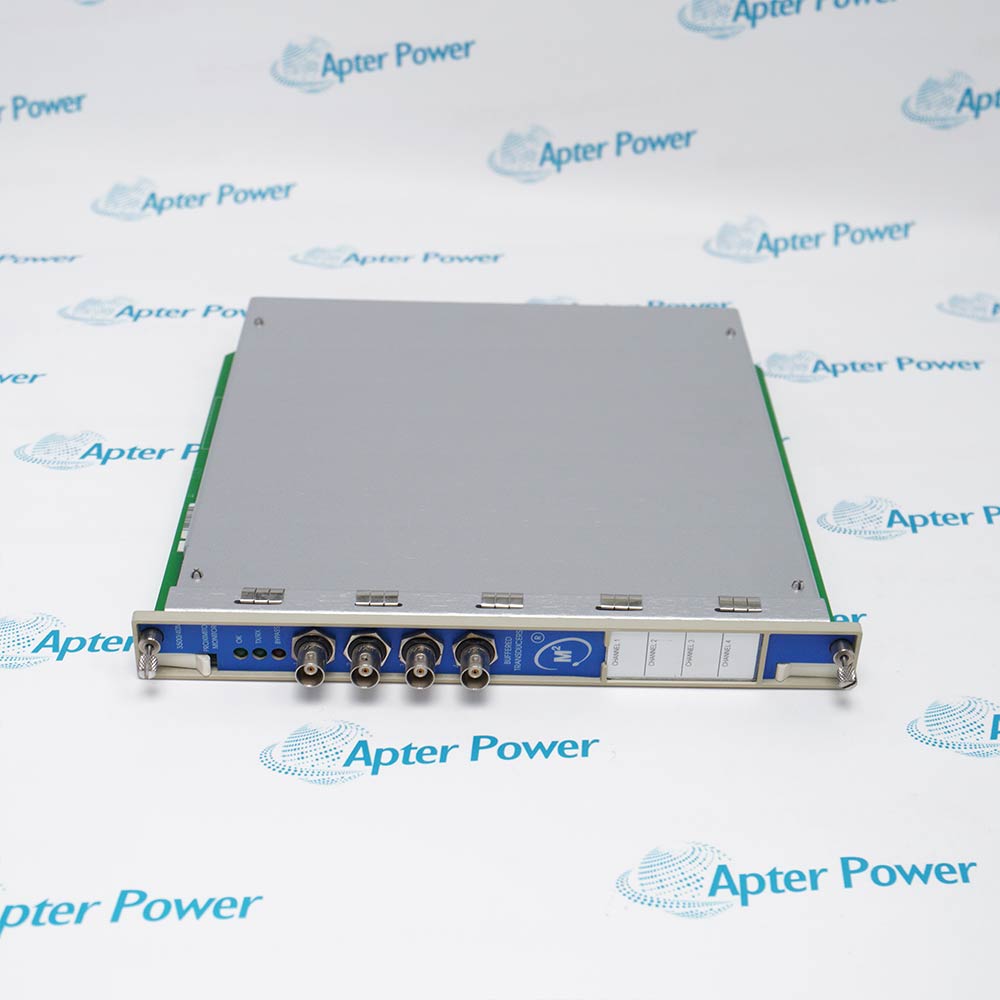

Bently Nevada 3500/40M 140734-01
Bently Nevada 3500/40M 140734-01
Bently Nevada 3500/40M 140734-01
Bently Nevada 3500/40M 140734-01
Bently Nevada 3500/40M 140734-01
Bently Nevada 3500/40M 140734-01
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Bently Nevada 3500/40M 140734-01 is a four-channel Proximitor monitor module for the 3500 machinery-protection rack. It conditions proximity-transducer inputs into vibration and position measurements and compares configured values with alarm setpoints.
Get a quick price for 3500/40M 140734-01
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 3500/40M 140734-01

  • Manufacturer:
    Bently Nevada
  • Product Category:
    Machinery Monitoring Systems
  • Spare Part Number:
    140734-01
  • Estimated shipping dimensions:
    2.5x25.6x24cm
  • Weight:
    0.84 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Monitor family:
    3500/40M
  • Input channels:
    1 to 4
  • Input signal:
    Proximity transducer
  • Typical power consumption:
    7.7 W
  • Standard I/O input impedance:
    10 kohm
  • Radial-vibration sensitivity:
    3.94 or 7.87 mV/um
  • Thrust-position sensitivity:
    3.94 or 7.87 mV/um
  • Eccentricity sensitivity:
    3.94 or 7.87 mV/um
  • Differential-expansion sensitivity:
    0.394 or 0.787 mV/um
  • REBAM sensitivity:
    40 or 80 mV/um
  • Buffered outputs:
    1 coaxial connector per channel
  • Buffered-output impedance:
    550 ohm
  • Transducer power supply:
    -24 V DC
  • Radial direct-filter range:
    4 to 4000 Hz or 1 to 600 Hz
  • Radial gap filter:
    -3 dB at 0.09 Hz
  • Smax tracking range:
    0.125 to 15.8 times running speed
  • Vector-valid speed range:
    60 to 60000 cpm
  • Direct and gap accuracy:
    +/-0.33% FS typical; +/-1% FS maximum
  • Thrust direct filter:
    -3 dB at 1.2 Hz
  • Thrust gap filter:
    -3 dB at 0.41 Hz
  • Eccentricity direct filter:
    -3 dB at 15.6 Hz
  • Eccentricity gap filter:
    -3 dB at 0.41 Hz
  • Operating temperature:
    -30 to +65 degC with standard I/O
  • Storage temperature:
    -40 to +85 degC
  • Humidity:
    95%, noncondensing
  • Alarm setpoint range:
    0 to 100% of full scale
  • Alarm-setpoint accuracy:
    Within 0.13% of desired value
  • Channel programming:
    Two channel pairs

Information

Overview Manuals Common Applications Product Precautions
3500/40M Four-Channel Proximitor Monitor Module provides the documented interface for its installed Bently Nevada 3500 Machinery Protection System system.
  • Conditions four proximity-transducer channels in one rack position
  • Programs channels as two independently assigned pairs
  • Compares active measurement values with alert and danger setpoints
  • Provides protected front-panel buffered transducer outputs

3500/40M 140734-01 accepts up to four Bently Nevada proximity-transducer inputs and derives configured radial-vibration, thrust-position, differential-expansion, eccentricity or REBAM measurements for alarm comparison. The installation uses the manufacturer-specified host position, companion hardware and field/control wiring for the intended industrial application.

System commissioning includes identity checks, connection verification, controlled energization and functional diagnostics for 3500/40M 140734-01.

Important Notice: Confirm the complete 3500/40M 140734-01 marking, approved system arrangement, connection records and controlled functional test before commissioning or replacement.

Apter Power 3500/40M 140734-01 Manuals and Guides
Apter Power 3500/40M 140734-01 Product Technical Reference PDFBently Nevada 3500/40M Proximitor Monitor Datasheet PDF
The first document provides an Apter Power model-specific technical reference; the second is the directly related Bently Nevada 3500/40M manufacturer datasheet used for engineering verification.
Radial shaft-vibration protection3500 rack and rack power supplies supports the engineered 3500/40M 140734-01 arrangement.
Thrust-position supervisionCompatible Proximitor sensors and proximity probes supports the engineered 3500/40M 140734-01 arrangement.
Differential-expansion monitoringSelected 3500/40M I/O module supports the engineered 3500/40M 140734-01 arrangement.
Rolling-element bearing REBAM channels3500 Rack Configuration Software supports the engineered 3500/40M 140734-01 arrangement.
Read the applicable Bently Nevada installation instructions before work. Verify 3500/40M 140734-01 and the installed-system configuration.
1Verify the complete 3500/40M 140734-01 marking and installed hardware revision before removal.
2Place the monitored machine and all affected protection channels in the approved maintenance state.
3Isolate rack and transducer-loop energy and apply ESD controls before handling the module.
4Record both channel-pair functions, transducer types, full-scale ranges, filters and setpoints.
5Keep the selected internal, external or barrier I/O arrangement matched to the installed wiring.
6Inspect backplane and buffered-output connectors and do not touch exposed contacts.
7Restore software revisions and the approved rack configuration before enabling alarms.
8Prove channel polarity, static values, buffered outputs, alerts, dangers and relay action under controlled conditions.

Technical notes

Install 3500/40M 140734-01 with the documented I/O module and recorded channel-pair configuration. Before returning protection service, restore transducer type, scale, filters, alert/danger values and time delays, then prove the buffered outputs and rack diagnostics.

FAQ View All FAQ

  • What system uses 3500/40M 140734-01?
    It operates as a Proximitor monitor module in a Bently Nevada 3500 machinery-protection rack.
  • How many input channels does 3500/40M 140734-01 process?
    The 3500/40M family accepts one to four proximity-transducer signals and organizes the four channels as two programmable pairs.
  • Which measurements can 3500/40M 140734-01 be configured for?
    Supported channel functions include radial vibration, thrust position, differential expansion, eccentricity and REBAM.
  • Which I/O arrangement should be used with 3500/40M 140734-01?
    Match the monitor to the installed 3500/40M internal-termination, external-termination or internal-barrier I/O configuration and its documented field wiring.
  • How are channels assigned in 3500/40M 140734-01?
    Channels 1 and 2 share one programmed function while channels 3 and 4 can use the same or a different supported function.
  • What should be backed up before replacing 3500/40M 140734-01?
    Record channel functions, transducer selections, full-scale ranges, filters, alert and danger setpoints, time delays and rack-software revisions.
  • What do the front-panel connectors provide on 3500/40M 140734-01?
    Each channel has a short-circuit-protected coaxial buffered transducer output for controlled test and diagnostic work.
  • What commissioning checks follow installation of 3500/40M 140734-01?
    Verify rack diagnostics, channel polarity, direct and gap values, buffered outputs, configured alarm delays and the intended alert, danger and relay response.
