      Bently Nevada 16710-50
      Bently Nevada 16710-50
      Bently Nevada 16710-50
      Bently Nevada 16710-50
      Bently Nevada 16710-50
      Bently Nevada 16710-50
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      16710-50

      Armored Accelerometer Interconnect Cable
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

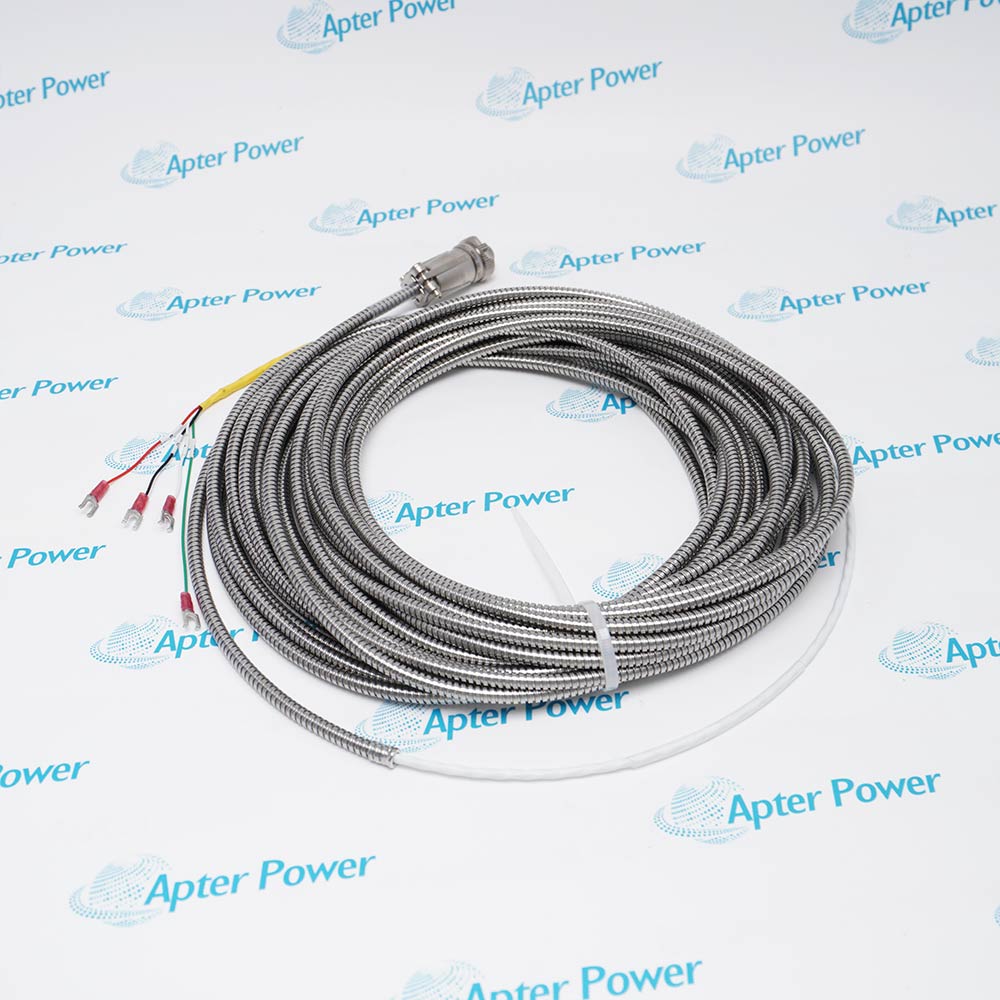

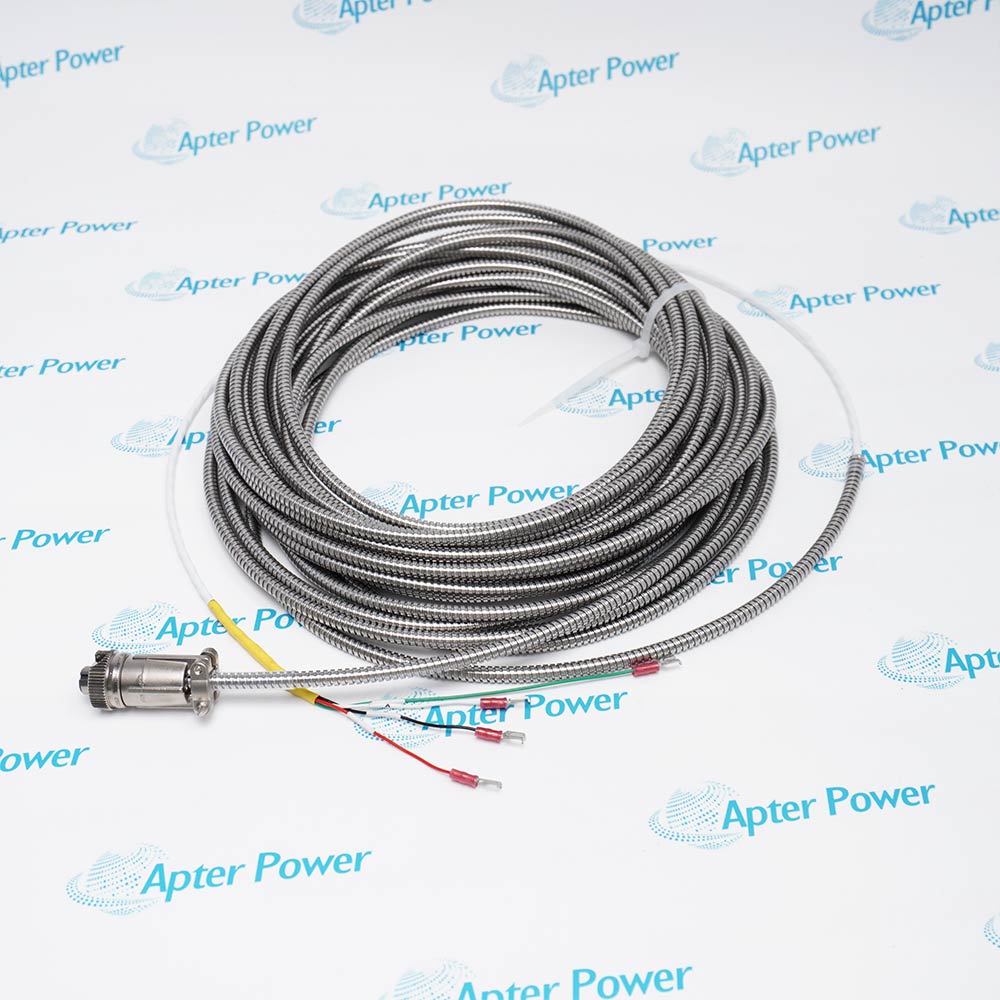

      Bently Nevada 16710-50 is a 50 ft armored interconnect cable for 330400 and 330425 case-mounted accelerometers. It carries the sensor signal and excitation between the accelerometer and its associated monitoring input.

      Ask our team:

      Get a quick price for： 16710-50
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 16710-50

      Technical specifications for 16710-50

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        16710-50
      • Estimated shipping dimensions:
        8cmx7cmx10cm
      • Weight:
        0.27 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Cable series:
        16710
      • Cable length option:
        50 ft (15.2 m)
      • Ordering increment:
        1 ft (305 mm)
      • Minimum orderable length:
        3 ft (0.9 m)
      • Maximum orderable length:
        99 ft (30 m)
      • Conductors:
        3
      • Conductor size:
        22 AWG (0.5 mm2)
      • Shielding:
        Shielded
      • Mechanical protection:
        Armored
      • Sensor-end termination:
        3-socket plug
      • Instrument-end termination:
        Terminal lugs
      • Compatible sensor series:
        330400; 330425
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 16710-50 is a 50 ft armored interconnect cable for 330400 and 330425 case-mounted accelerometers. It carries the sensor signal and excitation between the accelerometer and its associated monitoring input.
      • Transfers accelerometer output and excitation between the sensor and monitoring hardware
      • Adds mechanical armor for exposed industrial cable routes
      • Terminates the sensor end with the specified three-socket connection
      • Provides lugged conductors for controlled panel termination at the instrument end

      16710-50 installs with 330400 accelerometer, 330425 accelerometer, approved sensor mating connector, compatible vibration-monitor input in an engineered 330400 and 330425 Accelerometer Systems configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this armored accelerometer interconnect cable.

      Important Notice: Confirm the complete 16710-50 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 16710-50 Manuals and Guides
      Apter Power 16710-50 Product Technical Reference PDFBently Nevada 16710-50 Official Manual PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Gas-turbine casing vibrationTransfers accelerometer output and excitation between the sensor and monitoring hardware
      Compressor case acceleration monitoringAdds mechanical armor for exposed industrial cable routes
      Pump bearing-housing accelerationTerminates the sensor end with the specified three-socket connection
      Armored sensor routing in exposed plant areasProvides lugged conductors for controlled panel termination at the instrument end
      Read the applicable Bently Nevada installation instructions before work. Verify 16710-50 and the installed 330400 and 330425 Accelerometer Systems configuration.
      1Confirm the complete 16710-50 marking and 50 ft length before routing.
      2Isolate accelerometer excitation and the monitor input before connecting or disconnecting the plug.
      3Inspect the armor, shield and three-socket plug for damage before installation.
      4Support the cable independently so armor weight does not load the sensor connector.
      5Keep the shield termination and field ground arrangement consistent with the approved drawing.
      6Separate the accelerometer cable from high-energy power conductors and switching circuits.
      7Verify conductor identity and lug torque at the instrument end before energization.
      8Confirm bias, noise floor, polarity and live vibration response before releasing the channel.

      Technical notes

      Technical notes

      Seat the three-socket plug on the accelerometer before clamping the armored route, and land the lugged conductors according to the approved channel drawing. Check shield continuity, isolation and signal polarity before energizing the sensor input.

      FAQS

      • What is the installed length of 16710-50?
        Length option 50 specifies 50 ft, approximately 15.2 m.
      • Which sensors are directly associated with 16710-50?
        The official accelerometer datasheet lists the 16710 armored cable for 330400 and 330425 accelerometers.
      • How is 16710-50 terminated at each end?
        It has a three-socket plug at the sensor end and terminal lugs at the instrument end.
      • What conductors are used in 16710-50?
        The cable uses three shielded 22 AWG conductors with mechanical armor.
      • How should the shield of 16710-50 be landed?
        Follow the approved channel drawing so shield continuity and grounding remain consistent with the installed monitor and cabinet practice.
      • Can 16710-50 be routed with motor power cables?
        Use the plant segregation rules for low-level accelerometer signals and avoid routes dominated by switching or high-energy conductors.
      • What should be recorded before replacing 16710-50?
        Record the cable route, sensor identity, plug orientation, conductor landing, shield termination and channel assignment.
      • How is a newly installed 16710-50 verified?
        Check armor condition, conductor continuity, shield isolation, sensor bias, background noise, polarity and live vibration response.
