1769-IQ32T

Terminated DC Digital Input Module

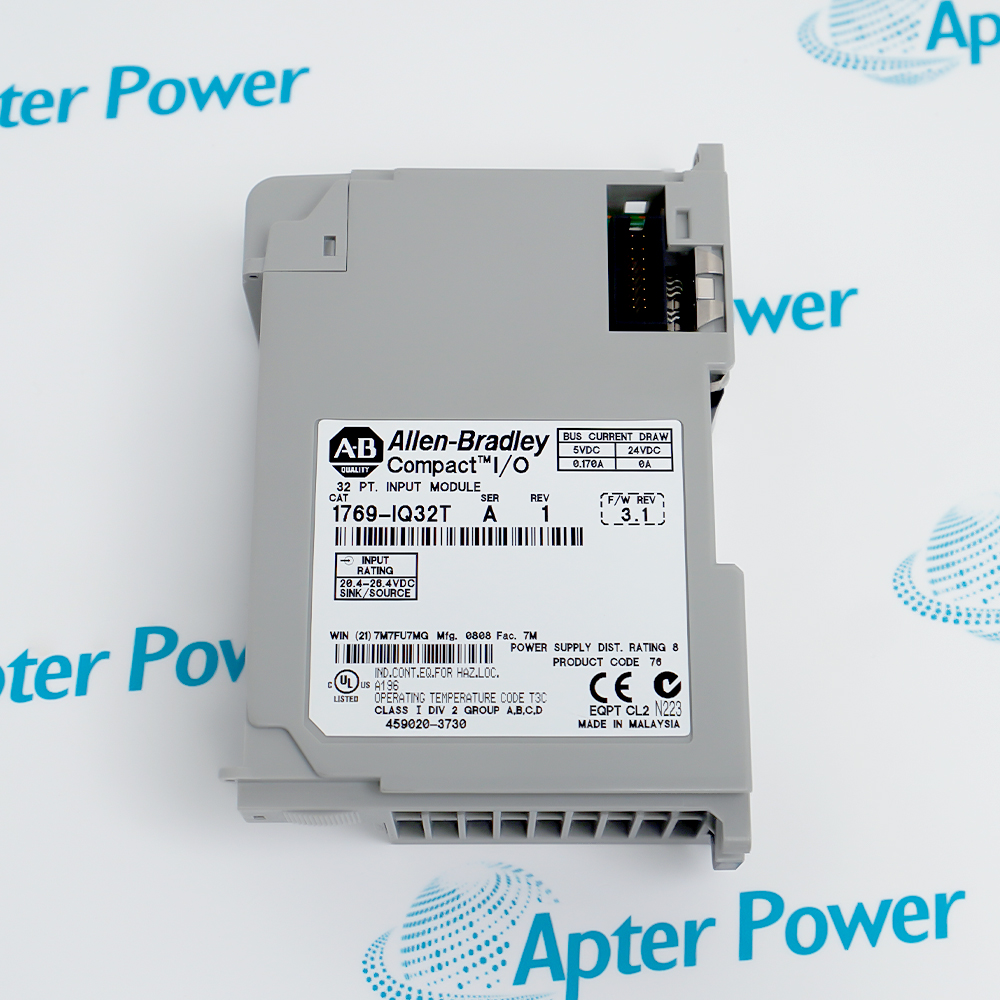

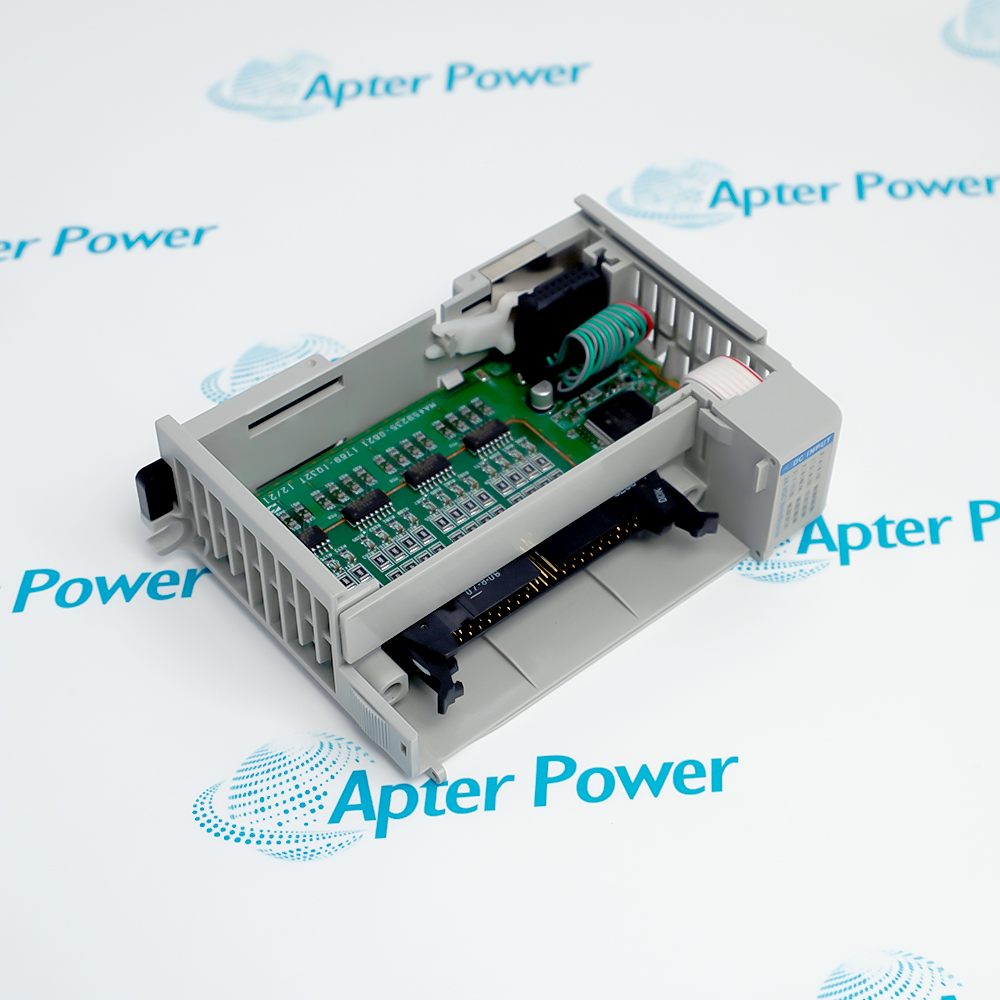

Allen-Bradley 1769-IQ32T
Allen-Bradley 1769-IQ32T
Allen-Bradley 1769-IQ32T
Allen-Bradley 1769-IQ32T
Allen-Bradley 1769-IQ32T
Allen-Bradley 1769-IQ32T
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Allen-Bradley 1769-IQ32T is a terminated dc digital input module. Four common groups support dense DC input wiring through a terminated connector arrangement.
  • Manufacturer part number
    1769-IQ32T
  • Shipping
    Swift global dispatch
  • Condition
    New, original product
  • Shipping size (est.)
    4cm x 8.8cm x 13.2cm
  • Country of Origin
    USA
Get a quick price for 1769-IQ32T
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 0

    Review your reference

    Send the complete 1769-IQ32T reference, label photographs and required quantity. Include the installed interface and hardware revision.

  • 1

    Confirm the offer

    Review the offered 1769-IQ32T execution, New, original product condition and itemized accessories against the retained application.

  • 2

    Arrange dispatch

    Confirm quantity, dispatch date, lead-time start and delivery details in the quotation.

  • Match the complete marking

    Compare the full Allen-Bradley 1769-IQ32T marking, hardware execution and mating interfaces with the installed position before approving a replacement.

  • Check the offered item before ordering

    Request clear photographs of the offered 1769-IQ32T marking and connections. Ask the maintenance team to compare them with the applicable Allen-Bradley instructions and the installed circuit or system design.

Technical specifications for 1769-IQ32T

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1769-IQ32T
  • Weight:
    0.12 kg
  • Tariff Code:
    8537101190
  • Inputs:
    32 terminated; 4 groups of 8
  • Input type:
    24 V DC sink/source
  • Operating voltage:
    20.4–26.4 V DC at 60 °C
  • Typical ON delay:
    0.1 ms, excluding selected filter
  • Typical OFF delay:
    0.25 ms, excluding selected filter
  • Backplane current:
    170 mA at 5.1 V
  • Maximum OFF voltage:
    11 V DC
  • Minimum ON voltage:
    19 V DC
  • Power-supply distance:
    8 modules

Information

Overview Downloads Applications / Compatibility Product Precautions
  • Each group’s common must match the polarity of its connected sensors; the grouped structure does not permit arbitrary common connections across unrelated field supplies.
Wiring organization: four separate common groups
Event handling: combine hardware response with selected digital filtering
Assembly planning: check Compact I/O power placement and connector assignment
Input filtering and hardware propagation contribute separately to response time. The control application should use a filter suited to contact bounce and valid pulse duration, then account for controller scan timing when accepting a sequence.

The module’s position within the Compact I/O assembly is constrained by its power-supply distance rating. Connector retention, common assignment and available bus current must all be checked when replacing a lower-density input module with this execution.

Configure input filtering for the actual bounce and event-duration requirements. Review supply distance and bus current when adding this terminated execution to a compatible bank. Its power-supply distance rating limits the assembly position. Recheck the whole bank’s current budget and placement rather than assuming any free slot is acceptable.
Controller platform reference: Compact I/O. Use the applicable installation instructions and approved system design.
Original Allen-Bradley technical pages applicable to 1769-IQ32T and its stated system context. Installation topics include: record grouped field wiring; check compact i/o placement; validate input-state margins.
Original manufacturer pages retain their technical context. Use the Apter Power guide with the applicable manufacturer instructions and approved installation design.
Prepare Allen-Bradley 1769-IQ32T for its configured installation using these checks.
Record grouped field wiring

Map each eight-point common and its sensors. Save input filters and program addresses before disconnecting the terminated connector.

Check Compact I/O placement

Verify power-supply distance and available bus current. Inspect bus engagement and retaining hardware with the assembly safely isolated.

Validate input-state margins

Test real ON and OFF conditions at the connector. Include sensor leakage and supply variation in the acceptance check.

Exercise filter response

Apply representative pulses and contact transitions. Confirm the selected filtering suppresses unwanted chatter without rejecting valid events.

Reconcile all input addresses

Walk through all four groups and compare field state with program indication. Remove test connections and retain the final group map.

Control the return to service

Keep the affected process in its approved maintenance state until field indications and the intended control or monitoring response have both been checked.

Alternative Names

Allen-Bradley 1769-IQ32T

Technical notes

Configuration scope: Technical values apply to 1769-IQ32T with the stated operating conditions. Check supplied revision and the configured installation.

Engineering acceptance: The intended terminated dc digital input module function must be accepted with its actual mating interfaces and configured system. Test real ON and OFF conditions at the connector. Include sensor leakage and supply variation in the acceptance check.

FAQ View All FAQ

  • How can 1769-IQ32T filtering reject both noise and an intended pulse?
    A filter rejects transitions shorter than its acceptance interval. Choose it from the shortest valid signal, then verify that contact bounce is suppressed without losing genuine events.
  • Why must 1769-IQ32T group commons be reviewed before mixing sensor supplies?
    Each eight-point group uses its assigned common. Incorrectly joining independent references can defeat the intended wiring arrangement or create unwanted current paths.
  • Can the 1769-IQ32T propagation delay alone establish the fastest detectable machine event?
    No. Add the configured filter and controller acquisition or scan timing. Validate the complete event path with a representative pulse.
  • What can cause an 1769-IQ32T input to remain ON after a sensor releases?
    Check residual sensor voltage and leakage current against the OFF limits, together with common polarity. A healthy connector does not rule out an incompatible sensor interface.
  • Why should 1769-IQ32T be checked at the highest expected cabinet temperature?
    The operating-voltage range is specified with a temperature condition. Verify the actual supply tolerance at that condition rather than relying only on nominal 24 V.
  • What must be considered when moving 1769-IQ32T farther from the power supply?
    Its power-supply distance rating limits the assembly position. Recheck the whole bank’s current budget and placement rather than assuming any free slot is acceptable.
  • How should a group-wide fault on 1769-IQ32T be distinguished from individual sensor faults?
    Inspect that group’s common and connector terminals first. Test one known signal through the group before investigating eight sensors independently.
  • Why is a connector continuity test insufficient to accept 1769-IQ32T after replacement?
    It does not establish polarity, filter behavior or correct program addresses. Exercise each field input and compare the raw state and controlled response.
