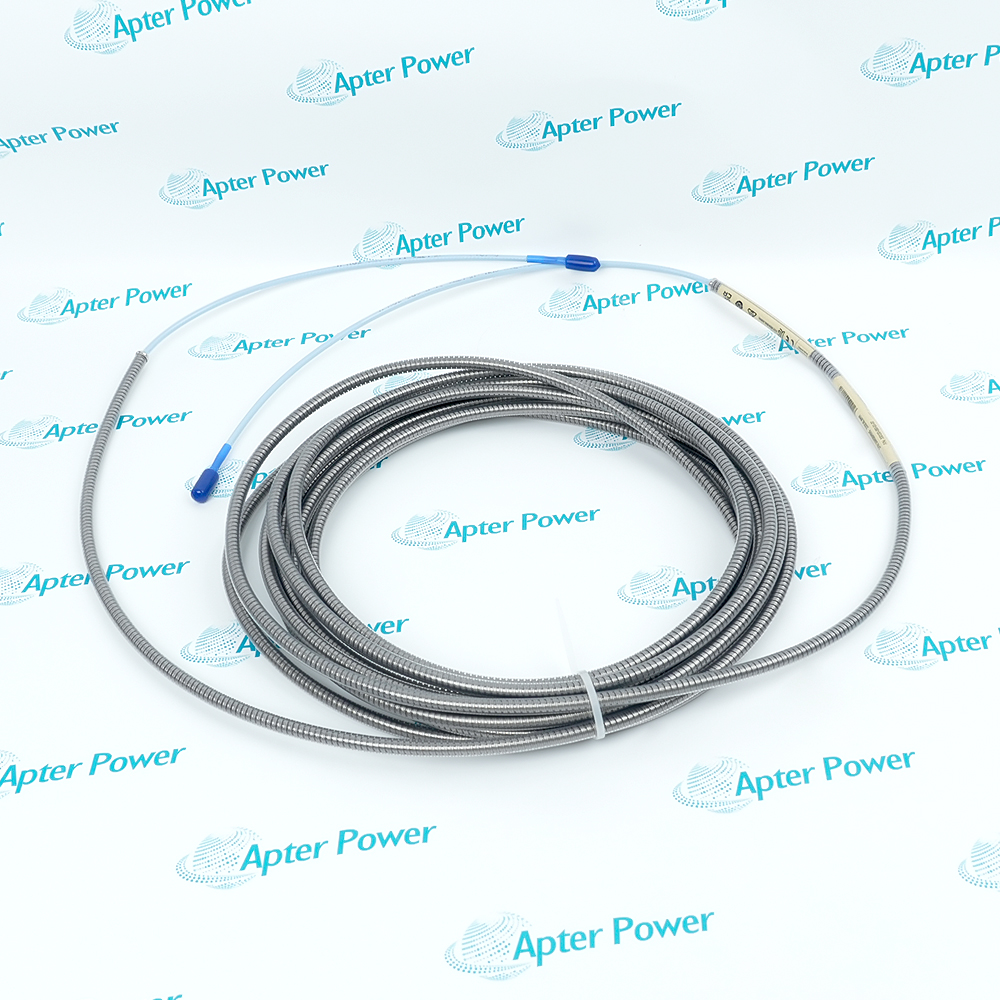

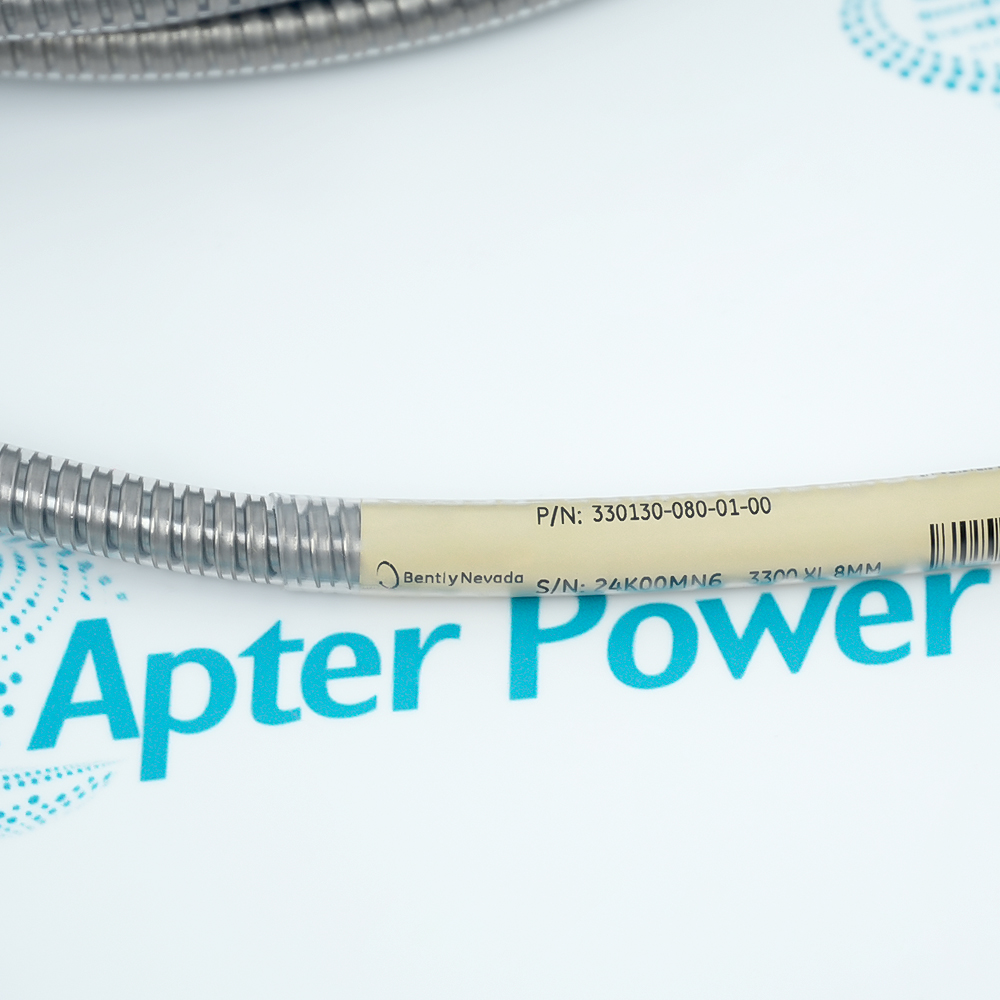

The 330130-080-01-00 is a 3300 XL 8mm proximity transducer system standard armored extension cable manufactured by Bently Nevada. This product is a critical connecting component in industrial vibration monitoring systems, used to transmit high-frequency signals measured by the proximity probe to the Proximitor Sensor without loss.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other non XL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330130-080-01-00 Standard Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation Industry
Monitors radial vibration and axial displacement of gas, steam, and hydro turbine shafts to prevent catastrophic failures caused by bearing wear.
Oil & Gas Exploration & Production
Used on offshore drilling platforms and onshore oilfields to monitor shaft conditions of large water injection pumps, crude oil transfer pumps, and gas compressors.
Petrochemical & Refining
Monitors Keyphasor (speed) and bearing vibration of high-speed centrifugal compressors in core processes like ethylene cracking and catalytic cracking to ensure continuous plant operation.
Iron & Steel / Metallurgy
Monitors shafting vibration of heavy-duty, high-impact equipment including blast furnace blowers, high-pressure descaling pumps, and large rolling mill gearboxes.
Mining & Mineral Processing
Applied to shaft bearings of large ball mills and SAG mills, as well as axial displacement monitoring of massive mine ventilation fans and conveyor main drive shafts.
Water & Wastewater Treatment
Monitors mechanical vibration of high-power, mega-sized vertical/horizontal water pumps and blowers in large-scale water diversion projects or municipal wastewater treatment plants.
When using the 330130-080-01-00 extension cable, it is critical to ensure that the total system length (probe plus cable) matches the exact length required by the Proximitor to prevent measurement errors. During installation, maintain a bend radius greater than 25.4 mm and avoid sharp kinks to protect the center conductor. Additionally, inspect the outer armor regularly and keep the connectors clean, dry, and isolated from oil contamination.
330130-080-01-00 features a 75-ohm coaxial structure with a stainless steel armored protective layer to resist industrial mechanical wear, ensuring lossless high-frequency signal transmission in environments from -51°C to +177°C for the precision monitoring of large rotating machinery.
It is an industrial-grade extension cable used to connect the Bently Nevada 3300 XL 8mm Proximitor Sensor with the proximity probe.
How to use 330130-080-01-00 in an industrial system?
Connect one end of its coaxial connector to the 3300 XL probe and the other end to the Proximitor sensor, thereby transmitting the high-frequency signal measured by the probe to the Proximitor for demodulation.
What are the core application scenarios for 330130-080-01-00?
It is primarily used in fluid-film bearing machines such as hydro-turbines, steam turbines, and compressors for shaft vibration, axial position, and Keyphasor (speed) measurements.
What are the cable impedance and capacitance parameters of 330130-080-01-00?
It utilizes a 75-ohm coaxial cable structure, with a typical capacitance value of 69.9 pF/m.
Is 330130-080-01-00 interchangeable?
Yes. The cables in the 3300 XL system offer complete interchangeability, eliminating the need for bench calibration of individual components during replacement.
