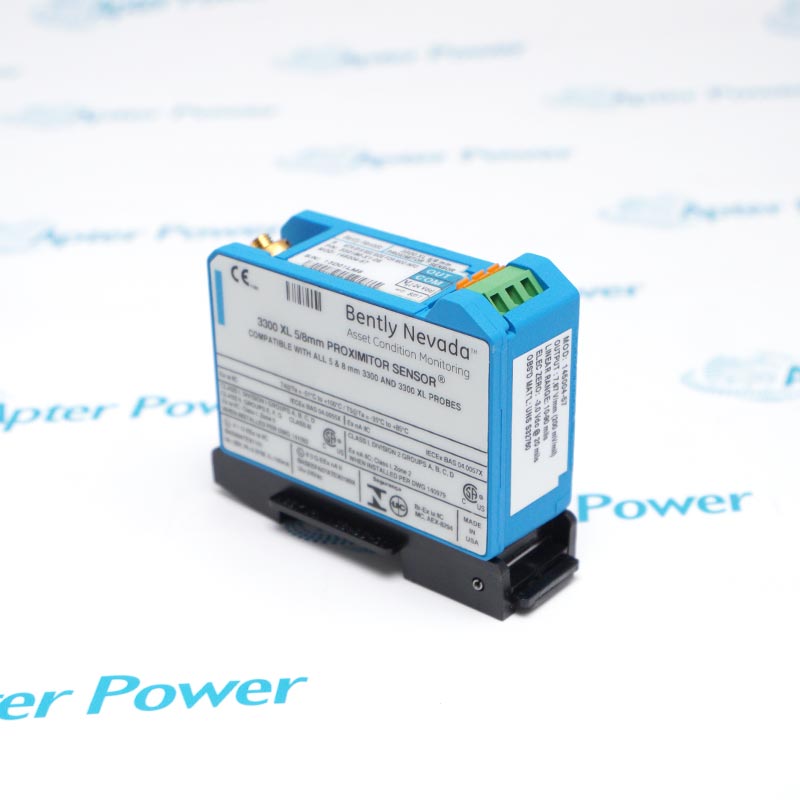

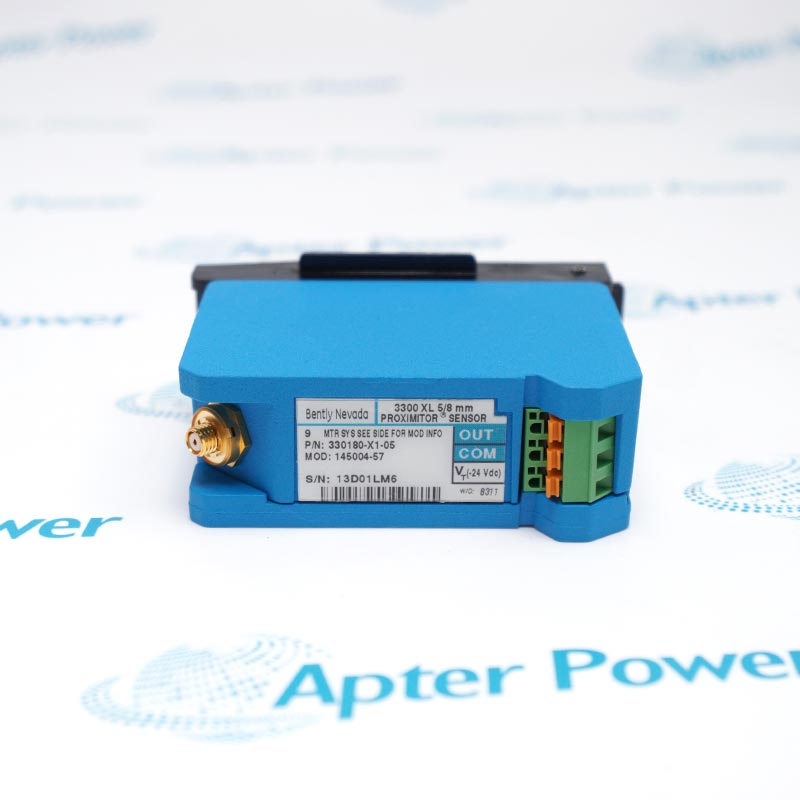

      Bently Nevada 330180-X1-05 MOD:145004-57
      Bently Nevada 330180-X1-05 MOD:145004-57
      Bently Nevada 330180-X1-05 MOD:145004-57
      Bently Nevada 330180-X1-05 MOD:145004-57
      Bently Nevada 330180-X1-05 MOD:145004-57
      Bently Nevada 330180-X1-05 MOD:145004-57
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330180-X1-05 MOD:145004-57

      Modified Proximitor Sensor
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330180-X1-05 MOD:145004-57 is a modified 3300 XL 8 mm Proximitor Sensor carrying custom X1 and MOD identities that must remain matched to the installed transducer system.

      Ask our team:

      Get a quick price for： 330180-X1-05 MOD:145004-57
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330180-X1-05 MOD:145004-57

      Technical specifications for 330180-X1-05 MOD:145004-57

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330180-X1-05 MOD:145004-57
      • Estimated shipping dimensions:
        8.8x3.5x7cm
      • Weight:
        0.2 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • sensor model:
        330180 Proximitor Sensor
      • custom option:
        X1; verify from nameplate and controlled drawing
      • modification identity:
        MOD:145004-57
      • agency-approval option:
        05, CSA/ATEX/IECEx
      • supply without barriers:
        -17.5 to -26 V DC; 12 mA maximum
      • supply with barriers:
        -23 to -26 V DC
      • output resistance:
        50 ohm
      • maximum monitor field-wire length:
        305 m (1000 ft)
      • system linear range:
        2.0 mm (80 mils)
      • incremental scale factor:
        7.87 V/mm (200 mV/mil)
      • frequency response:
        0 to 10 kHz, +0/-3 dB
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330180-X1-05 MOD:145004-57 is a modified 3300 XL 8 mm Proximitor Sensor carrying custom X1 and MOD identities that must remain matched to the installed transducer system.
      • Conditions a matched 3300 XL 8 mm transducer signal
      • Retains the supplied X1 custom identity
      • Carries MOD:145004-57
      • Provides the approved monitor interface

      330180-X1-05 MOD:145004-57 operates with matched 3300 XL 8 mm probe and extension cable, documented custom mounting and system-length arrangement, approved field wiring, configured monitor channel.

      Engineered applications include Radial vibration conditioning, Axial position conditioning, Custom sensor replacement, Monitor channel restoration.

      Important Notice: X1 and MOD:145004-57 are custom identities; do not infer the system length or mounting from a standard 330180 option table. Verify the nameplate and controlled drawing.

      330180-X1-05 MOD:145004-57 Manuals & Downloads
      330180-X1-05 MOD:145004-57 Technical Reference (PDF)330180-X1-05 MOD:145004-57 Installation & Commissioning Guide (PDF)

      The first document presents exact-model technical and engineering data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Radial vibration conditioning
      Conditions the matched eddy-current probe signal for vibration measurement.
      Axial position conditioning
      Provides proportional displacement output for the configured thrust channel.
      Custom sensor replacement
      Restores only the exact X1 and MOD identity documented for the installed system.
      Monitor channel restoration
      Returns the channel to its approved bias, scale and alarm response.
      Read the applicable Bently Nevada instructions before work. Verify 330180-X1-05 MOD:145004-57, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Verify the complete 330180-X1-05 MOD:145004-57 marking and its assigned 3300 XL 8 mm Proximity Transducer System position before work.
      2
      Place the connected radial vibration conditioning process in the approved maintenance state.
      3
      Isolate the documented power, signal and stored-energy sources before disconnecting the transducer or module.
      4
      Record every connector, cable route, shield, polarity, channel assignment and host configuration before removal.
      5
      Use ESD-safe handling and protect coaxial, terminal and keyed interfaces from contamination or mechanical damage.
      6
      Confirm the installed matched 3300 XL 8 mm probe and extension cable and documented custom mounting and system-length arrangement against the approved project record.
      7
      Restore power in a controlled sequence and review transducer, monitor and host diagnostics.
      8
      Prove the intended axial position conditioning function and retain the final controlled acceptance result.

      Technical notes

      Technical notes

      X1 and MOD:145004-57 are custom identities; do not infer the system length or mounting from a standard 330180 option table. Verify the nameplate and controlled drawing.

      FAQS

      • Which sensor model identifies Bently Nevada 330180-X1-05 MOD:145004-57?
        3300 XL 8 mm Proximity Transducer System Datasheet documents the sensor model as 330180 Proximitor Sensor. Confirm the complete 330180-X1-05 MOD:145004-57 marking and the installed-system record before service.
      • What custom option is published for Bently Nevada 330180-X1-05 MOD:145004-57?
        3300 XL 8 mm Proximity Transducer System Datasheet documents the custom option as X1; verify from nameplate and controlled drawing. Confirm the complete 330180-X1-05 MOD:145004-57 marking and the installed-system record before service.
      • How must the modification identity of Bently Nevada 330180-X1-05 MOD:145004-57 be matched?
        3300 XL 8 mm Proximity Transducer System Datasheet documents the modification identity as MOD:145004-57. Confirm the complete 330180-X1-05 MOD:145004-57 marking and the installed-system record before service.
      • Which agency-approval option must technicians retain for Bently Nevada 330180-X1-05 MOD:145004-57?
        3300 XL 8 mm Proximity Transducer System Datasheet documents the agency-approval option as 05, CSA/ATEX/IECEx. Confirm the complete 330180-X1-05 MOD:145004-57 marking and the installed-system record before service.
      • What does the official record state for the supply without barriers of Bently Nevada 330180-X1-05 MOD:145004-57?
        3300 XL 8 mm Proximity Transducer System Datasheet documents the supply without barriers as -17.5 to -26 V DC; 12 mA maximum. Confirm the complete 330180-X1-05 MOD:145004-57 marking and the installed-system record before service.
      • How should the supply with barriers be verified on Bently Nevada 330180-X1-05 MOD:145004-57?
        3300 XL 8 mm Proximity Transducer System Datasheet documents the supply with barriers as -23 to -26 V DC. Confirm the complete 330180-X1-05 MOD:145004-57 marking and the installed-system record before service.
      • Which exact output resistance distinguishes Bently Nevada 330180-X1-05 MOD:145004-57?
        3300 XL 8 mm Proximity Transducer System Datasheet documents the output resistance as 50 ohm. Confirm the complete 330180-X1-05 MOD:145004-57 marking and the installed-system record before service.
      • What maximum monitor field-wire length is used when commissioning Bently Nevada 330180-X1-05 MOD:145004-57?
        3300 XL 8 mm Proximity Transducer System Datasheet documents the maximum monitor field-wire length as 305 m (1000 ft). Confirm the complete 330180-X1-05 MOD:145004-57 marking and the installed-system record before service.
