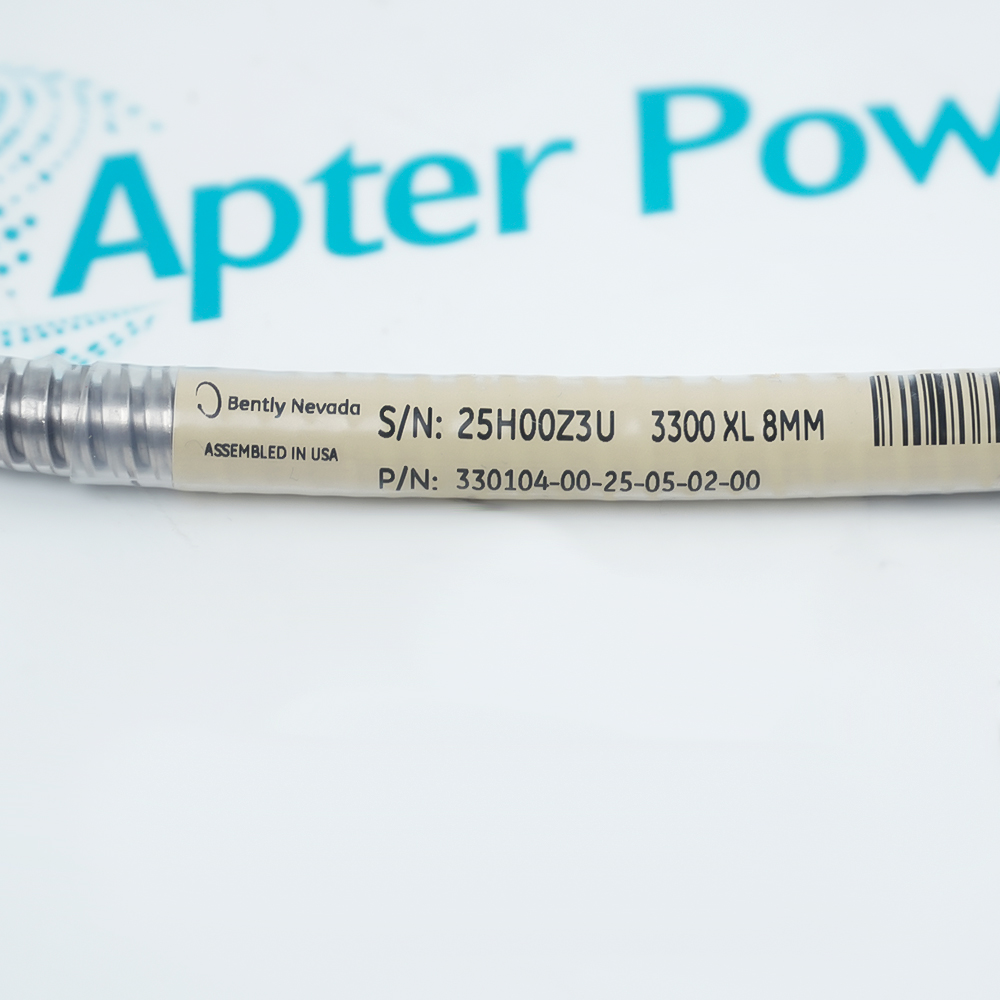

The 330104-00-25-05-02-00 is an M10 × 1 metric threaded, 25 mm unarmored housing length proximity probe with a 0.5-meter cable and connector protector, belonging to the Bently Nevada 3300 XL 8 mm Proximity Transducer System.
PPS Encapsulated Probe Tip
Interchangeable Plug-and-Play Performance
API 670 Standard Compliance
As a component of the 3300 XL 8 mm system, it complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. The 3300 XL 8 mm proximity transducer systems support full interchangeability of probes, extension cables, and Proximitor sensors, eliminating the requirement to match or bench calibrate individual components.
Each 3300 XL 8 mm system component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe for applications where an 8 mm probe exceeds the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330104-00-25-05-02-00 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Refining
Installed on centrifugal compressor bearing housings in catalytic cracking units to measure radial shaft vibration.
Oil & Gas Pipelines
Used in pipeline compressor stations to monitor the axial displacement of main shafts on heavy-duty natural gas compressors.
Petrochemical Industry
Used in high-speed ethylene compressor trains for non-contact speed measurement and Keyphasor reference signal acquisition.
Thermal Power Plants
Measuring the shaft eccentricity of large steam turbine generator sets to prevent rubbing caused by shaft bowing during startup.
Hydroelectric Power Plants
Monitoring the runout of large vertical rotor bearings in hydro-generator units to assess guide bearing mechanical wear.
Nuclear Power Plants
Monitoring continuous axial float on high-speed shaft lines of main feed pumps within the conventional island.
When using the 330104-00-25-05-02-00 probe, strictly control the initial mounting gap, typically by adjusting it using a voltmeter to a baseline bias voltage of approximately -9.0 Vdc. Since the integrated lead is 0.5 meters long, it must be paired with a standard 8.5-meter extension cable to form a 9-meter system, and do not cut or splice cables to prevent impedance mismatch. Use tools to control the installation torque to avoid damaging the M10×1 metric threaded housing, and ensure the ClickLoc connector protector is sealed to exclude oil and moisture.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
It is a Bently Nevada 3300 XL 8mm eddy current proximity probe.
What are the connector features of 330104-00-25-05-02-00?
The -02 suffix denotes a standard ClickLoc coaxial connector with a protector.
Does 330104-00-25-05-02-00 have agency approvals?
The final -00 suffix means that agency approval is not required for this part.
What is the primary use of 330104-00-25-05-02-00?
It non-contactally measures shaft vibration, static position, or speed on rotating machinery.
How does 330104-00-25-05-02-00 operate?
Its tip coil generates an electromagnetic field to sense gap changes to a metal surface.
