Technical specifications for 330850-50-05
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330850-50-05
-
Estimated shipping dimensions:7.8x6.2x6.5cm
-
Weight:0.5 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Output Sensitivity:Voltage (-0.787 V/mm or -20 mV/mil)
-
Linear Range:12.7 mm (500 mils)
-
Measurement Range:Up to 25 mm (1 inch)
-
Power Supply:-24 Vdc
-
Linear Range:12.7 mm
-
Total Length and Mounting Option:5.0 metres (16.4 feet) system length, panel mount
-
Agency Approval Option:Multiple Approvals
Information
Overview
Manuals
Need More Info
Common Applications
- 330850-50-05 Proximity Sensor
- Provides Non-contact Shaft Vibration and Position Measurement
- Uses Eddy Current Technology for High-Precision Detection

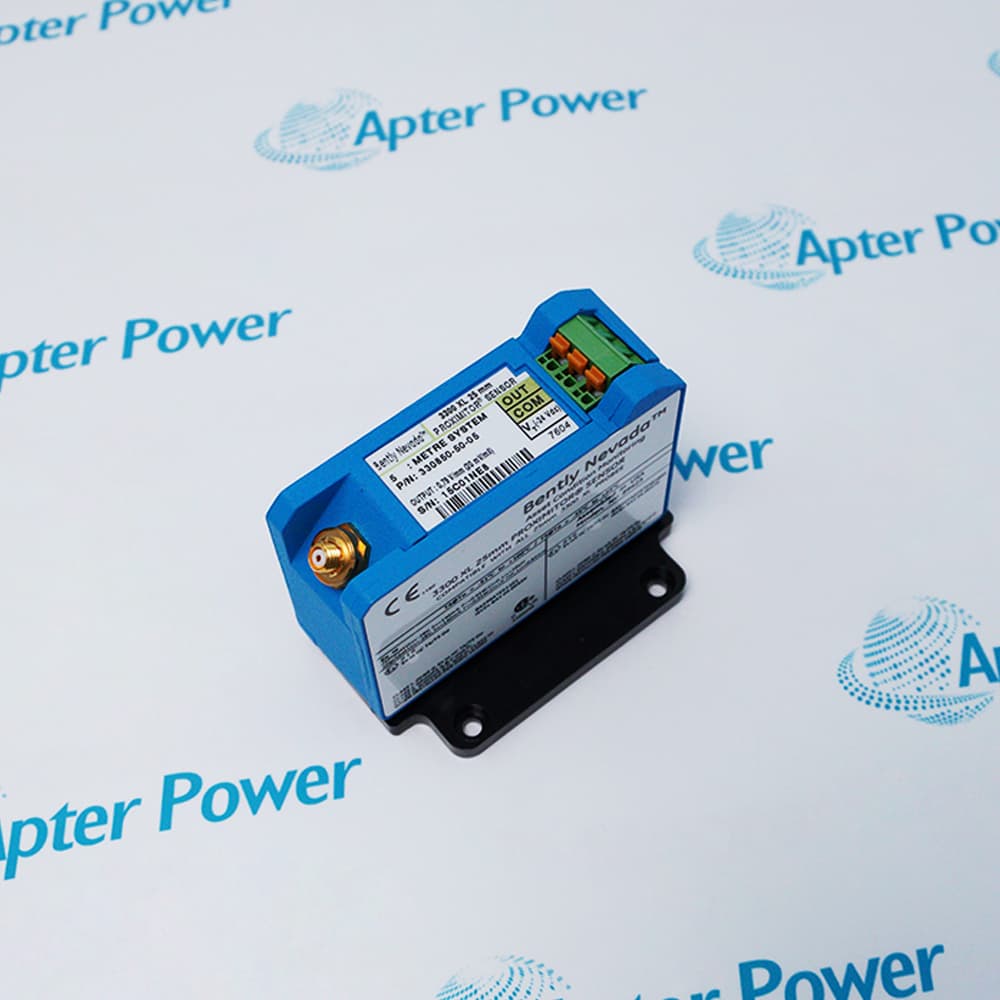

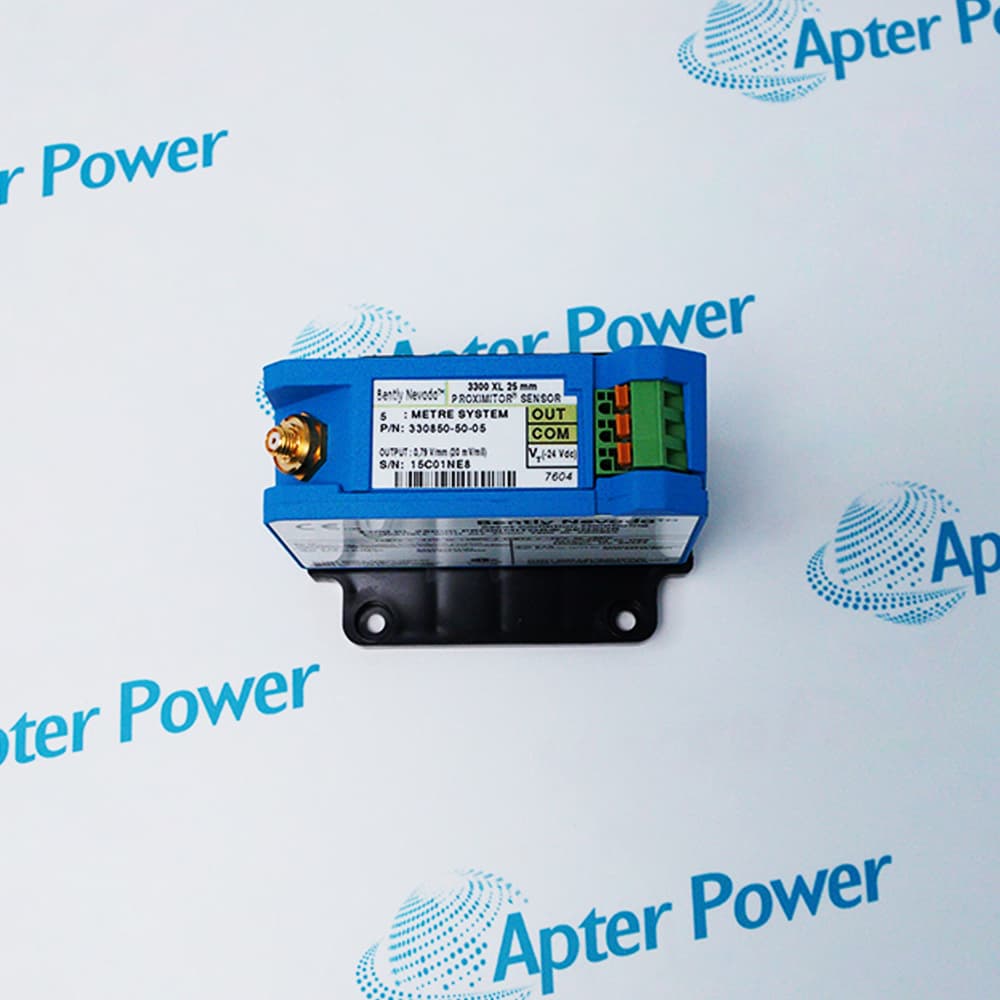

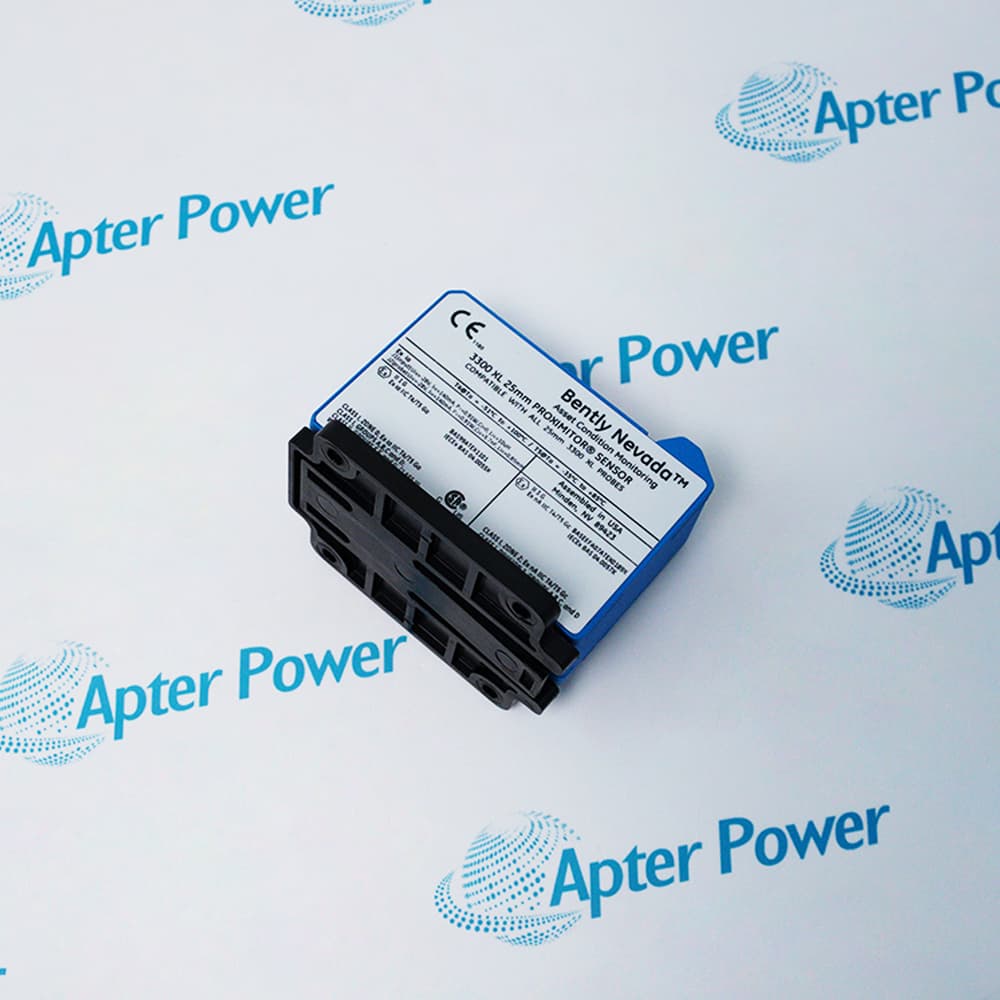

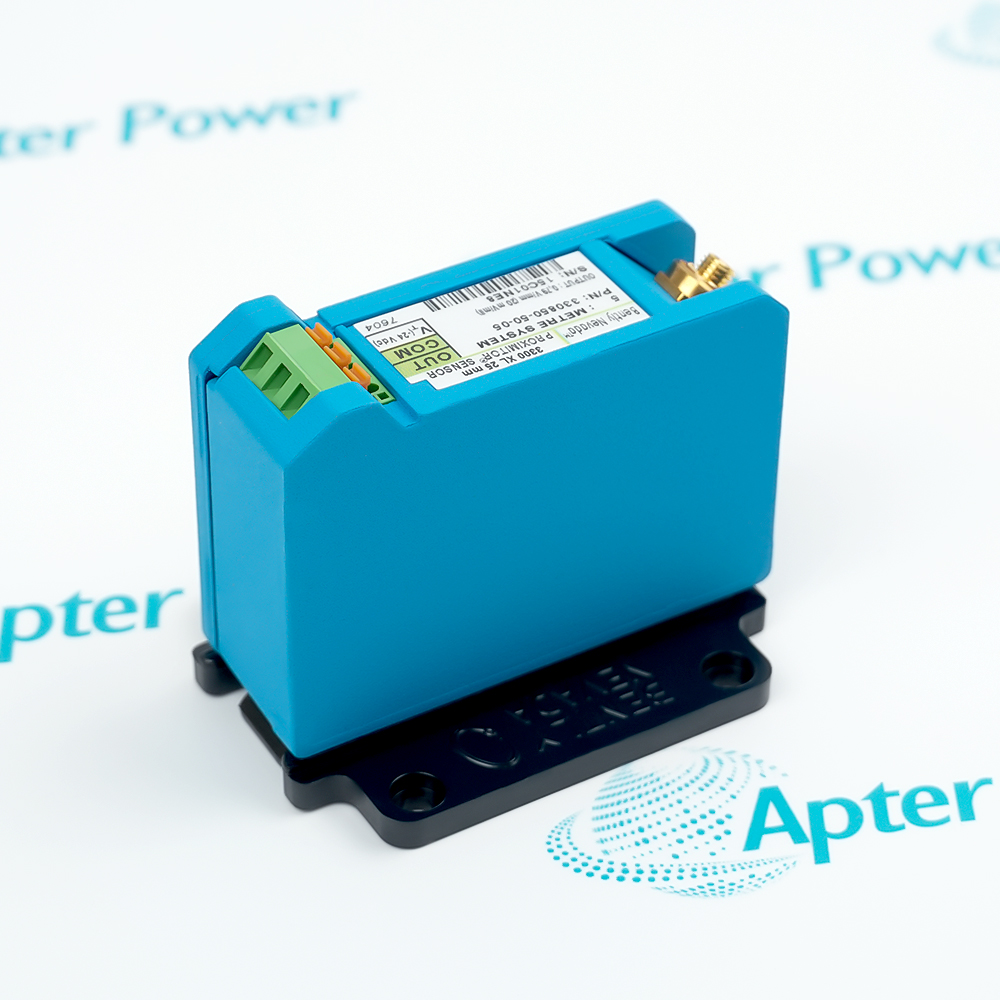

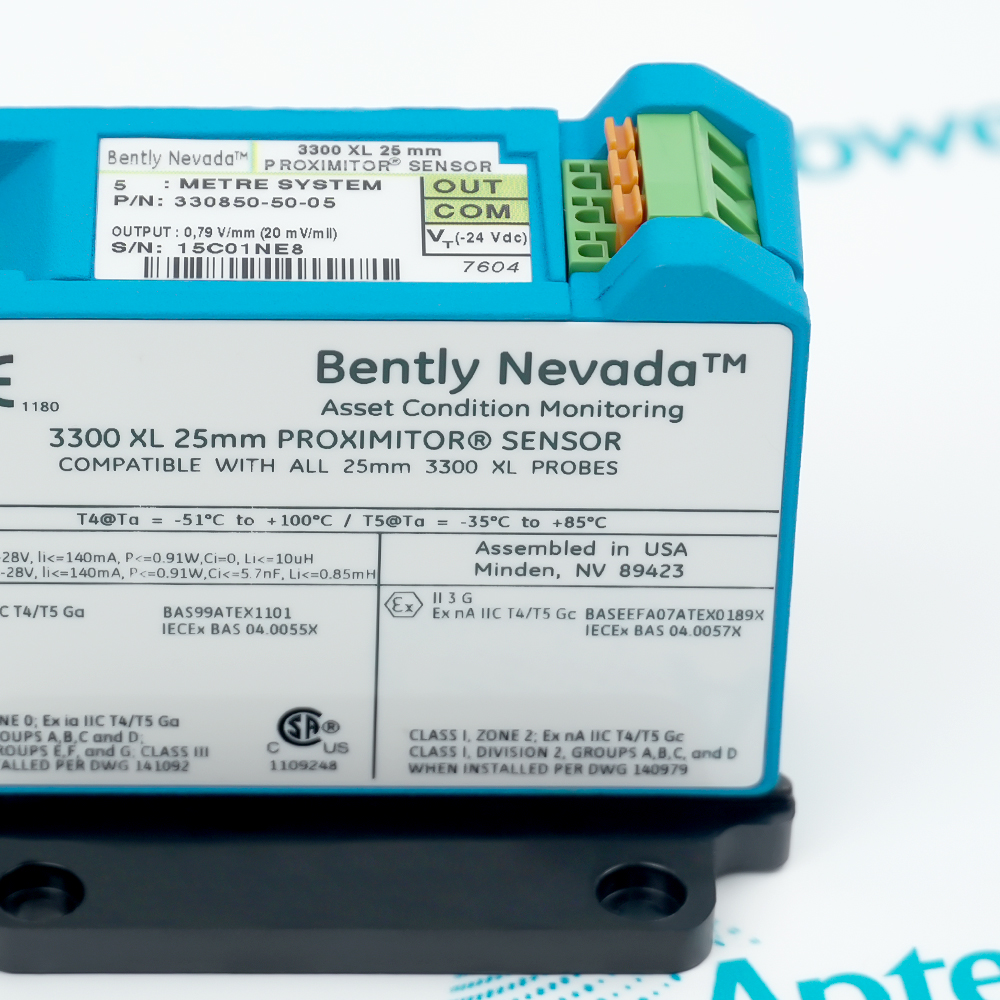

The Bently Nevada 330850-50-05 3300 XL 25 mm Proximitor Sensor incorporates advanced features similar to the previous models in the 3300 XL Proximitor Sensor series. Its slim design allows easy mounting in both high-density DIN-rail installations and traditional panel mount configurations.
The 3300 XL 25 mm Proximitor Sensor features a compact, thin design that supports both high-density DIN-rail mounting and traditional panel installation. This flexible structure allows easy integration into industrial monitoring systems while maintaining reliable signal processing and stable performance.
The sensor also offers improved RFI and EMI immunity, enabling compliance with European CE requirements without special mounting considerations. SpringLoc terminal strips allow quick, secure field wiring without the need for special installation tools.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330850-50-05 Proximity Sensor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.
With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!
Power Generation Industry
Measures the relative thermal growth discrepancy between the steam turbine rotor and casing during startup and shutdown to prevent catastrophic rubs.
Oil & Gas Industry
Detects sudden shaft shifts or heavy vibrations in high-pressure process gas compressors to trigger emergency trip systems.
Chemical & Heavy Processing Industries
Functions as a critical input for critical safety interlock systems by continuously reporting rotor axial position in aggressive chemical areas.
Metallurgy & Mining Industries
Monitors the vast rotor displacement in steel plant air-supply blowers to handle high temperature and high volume air stress.
Marine, Water & General Heavy Machinery
Tracks propeller shaft thrust position changes caused by maritime hull flexing and varying marine propulsion thrusts. Monitors the relative positioning of low-speed high-torque shafts to protect internal gear meshes from uneven loading.
Alternative Names
330850-50-00
330850-50-CN
330850-50-BR
330850-50-RU
330850 50 05
330850-50-O5
330850-5O-05
33085O-50-05
33O850-50-05
330850-5O-O5
33085O-50-O5
33O850-50-O5
33085O-5O-05
33O850-5O-05
33O85O-50-05
33O85O-5O-O5
Technical notes
330850-50-05 is a Bently Nevada 3300 XL 25 mm Proximitor Sensor that supports a 5.0-meter total system length with panel mounting. It features multiple global hazardous area certifications and exceptional EMI immunity. Seamlessly backward compatible with legacy systems, this model serves as an industry-standard hardware solution to safeguard critical rotating machinery.
FAQ View All FAQ
-
What is the function of the 330850-50-05?It serves as a proximity transducer to measure the distance between the sensor and a target object (e.g., turbine shaft) to monitor machinery vibration and position.
-
What is the 330850-50-05？It signifies a 5.0-meter (16.4 feet) system length, usually including agency approval options.
-
What are the typical applications for the 330850-50-05 model?It is ideal for monitoring Differential Expansion (DE) in large steam turbine generators, compression systems, and speed measurements.
-
Can the 330850-50-05 replace older models?Yes, the 3300 XL 25 mm series is designed for backwards compatibility with previous 3300 XL transducer system components. However, for optimal performance when upgrading, it is advised to replace the entire system (probe, extension cable, and Proximitor).
-
What are the 330850-50-05 key features?Features include an extended temperature range, high-density DIN-rail or panel mounting options, and improved RFI/EMI immunity for CE marking approval.
