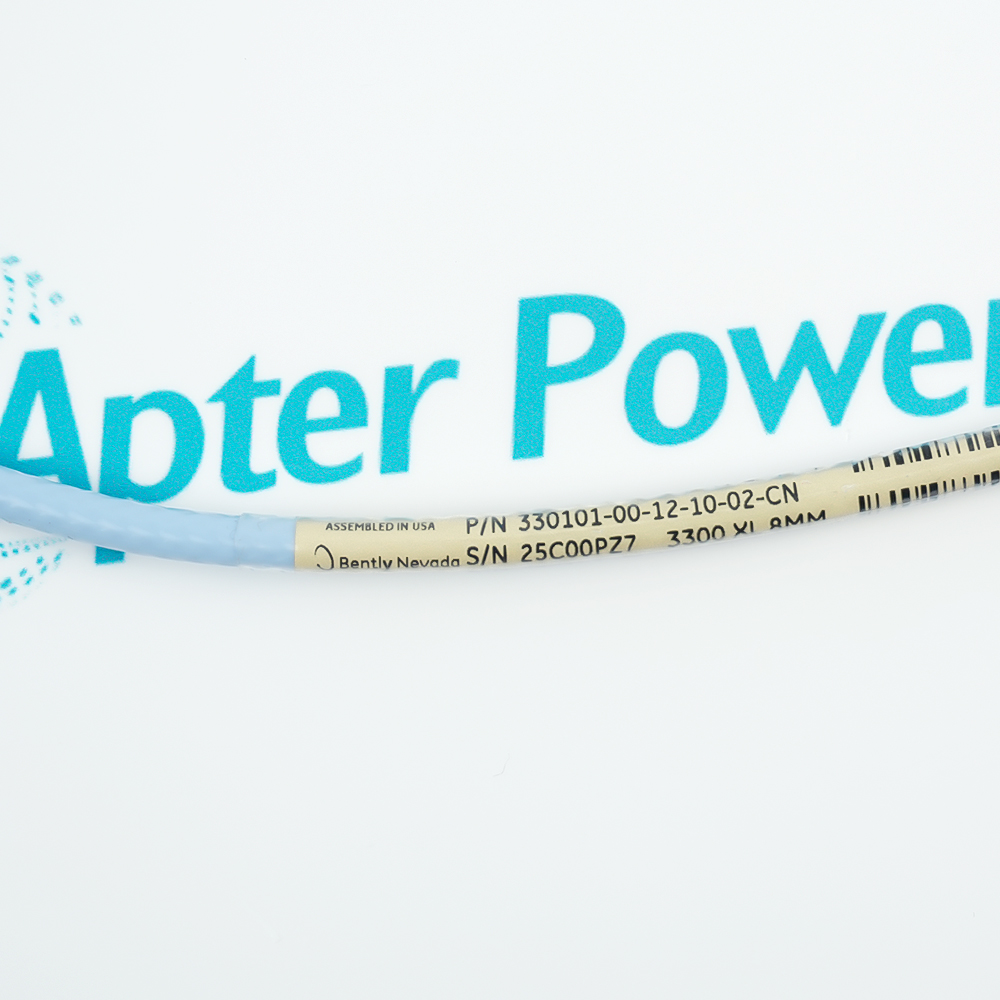

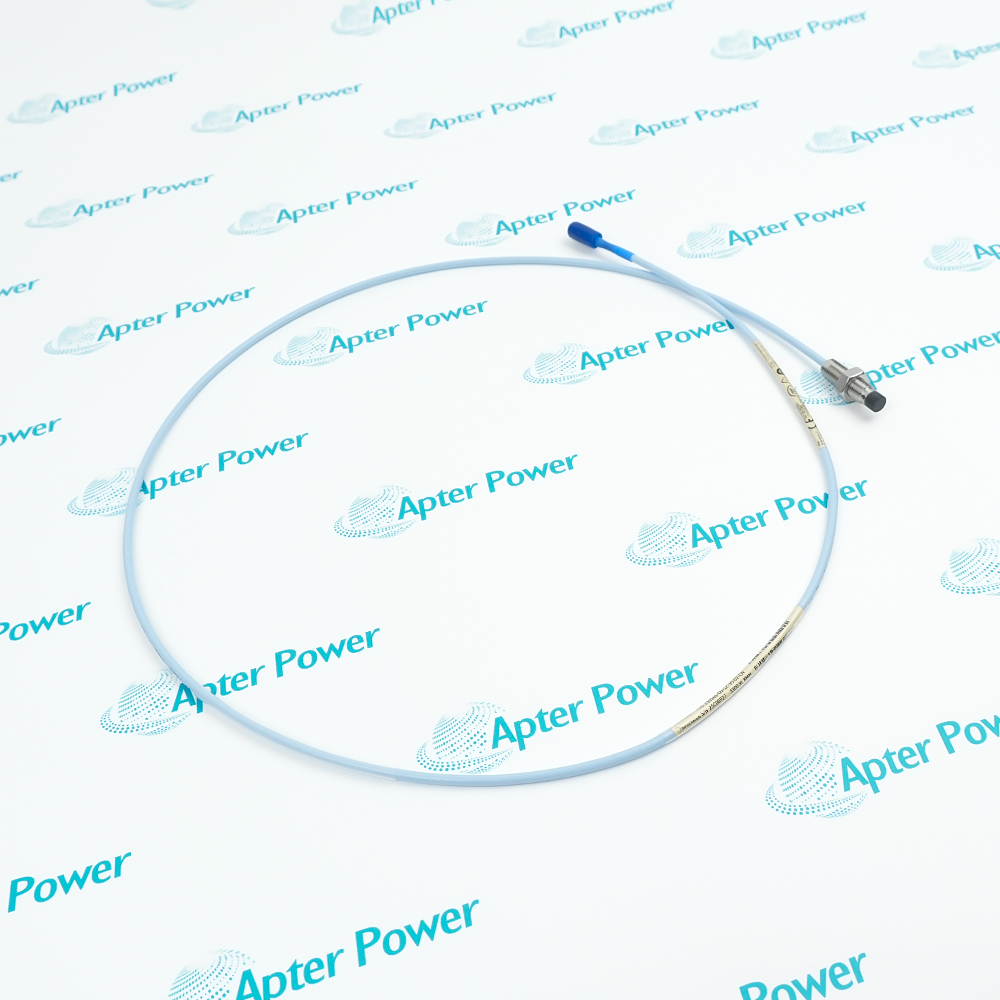

The 330101-00-12-10-02-CN is a premium non-contact eddy current proximity probe belonging to the industry-standard 3300 XL 8mm series. Acting as the critical front-end sensory component for heavy industrial rotating machinery, it converts physical clearance variations into highly accurate voltage signals.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330101-00-12-10-02-CN Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power
Installed near fluid-film bearings of steam turbine-generator sets to monitor radial shaft vibration and axial displacement in real time, preventing rotor-to-stator rubs.
Petrochemical Refining Industry
Monitoring transient shaft vibration of large cracking gas compressor trains and high-pressure hydrogenation pumps to prevent catastrophic mechanical failures.
Nuclear Power Engineering
Installed on critical bearings of nuclear island main feedwater pumps and million-kilowatt conventional island steam turbines for highly reliable Keyphasor and speed acquisition.
Metallurgy & Iron and Steel Industry
Conducting around-the-clock monitoring of dynamic balance and rotor thermal expansion displacement on blast furnace blower trains and high-pressure oxygen compressor units to prevent bearing burnout.
Hydroelectric Power Generation Industry
Deployed on upper/lower guide bearings and thrust bearings of large hydro-generator units to monitor the runout (radial oscillation) of the main turbine shaft.
Papermaking & Pulping Industry
Implementing precise shaft mechanical vibration and rotational speed tracking at high-pressure press rolls and dryer section bearings of large high-speed paper machines.
When using the 330101-00-12-10-02-CN probe, strictly adhere to the mounting specifications (3/8-24 UNF thread, 1.2-inch case length, and 0 unthreaded length), avoid twisting the 1.0-meter cable, and keep the protective caps on the ClickLoc™ connector until mating to prevent contamination.
While it supports complete interchangeability without bench calibration, you must match it with an extension cable and Proximitor sensor of the same total system length (e.g., 5m or 9m), and ensure installation complies with Chinese NEPSI hazardous area standards.
The 330101-00-12-10-02-CN probe features a 3/8-24 thread, a 1.2-inch unthreaded length, a 1.0-meter cable with a ClickLoc™ connector, and complies with Chinese NEPSI certification standards. By converting physical clearance into a voltage signal, it serves as a critical front-end component for rotating machinery safety monitoring.
Which systems is the 330101-00-12-10-02-CN compatible with?
It is fully compatible with Bently Nevada 3300 XL proximitor systems and 3500 machinery monitoring systems.
Is the 330101-00-12-10-02-CN suitable for industrial environments?
Yes, it features wide operating temperature, high vibration resistance, and oil-resistant non-armored cable for rotating machinery monitoring.
How does the 330101-00-12-10-02-CN differ from other 3300 XL probes?
It differs in 0 mm unthreaded length, 120 mm case length, 1.0 m non-armored cable, 3/8-24 UNF mounting thread, and CN certification compared to other 3300 XL 8 mm probe variants.
What is the material and environmental rating of the 330101-00-12-10-02-CN?
It uses stainless steel body, PPS probe tip, Viton seals, and offers IP66 housing protection with IP67 protection when properly connected.
What are the basic specifications of the 330101-00-12-10-02-CN 3300 XL 8 mm Proximity Probe?
It is an 8 mm eddy-current proximity probe with 0 mm unthreaded length, 120 mm case length, 1.0 m non-armored cable, standard ClickLoc connector, and CN regional certifications.
