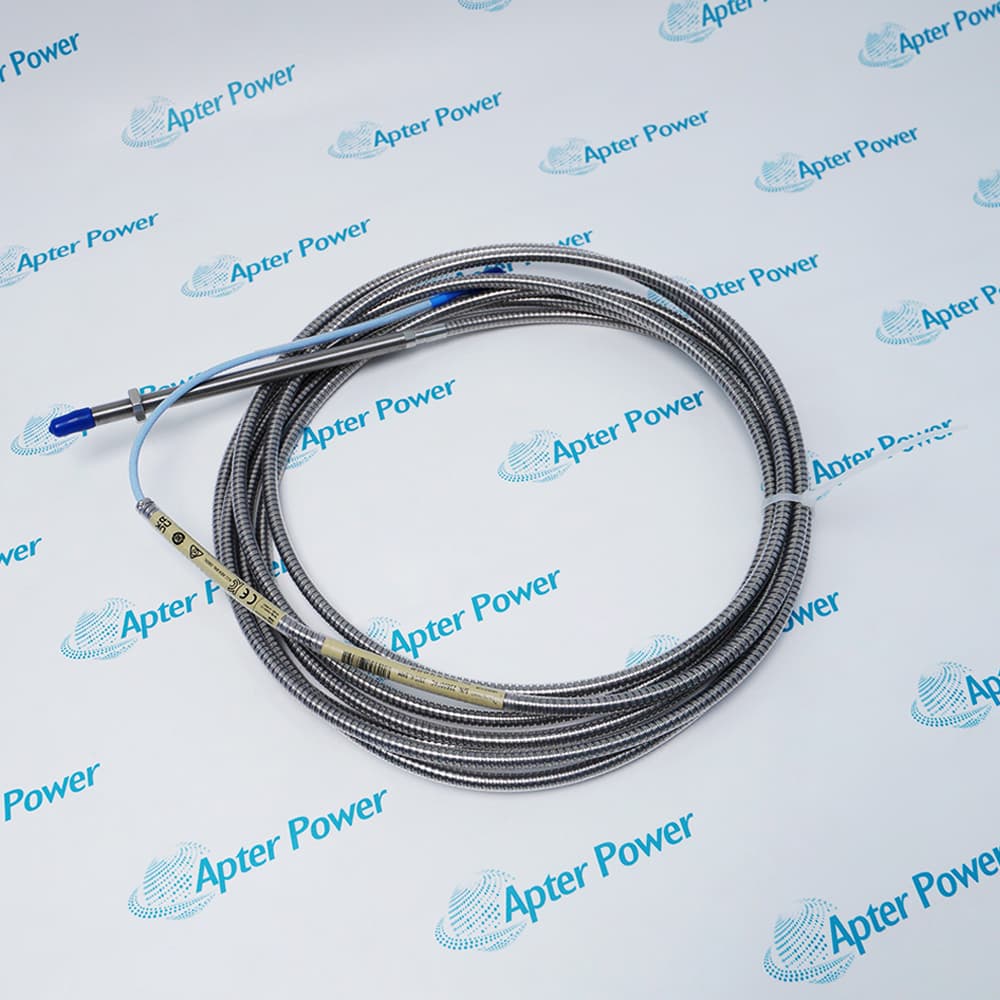

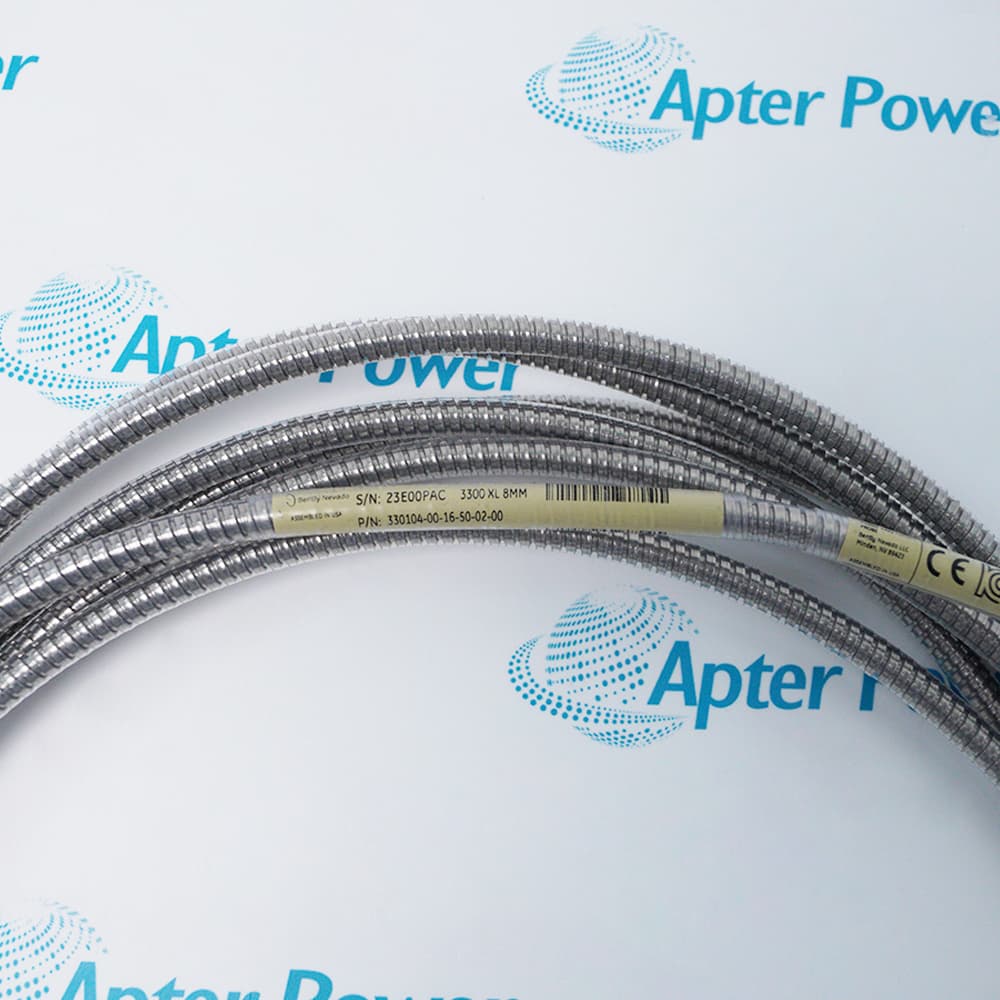

The 330104-00-16-50-02-00 is a 3300 XL 8 mm eddy current proximity probe manufactured by Bently Nevada, a Baker Hughes business. As an industry standard in industrial condition monitoring, this probe is dedicated to asset protection for fluid-film bearing machines, including steam turbines, compressors, generators, large water pumps, and fans.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330104-00-16-50-02-00 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Water Conservancy
Installed on high-power centrifugal pumps in long-distance water diversion pumping stations. It penetrates the pump body using its 160 mm long case. It monitors impeller shaft radial vibration and fluid-film bearing wear in real time. This effectively prevents rubs between the impeller and the pump casing.
Hydroelectric Power
Applied to the upper and lower guide bearings of conventional hydro-generator units. It routes signals directly outside the unit casing using its 5.0-meter long cable. It accurately captures unit shaft swing real-time speed and the once-per-turn Keyphasor reference pulse.
Iron and Steel Metallurgy
Monitors the main shaft condition of core centrifugal blowers in blast furnaces. Since the site is filled with high-intensity dust and oil. The stainless steel flexible armor provides heavy-duty mechanical protection for the internal cable. It measures dynamic shaft runout under high-speed operation in real time.
Machinery Manufacturing
Used in dynamic balancing test rigs for large heavy-duty rotating machinery. During the testing of high-speed rotating shafts. The probe converts tiny shaft runout into voltage signals via its excellent linearity. It helps technicians accurately plot and analyze real-time shaft orbits on monitors.
Automotive Manufacturing
Monitors large centralized screw air compressor units in the power workshops of automotive production lines. It can also monitor large central air conditioning centrifugal chillers within factories. By measuring shaft radial vibration. It transmits real-time vibration data to plant monitoring systems via Proximitor sensors.
Users must strictly adhere to critical guidelines when utilizing the 330104-00-16-50-02-00 probe. Secure the probe using locknuts during installation. Apply the exact specified installation torque to prevent overtightening and potential tip damage. Since the overall case length reaches 160 mm. Ensure the probe accurately faces the shaft surface when penetrating thick bearing housings.
Meticulously adjust the gap voltage to ensure operation remains within the 2.0 mm linear range. This initial gap voltage is typically adjusted to around -10 Vdc. Since the probe comes with an integrated 5.0-meter long cable. Maintain a cable bend radius greater than 25.4 mm during routing. Keep the ClickLoc coaxial connector at the end clean and dry. Because this model comes without a connector protector. It is strictly forbidden to expose the connector to oil or moisture. Avoid any cutting or splicing of the original cable. The probe tip possesses excellent hot oil resistance. However it must never be utilized as a pressure seal for vessels.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. It can reliably measure both static (position) and dynamic (vibration) values. Securely mounted via its 160 mm fully-threaded case, the probe features an integrated 5.0-meter long cable designed to connect directly to the Proximitor sensor without an intermediate extension cable. This setup delivers a standard scale factor of 7.87 V/mm within a 2.0 mm linear range. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
It is an eddy current proximity sensor probe from the Bently Nevada 3300 XL 8mm series, used for non-contact mechanical displacement and vibration measurement.
Is 330104-00-16-50-02-00 a Reverse Mount Probe?
No. 330104 is a standard armored probe with standard forward male threads. The base model for a Reverse Mount Probe is typically 330105.
How to properly install and use products like 330104-00-16-50-02-00?
Thread it into a mounting bracket on the machine's bearing housing using its M10x1 thread, face the tip toward the shaft surface, and secure it with locknuts.
Does 330104-00-16-50-02-00 have armor protection?
Yes. This base model comes with stainless steel flexible armor to protect the internal miniature coaxial cable from crushing and mechanical wear.
What is the operating measurement principle of 330104-00-16-50-02-00?
It operates on the eddy current principle. A high-frequency coil inside the probe generates an alternating magnetic field that induces eddy currents in the metallic surface, measuring the gap based on impedance changes.
