The 330730-080-03-05 belongs to the 3300 XL 11 mm proximity transducer system and features gold-plated brass ClickLoc™ connectors that lock into place to prevent the connection from becoming loose. This model includes the connector protector option, which provides additional sealing and protection in humid or moist environments.
Axial (thrust) position measurements
Tachometer and zero speed measurements
Rod position or rod drop measurements on reciprocating compressors
The 330730-080-03-05 as a signal transmission link for non-contacting vibration and displacement measurement systems, this cable module is used in conjunction with an 11 mm probe and a Proximitor sensor, allowing the system output to provide a linear scale factor of 3.94 V/mm (100 mV/mil). It is utilized for measuring axial (thrust) position, radial vibration, and tachometer speed on fluid-film bearing machines, as well as rod position or rod drop on reciprocating compressors.
In terms of system replacement and configuration, the 3300 XL 11 mm transducer system is designed to replace the legacy 7200-series 11 mm and 14 mm transducer systems. Due to electrical parameter incompatibilities, when upgrading from a 7200-series system to a 3300 XL 11 mm system, the original probe, extension cable, and Proximitor sensor must be completely replaced with the corresponding 3300 XL 11 mm components, and the configuration software of the monitoring system must be updated. If used within a 3500 monitoring system, the configuration software must be a version that supports the 3300 XL 11 mm transducer option. If used with an existing legacy 3300 monitoring system, a hardware modification is required to match the system impedance.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330730-080-03-05 Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation Industry
Transmitting differential expansion (DE) and axial thrust position signals from large steam turbines in thermal power plants.
Hydroelectric Power Industry
Relaying low-frequency radial vibration and shaft runout data from massive vertical water turbine-generator units.
Petrochemical Industry
Delivering continuous axial position data from large-scale ethylene compressors to protect against catastrophic thrust bearing wear.
Iron & Steel Metallurgy Industry
Routing vibration signals from blast furnace axial blowers where the stainless steel armor protects the cable from slag and mechanical impacts.
Air Separation Industry
Carrying critical displacement data from high-power main air compressors used in large oxygen generation plants.
Pulp & Paper Manufacturing Industry
Monitoring large differential expansions on high-speed steam-heated drying cylinders and vacuum exhaust blowers.
When using the 330730-080-03-05 extension cable, this 8-meter cable pairs with a 1.0-meter 11mm probe to complete a 9-meter total system length. During installation, maintain a bend radius greater than 25.4 mm, lock the ClickLoc connectors, and adhere to intrinsic safety wiring standards in hazardous areas.
The 330730-080-03-05 internally utilizes a high-quality 75-ohm triaxial cable paired with fluorinated ethylene propylene (FEP) insulation, delivering excellent electrical insulation performance and an extremely low signal attenuation rate.

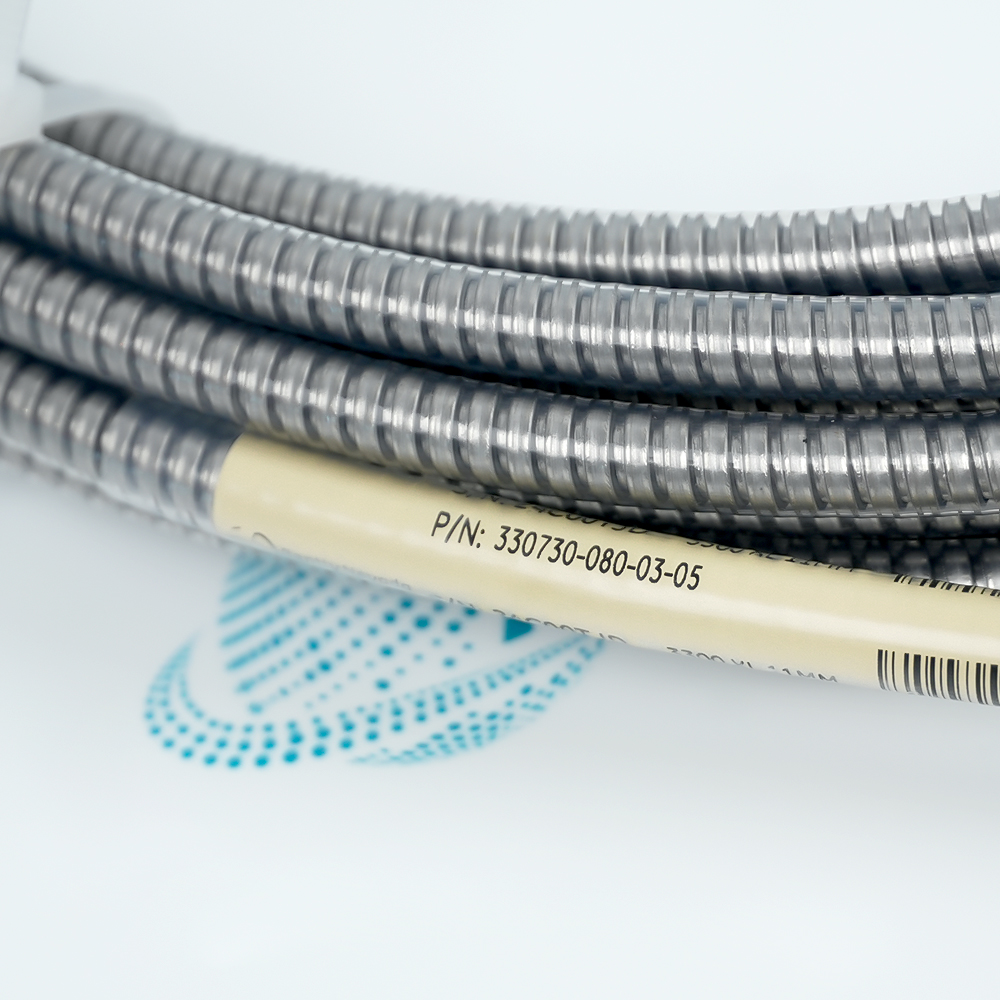

It is an armored extension cable for the Bently Nevada 3300 XL 11mm proximity transducer system.
What is the primary use of the 330730-080-03-05?
It serves as a bridge connecting the 11mm probe to the proximitor sensor for signal transmission.
What is the cable length of the 330730-080-03-05?
The option -080 represents a cable length of 8.0 meters.
What physical protection does the 330730-080-03-05 feature?
The option -03 indicates it includes a stainless steel armor and a connector protector.
