The 330930-045-01-05 is an extension cable belonging to the 3300 XL NSv Proximity Transducer System, which includes a 4.5-meter 75-ohm coaxial cable, a stainless steel armor, and the multiple approvals option. It connects the 3300 NSv probe to the proximitor sensor, used together in rotating machinery with space limitations, such as compressors, to transmit radial vibration, axial position, and tachometer signals.
Axial (thrust) position measurements
Phase reference (Keyphasor signals)
Tachometer and zero speed measurements
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer System must replace the probe, extension cable, and Proximitor Sensor with NSv components.
The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side view and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330930-045-01-05 Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Air Separation Industry
Transmitting radial vibration signals from high-speed centrifugal air compressors to monitor impeller stability.
Oil & Gas Refining Industry
Relaying axial position signals on process gas compressors within cramped fluid-filmed bearing housings to prevent thrust bearing failure.
Petrochemical Manufacturing Industry
Monitoring the zero-speed and tachometer metrics of ethylene compressors where narrow side-views restrict standard-sized sensors.
Chemical Fertilizer Production Industry
Tracking radial position on the small shafts (under 51 mm) of ammonia synthesis gas compressors.
Pharmaceutical Processing Industry
Monitoring thrust bearing clearances on compact centrifuges that have very limited flat targets (under 15 mm).
Mining & Mineral Processing Industry
Connecting proximity sensors on high-power ventilation fans where stainless steel armor safeguards against rodent chewing and debris impact.
Ensure total length matching (4.5m cable + 0.5m probe), protect ClickLoc connectors from contamination, and adhere strictly to intrinsic safety standards in hazardous areas.

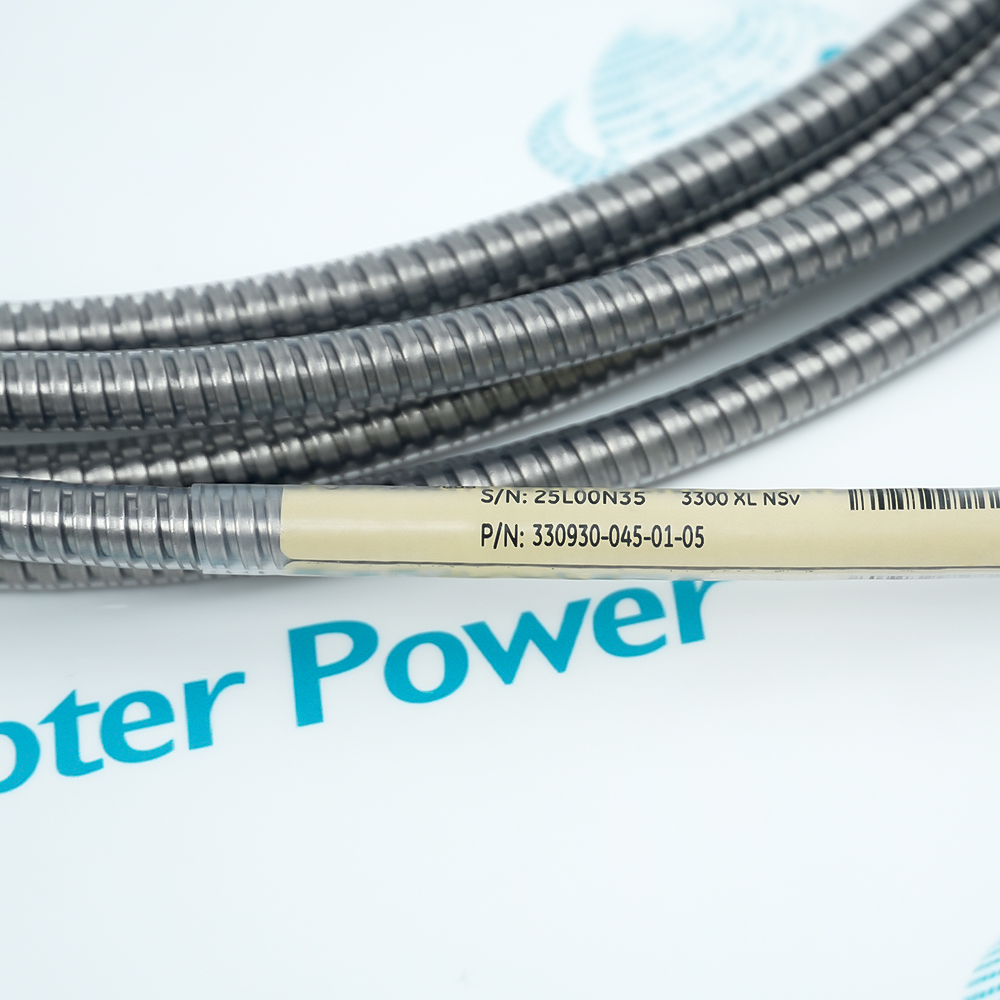

The 330930-045-01-05 is wrapped externally with a flexible AISI 302/304 stainless steel armor conduit, which effectively resists mechanical scratching, abrasion, crushing, and rodent damage in industrial fields, making it suitable for extremely harsh industrial wiring environments.
It is a 4.5-meter armored extension cable for the Bently Nevada 3300 XL NSv system.
How to use 330930-045-01-05?
Connect the 3300 NSv probe cable to the Proximitor.
What is the purpose of 330930-045-01-05?
Used to transmit shaft vibration or displacement signals of rotating machinery.
What does -045 mean in the model?
It indicates the cable length is 4.5 meters.
