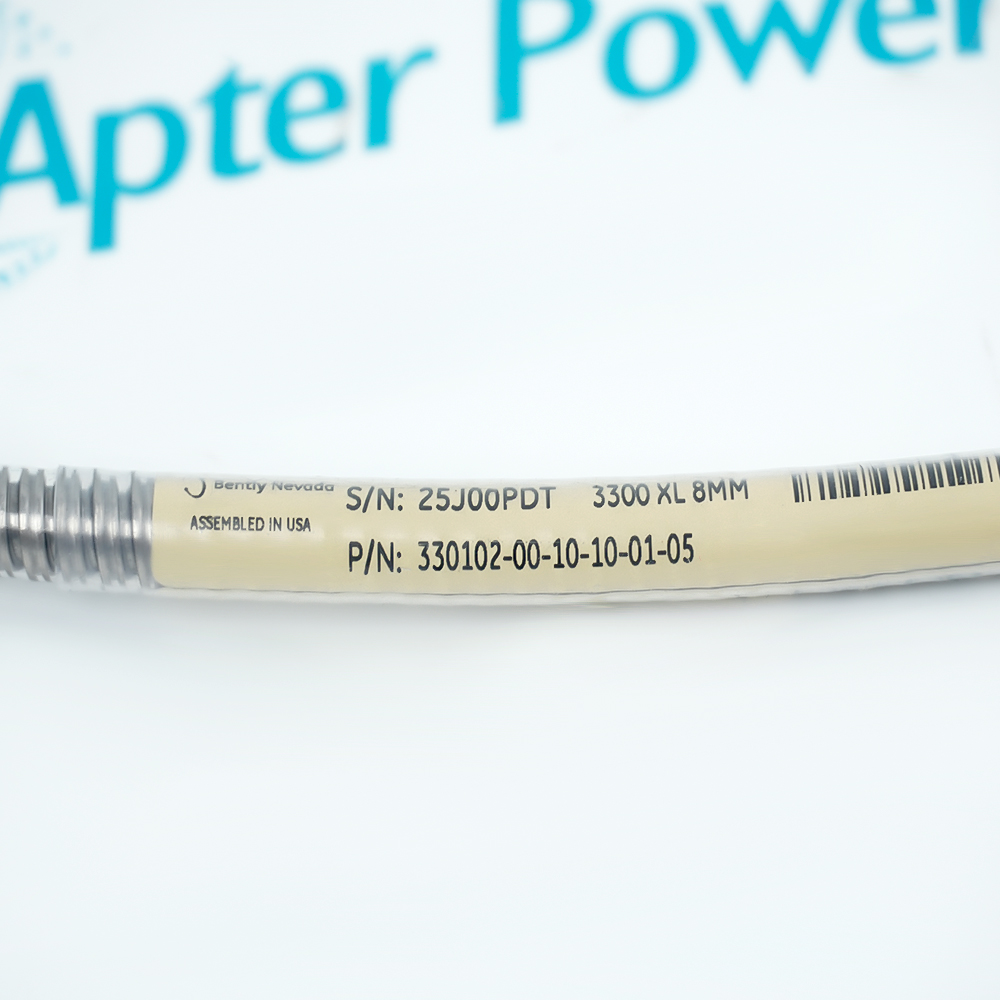

The 330102-00-10-10-01-05 is a specific part number for a Bently Nevada 3300 XL 8 mm Proximity Probe manufactured by Baker Hughes. These eddy current proximity sensors measure both static position and dynamic vibration on fluid-film bearing machines.
One 3300 XL 8 mm probe (this component)
One 3300 XL extension cable (4.0-meter required for a 5-meter system)
One 3300 XL Proximitor Sensor
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330102-00-10-10-01-05 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Monitoring critical driving and pumping equipment on offshore drilling platforms and long-distance gas transmission pipelines.
Petrochemical
Ensuring the continuous and safe operation of core cracking and hydrogenation units in highly corrosive and explosive hazardous environments.
Thermal Power
Monitoring the shaft train conditions of subcritical, supercritical, and ultra-supercritical large generator units to prevent critical degradation that could cause grid trips.
Nuclear Power
Implementing main equipment monitoring within the conventional islands and auxiliary systems of nuclear power plants, where high safety integrity levels and strict certifications are mandatory.
Hydroelectric Power
Deployed on the water guide bearings and upper guide bearings of large Hydro Turbines to measure shaft centerline runout and swing under low-speed operation, preventing hydraulic unbalance from damaging the unit.
Mining & Coal Industry
Monitoring heavy-duty, low-speed equipment subjected to intense physical impacts during ore and mineral processing.
When using the 330102-00-10-10-01-05 probe, several critical rules must be followed. Avoid kinking or twisting the stainless steel armor during handling. Always monitor the voltage with a multimeter during installation. This ensures the mechanical installation gap is precisely centered within the linear range. This optimum gap is typically 1.27 mm, which corresponds to a -10 Vdc mid-point voltage.
During operation, keep the gold-plated ClickLoc connector absolutely clean and oil-free. Since the probe itself is 1 meter long, it must be paired with a 4-meter extension cable and a 3300 XL Proximitor. This is necessary to form a standard 5-meter total length system. Mixing this probe with components from other total length configurations is strictly prohibited.
The 330102-00-10-10-01-05 corresponds to a specific configuration of the Bently Nevada 3300 XL 8 mm Proximity Probe, engineered as an armored configuration with a 3/8-24 UNF fully threaded housing (1.0 inch in case length) and a 1.0-meter standard cable. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. Enclosed in a flexible stainless steel armor, this durable probe is built to withstand severe fluid, oil, and mechanical environments in heavy industrial fields.
330102-00-10-10-01-05 is a 3300 XL 8 mm Proximity Probe manufactured by Bently Nevada.
What is 330102-00-10-10-01-05 primarily used to monitor in factories?
It is widely used for fluid-film bearing machinery monitoring, such as steam turbines, compressors, and large pumps, to measure dynamic radial shaft vibration, static axial position (thrust), and speed/Keyphasor references.
Why is 330102-00-10-10-01-05 configured with flexible stainless steel armor?
The armor provides heavy-duty mechanical protection, preventing the internal cable from being cut, abraded, or crushed in harsh industrial environments with oil, debris, and sharp edges.
What additional hardware must be purchased to make 330102-00-10-10-01-05 operational?
It cannot work standalone. It must be paired with a 3300 XL extension cable (a 4-meter cable for a 5-meter system or an 8-meter cable for a 9-meter system, since the probe is 1 meter) and a 3300 XL Proximitor Sensor.
Is 330102-00-10-10-01-05 interchangeable with older non-XL Bently Nevada components?
Yes, it features full backward compatibility and is completely interchangeable with non-XL 3300 series 5 mm and 8 mm transducer components without requiring individual bench calibration.
