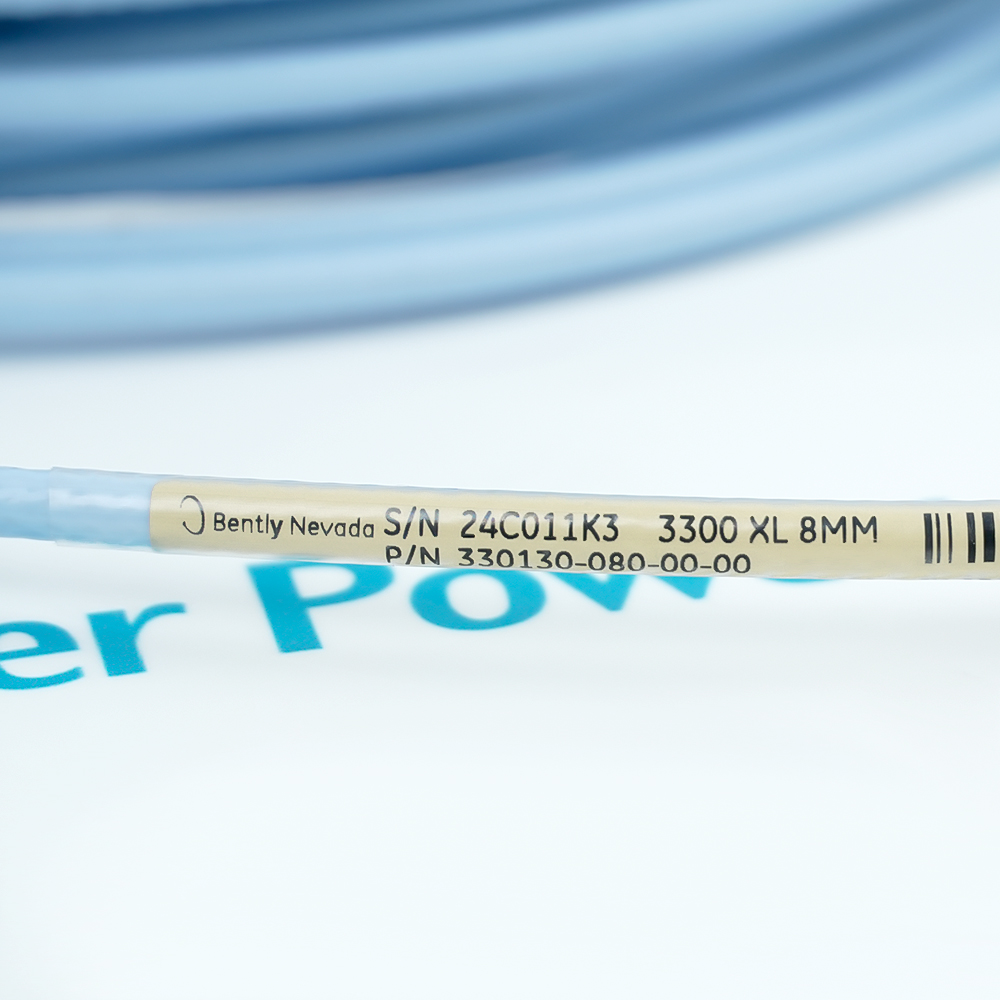

The 330130-080-00-00 is a standard extension cable for the Bentley 3300 XL series. This product is an important component of the Bentley 3300 XL 8mm eddy current sensor system, commonly used for machine monitoring in industrial applications.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330130-080-00-00 3300 XL Standard Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Plants
Monitoring axial displacement of large steam turbine generator sets to prevent rotor-to-stator contact.
Petroleum Refining
Monitoring radial vibration of high-speed centrifugal compressors to identify imbalance or misalignment.
Steel & Metallurgy
Monitoring shaft vibration of blast furnace blowers to prevent unexpected shutdowns of critical power equipment.
Chemical Industry
Monitoring the axial runout of large reactor agitators to prevent seal damage.
Pulp & Paper
Monitoring internal clearance changes in large rolling element bearings of paper machine dryers.
Cement Industry
Monitoring bearing vibration of high-temperature exhaust fans to prevent severe shaking caused by dust-induced imbalance.
When using the 330130-080-00-00 extension cable, ensure the connectors are tightened via the ClickLoc™ mechanism and kept absolutely clean and dry. Strictly refrain from cutting the cable or excessive bending (maintain a radius above 25.4mm) to prevent impedance changes affecting accuracy. Additionally, it is recommended to apply heat-shrink tubing at connections and route the cable away from high-voltage lines to ensure signal stability and noise immunity.
It is a 3300 XL standard extension cable used to connect proximity probes and Proximitor sensors.
How to use 330130-080-00-00?
It is connected between a probe and a Proximitor sensor for long-distance transmission of high-frequency eddy current signals.
Does 330130-080-00-00 include armor?
No. The suffix "00-00" indicates it is a standard cable without stainless steel armor.
Is 330130-080-00-00 interchangeable?
Yes, it offers full electrical interchangeability, requiring no re-calibration when replacing the cable.
What is the bend radius for 330130-080-00-00?
The minimum bend radius is 25.4 mm (1.0 inch).
