      Bently Nevada 330104-00-05-10-02-CN
      Bently Nevada 330104-00-05-10-02-CN
      Bently Nevada 330104-00-05-10-02-CN
      Bently Nevada 330104-00-05-10-02-CN
      Bently Nevada 330104-00-05-10-02-CN
      Bently Nevada 330104-00-05-10-02-CN

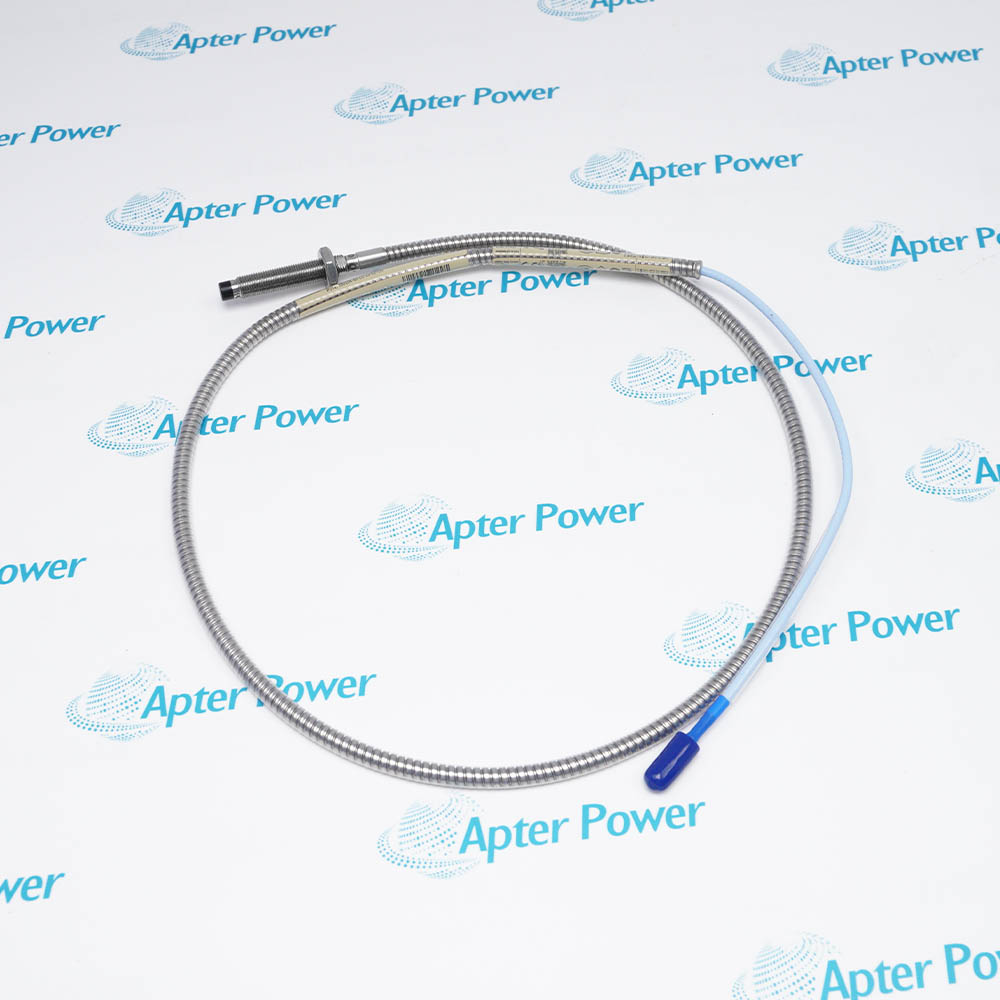

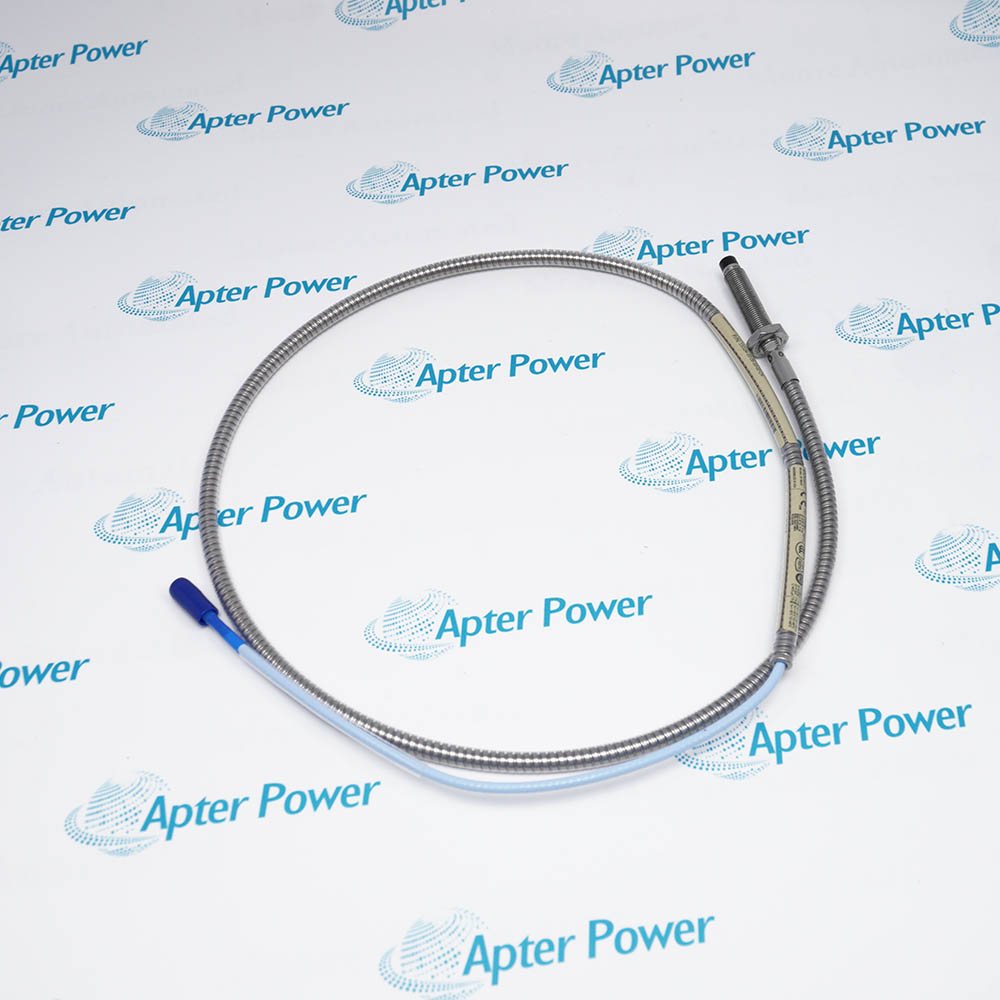

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330104-00-05-10-02-CN

      Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330104-00-05-10-02-CN is a proximity probe for the 3300 XL 8 mm proximity transducer system. It is a armored M10 x 1 3300 XL 8 mm probe with a 50 mm case and 1.0 m integral lead.

      Ask our team:

      Get a quick price for： 330104-00-05-10-02-CN
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330104-00-05-10-02-CN

      Technical specifications for 330104-00-05-10-02-CN

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330104-00-05-10-02-CN
      • Estimated shipping dimensions:
        1.8x1.6x123cm
      • Weight:
        0.14 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Product family:
        3300 XL 8 mm proximity transducer system
      • Probe part family:
        330104
      • Mounting thread:
        M10 x 1
      • Cable armor:
        Armored
      • Unthreaded length:
        0 mm
      • Overall case length:
        50 mm
      • Probe lead length:
        1.0 m
      • Connector and cable option:
        ClickLoc standard cable
      • Approval option:
        CN suffix; current standard table does not decode CN
      • System linear range:
        2.0 mm (80 mils)
      • Scale factor:
        7.87 V/mm (200 mV/mil)
      • Frequency response:
        0 to 10 kHz
      • Nominal gap:
        1.27 mm (50 mils)
      • Ordering-code boundary:
        Treat CN as an exact supplied suffix and verify the installed certification record.
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330104-00-05-10-02-CN is a proximity probe for the 3300 XL 8 mm proximity transducer system. It is a armored M10 x 1 3300 XL 8 mm probe with a 50 mm case and 1.0 m integral lead.
      • Probe part family: 330104
      • Mounting thread: M10 x 1
      • Cable armor: Armored
      • Unthreaded length: 0 mm

      330104-00-05-10-02-CN is documented as a Proximity Probe within the 3300 XL 8 mm proximity transducer system.

      Use the complete model identity and published parameter set for integration, replacement and commissioning.

      Important Notice: Verify 330104-00-05-10-02-CN, the installed extension cable and Proximitor Sensor, target material, system length and gap before replacement. Treat CN as an exact supplied suffix and verify the installed certification record.

      Bently Nevada 330104-00-05-10-02-CN Manuals & Downloads
      Bently Nevada 330104-00-05-10-02-CN Technical Reference (PDF)Bently Nevada 330104-00-05-10-02-CN Installation & Commissioning Guide (PDF)

      The first document presents exact-model technical and engineering data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Exact Proximity Probe replacement
      Preserves the complete 330104-00-05-10-02-CN identity and published configuration.
      Documented system integration
      Uses the official product-family and interface values for the installed system.
      Commissioning verification
      Checks the exact electrical, mechanical and signal parameters before release.
      Maintenance diagnostics
      Supports controlled troubleshooting while retaining the as-found installation record.
      Read the applicable Bently Nevada instructions before work. Verify 330104-00-05-10-02-CN and every installed interface before isolation, wiring or commissioning.
      1
      Confirm the complete 330104-00-05-10-02-CN marking before work.
      2
      Isolate the installed system and document the maintenance state.
      3
      Verify probe part family: 330104.
      4
      Verify mounting thread: M10 x 1.
      5
      Verify cable armor: Armored.
      6
      Verify unthreaded length: 0 mm.
      7
      Protect connectors, wiring and exposed interfaces from damage or contamination.
      8
      Complete a controlled functional test and retain the final acceptance record.

      Technical notes

      Technical notes

      Verify 330104-00-05-10-02-CN, the installed extension cable and Proximitor Sensor, target material, system length and gap before replacement. Treat CN as an exact supplied suffix and verify the installed certification record.

      FAQS

      • How does the 50 mm case affect installation of Bently Nevada 330104-00-05-10-02-CN?
        The probe has a 0 mm unthreaded section and 50 mm overall case, so the mounting depth and locknut position must preserve that shorter mechanical envelope.
      • What cable arrangement is built into Bently Nevada 330104-00-05-10-02-CN?
        It combines a 1.0 m integral armored lead with a ClickLoc standard-cable connection; protect both the armor and coaxial interface during routing.
      • Why must the CN suffix remain with Bently Nevada 330104-00-05-10-02-CN?
        CN is part of the supplied identity and is not decoded as a standard option here. Keep it tied to the nameplate and site certification record.
      • Which components create the measurement chain for Bently Nevada 330104-00-05-10-02-CN?
        Use the probe with the matching 3300 XL 8 mm extension cable and Proximitor Sensor selected for the installed total system length.
      • What gap target should be used for Bently Nevada 330104-00-05-10-02-CN?
        Set approximately 1.27 mm (50 mils) nominal gap on the approved conductive target, then confirm the corresponding stable gap voltage.
      • How should the 2.0 mm range be verified on Bently Nevada 330104-00-05-10-02-CN?
        Move the target through the required operating travel and confirm the response remains linear within the 2.0 mm (80 mil) system range.
      • Which scale check detects a mismatched 330104-00-05-10-02-CN loop?
        A controlled displacement should produce 7.87 V/mm (200 mV/mil); a different slope indicates a pairing, gap, target, or channel-configuration problem.
      • What final checks are needed after fitting Bently Nevada 330104-00-05-10-02-CN?
        Inspect lead routing and ClickLoc engagement, verify the CN identity, then prove gap voltage, direction, scale, and monitor alarms.
